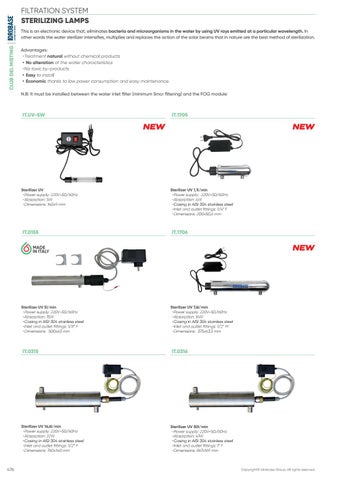

FILTRATION SYSTEM STERILIZING LAMPS
CLUB DEL MISTING
This is an electronic device that, eliminates bacteria and microorganisms in the water by using UV rays emitted at a particular wavelength. In other words the water sterilizer intensifies, multiplies and replaces the action of the solar beams that in nature are the best method of sterilization. Advantages: •Treatment natural without chemical products • No alteration of the water characteristics •No toxic by-products • Easy to install • Economic thanks to low power consumption and easy maintenance. N.B: It must be installed between the water inlet filter (minimum 5mcr filtering) and the FOG module
IT.UV-5W
Sterilizer UV • Power supply: 220V-50/60Hz • Absorption: 5W • Dimensions: 140x9 mm
IT.0155
Sterilizer UV 5l/min • Power supply: 220V-50/60Hz • Absorption: 15W • Casing in AISI 304 stainless steel • Inlet and outlet fittings: 1/8” F • Dimensions: 500x63 mm
IT.0315
Sterilizer UV 16,6l/min • Power supply: 220V-50/60Hz • Absorption: 22W • Casing in AISI 304 stainless steel • Inlet and outlet fittings: 1/2” F • Dimensions: 760x140 mm
476
IT.1705
Sterilizer UV 1,1l/min • Power supply: 220V-50/60Hz • Absorption: 4W • Casing in AISI 304 stainless steel • Inlet and outlet fittings: 1/4” F • Dimensions: 200x50,6 mm
IT.1706
Sterilizer UV 7,6l/min • Power supply: 220V-50/60Hz • Absorption: 16W • Casing in AISI 304 stainless steel • Inlet and outlet fittings: 1/2” M • Dimensions: 375x63,5 mm
IT.0316
Sterilizer UV 50l/min • Power supply: 220V-50/60Hz • Absorption: 41W • Casing in AISI 304 stainless steel • Inlet and outlet fittings: 1” F • Dimensions: 867x169 mm
