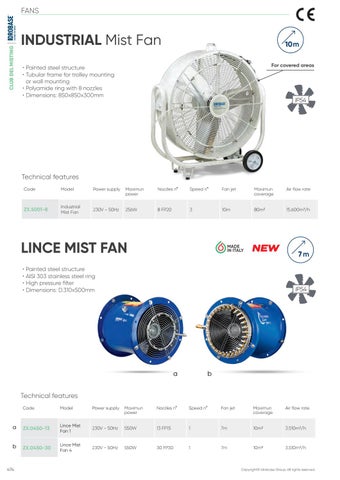

Page 476

CLUB DEL MISTING

FANS

INDUSTRIAL Mist Fan For covered areas

• Painted steel structure • Tubular frame for trolley mounting or wall mounting • Polyamide ring with 8 nozzles • Dimensions: 850x850x300mm

IP54

Technical features Code

Model

Power supply

Maximun power

Nozzles n°

Speed n°

Fan jet

Maximun coverage

Air flow rate

ZX.5001-8

Industrial Mist Fan

230V - 50Hz

256W

8 FP20

3

10m

80m2

15.600m3/h

LINCE MIST FAN • Painted steel structure • AISI 303 stainless steel ring • High pressure filter • Dimensions: D.310x500mm

IP54

a

b

Technical features Code

Model

Power supply

Maximun power

Nozzles n°

Speed n°

Fan jet

Maximun coverage

Air flow rate

a

ZX.0450-13

Lince Mist Fan 1

230V - 50Hz

550W

13 FP15

1

7m

10m2

3.510m3/h

b

ZX.0450-30

Lince Mist Fan 4

230V - 50Hz

550W

30 FP30

1

7m

10m2

3.510m3/h

474
