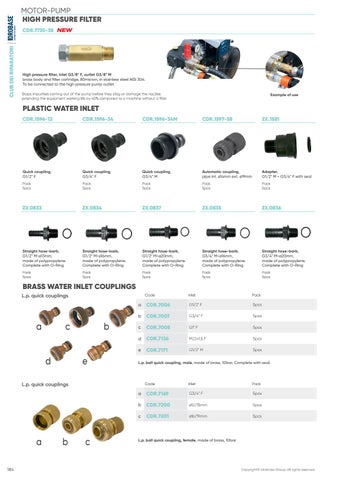

MOTOR-PUMP HIGH PRESSURE FILTER
CLUB DEI RIPARATORI
CDR.7735-38
High pressure filter, inlet G3/8" F, outlet G3/8" M brass body and filter cartridge, 80micron, in stainless steel AISI 304. To be connected to the high pressure pump outlet Stops impurities coming out of the pump before they clog or damage the nozzles extending the equipment working life by 40% compared to a machine without a filter
Example of use
PLASTIC WATER INLET CDR.1596-12
CDR.1596-34
CDR.1596-34M
CDR.1597-58
ZX.1581
Quick coupling, G1/2" F
Quick coupling, G3/4" F
Quick coupling, G3/4" M
Automatic coupling, pipe int. ø14mm ext. ø19mm
Adapter, G1/2" M - G3/4" F with seal
Pack 5pcs
Pack 5pcs
Pack 5pcs
Pack 5pcs
Pack 5pcs
ZX.0833
ZX.0834
ZX.0837
ZX.0835
ZX.0836
Straight hose-barb, G1/2" M-ø13mm, made of polypropylene. Complete with O-Ring
Straight hose-barb, G1/2" M-ø16mm, made of polypropylene. Complete with O-Ring
Straight hose-barb, G1/2" M-ø20mm, made of polypropylene. Complete with O-Ring
Straight hose-barb, G3/4" M-ø16mm, made of polypropylene. Complete with O-Ring
Straight hose-barb, G3/4" M-ø20mm, made of polypropylene. Complete with O-Ring
Pack 5pcs
Pack 5pcs
Pack 5pcs
Pack 5pcs
Pack 5pcs
BRASS WATER INLET COUPLINGS L.p. quick couplings
a
Code
c d
b e
184
b
CDR.7006
G1/2" F
5pcs
b
CDR.7007
G3/4" F
5pcs
c
CDR.7008
G1" F
5pcs
d
CDR.7136
M22x1,5 F
5pcs
e
CDR.7171
G1/2" M
5pcs
L.p. ball quick coupling, male, made of brass, 10bar. Complete with seal.
Code
c
Pack
a
L.p. quick couplings
a
Inlet
Inlet
Pack
a
CDR.7169
G3/4" F
5pcs
b
CDR.7200
ø12/15mm
5pcs
c
CDR.7201
ø16/19mm
5pcs
L.p. ball quick coupling, female, made of brass, 10bar
