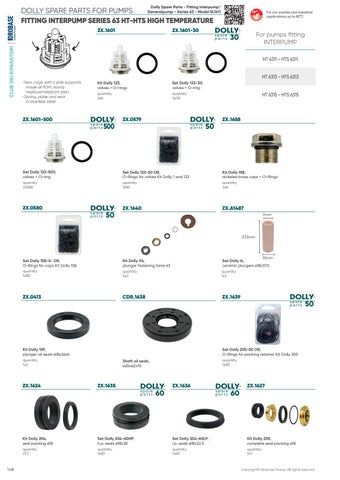

DOLLY SPARE PARTS FOR PUMPS Generalpump - Series 63 - Model EL1411 FITTING INTERPUMP SERIES 63 HT-HTS HIGH TEMPERATURE
CLUB DEI RIPARATORI
ZX.1601
For car washes and industrial applications up to 85°C
ZX.1601-30
For pumps fitting INTERPUMP HT 6311 - HTS 6311 HT 6313 - HTS 6313
• New cage with 6 side supports made of POM, sturdy moisture-resistant resin • Spring, plate and seat MATERIALE / PESO FINITO in stainless steel TRATTAMENTO Quota critica
Id. Nr.
Codice articolo finito
Eseguito
Data
Codice articolo lavorato
Operatore1 07/09/2011
ZX.V123
PARTICOLARE: NOME DEL FILE
ZX.V123.dft
Set Dolly 123-30, valves + O-ring
quantity 2x6
quantity 2x30
RIVESTIMENTO
Controllato
ZX.V123 KIT 123
Tolleranze generali
ISO 2768 mK
Disegno base
DISEGNO Nr. ZX.1601-500
IDROBASE SRL
Kit Dolly 123, valves + O-rings
Data
rev0
Smussi-Raggi non quotati
HT 6315 - HTS 6315
0,2
SCALA
2:1
ZX.0579
ZX.1658
Sostituisce
Data
Firma Sostituito da
Data
Firma
Disegno di proprietà della IDROBASE ; a termini di legge non potrà essere anche parzialmente copiato, riprodotto o divulgato
Set Dolly 123-500, valves + O-ring
Set Dolly 123-50 OR, O-Rings for valves Kit Dolly 1 and 123
Kit Dolly 158, nickeled brass caps + O-Rings
quantity 2x500
quantity 1x50
quantity 2x6
ZX.0580
ZX.1640
ZX.A1487 9mm
37,5mm
Set Dolly 158-5- OR, O-Rings for caps Kit Dolly 158
Kit Dolly i14, plunger fastening Serie 63
18mm Set Dolly i4, ceramic plungers ø18x37.5
quantity 1x50
quantity 5x3
quantity 1x3
ZX.0413
CDR.1638
ZX.1639
Kit Dolly 159, plunger oil seals ø18x26x6
Set Dolly 205-50 OR, O-Rings for packing retainer Kit Dolly 205
quantity 1x3
148
quantity 1x50
Shaft oil seals, ø25x62x10
ZX.1624
ZX.1635
ZX.1636
ZX.1627
Kit Dolly 204, seal packing ø18
Set Dolly 204-60HP, h.p. seals ø18x28
Set Dolly 204-60LP, l.p. seals ø18x22.5
Kit Dolly 205, complete seal packing ø18
quantity 2X3
quantity 1x60
quantity 1x60
quantity 5x1
Copyright© Idrobase Group. All rights reserved.
