YOUR LOCAL LIGHTING EXPERTS
We are your local lighting design specialists. We specialise in commercial, industrial, healthcare, outdoor, sports lighting, public spaces, area lighting, high end residential and architectural facade lighting.
WHAT CAN WE DO FOR YOU?
We’re the experts in this area and we can help you out with each stage of the process.
DESIGN PRODUCT PROJECT
• Prepare commercial lighting plans in accordance with a specification or design brief
• Assist with product selection to meet requirements and budget
• Conduct lighting audits complete with information on payback periods once an upgrade has been undertaken
• Consultation to improve energy efficiency and NABERSNZ building energy ratings
• Provide emergency lighting designs and producer statements that meet relevant standards
• Comprehensive range of products for the residential, commercial and industrial markets
• A range of exclusive leading European brands to meet specification requirements
• 48 branches means that you’ll receive local service wherever you are
• Free delivery to site for qualifying orders
• Established New Zealand business that you can trust to stand behind product warranties
• Project support ability for a complete lighting schedule
GENERAL INFORMATION
HOW TO USE THIS CATALOGUE
SYMBOL
GUIDE
WARRANTY PERIOD
IP RATING
IK RATING
LED
BEAM ANGLE
OPERATING VOLTAGE
WORKING TEMPERATURE
TRI COLOUR ROHS
DIMMABLE
NON IC
For Commercial Industrial use only.
CA90
Cannot be covered. Insulation can be placed against the sides of the luminaire.
DO NOT COVER
Suitable for residential or commercial use. Cannot be covered.
IC RATED
Suitable for use when covered in building insulation.
SAFETY CLASS I
Electrically insulated and earthed.
SAFETY CLASS II
Live parts are equipped with additional insulation protection.
SAFETY CLASS III
Safety extra low voltage (SELV), requires no additional protection less than 24V AC or 55V DC
IP & IK RATINGS
WHAT IS IP RATING?
An IP rating is shorthand for an Ingress Protection mark, sometimes referred to synonymously as an International (or Internal) Protection mark. An IP rating is usually a two-digit grading system that’s applied to the enclosure of a mechanical or electrical item, giving customers a clear indication of the item’s resistance to various types of unwanted intrusion.
Protected against solid objects greater than 50mm (e.g. accidental contact with the hand)
The IK rating of a fixture indicates the level of impact protection the fixture has. This is a two digit rating after the letters ‘IK’ that identifies the degree of protection against harsh impacts to the body of a fixture. The higher the number equates to a higher level of protection.
The reason for having a universal IP rating system is so that buyers and users can be confident of how safe it is to use certain electrical or mechanical goods in specific environments and applications. Unlike more vague marketing terms such as ‘waterproof’ - which don’t necessarily give a clear definition of precisely where and to what extent an item can resist moisture ingress - an IP rating is designed to provide a far more specific account.
against vertical water drops (e.g. condensation)
Protection against direct sprays of water, up to 15° from vertical
Protection against direct sprays of water, up to 60° from vertical
Protection against water spray from all directions 5 Protection against low pressure jets of water from all directions 6 Protection against jets of water of similar force to heavy seas 7 Protection against immersion between 15–100cm
Protection against submersion
IK00 No protection
IK01 Protected against 0.14 joules impact.
= To impact of 0.25 kg mass dropped from 57mm above impacted surface.
IK02 Protected against 0.2 joules impact.
= To impact of 0.25 kg mass dropped from 80mm above impacted surface.
IK03 Protected against 0.35 joules impact.
= To impact of 0.25 kg mass dropped from 140mm above impacted surface.
IK04 Protected against 0.5 joules impact.
= To impact of 0.25 kg mass dropped from 205mm above impacted surface.
IK05 Protected against 0.7 joules impact.
= To impact of 0.25 kg mass dropped from 285mm above impacted surface.
IK06 Protected against 1 joules impact.
= To impact of 0.25 kg mass dropped from 405mm above impacted surface.
IK07 Protected against 2 joules impact.
= To impact of 5 kg mass dropped from 400mm above impacted surface.
IK08 Protected against 5 joules impact.
= To impact of 5 kg mass dropped from 100mm above impacted surface.
IK09 Protected against 10 joules impact.
= To impact of 5 kg mass dropped from 200mm above impacted surface.
IK10 Protected against 20 joules impact.
= To impact of 5 kg mass dropped from 405mm above impacted surface.
BATHROOM ZONES
Zone 0: Is the area inside the bath or shower basin. A minimum rating of IPX7 is required (protection against immersion in water) and only SELV (max 12v AC) equipment may be used in this zone.
Zone 1: Is the area directly above Zone 0 to a height of 2.25m above finished floor level or the top of the highest fixed water outlet, whichever is higher. A minimum of IPX4 is needed in this zone. If there is a possibility of water jets then IPX5 is required. 17th edition IEC regulations allow for the use of certain 240v electrical equipment in zones 1 and 2 if controlled by the appropriate RCD.
Zone 2: Is the area 60cm external to zone 1 and to a height of 2.25m above fixed floor level or the top highest fixed water outlet, whichever is higher. A minimum of IPX4 is needed in this zone. If there is a possibility of water jets then IPX5 is required. 17th edition IEC regulations allow for the use of certain 240v electrical equipment in zones 1 and 2 if controlled by the appropriate RCD.
COLOUR TEMPERATURE (CCT
Colour temperature is a measure of a light’s colour. CCT tells us the color of the light emitted by a light source and is immediately visible to the observer by looking directly at the light source.
LED colour temperature is measured in ‘Kelvin’ (K)
The warmer the colour, appears the lower the colour temperature.
The cooler it appears, the higher the colour temperature.
Lumen Output (lm) is a measure of the total quantity of visible light emitted by a light source.
OR CORRELATED COLOUR TEMPERATURE)
CRI (COLOUR RENDERING INDEX)
The CRI value of a light source describes how accurately a light source illuminates colors of an object. It tells us about the color appearance of objects under the light source (the light source “renders” the colors of an object)
DOWNLIGHTS

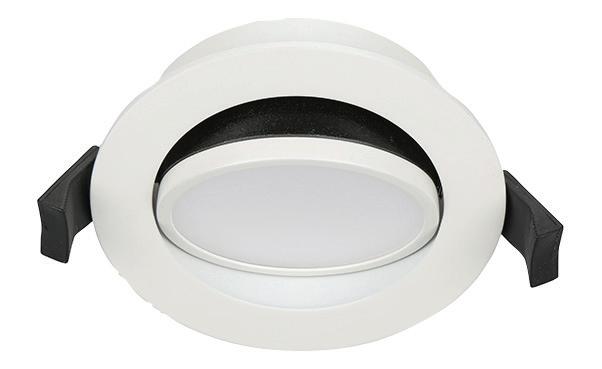

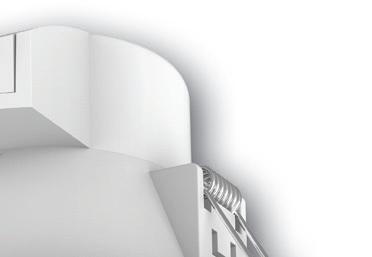

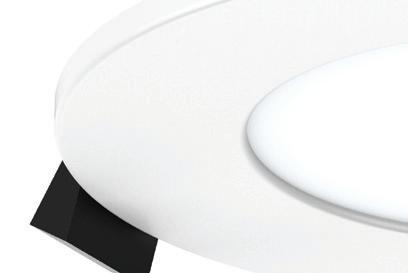

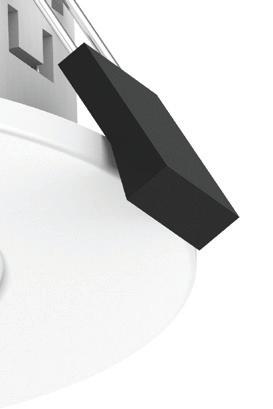

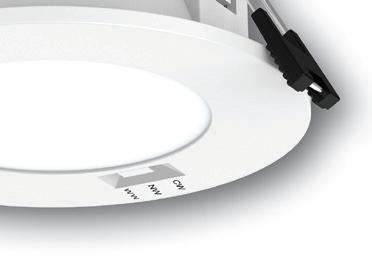

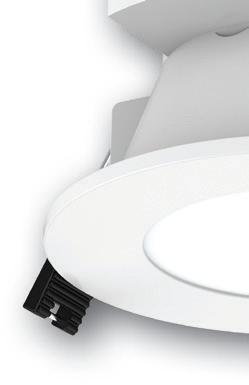

RX ECO DOWNLIGHT
FEATURES & BENEFITS
• These downlights are packed with everything you want, high lumen output,dimmable, quality assurance. With a replaceable trim. Designed for new homes and to replace incandescent and compact fluorescent down lights in existing homes.
• Sourced to the standards you demand in a residential downlight this range makes traditional light sources a thing of the past when building homes. IC-F Rated.
• Pre-selectable colour temperature - 3000k, 4000k & 5700k. Beam angles options available 90° and 100°
DRAWINGS
50,000 hours Warranty 3 Years
• Residential
• Light Commercial
RX ECO DOWNLIGHT
DESIGN INNOVATION
(Flush Lens,Terminal Block)
(Flush Lens, Flex & Plug)
(Recessed Lens, Flex & Plug) LUMEN
/ 4000K / 5700K (Tri-colour)
Flush Lens, Terminal Block
Flush Lens, Flex & Plug
Recessed Lens, Flex & Plug

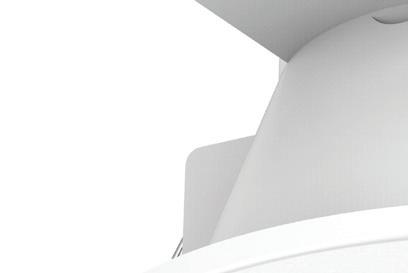

RX DOWNLIGHT
• This fitting is packed with everything you want, high lumen output, dimmable, quality assurance, large terminals and rubber clip ends.
• Four sizes available to suit a 72mm, 90mm, 100mm, or 120mm cut out designed for new homes and to replace incandescent and compact fluorescent down lights in existing homes.
• Tilt option available.
• Sourced to the standards you demand in a residential downlight this range makes traditional light sources a thing of the past when building homes.
• Pre-selectable colour temperature, 3000k, 4000k & 5700k
DRAWINGS
• Residential • Light Commercial 40,000 hours Warranty 5 Years
RX DOWNLIGHT
REXDL92TLTCCT
REXDL100CCTBC
MATERIALS Aluminium housing and PMMA diffuser
BODY COLOUR White Brushed Chrome White MOUNTING OPTIONS Recessed
CONNECTION

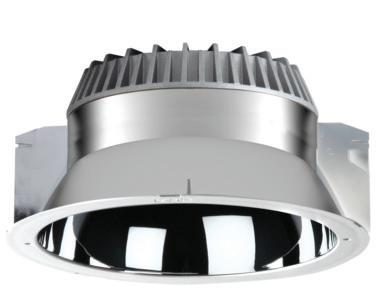

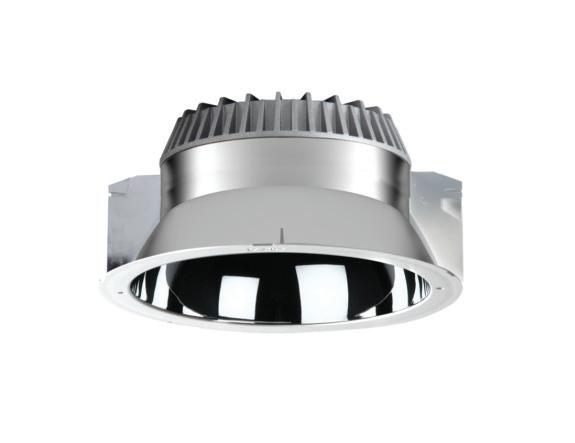

KOMBIC DOWNLIGHT
FEATURES & BENEFITS
• The recessed models extend their range with round and square formats. Kombic 100 and 150 have both recessed and surface mounted models with two optical options: opal diffuser for applications where maximum efficiency is required, or wide flood optics for excellent light control and visual comfort, providing a general lighting solution with UGR below 19 and 17 in the Ultra Comfort options.
• Body made in injected polycarbonate which acts as a metallised reflector and external frame in black and white (depending on the model), with injected aluminium heatsink for correct thermal management and IP versions ranging from 40 to 55. Insulation class II.
LIFETIME
50,000 hours Warranty 5 Years
APPLICATIONS
• Commercial
• Retail
• Hospitality
DRAWINGS
200MM 106MM 209MM
200MM 106MM 209MM
200MM 106MM 209MM 220MM 120MM 209MM
KOMBIC DOWNLIGHT
DRIVER/ CONTROLS

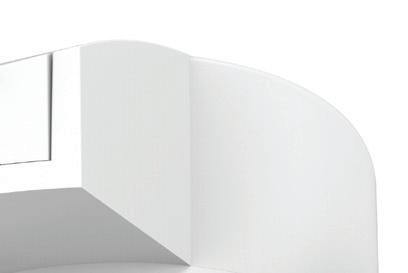

MIRROR LIGHT
MIRROR LIGHT
FEATURES & BENEFITS
• The RX Mirror light elegant design is perfect to add a touch of style.
• With a high lumen output as well as interchangable CCT by slide switch.
• Available in brushed nickel, chrome plated & matt black on an indent basis.
50,000 hours Warranty 3 Years
• Hotel
• Residential
• Retail
• Restaurant
DRAWINGS
MIRROR LIGHT
CODES
WATTS
REXML01860
LUMEN OUTPUT 1020-1150lm 1590-1950lm
COLOUR TEMP 3000K / 4000K / 5700K (Tri-colour) EFFICACY
BEAM ANGLE
IES FILES Yes
LIFETIME 50,000hrs
DIMMABLE Non-Dimmable
DIMENSIONS 580mm x 41mm x 111mm 860 x 41 x 111mm
IP RATING *IP40 - Installation requires it to be installed outside of Zone 2
MATERIALS Aluminium & Polycarbonate
BODY COLOUR White
MOUNTING OPTIONS Wall Mount
REXML01580

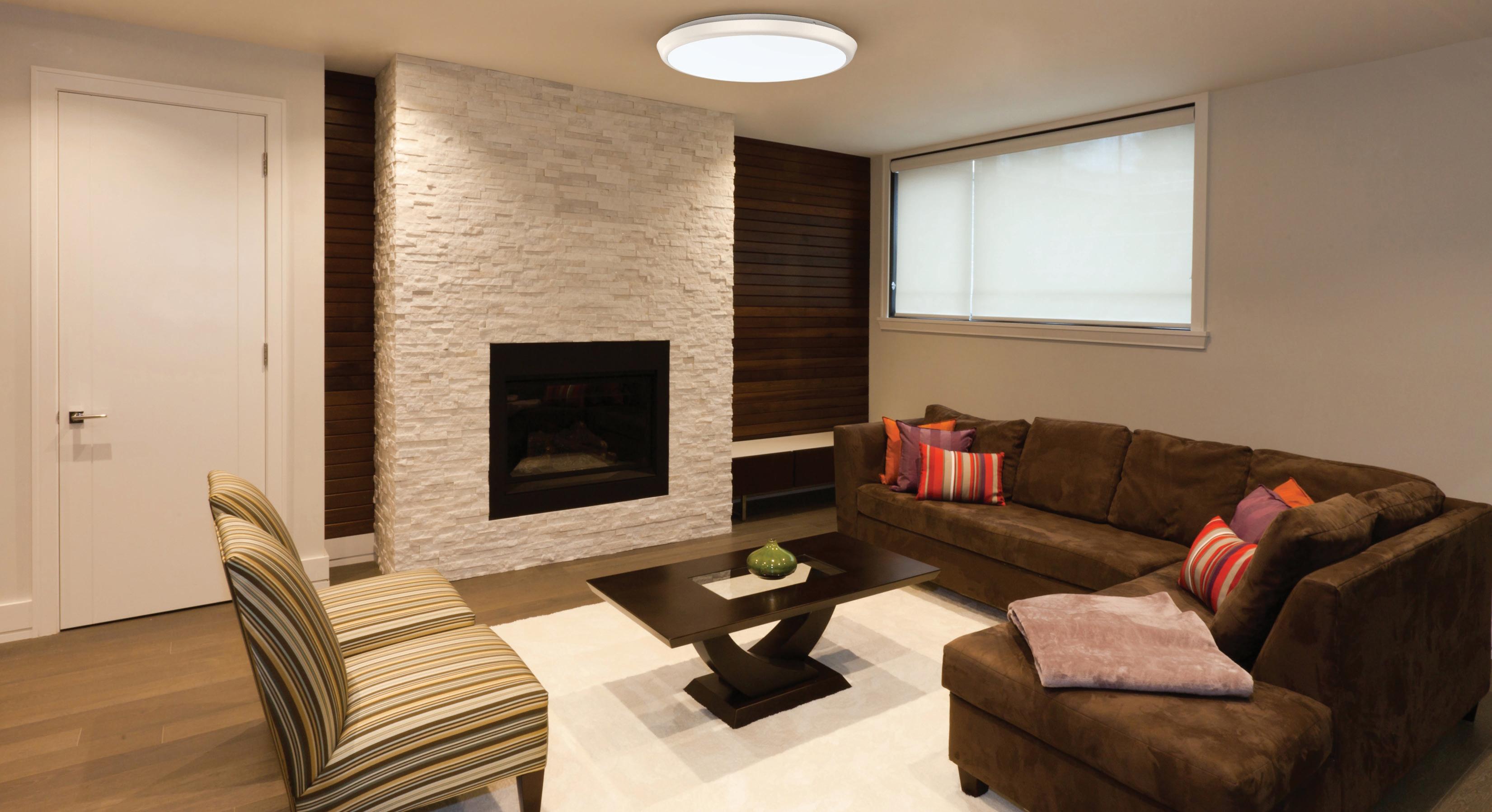

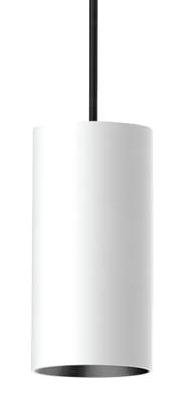

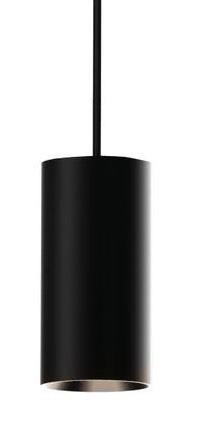

PENDANT
RX LUNA
RX LUNA
FEATURES & BENEFITS
• The RX Lighting Luna is a new family of surface mounted or cable drop suspended downlights.
• They come in two wattages - 10w and 18w.
• Two colours - White and Black.
• Two colour Temps - 3K warm white and 4K cool white.
DRAWINGS
40,000 hours Warranty 3 Years
• Domestic
• Commercial
• Hospitality
• Shop Lighting
RX LUNA

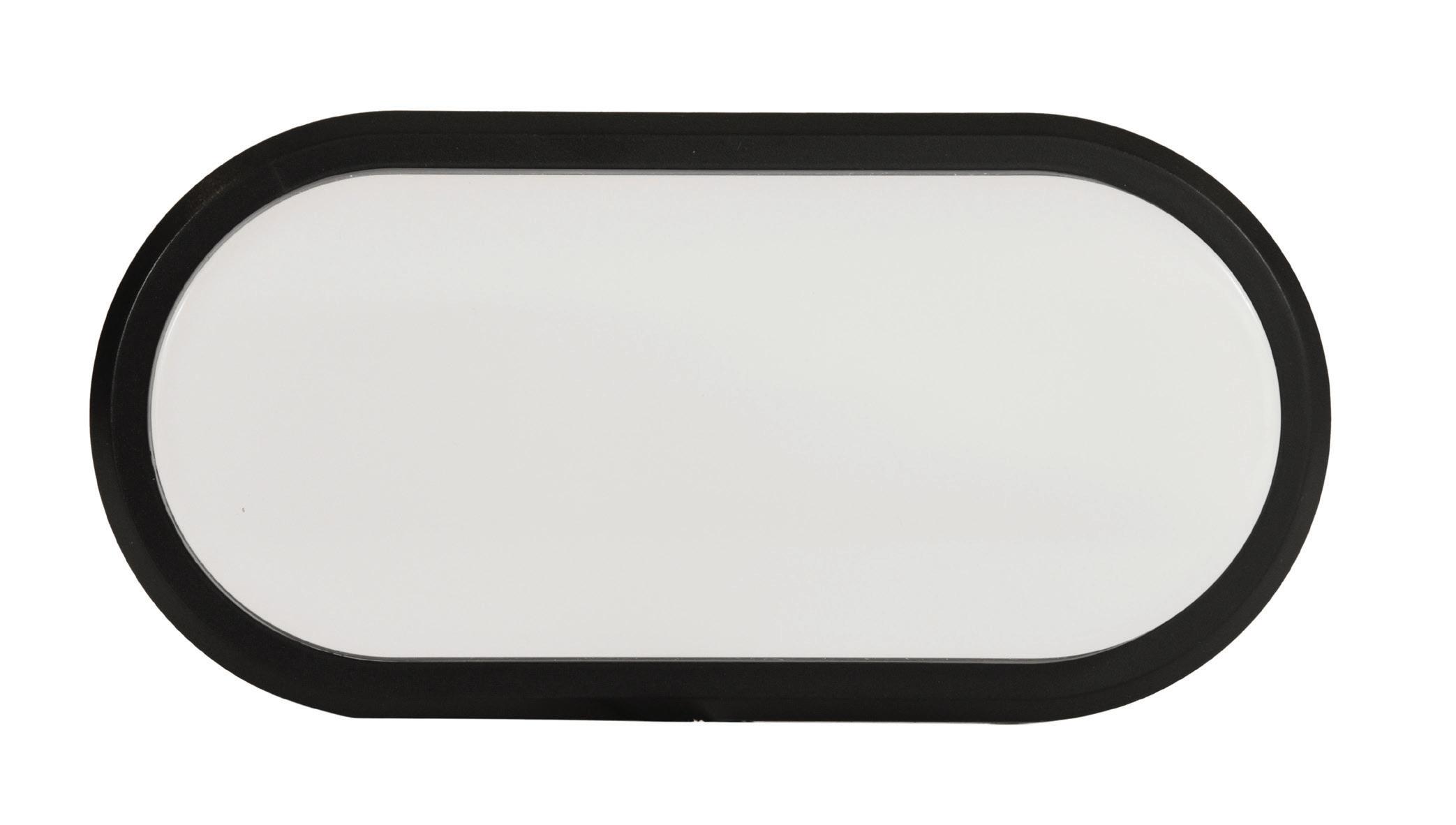

OYSTER

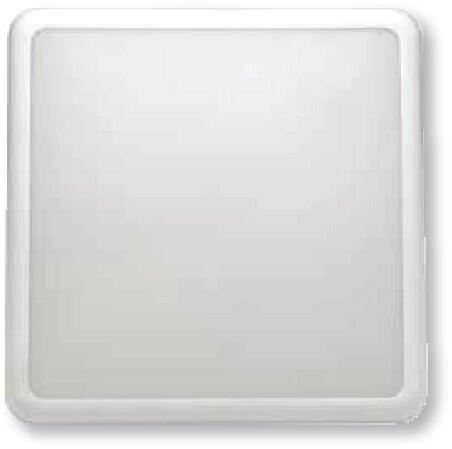

SELENE SQUARE
SELENE ROUND
SELENE SQUARE LED
FEATURES & BENEFITS
• Slim Profile from only 40mm deep.
• IP54 Suitable for use in Bathrooms.
• For indoor use only.
• Dimmable and available in three wattages 12W, 18W, and 30W.
• Correlated Colour Temperature (3000K, 4000K, 6000K) available in 18W & 30W.
• Uniform light on the surface.
• Up to 70% savings in energy compared to traditional lamps sources.
• Easy Fix Bracket system allows for quick installation.
DRAWINGS
APPLICATIONS
• Residential
• Commercial 40,000 hours Warranty 3 Years
SELENE SQUARE LED
IES FILES Yes
LIFETIME
MATERIALS
SELENE ROUND LED
FEATURES & BENEFITS LIFETIME
• Slim Profile from only 40mm deep.
• IP54 Suitable for use in Bathrooms.
• For indoor use only.
• Dimmable and available in three wattages 12W, 18W, and 30W.
• Sensor versions available in 18W Colour correctable changeable (3000K, 4000K, 6000K) available in 18W & 30W.
• Uniform light on the surface.
• Up to 70% savings in energy compared to traditional lamps sources.
• Easy Fix Bracket system allows for quick installation.
DRAWINGS
• Residential • Commercial 40,000 hours Warranty 3 Years
APPLICATIONS
SELENE ROUND LED
IES FILES Yes
LIFETIME
L70 B10
CONTROLS Triac dimmable
MATERIALS Polycarbonate
BODY COLOUR White
MOUNTING Surface
CONNECTION Terminal
FLOODLIGHTS

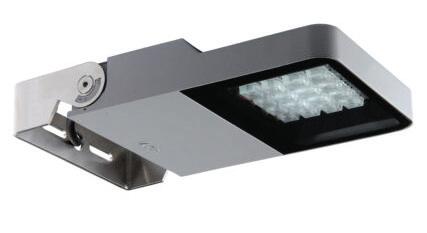

MINI FLUT G2

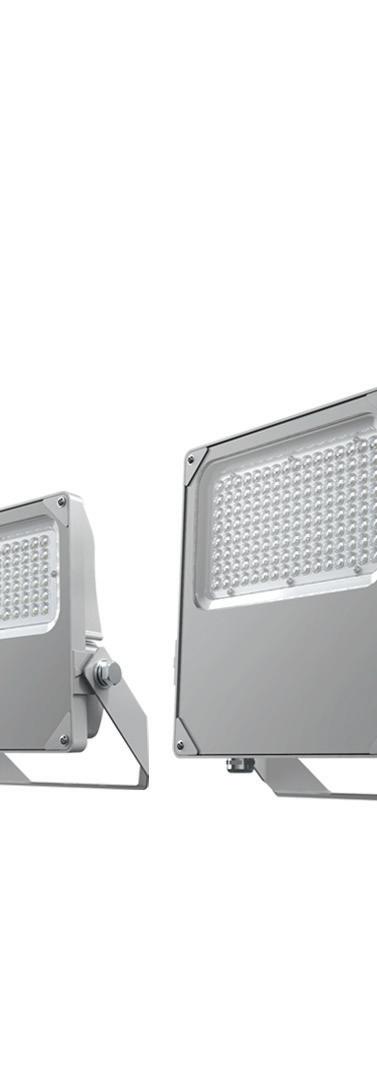

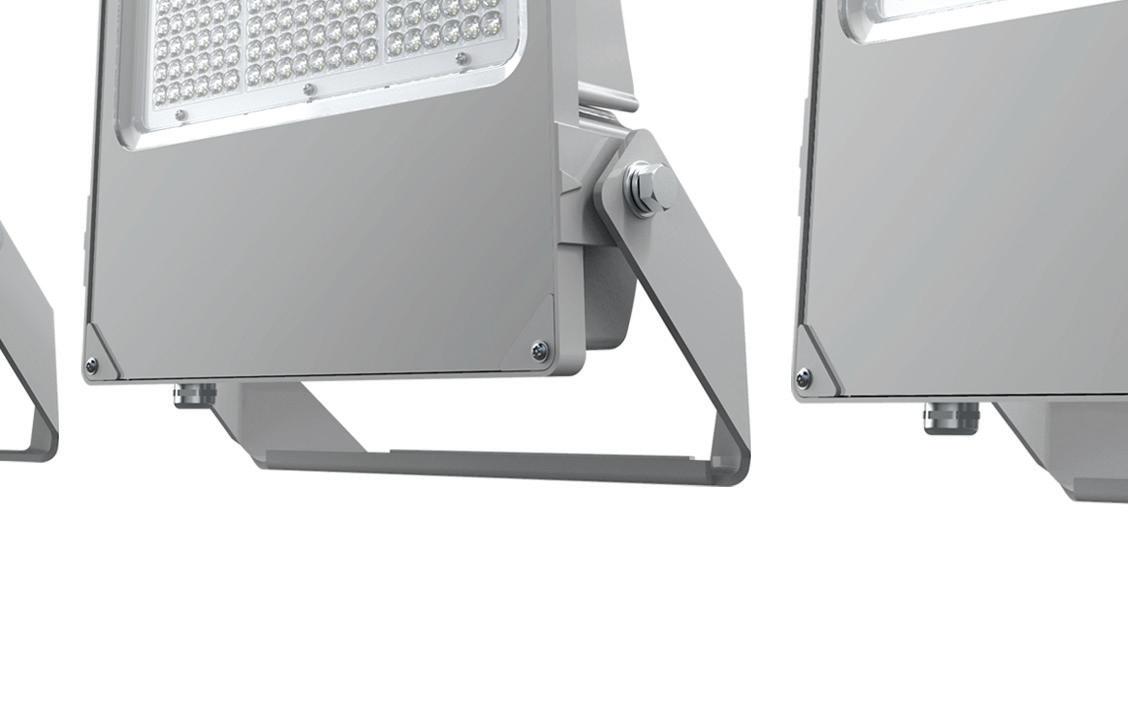

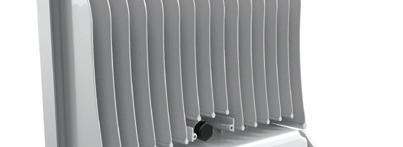

COSMOS FLOODLIGHT
• 5 different wattages: 50W - 100W - 150W - 200W - 300W
• Floodlight body size optimised to give the best thermal performance for each wattage.
• Due to the asymmetric light distribution of the luminaire, the optimum mounting is with the luminaire in the horizontal plane resulting in a more efficient and cost effective lighting installation.
• It also eliminates any issues with glare, upward spill light and Dark Sky requirements.
• Special double surface coating gives excellent life time in a marine environment.
• Mounting Stirrup is stainless steel.

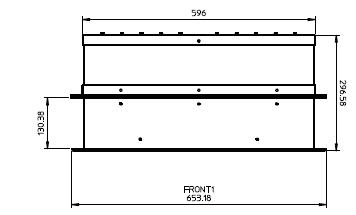

DRAWINGS
67,000 hours Warranty 5 Years
• Commercial, Industrial,
• High level open Warehousing,
• Coastal area lighting.
• Also suitable for swimming pools.
COSMOS FLOODLIGHT

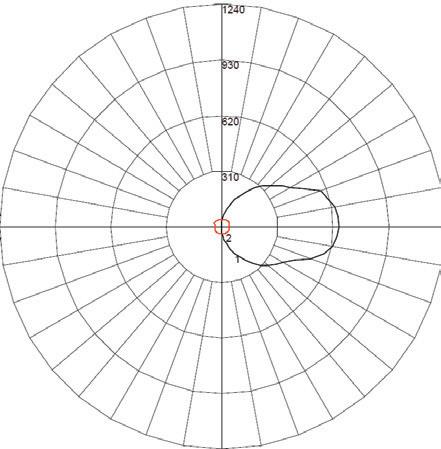

BEAM ANGLE
Asymmetric - 55 Degree beam Peak standard
IES FILES Yes
UGR Non - dimmable
LIFETIME L70 67,000 hrs
DIMMABLE Non - dimmable
DIMENSIONS 267mm x 228mm x 55mm 314mm x 269mm x 61mm 360mm x 302mm x 67mm 398mm x 343mm x 70mm 470mm x 406mm x 80mm
MATERIALS
BODY COLOUR
MOUNTING OPTIONS
FEATURES & BENEFITS

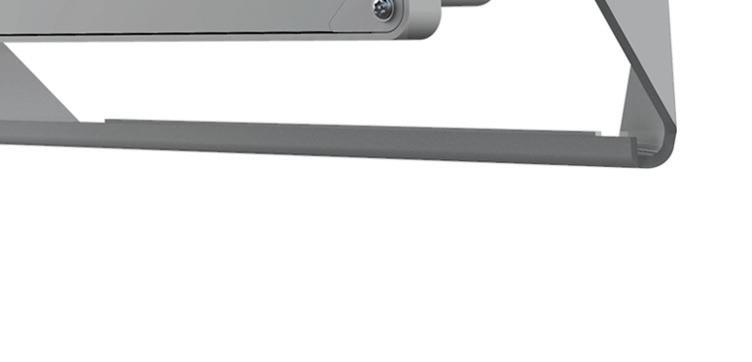

• Mini Flut is an outdoor floodlight family that has been specially designed for lighting facades, vaulted ceilings, walls, monuments, walkways and pedestrian areas and its main characteristic is its robustness.
• Both with symmetric Wide Flood, asymmetric or street optics in warm or neutral white colour temperature.

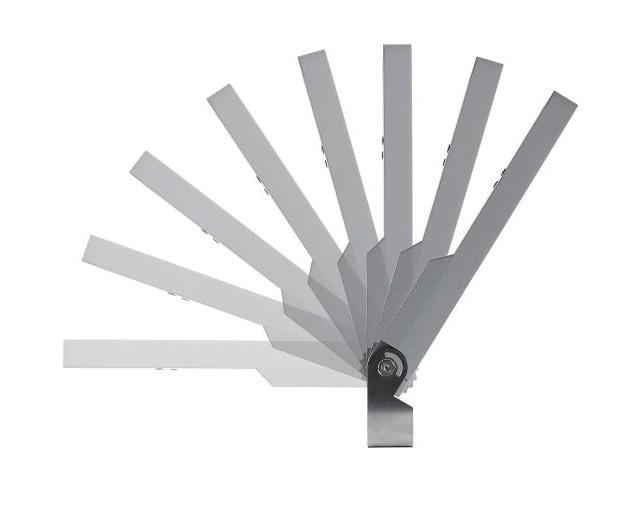

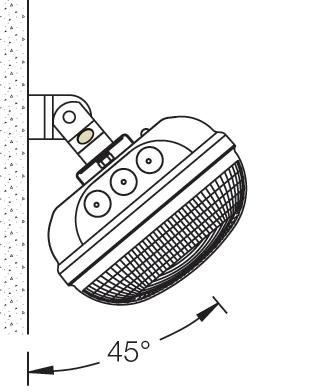

• Its axis allows adjusting between 90º and -30º to orient towards the desired direction and incorporates an anti condensation valve.
• It features a wide range of accessories, such as anti-glare louvres, brackets and clamps for an exclusive Road System using truncated and cylindrical poles, suitable for lighting walkways.
50,000 hours Warranty 5 Years
APPLICATIONS
• Facades
• Vaulted ceilings
• Walls
• Monuments
• Walkways
MINI FLUT G2
IDEAL CODE
WATTS
LLLMF235AS840NG
>80 COLOUR TEMP 4000K
DIMMABLE Non Dimmable
DRIVER/CONTROLS
MATERIALS
BODY COLOUR
LLLMF235SY840NG

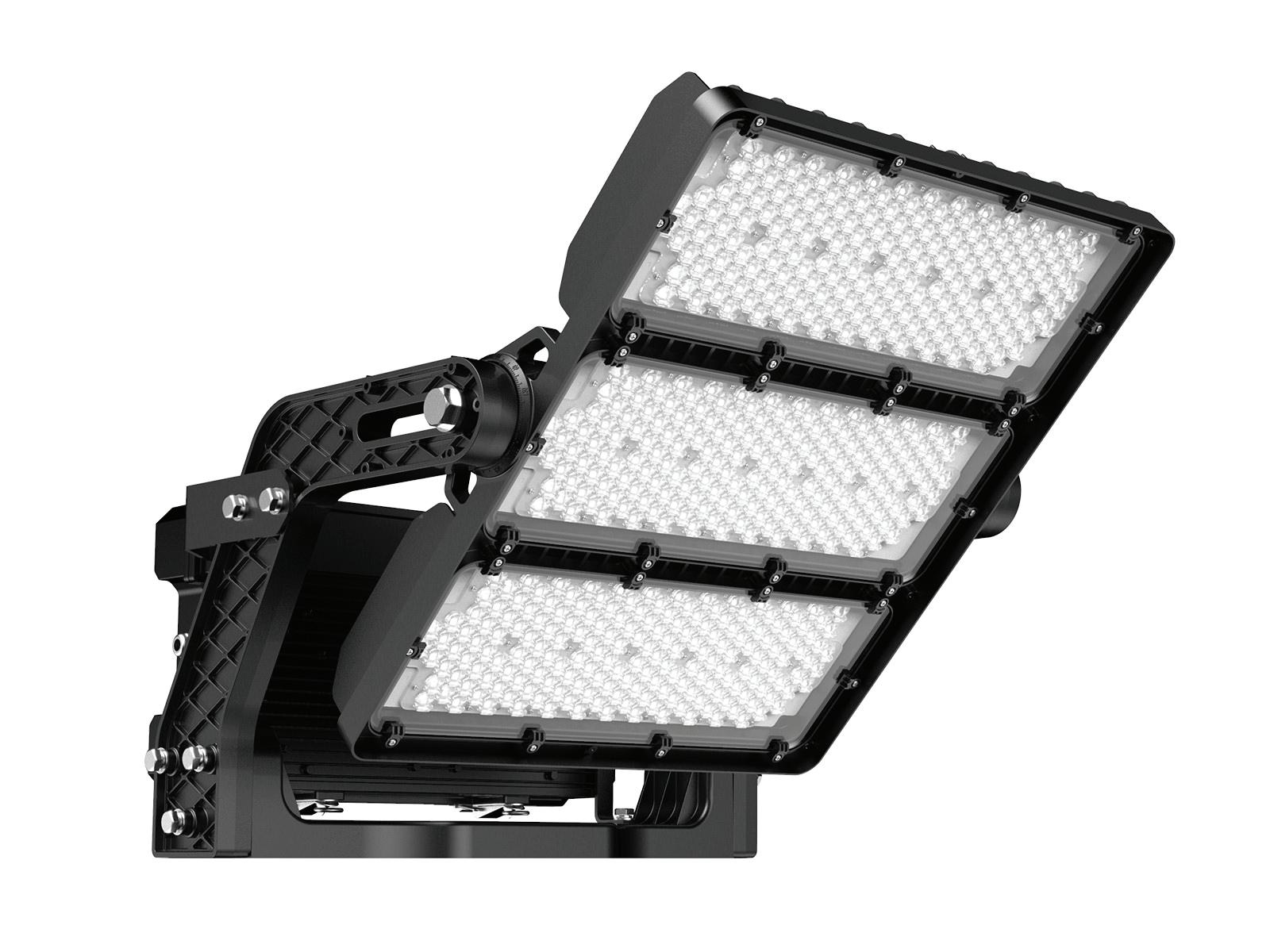

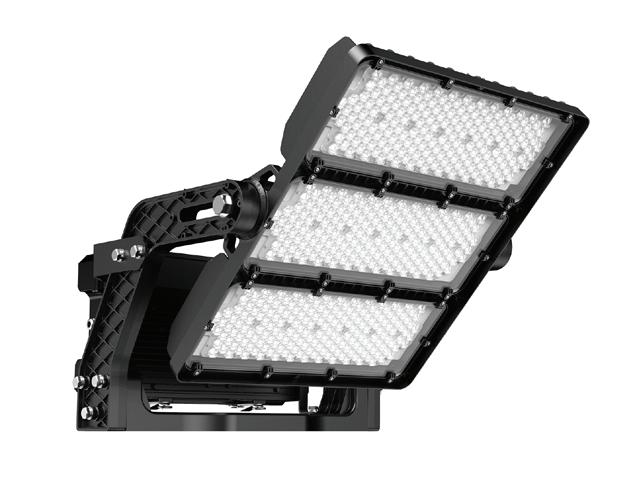

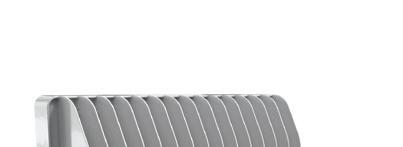

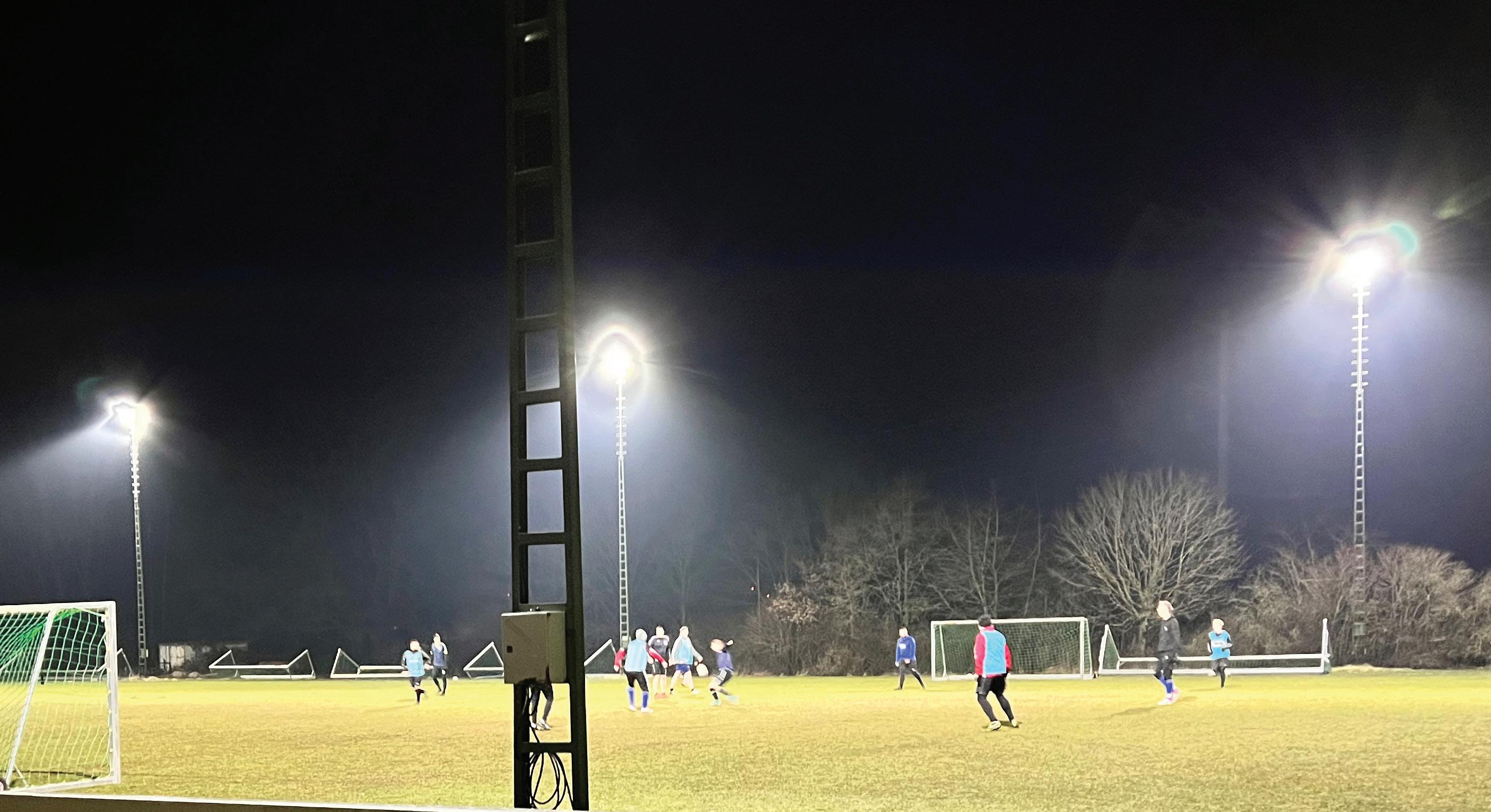

APOLLO FLOODLIGHT
FEATURES & BENEFITS LIFETIME
• Single piece die-cast housing, lightweight and EPA<0.39M²
• Die-casting aluminum with special surface treatment ensure good corrosion resistance
• 600W 800W 1000W 1200W optional
• High lumen output from 84000lm to 192000lm optional
• Narrow, Wide, Symmetrical and Asymmetrical optics optional
• Bracket and housing allows 360 degrees adjustment
• Driver box being attached to the bracket or remote optional
• Smart control available in 0-10V, DALI 2, RDMDMX control
DRAWINGS
53,000 hours - L90
11,000 hours - L80
17,300 hours - L70
Warranty 5 Years
APPLICATIONS
• Outdoor sports fields
• Square
• Stadium
• Exhibition Center
• Soccer field
APOLLO FLOODLIGHT
IES
INDENT ONLY
LIFETIME
MATERIALS Aluminum Alloy, Glass and Polycarbonate Optical Lens
BODY COLOUR Black
MOUNTING OPTIONS Bracket Mounting

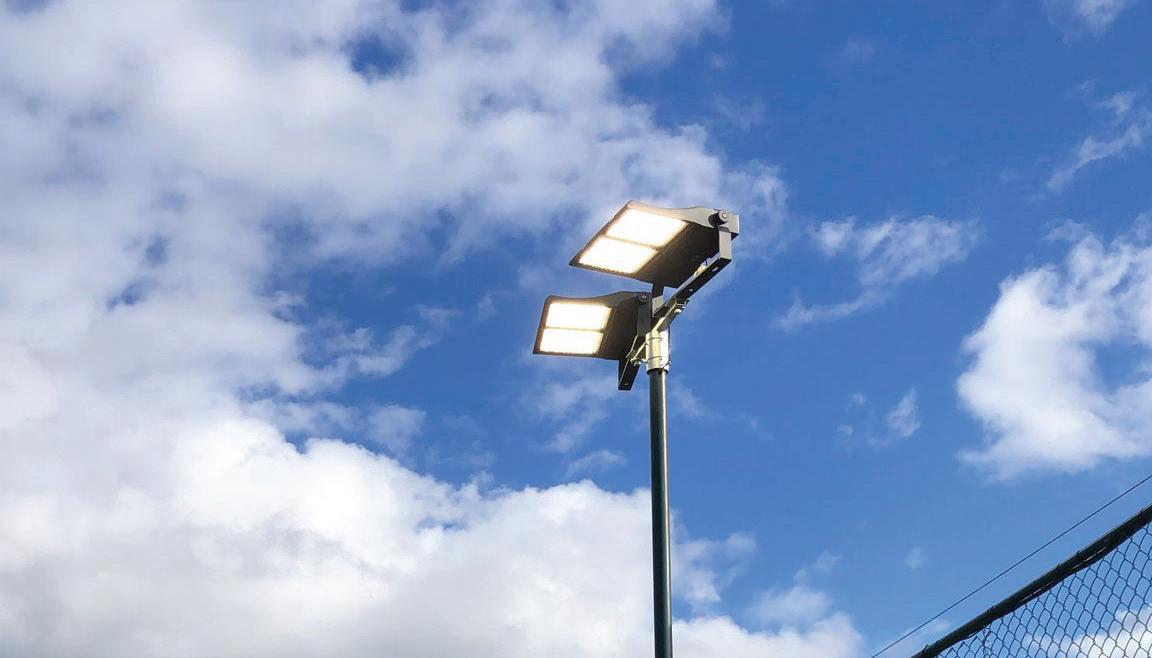

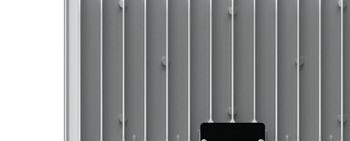

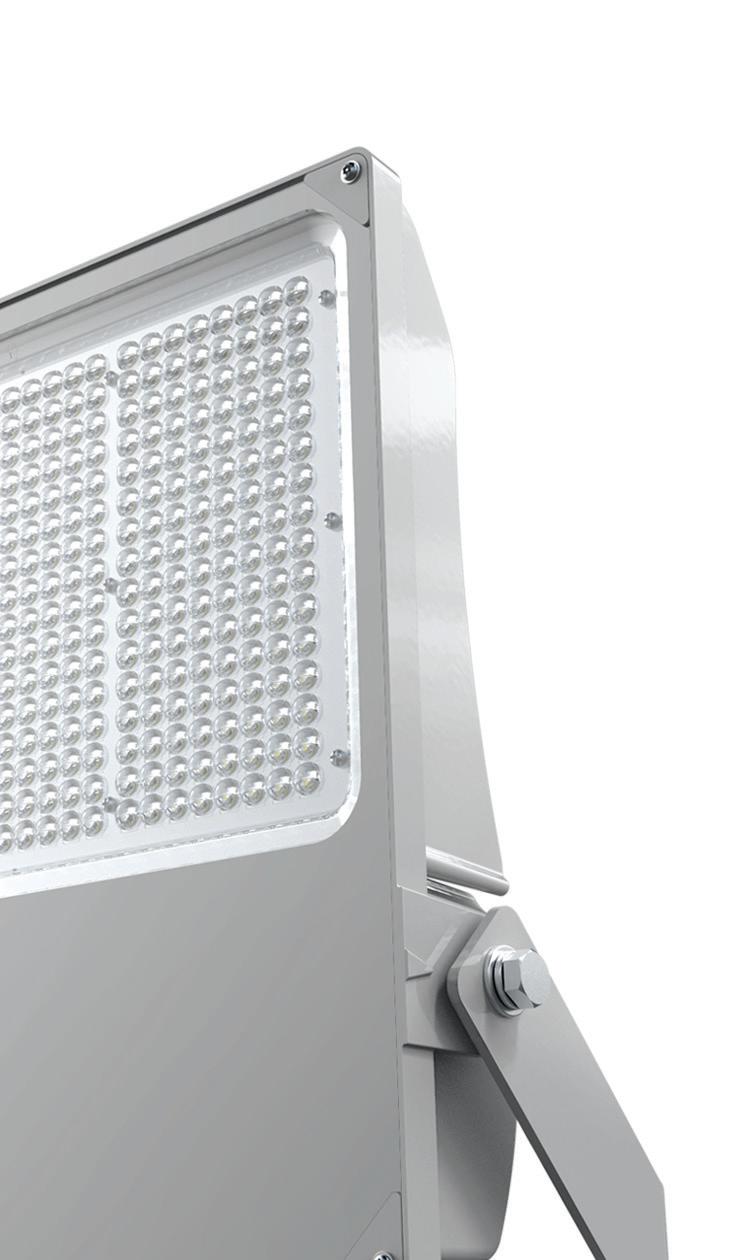

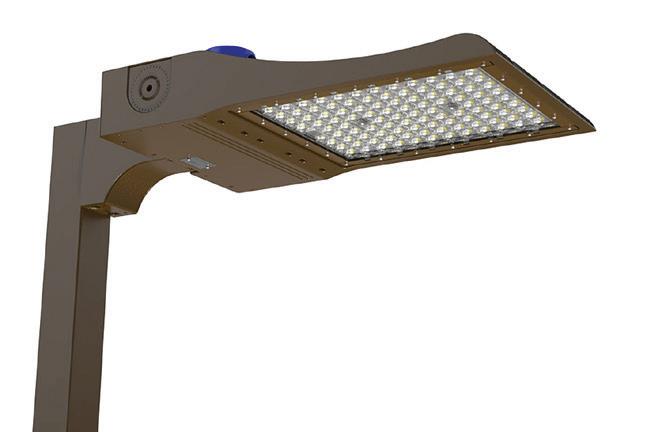

NOVA SPORTLIGHT
FEATURES & BENEFITS
• High output lumen efficiency, up to 145lm/W.
• The housing is made of 100% aluminum alloy and utilizes external airflow fins to get better heat dissipation
• More than 6 variety of beam angles to fit different applications, including Type II, III, IV, V.
• Multiple mounting options: round or square pole mount, U bracket mount as flood light.
• Electrophoresis and powder coating with strong anti-corrosion.
• Two sizes optional for 180W-600W.
• Provided with 10KV Surge Protection Devices.
DRAWINGS
49,000 hours - L90
11,000 hours - L80
18,000 hours - L70
Warranty 5 Years LIFETIME
APPLICATIONS
• Parking lots
• Outdoor sports
• Billboard lighting
• Exhibition Center
• Soccer field
WATTS A B C
180W 571MM 322MM 94MM
240W 571MM 322MM 94MM
300W 571MM 322MM 94MM 450W 621MM 601MM 104MM
621MM 601MM 104MM
NOVA SPORTLIGHT
INDENT ONLY
BULKHEADS
BASIC BULKHEAD RX TYPHOON

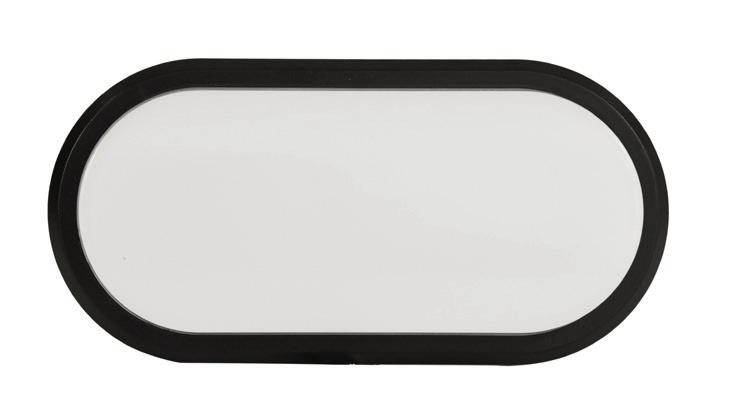

BASIC BULKHEAD
FEATURES & BENEFITS LIFETIME
• Available in 8W oval & 12W oval and round. Pre-selectable colour temperature 3000K / 4000K / 5000K. They also come with white and black trims
• IP54 bulkhead suitable for internal use on walls or ceilings as well as external use on walls or ceilings not exposed to water
• Polycarbonate construction which is impact resistant, and internally disguised screws to add security where needed.
• Double insulated, these do not require an earth.
DRAWINGS
25,000 hours Warranty 2 Years
APPLICATIONS
• Residential
• Commercial
• Schools
BASIC BULKHEAD

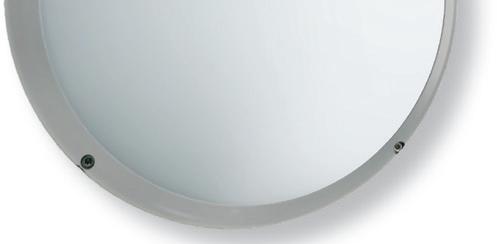

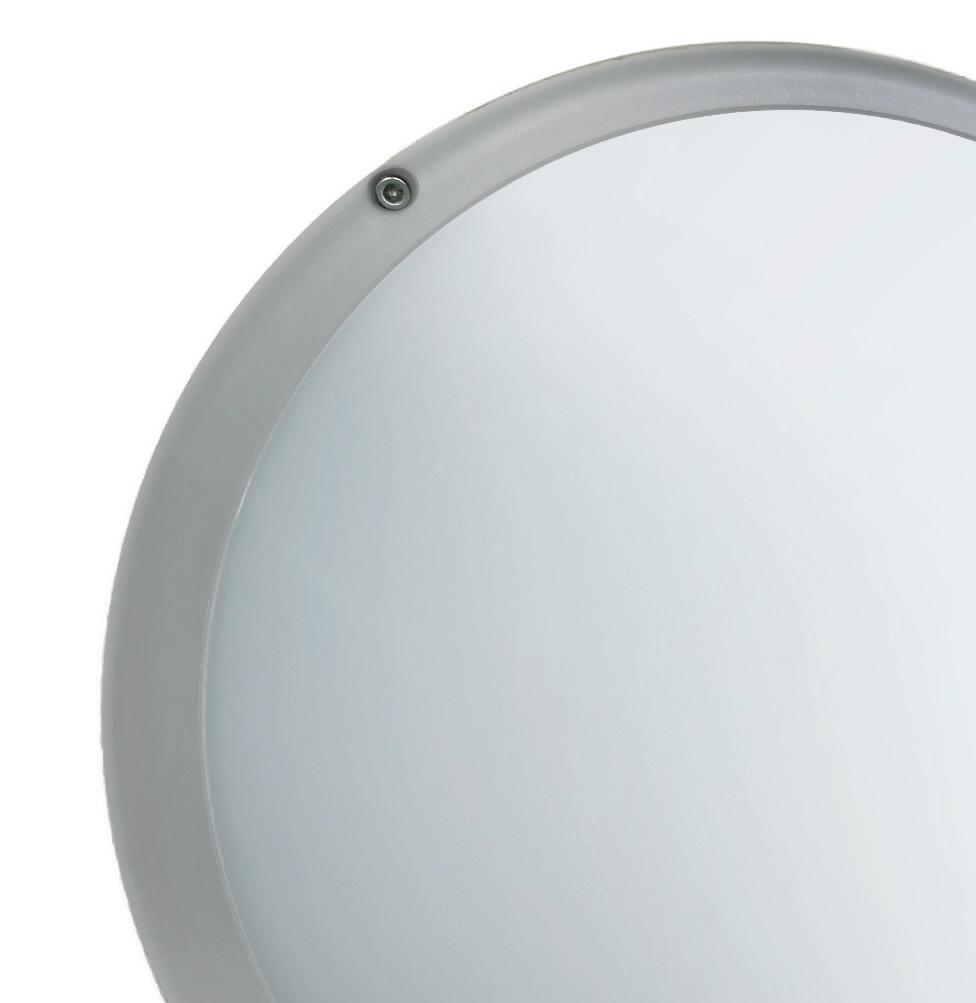

Round Bulkhead
TYPHOON
FEATURES & BENEFITS
• Standard colour of Grey.
• Integral Microwave sensor version with time delay and daylight to night and lux level switching
• Opal diffuser manufactured from a high impact polycarbonate with stainless steel Allen head trim fixing screws
• Tiltable LED tray for connection access
• The fitting has 4000K SMD (Surface mount diode) LED’s mounted on a steel heat sink plate
• High specification driver with thermal & short circuit protection
DRAWINGS
LIFETIME
25,000 hours Warranty 5 Years
APPLICATIONS
• Residential
• Hospitality
• Hotels
• School
RX TYPHOON
IDEAL CODE
WATTS 19w
LUMEN OUTPUT 1600lm
COLOUR TEMP
BEAM ANGLE
IES FILES Yes
LIFETIME
DIMMABLE Non-dimmable
DIMENSIONS 350mm x 85mm POWER
MATERIALS
REXBHR19W4KMG (SENSOR MODEL)
Polycarbonate with stainless steel fixing screws
BODY COLOUR Grey
MOUNTING OPTIONS Wall Mount
REXBHR19W4KG
Typhoon Eyelid Trim Grey
Typhoon Grille Trim Grey
HIGHBAYS

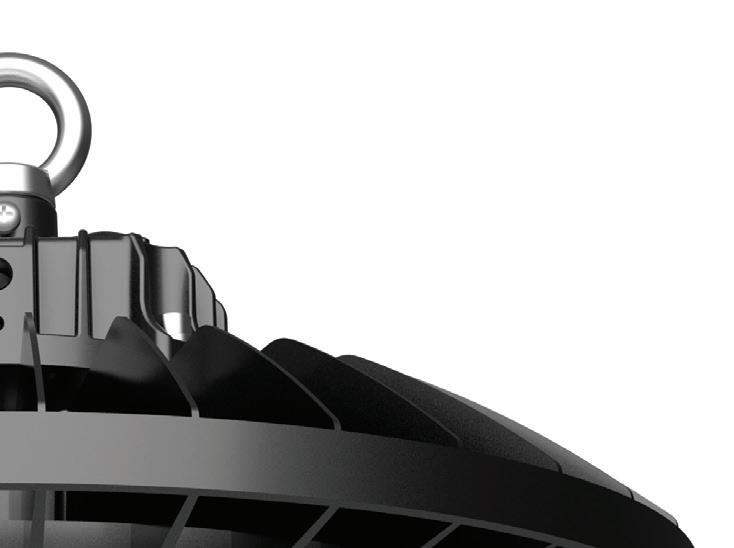

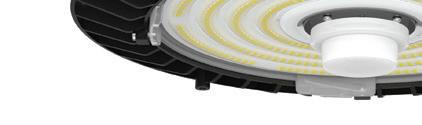

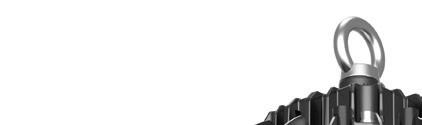

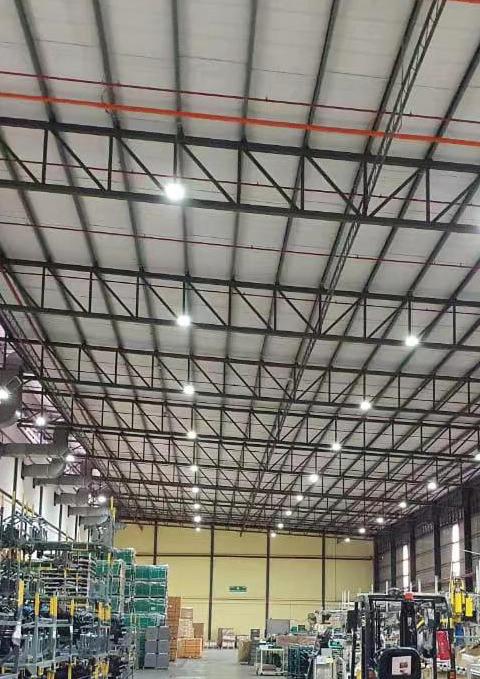

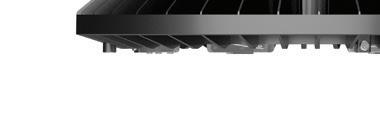

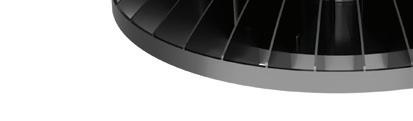

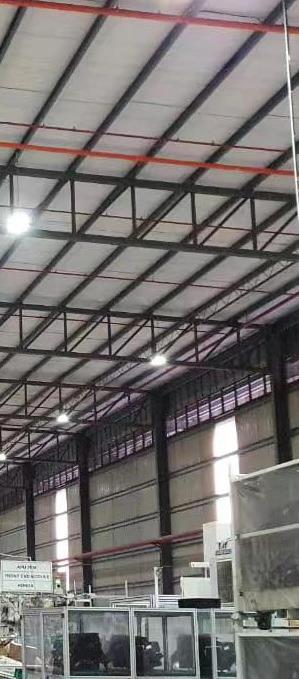

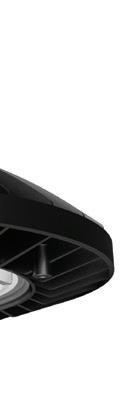

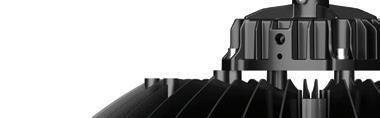

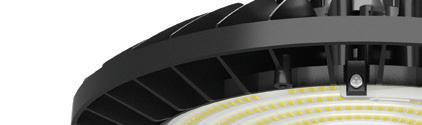

HISAVER HIGHBAY
HISAVER HIGHBAY
FEATURES & BENEFITS
• The RX Lighting Highbay is multi-wattage, lumen selectable.
• Fitting is IP42 but is designed for undercover use.
• Comes complete with 1.5m of flex and standard 3 pin plug.
• Plug in Sensor with Remote option is available as well.
• Adjustable beam angle options narrow, medium, wide for a range of mounting heights.
• Optional accessories include 90 degree Ali reflector, polycarbonate reflector with diffuser, bracket, chain, and daylight/movement sensor with 15m range.
DRAWINGS
APPLICATIONS
• Shops
• Warehouse
• Commercial
• Industrial 50,000 hours Warranty 5 Years
HISAVER HIGHBAY

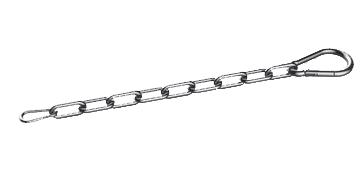

90 Degree Ali Reflector Safety Chain only 1.5m PC Reflector with Diffuser
BEAM ANGLE Adjustable narrow, wide and medium beams
IES FILES Yes
LIFETIME L80 B10 50,000hrs
DIMMABLE Non - dimmable
DIMENSIONS 320mm diameter (167mm height including hanger bolt)
MATERIALS Aluminum with Polycarbonate Lens
BODY COLOUR Black
MOUNTING OPTIONS Suspended APPLICABLE STANDARDS CE, RoHS, SAA CONNECTION 1.5m flex and standard 3 pin plug
With motion sensor

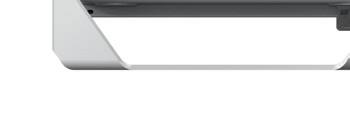

LED PANEL

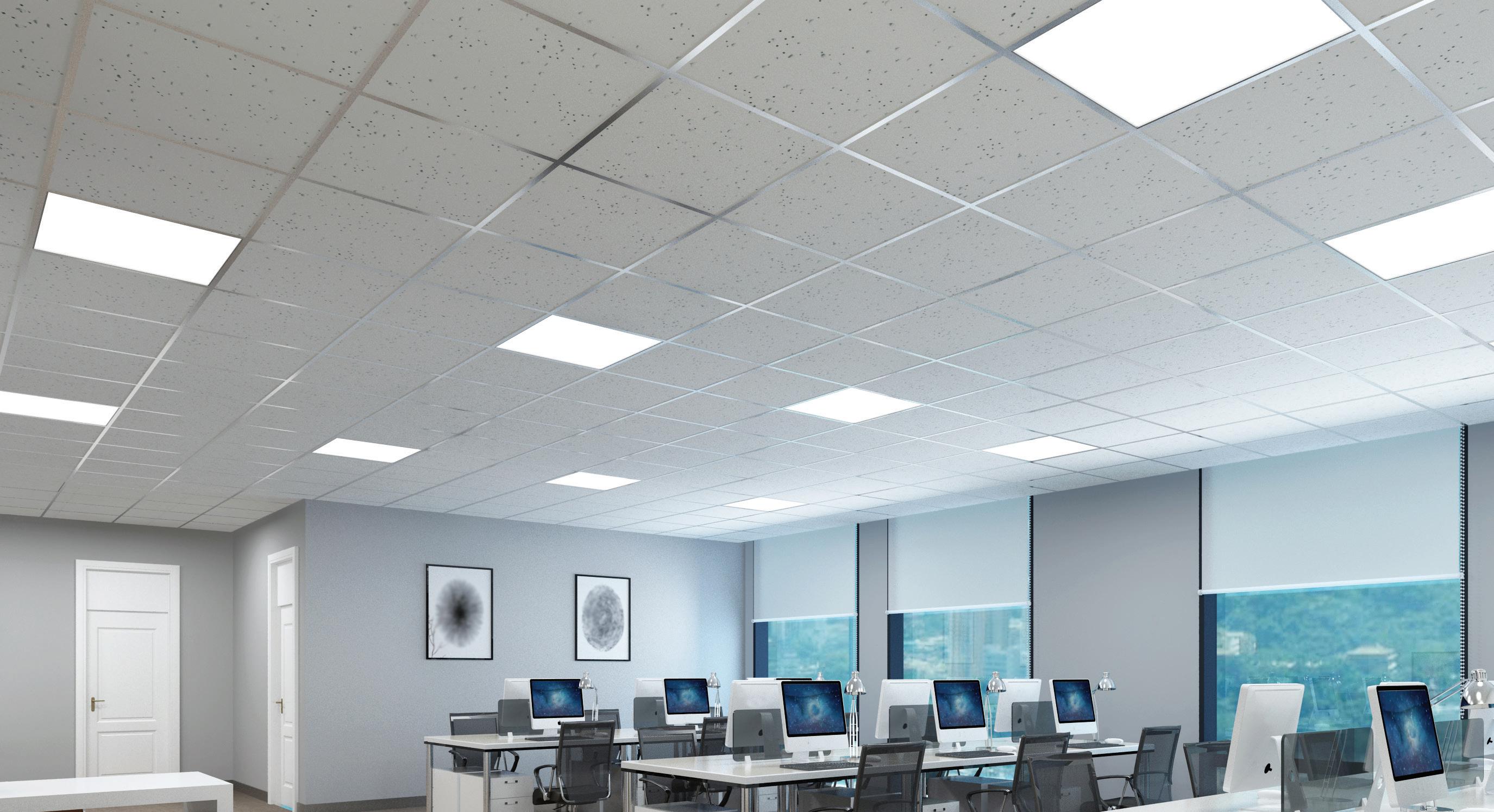

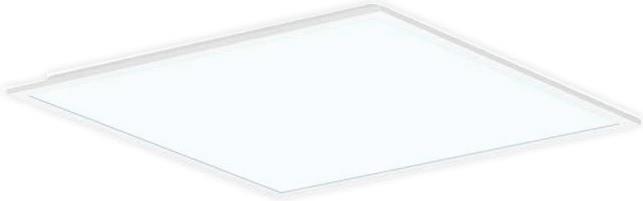

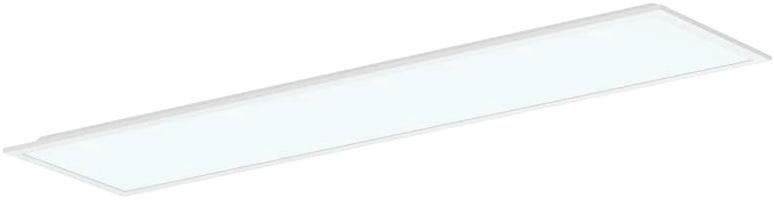

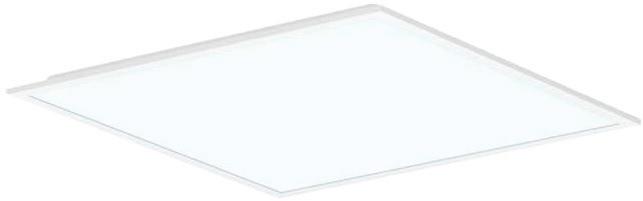

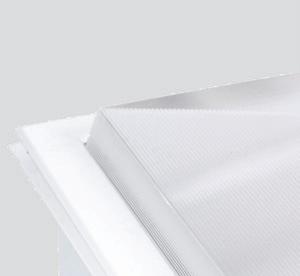

BACKLIT PANEL
BACKLIT PANEL
FEATURES & BENEFITS LIFETIME
• Backlit panel can be covered as it offers excellent thermal management with an IC-4 rating.
• The range includes a 4000K panel as well as a tri-colour option in all sizes.
• The panel also offers low glare UGR<19.
• Available in 600x600mm, 300x1200mm & 600x1200mm Direct replacement for traditional troffers.
50,000 hours Warranty 5 Years
• Office • Schools
• Retail
• Commercial
DRAWINGS
BACKLIT PANEL
LIFETIME
DIMMABLE Non-dimmable DIMENSIONS
MATERIALS Aluminum with PMMA Diffuser
BODY COLOUR White
TRICOLOUR BACKLIT
FEATURES & BENEFITS
• Backlit panel can be covered as it offers excellent thermal management with an IC-4 rating.
• The range includes a 4000K panel as well as a tri-colour option in all sizes.
• The panel also offers low glare UGR<19.
• Available in 600x600mm, 300x1200mm & 600x1200mm Direct replacement for traditional troffers.
DRAWINGS
50,000 hours Warranty 5 Years
• Office • Schools
• Retail
• Commercial
TRICOLOUR BACKLIT
INDENT
FILES
DIMMABLE Non-dimmable
DIMENSIONS
MATERIALS Aluminium with PMMA diffuser
BODY COLOUR White
MOUNTING OPTIONS Recessed
APPLICABLE STAND AS/NZS 60598 Part 2.2
CONNECTION Flex & Plug
UNDERVERANDAH

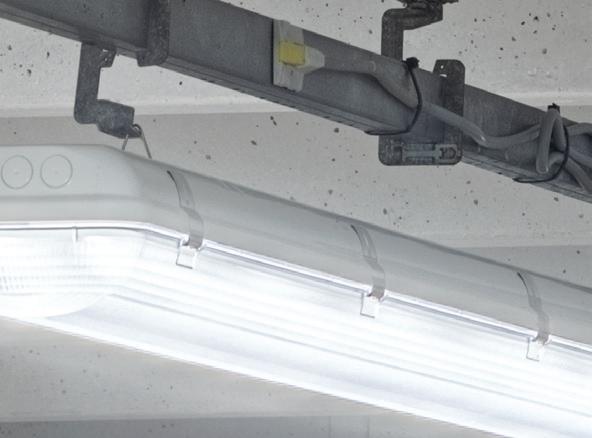

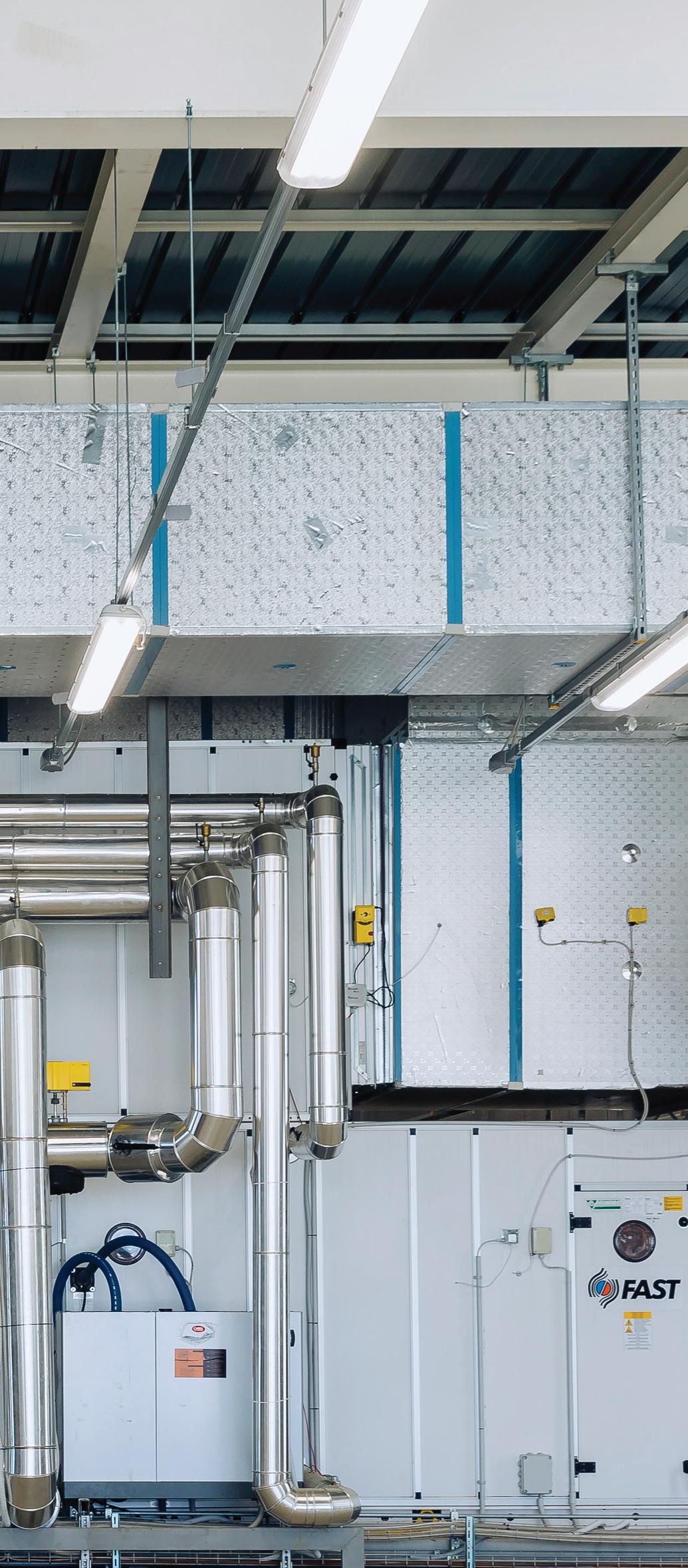

DEFENDER 3F

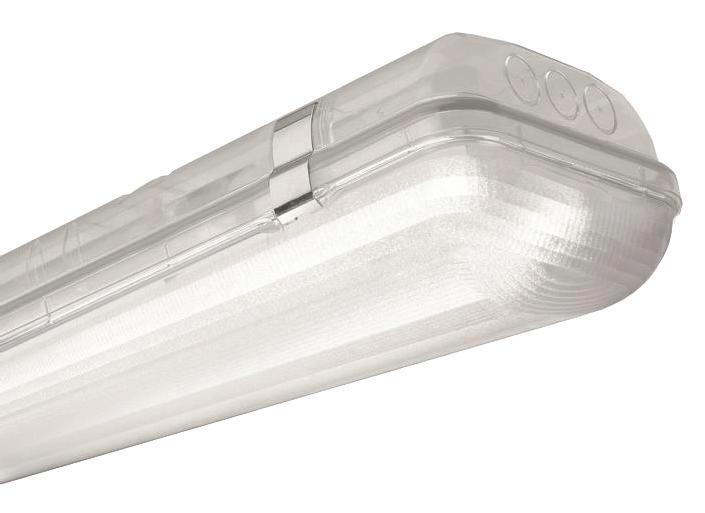

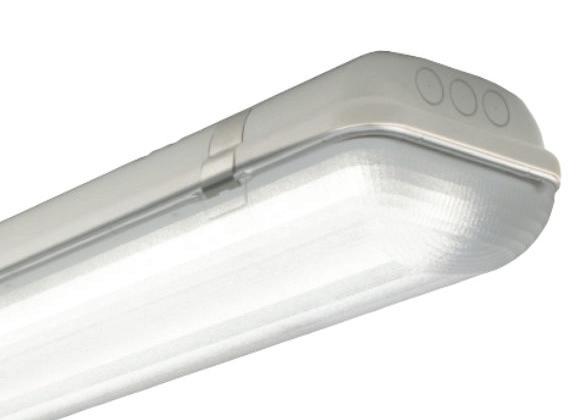

DEFENDER 3F HARDSKIN

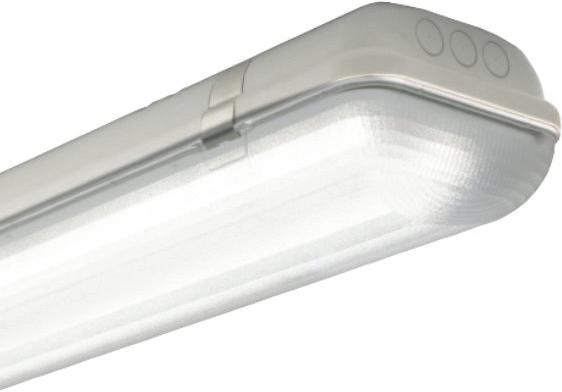

DEFENDER
50,000 hours Warranty 5 Years FEATURES & BENEFITS

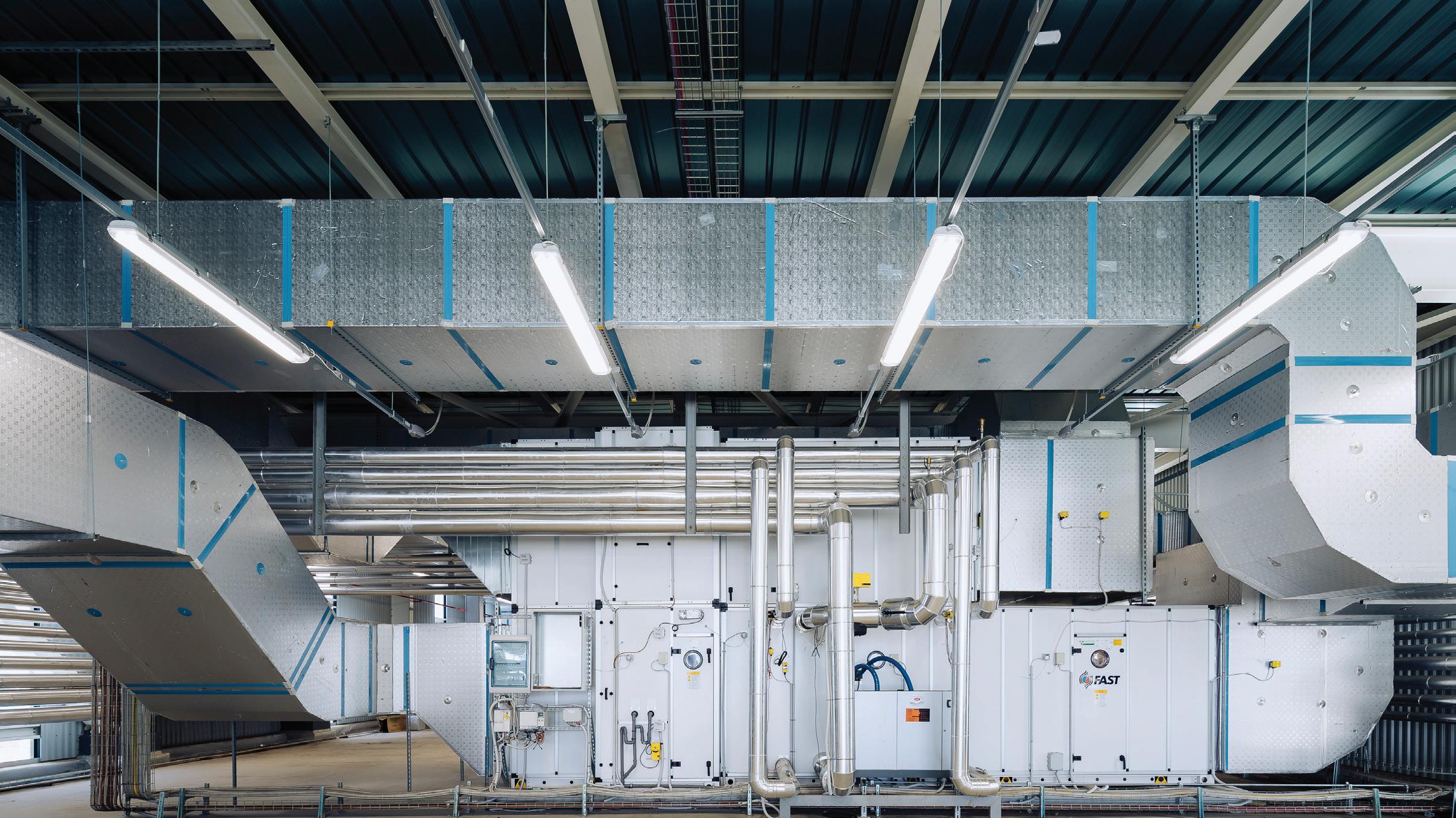

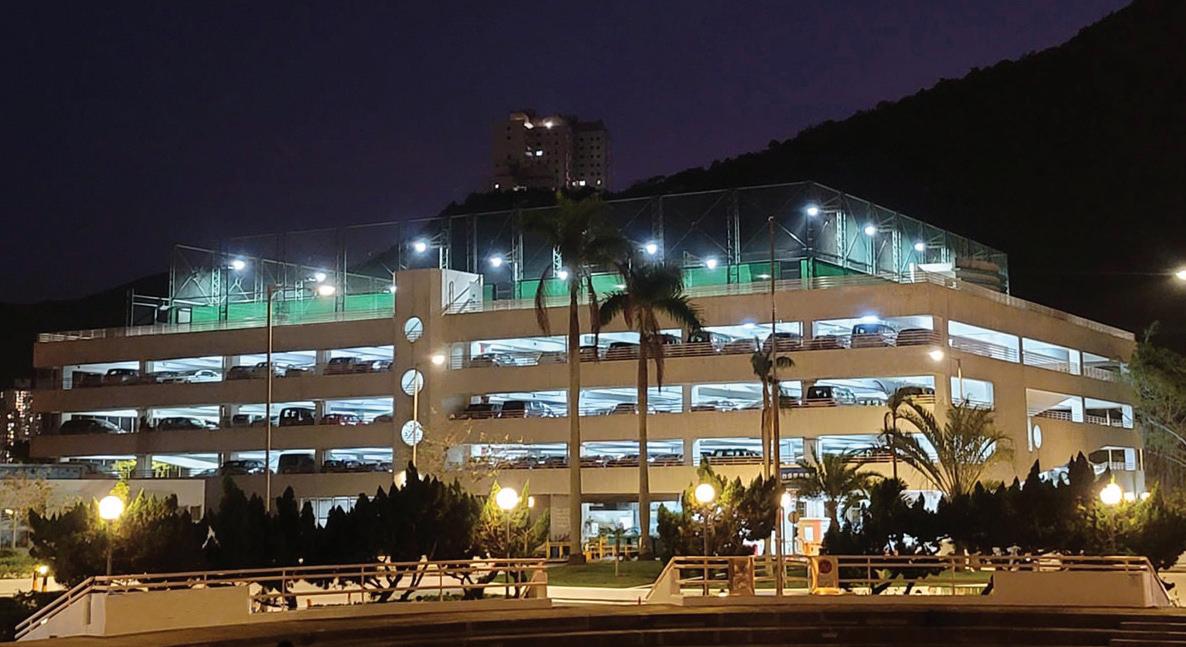

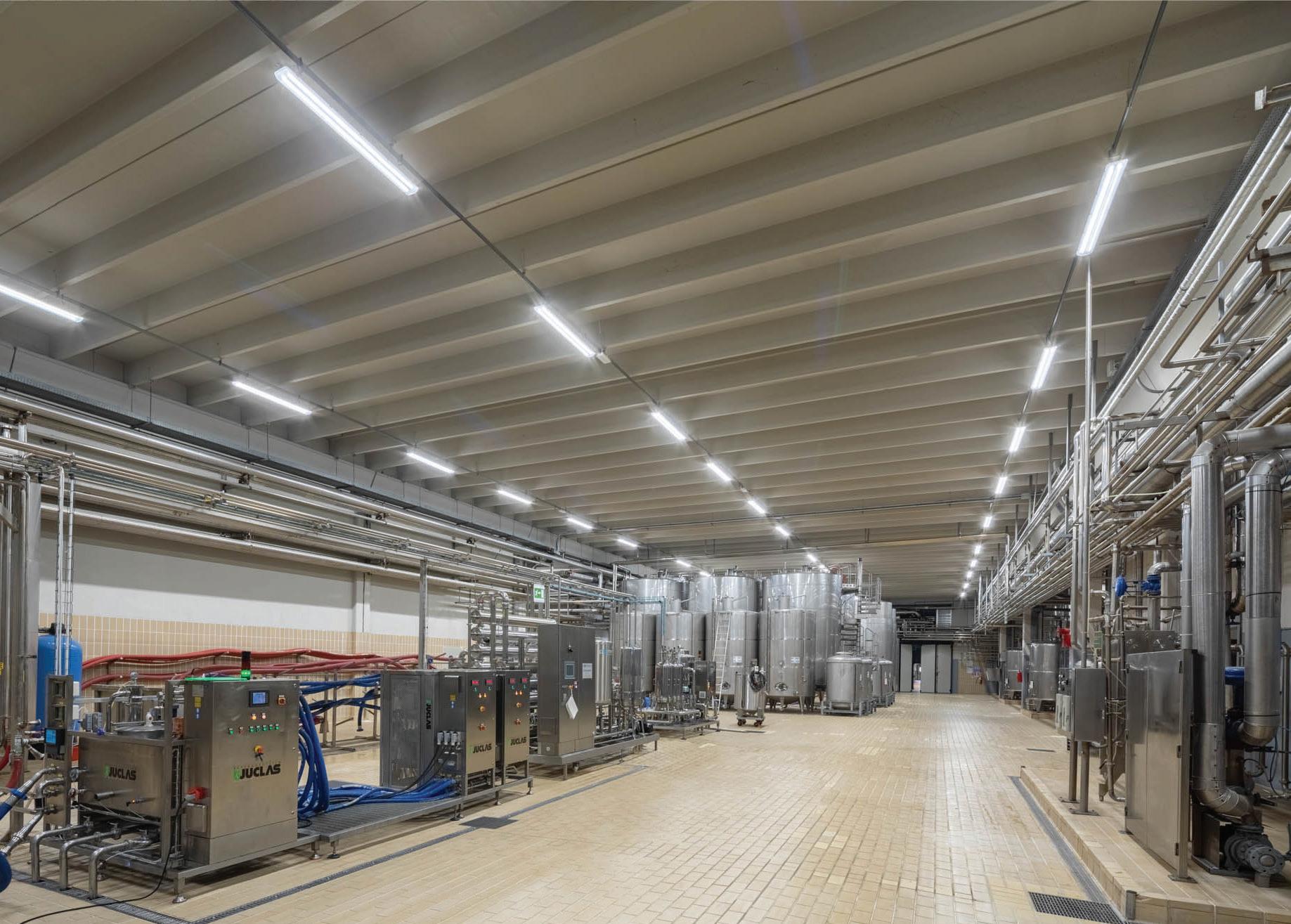

• Suitable for diffuse direct/indirect lighting in car parks, stairwells, storage rooms & switchboard rooms
DRAWINGS
• Industrial
• Community buildings
• Exterior
FIL58572 160MM 660MM
FIL58583 100MM 1270MM
FIL58594 160MM 1270MM
FIL58605 100MM 1570MM
FIL58616 160MM 1570MM
FIL58617 160MM 1570MM
FIL58619 160MM 1570MM
DEFENDER 3F
CONTROLS
DIMENSIONS
BODY COLOUR
CONNECTION
x 160mm x 100mm
x 160mm x 100mm
DEFENDER 3F HARDSKIN
FEATURES & BENEFITS
• Suitable for diffuse direct/indirect lighting in car parks, stairwells, storage rooms & switchboard rooms

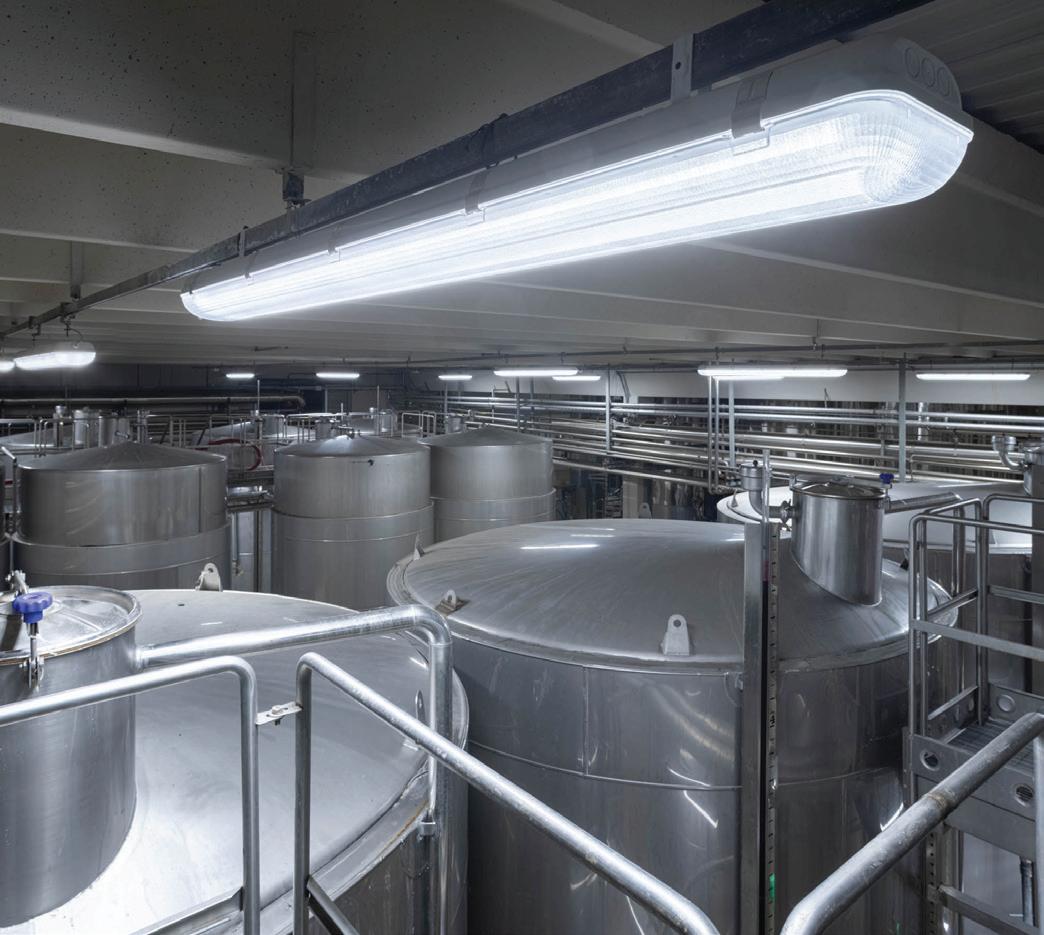

• Product suitable for installation in food-production/processing environments (HACCP, IFS, BRC Standard)
50,000 hours Warranty 5 Years
• Industrial
• Community buildings
• Exterior
DRAWINGS
DEFENDER 3F HARDSKIN
IDEAL CODE
WATTS
LUMEN OUTPUT
COLOUR TEMP
FIL58594HS
CRI CRI >80
IES FILES Yes
LIFETIME
50,000 hours L85 B10
UGR UGI <22
CONTROLS Electronic fixed output
DIMENSIONS
MATERIALS
BODY COLOUR Grey
MOUNTING Surface, suspended, wall
CONNECTION Direct
FIL58616HS
BATTEN

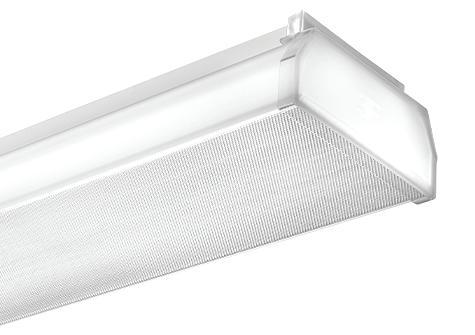

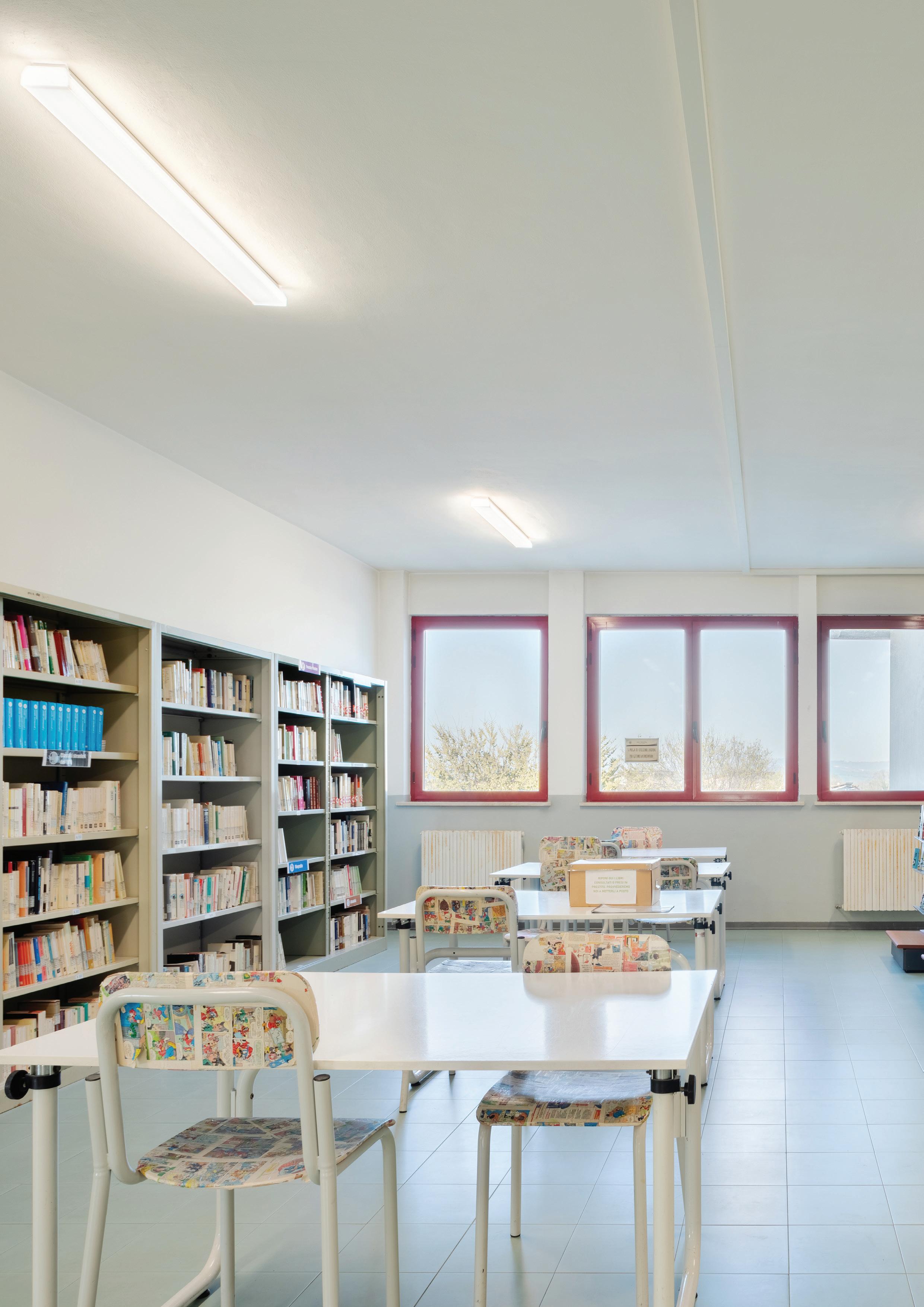

ZERO 3F BATTEN
FEATURES & BENEFITS
• In environments where soft diffuse light is required for optimal visual comfort. Suitable for recreational, transit areas, corridors, schools, stairwells.
• Linear LED modules
• Colour rendering index CRI >80
• Nominal colour temperature 4000K
• Diffuser with differentiated geometry, made of transparent methacrylate with microprismatic finish, anti-glare on the flat part and opal on the side
LIFETIME
50,000 hours Warranty 5 Years
APPLICATIONS
• Commercial
• Education
• Healthcare
DRAWINGS
ZERO 3F BATTEN
IES FILES Yes
LIFETIME
CONTROLS Electric Fixed Output DIMENSIONS
MATERIALS
CONNECTION Direct

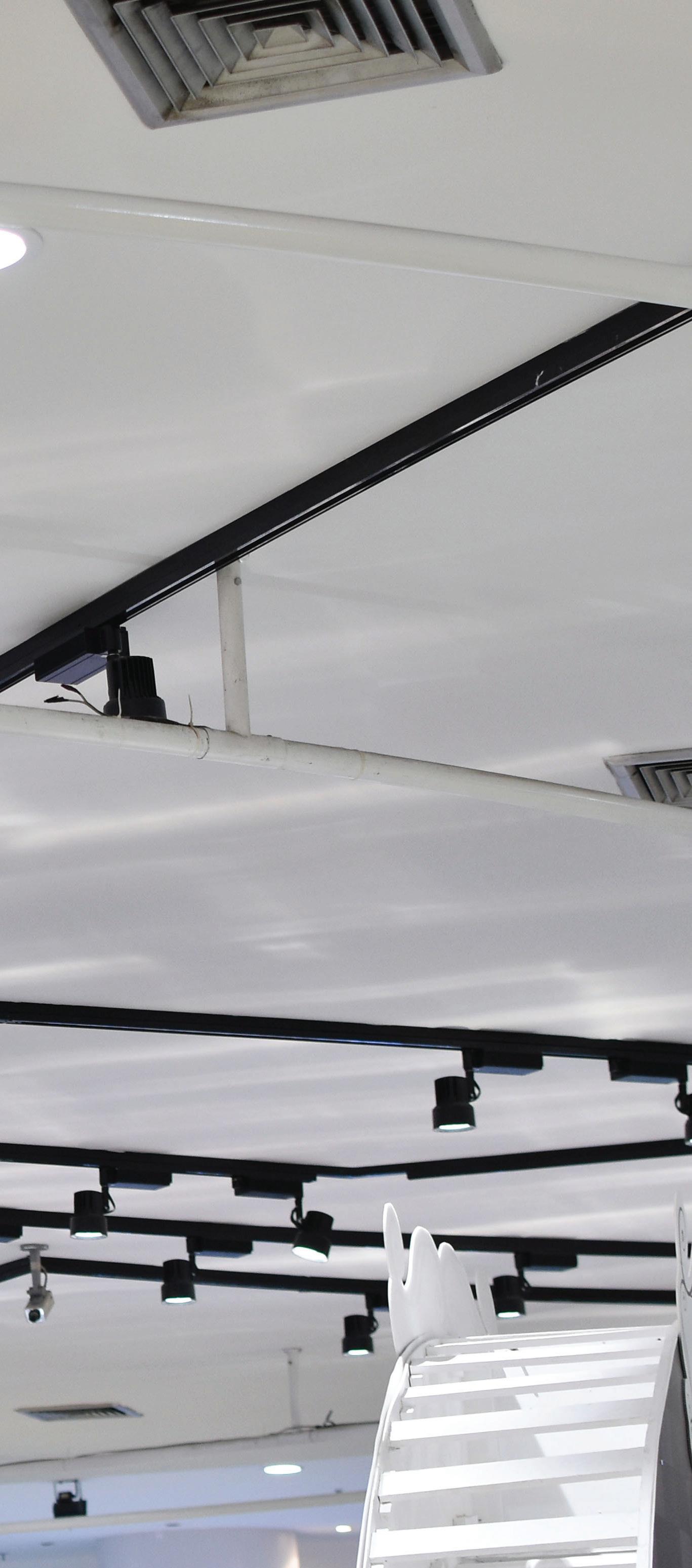

TRACK LIGHT

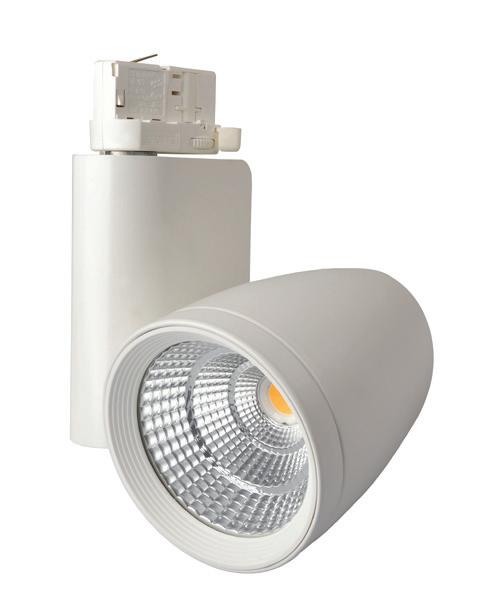

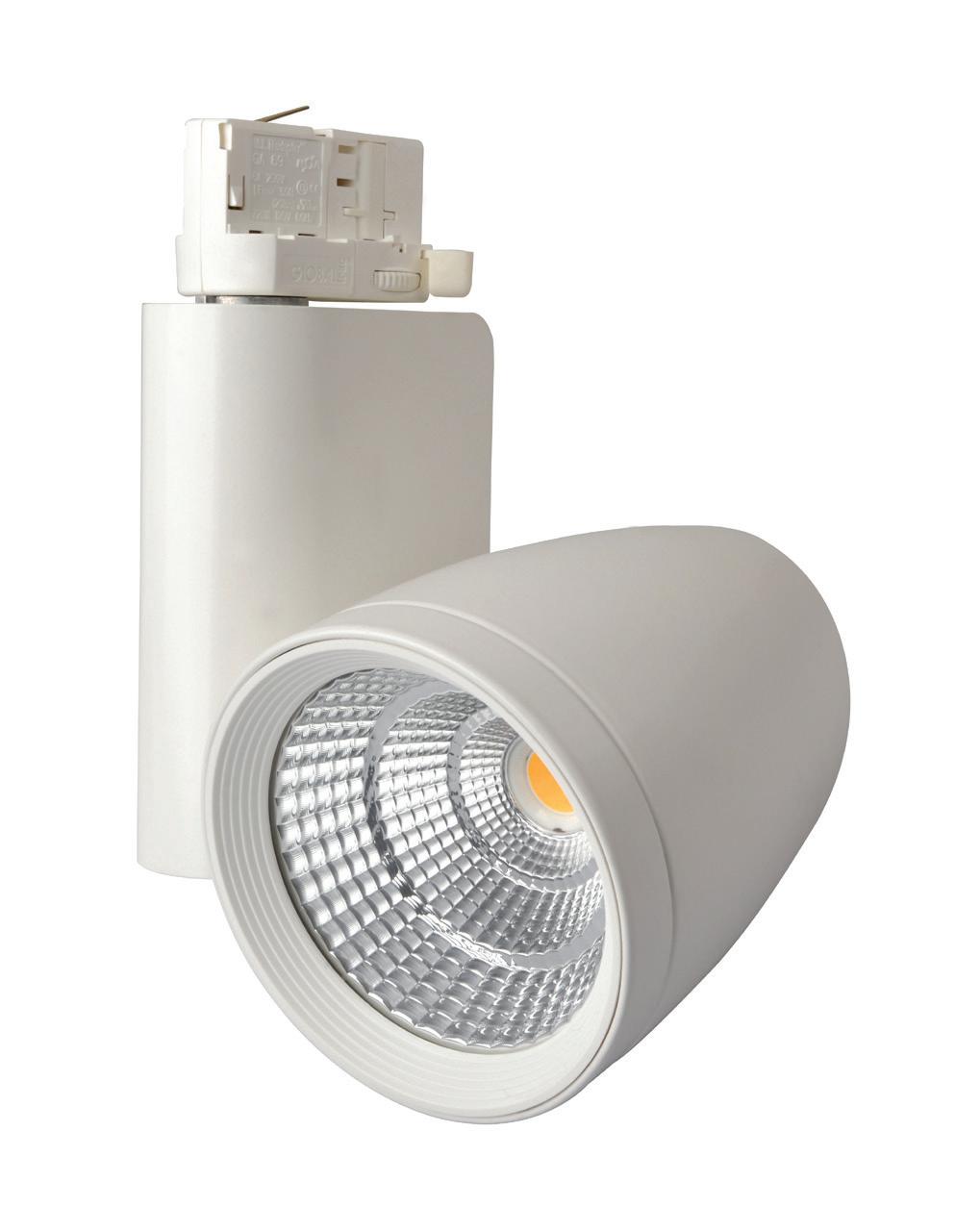

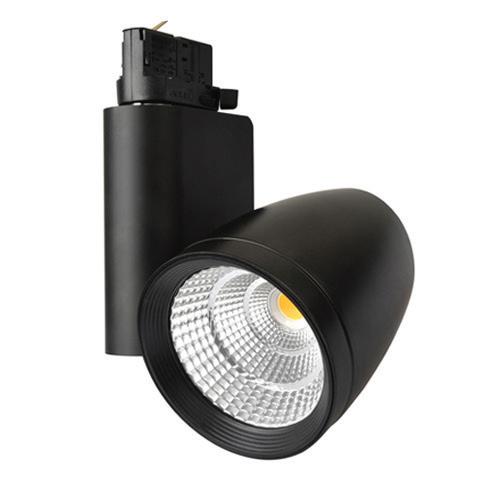

RX TL02
TRACK LIGHT
• High lumen Citizen LED’s with high 90 CRI coupled with a “Global” brand track adaptor make this track light excellent value for money.
• 35 & 45 wattage options. 40000hr life. CRI >90. 4000K. 30 and 45 degree beam angles

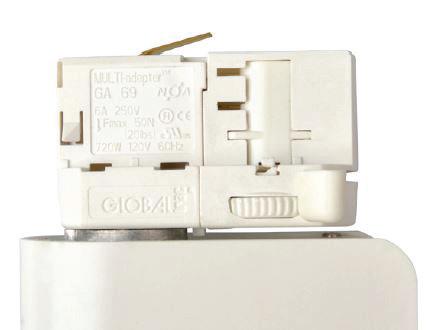

• Global branded track adapter is the best available to ensure the best conection with all brands of track
40,000 hours Warranty 3 Years
FEATURES & BENEFITS LIFETIME APPLICATIONS
• High CRI gives faithful colour reproduction
• Shop
• Hospitality
• Commercial
DRAWINGS
RX TL02 TRACK LIGHT
WATTS
LUMEN OUTPUT
35W and 45W
2250 to 3600lm
COLOUR TEMP 4000K
EFFICACY 65 to 80lm/W
CRI CRI >90
IES FILES Yes
LIFETIME 40,000hr
DIMMING Non-Dimming
DIMENSIONS 161mm x 167mm
BEAM ANGLE 30° and 45°
MATERIALS Aluminum
BODY COLOUR White or Black
MOUNTING 3 Circuit Track Mount
APPLICABLE STAND CE, RoHS, SAA
CONNECTION Track Termination
BOLLARD

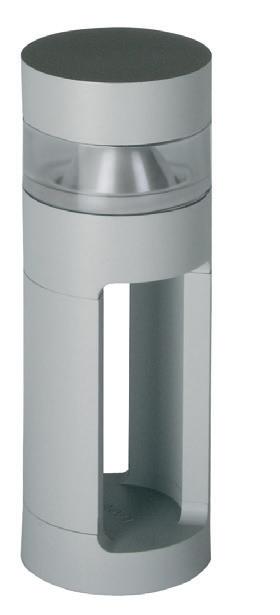

B-SIDE BOLLARD
B-SIDE BOLLARD
FEATURES & BENEFITS LIFETIME
• B-Side LED is a family of bollards designed to light public and private areas, thanks to its self-illumination, can act as an ambient light and a space-structuring element.
• It is specifically designed for LED light sources, enabling low power consumption and minimal maintenance.
50,000 hours Warranty 3 Years
• Exterior applications for public and private areas
DRAWINGS
B-SIDE BOLLARD
IDEAL CODE
WATTS
LLLBS1RD85104NG
IES FILES Yes
OPTIC Asymmetric
DIMENSIONS
DRIVER/CONTROL Electronic Fixed Output
MATERIALS
BODY COLOUR Grey
MOUNTING OPTIONS Ground
CONNECTION Direct
LLLBS1RD8525840

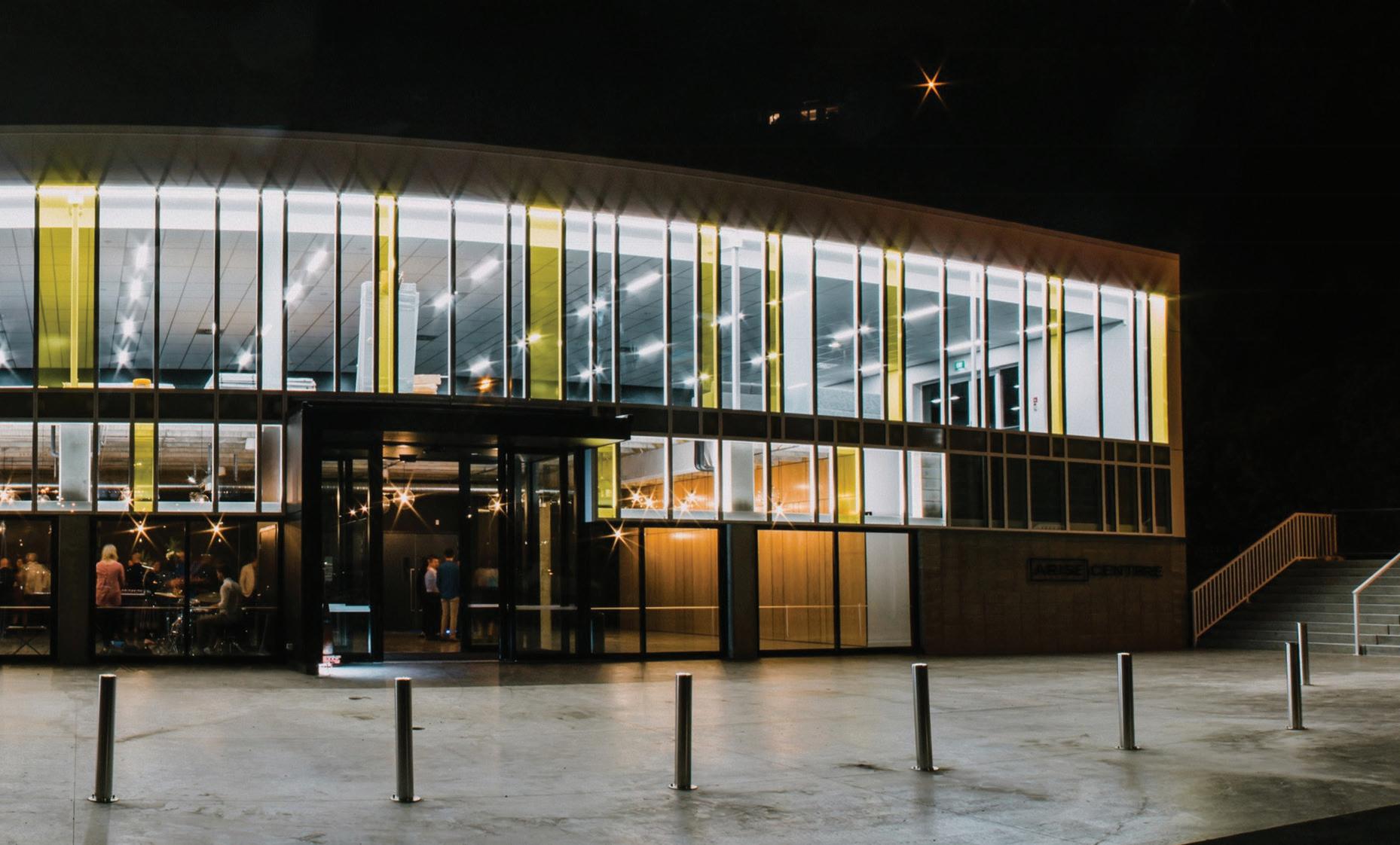

THE LANDING TAUPO AND IDEAL ELECTRICAL
WORKING TOGETHER TO CREATE AN ENTERTAINMENT WONDERLAND

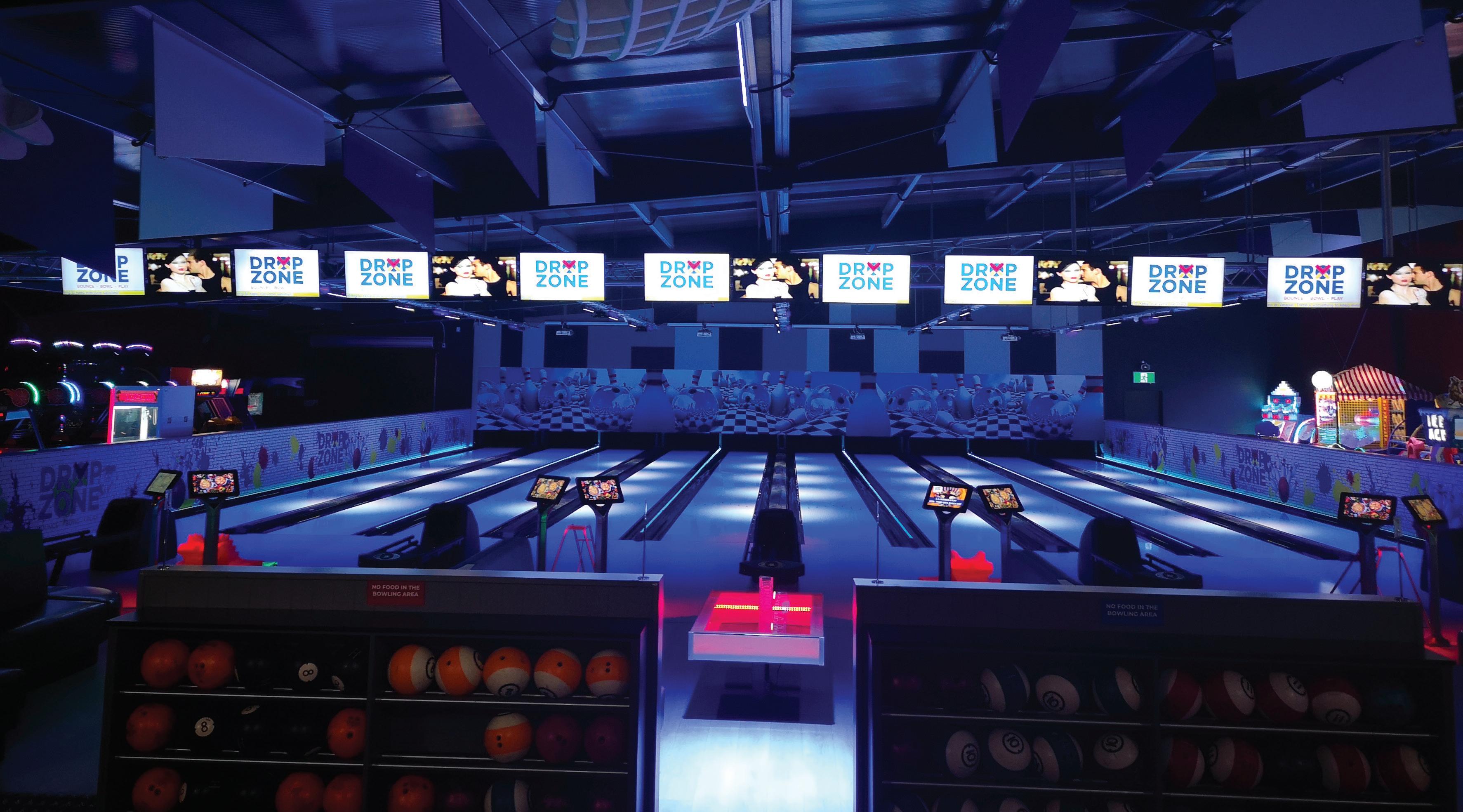

Near the airport on the outskirts of Taupo sits The Landing, a major development and tourist attraction that takes family fun to a whole new level.
Alongside cafés, restaurants, conference rooms and traveller services, you’ll find almost every indoor entertainment option you can think of – ten-pin bowling, a trampoline park, an arcade, a ninja obstacle course, and virtual reality games (to name a few). Then there are future seasonal attractions like ice skating, and a dodgem ride. It’s a kids’ (and big kids’) dream playground.
Like all major construction projects, a lot of meticulous work has gone on behind the scenes. Local developer Jamie Keehan has used local professional services wherever possible, including lighting design, supply and installation.
COMPLEX DESIGN REQUIRES VARIED SKILLSET
Right from the start, this wasn’t your run-of-the-mill lighting project. Each part of The Landing came with its own requirements and complexities. At the same time, all the design elements needed to work together. Jamie called several local suppliers, “and the best response I got came from the team at Ideal Electrical,” he says.
Not only were they enthusiastic about taking on the project, but they also had the in-house capability to manage the interior and exterior design and specify the products. For Jamie, this was a big cost-saver. “They were able to specify and give me producer statements for the design, which I felt not only saved me money but also gave me confidence they had the product knowledge too.”
THE FULL LIGHTING SUITE: DESIGN, SUPPLY, INSTALLATION
Partnering with local electrician, Off-Grid Electrical Jamie says one of the biggest drawcards to working with Ideal Electrical was the fact they’re “a one-stop-shop”. That relationship would extend even further when Ideal Electrical project manager Steve Powrie connected with a local electrician to discuss installation.
Sean McCollough from Off-Grid Electrical says he was initially approached by Steve to work with Ideal to provide a solar solution. This opportunity extended to HVAC and a complete lighting solution ensuring Sean was the main electrical contractor on site. He says he jumped at the chance to work on such “an iconic project in Taupo.”
SOLAR SAVES MEGA ON POWER CONSUMPTION
The cherry on top for Jamie was when Steve suggested incorporating solar power into the design. With a big air conditioning unit on site as well as arcade games and lots of televisions, The Landing’s daily power consumption is heavy. Ideal Electrical’s solar expert Dave Petrie came up with a design based on projected kilowatt usage, then worked closely with Sean to make sure the design factored in the building’s correct loadings.
Jamie now uses an app on his phone to monitor The Landing’s power consumption – which came in handy over
the latest lockdown. “We realised that the arcade games, which are automatically set to turn on in the morning, hadn’t been shut down. I was able to quickly log in to the app and turn them off, so they weren’t left wasting power all lockdown,”
Jamie explains.
SYMBIOTIC RELATIONSHIP CRITICAL TO DEVELOPMENT SUCCESS
Like all construction projects, especially at this scale, The Landing Taupo hasn’t been without its challenges. Even the smallest design change or equipment hiccup can cause issues that need resolving, not to mention the curveball that is COVID delaying product shipments.
Jamie says both teams have taken everything in their stride, moving swiftly to find cost-effective solutions that will keep any disruption to a minimum. “I can’t fault Ideal’s level of service. It wasn’t just about signing the deal, then walking away. They followed through and were always on hand to help when it was needed,” he adds.
Sean has signed a contract with The Landing to complete the solar, HVAC, power and lighting, data, networking and controls installations. At the time, it was the biggest project his team had ever taken on. It’s come with some big learning curves, but “standing back and watching the kids running around happily has been the biggest moment of joy for me,” Sean says.
“Ideal has been super supportive and readily available to help at all times. Our relationship has really grown through this project and we look forward to working with them on our upcoming projects,” he says.

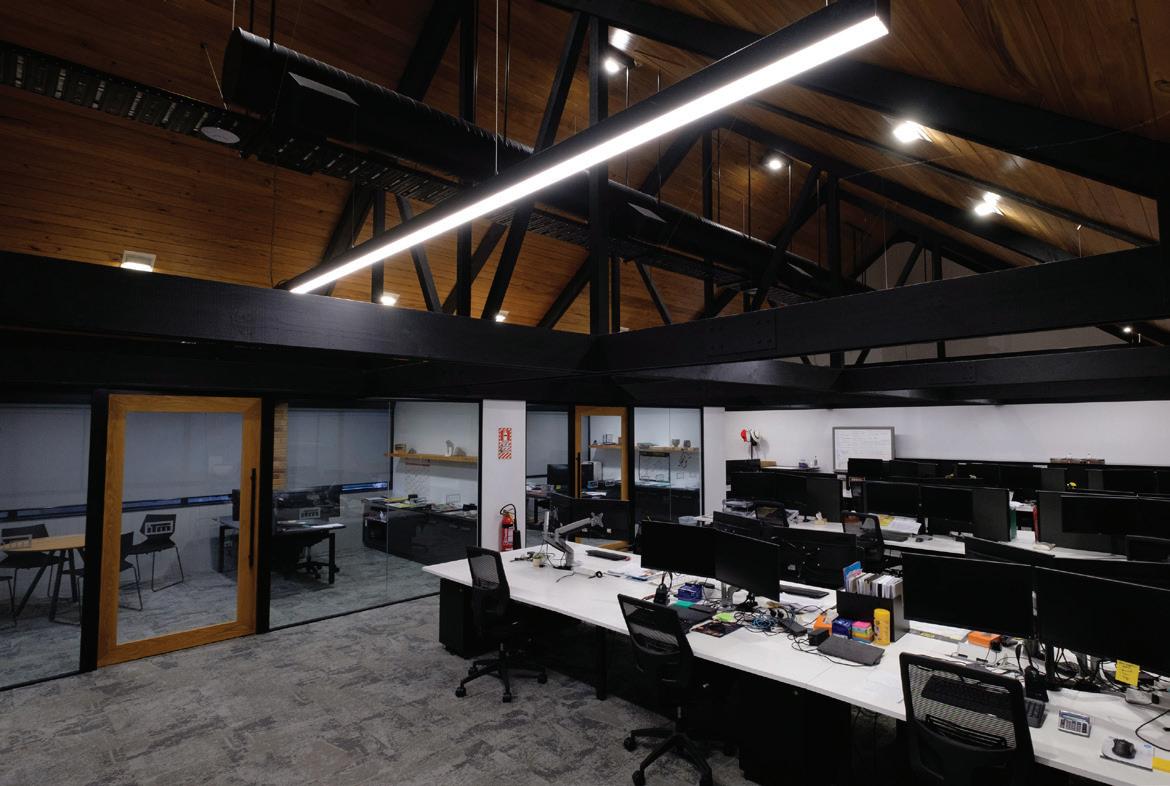

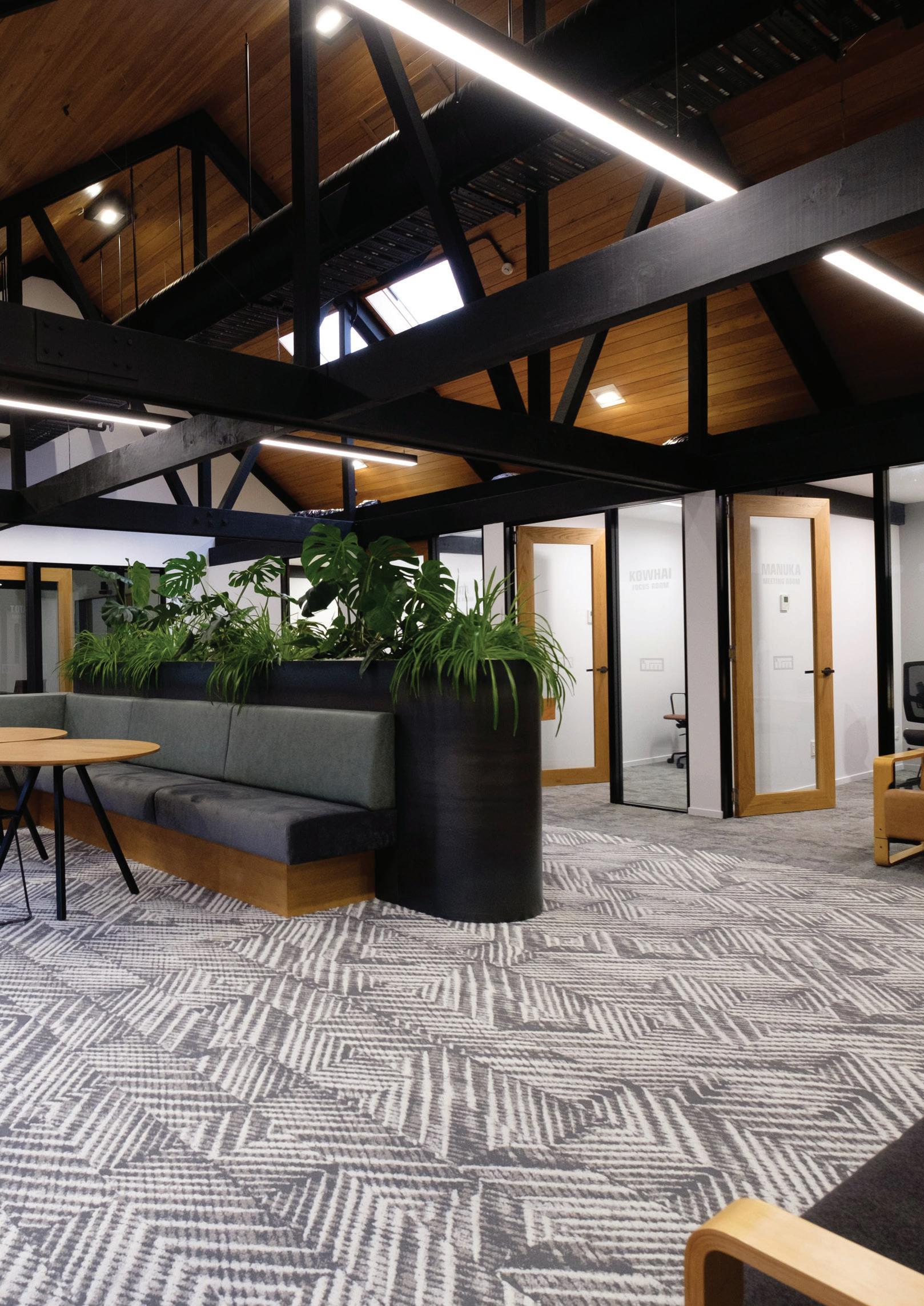

A STRATEGIC BALANCE: BLENDING IN FOR MAXIMUM IMPACT

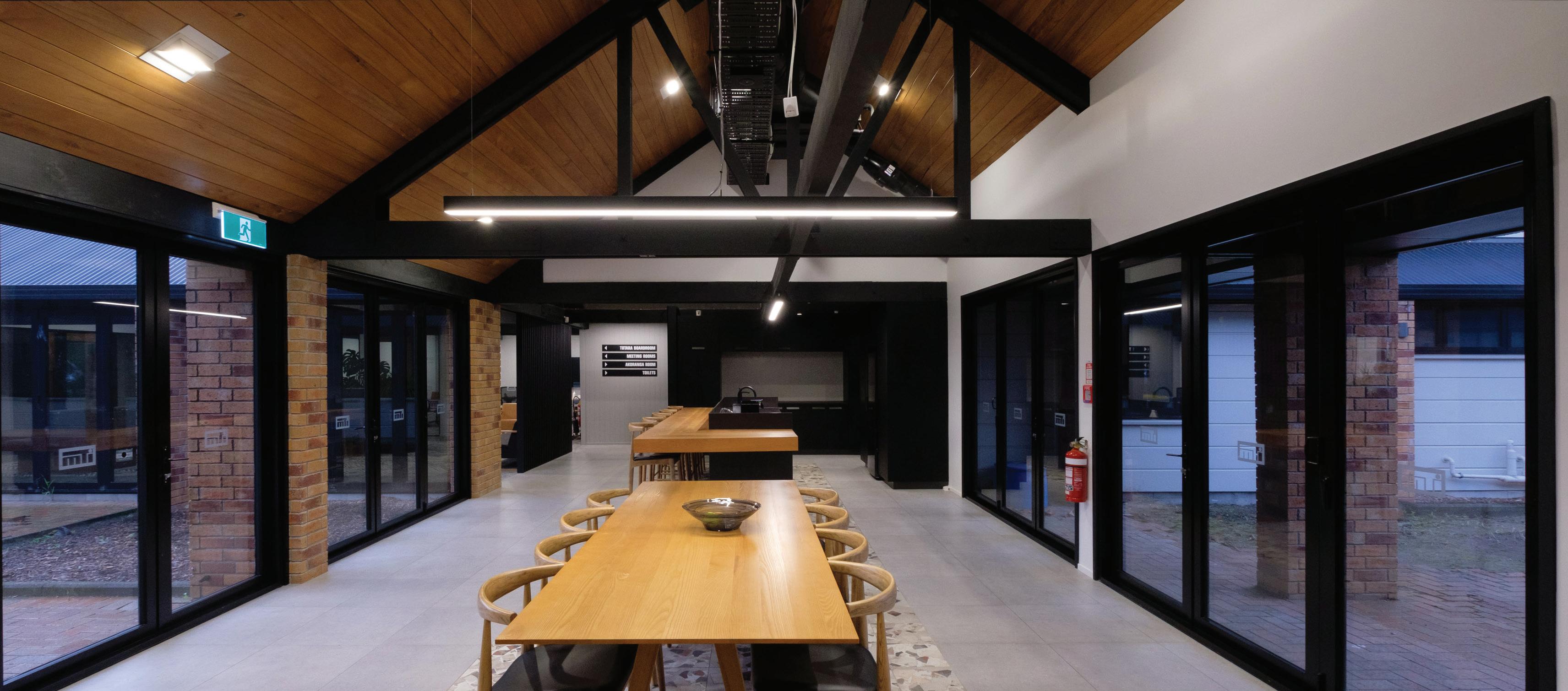

Our lighting team was approached by ITM to be part of its head o ice redesign. The ITM business had grown significantly over the years and wanted to create a more relevant, modern and open workplace that was more conducive to collaboration. It was also imperative the design didn’t stray too far from the brand’s grassroots of timber yards and muddy gumboots.
THE BRIEF
A sleek, minimalist lighting design would accentuate the semi-industrial look of the building. It needed to be refined, not detract from the strong interior design features and provide su icient working light. A low energy footprint solution was also required and therefore quality fittings were paramount.
THE CHALLENGES
This project posed several challenges for the team: AGE OF BUILDING.
There were a lot of high ceilings, beams, cable trays and pre-set electrical connections to consider when designing.
BUDGET RESTRICTIONS.
Our lighting team was tasked with working to a set budget, as most of the interior had already been designed.
DESIGN COMPLEXITY.
We were challenged to come up with a better design solution that had form and function, and aesthetically contributed and improved the overall design.
THE LIGHTING APPROACH
A lighting design concept that ticked all the boxes Lighting designer Abhishek Dipak explains how the team worked the project:
“This was one of those projects where we came together as a team to brainstorm solutions for every single challenge, to ensure client requirements were met – and within budget.”
At the core of our design concept, we wanted the lighting design to seamlessly blend and uplift, rather than overpower. Here’s how we achieved that:
• Smart positioning of lighting – slightly behind desks to reduce shadowing, but still supplying efficient working light
• Extrusions limited the need for more obtrusive, traditional light fixtures
• Suspended profiles were used to create a modern look and feel without being overly prominent
• Powder-coated black diffused lights complemented the semi-industrial nature of the building and design.
TECHNICAL SPECIFICATIONS
For the perfect balance between performance and aesthetic, we used FIL+LED fittings – a comprehensive family of modular structures for suspending, surface mounting or recessing.
FIL+ is a long-lasting family of fittings from LAMP and uses up to 85% recycled aluminium, reducing carbon footprint. These fittings are classified as photobiological group - 0
according to the UNE 62471 standard, eliminating any exposure to harmful optical radiation.
Other key product points: CRI 80 for good colour rendering, polycarbonate opal diffuser for less glare and great eye comfort, with five years warranty.
THE RESULTS
ITM CEO Darrin Hughes says the lighting team delivered a great design, with top-notch project-management skills.
“I was able to outlay my concerns with the rudimentary first cut we had received from the interior designers and challenge them to do something better. They were great!“
“We went through a few iterations and a lot of the product had to be manufactured to order, but they managed that process well. And when we needed to make budget compromises, they were extremely agile,” he says..
WINNER OF INTERIOR AWARDS WORKPLACE AWARD 2020
We know light plays an important role in interior design and in 2020, ITM’s new head office was a category winner at the inaugural Interior Awards – solidifying what a great project this was.
Some of the jury’s comments:
“Within the most highly contested and difficult category to judge, and with a number of high-end, boutique workplaces as finalists, it was a project with a humble budget and a bluecollar soul which ended up rising above the rest.”
“The designers of ITM accomplished the transformation of a tired 1980s office space into a classy HQ by putting workers first and celebrating their main product through a clear and simple concept.”
RX LIGHTING HYGIENE RANGE
Introducing the HYGIENE RANGE from RX Lighting, custom designed and developed in house for over 35 years specifically for primary industry applications. New Zealand designed and tested specifically for use in Poly Panel, Rudnev and Exflam ceilings and walls.

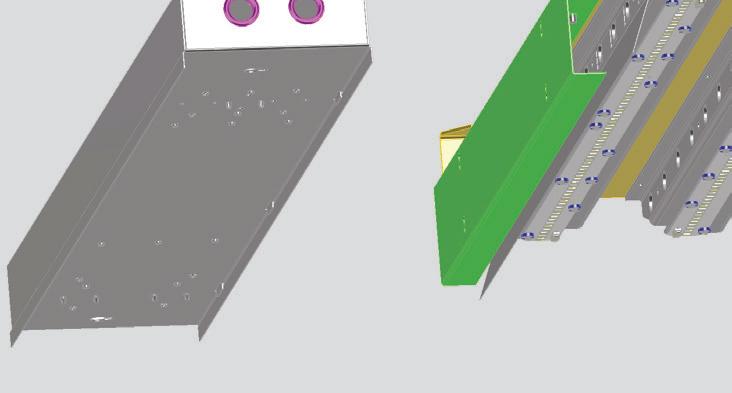

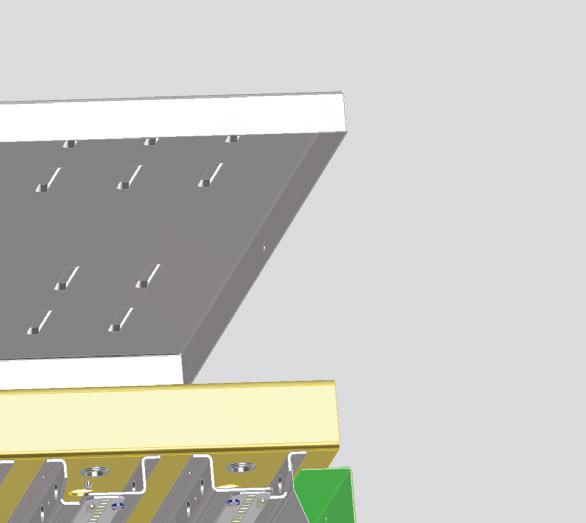

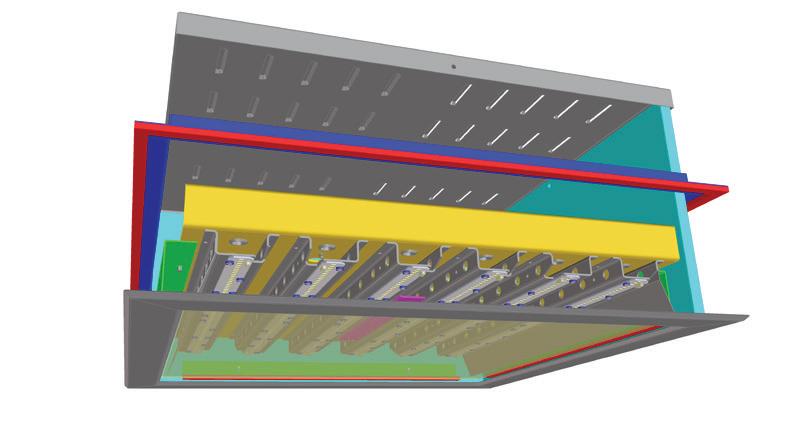

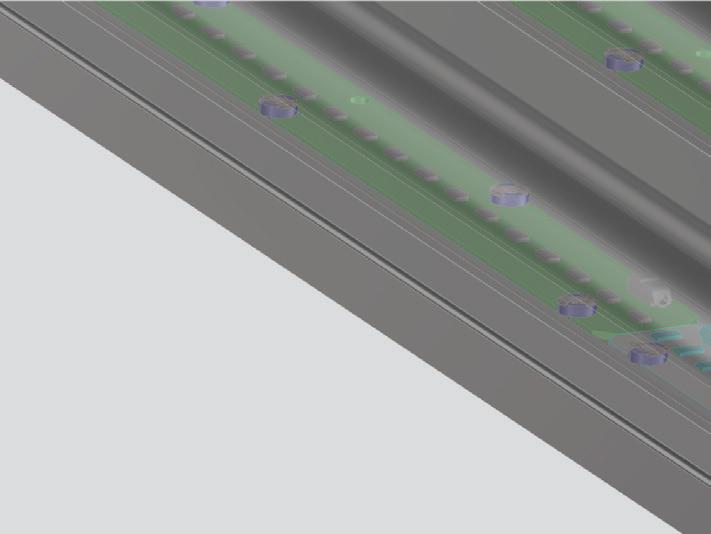

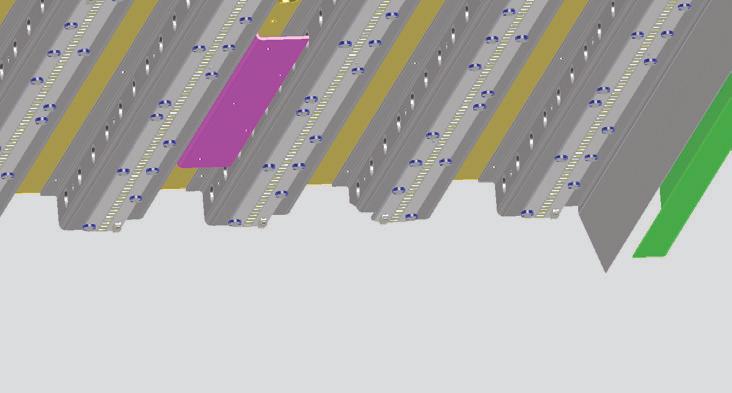

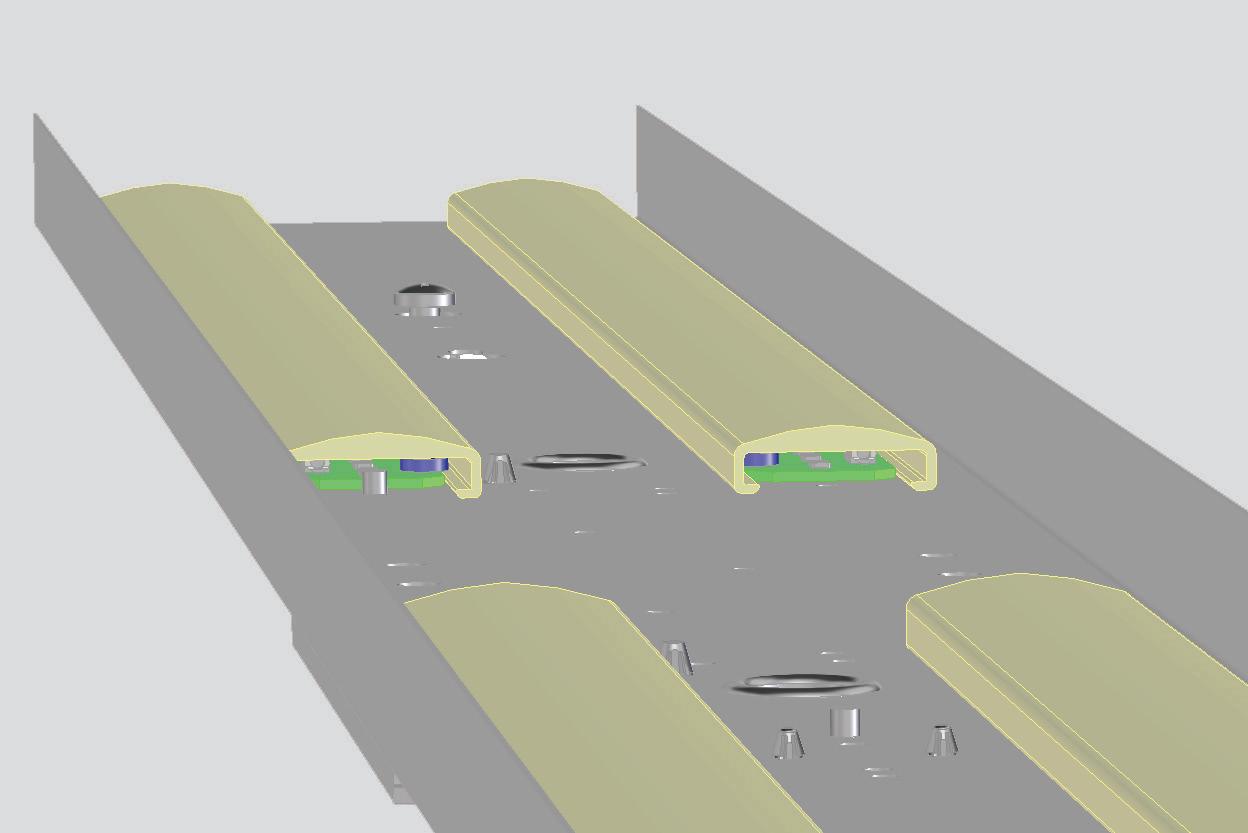

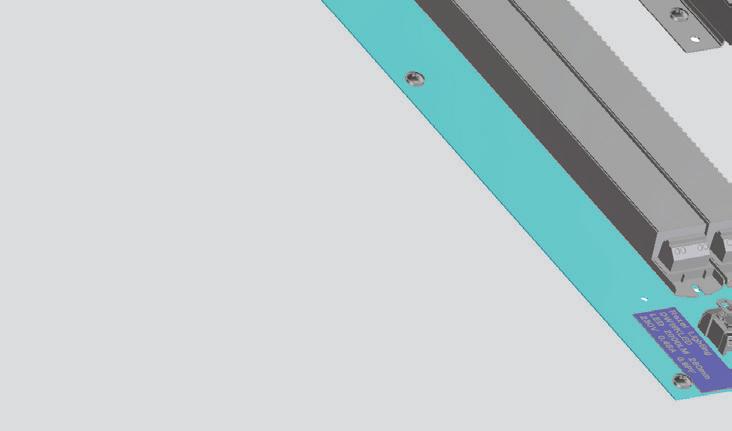

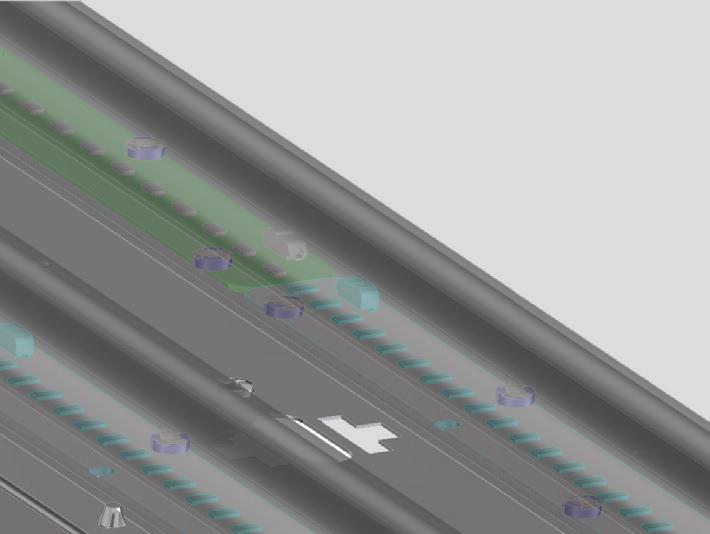

The range now offers a comprehensive LED drop-in gear tray replacement, and a new build option which provides the same photometric distribution as the traditional light source previously supplied to our primary industry sector.
RX LIGHTING HYGIENE RANGE

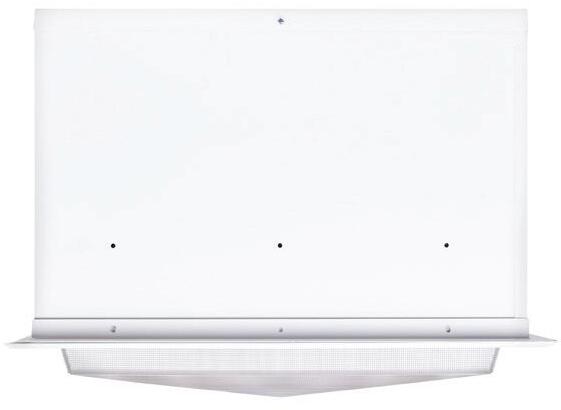

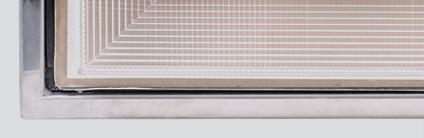

RX SILVERGLOW
Features
Benefits:
The Silverglow range is constructed in 316 stainless steel with high Impact acrylic UV stabilised diffuser. These materials withstand most industrial agents and are able to be used in the dairy, meat, and other food production areas.
Ceiling Surface Mount, Wall Mount, Suspended, Ceiling Corner Mount
Flat or Peaked Top
2hr Emergency Maintained and UPS supplied Emergency options available to order.

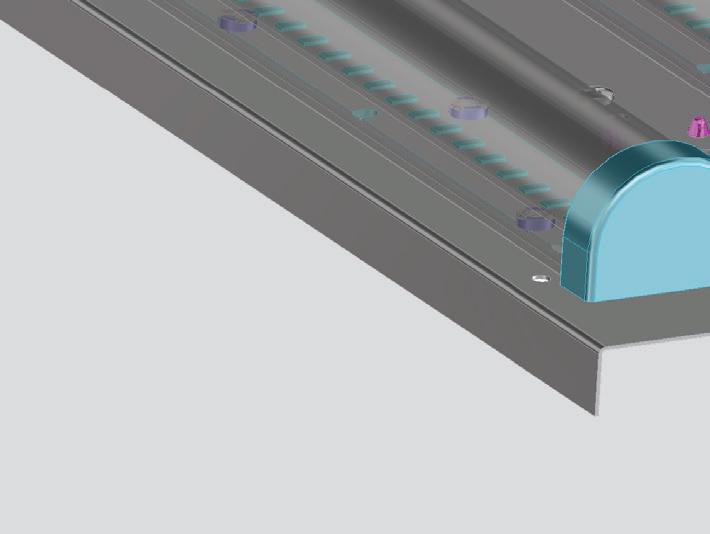

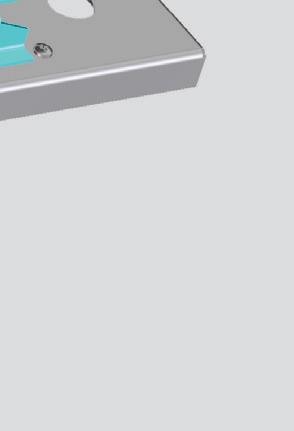

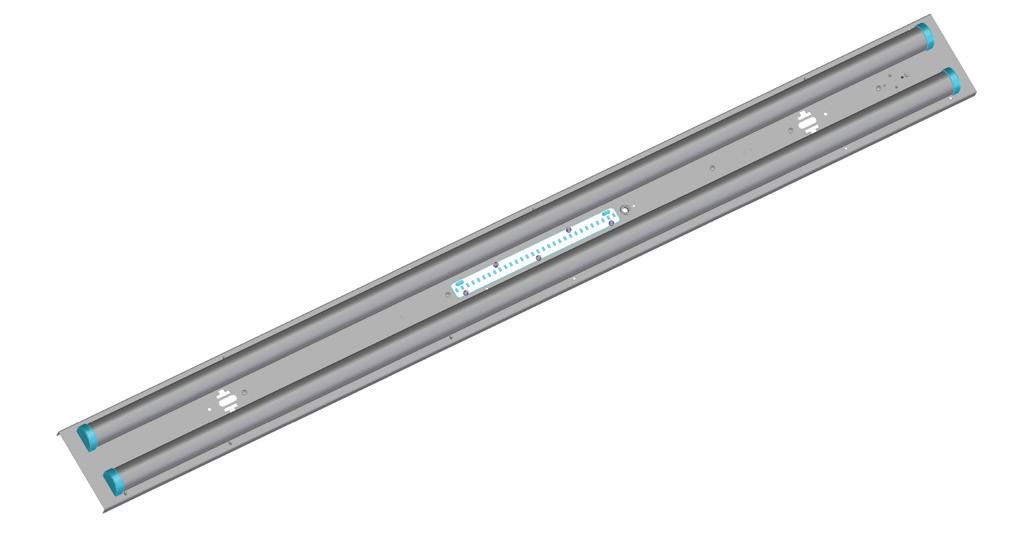

A retro fit LED gear tray available for older T8 Fluorescent installations. Only for use with drop lens diffuser.*
• Can withstand most industrial cleaning agents
• A retro fit LED gear tray available for older T8 Fluorescent installations
• 4ft and 5ft Options
• LED
• Energy saving
• Long life
• Stainless Steel body
• Easy clean
Applications
Suitable for Hygiene areas such as:
• Freezing works
• Bakeries
• General Food Handling
• Refrigeration Storage
* For Retrofit LED gear tray options please see pages 6 & 7
Lifetime Warranty
L70 50000hrs B10 5 years
RX Silverglow Product Range

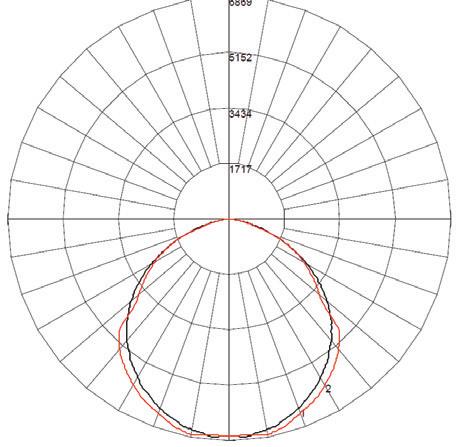

Photometric diagrams
Note: All fittings come with a Drop diffuser as standard, the option of a flat diffuser is available on request.
UPS emergency and 2hr battery emergency options are available.
REX65125CLIPKIT
4FT DIFFUSER DROP LENS REX6512D4
4FT DIFFUSER FLAT SHEET CLEAR 131REX6512D4CF
5FT DIFFUSER DROP LENS REX6512D5
5FT DIFFUSER FLAT SHEET CLEAR 161 REX6512D5CF
RX LIGHTING HYGIENE RANGE
RX SILVERGLOW LED GEARTRAY
Features
Suitable as Retrofit LED units for all Silverglow & LT Trunking systems.
2hr Emergency Maintained options available as well as UPS supplied Emergency options.
Suitable for Hygiene areas such as freezing works, bakeries and general food handling or refrigerated storage areas.
Applications
Direct gear tray replacement into existing T8 lamp Silverglow bodies and LT Trunking systems. See pages 4-5 for body options in 4ft and 5ft.
• Easy retrofit solution
• LED • Energy Saving Benefits:
Lifetime Warranty
L70 50000hrs B10 5 years
RX Silverglow LED Geartray
WATTS 40W for 4ft 80W for 5ft
LUMEN
IES FILES AVAILABLE? Yes
DIMMING / CONTROLS / DRIVER Standard Non Dimmable * dimmable on request
LIFETIME L70 50000hrs B10
WARRANTY 5 years
DIMENSIONS L,W,H 4ft - 24mm x 124mm x 1220 5ft - 24mm x 124mm x 1500mm
MATERIALS Powdercoated mild steel
BODY COLOUR White
MOUNTING
OPTIONS Retrofits existing Silverglow models
CONNECTION EG FLEX & PLUG / TERMINAL Terminal
Note: 2hr Battery backed self contained emergency options available on request.
GEAR TRAY 2X40W LED 5FT
REXGT651240LED
GEAR TRAY 2X20W LED 4FT
REXGT651220LED
GEARTRAY INSIDE SILVERGLOW BODY
SILVERGLOW CROSS SECTION SHOWING GEARTRAY POSITION AND DROP LENS
RX LIGHTING HYGIENE RANGE
RX DUALITE
The Dualite e is constructed in 316 stainless steel with high Impact acrylic UV stabilised diffuser. These materials withstand most industrial agents and are able to be used in the dairy, meat, and other food production areas.
Options – Wall, Surface Mount (DW) and Ceiling, Surface Mount (DS). Both options available as Symmetric or Asymmetric Light distribution.
Low Glare suitable for Forklift and other vehicular movement.
UV Stabilised Lexalite Lens.
2hr Emergency Maintained and UPS supplied Emergency options available to order. A retro fit LED gear tray available, see pages 10 & 11 for more information.
Features Applications
• Manufacturing
• Warehouses
• Processing Plants
• Freezer Units
• Wash Down areas
• Areas where glare control is a requirement
• Removable gear tray
• LED
• Replaceable Lens
• Energy Saving Benefits:
Lifetime Warranty
L70 50000hrs B10 5 years
RX Dualite Product Range
WATTS 115W
LUMEN OUTPUT 14,000 lm
EFFICACY 122 Lumens per Watt
CCT & RX 4000k
CRI >80 (>90 on Request)
IP RATING 54
IES FILES AVAILABLE? Yes
DIMMING / CONTROLS / DRIVER Non Dimmable
LIFETIME L70 50000hrs B10
WARRANTY 5 years
DIMENSIONS L,W,H 536mm x 536mm
WEIGHT 16kg
MATERIALS 316 Stainless Steel
BODY COLOUR Stainless Steel *Powdercoated only on request
MOUNTING OPTIONS Surface Mount Ceiling or Wall
CONNECTION EG FLEX & PLUG / TERMINAL Terminal
Photometric diagrams
REXDS8LEDUPS RX Dualite 8 LED engine 1x8w led UPS emergency ceiling mount surface
REXDW8LED RX Dualite 8 LED engine wall mount surface
REXDW8LEDUPS RX Dualite 8 engine & 1x8w LED UPS emergency wall mount surface
Note: 2hr Battery backed self contained emergency options available on request.
RX LIGHTING HYGIENE RANGE
RX DUALITE LED GEARTRAY
Features
The Dualite retrofit LED gear tray fits into the RX Lighting Dualite luminaire.
Direct replacement for 250W HID Lamps
Quick and easy change over gear tray solution
UPS and 2HR battery back emergency options available on request.
Benefits:
• Easy retrofit solution
• LED
• Energy saving
• Long Life
• Zhaga Footprint LED engine
Applications
• Direct gear tray replacement into existing RX Dualite. See pages 8-9 for Dualite body details
• Where glare control is a requirement
Lifetime Warranty
L70 50000hrs B10 5 years
RX Dualite LED Geartray
WATTS 115W
LUMEN OUTPUT 14000 lm
EFFICACY 122 Lumens per Watt
CCT & RX 4000k
CRI >80 (>90 on Request)
IES FILES AVAILABLE? Yes
DIMMING / CONTROLS / DRIVER Standard Non Dimmable * dimmable on request
LIFETIME L70 50000hrs B10
WARRANTY 5 years
DIMENSIONS L,W,H 480mm x 480mm x 165mm
MATERIALS 316 Stainless Steel & Aluminium
BODY COLOUR N/A
MOUNTING OPTIONS
Retrofits into existing Dualite models
CONNECTION EG FLEX & PLUG / TERMINAL Terminal ORDER
REXDW8LEDRET RX Dualite major 8 LED retrofit LED engine and geartray
REXDW8LEDRETUPS RX Dualite major 8 LED retrofit LED engine & UPS emergency
Note: 2hr Battery backed self contained emergency options available on request.
LED Tray
LED TRAY MOUNTING MATCHES EXISTING MOUNTING FOR DUALITE
GEARTRAY AS INSTALLED IN DUALITE BODY
RX LIGHTING HYGIENE RANGE
RX DUALITE MINOR
Features
The Dualite Minor is a wall mounted low glare luminaire suitable for the hygiene industry or arduous locations.
Opaque flat lens
The Dualite Minors sloping top highlights any dirt and/or dust build up.
Low Glare suitable for Forklift and other vehicular movement.
Emergency UPS or 2HR Battery Maintained Models c/w Running Man Decal to ASNZS 2293.
Benefits:
• Removable Gear Tray
• Replaceable lens
• LED
• Energy saving
• Zhaga Footprint LED engine
• Easy to clean
Applications
• Manufacturing
• Warehouses
• Processing Plants
• Freezer Units
• Wash Down areas
• Areas where glare control is a requirement
Lifetime Warranty
L70 50000hrs B10 5 years
RX Dualite Minor Product Range
WATTS 22W
LUMEN OUTPUT 2200 lm
EFFICACY 100 Lumens per Watt
CCT & RX 4000k
CRI >80 (>90 on Request)
IP RATING 54
IK RATING N/A
IES FILES AVAILABLE? Yes
DIMMING / CONTROLS / DRIVER Non Dimmable
LIFETIME L70 50000hrs B10
WARRANTY 5 years
DIMENSIONS L,W,H 186mm x 336mm x 466mm
WEIGHT 6.5kg
MATERIALS 316 Stainless Steel & Acrylic
BODY COLOUR Powdercoated only on request
MOUNTING OPTIONS Only wall mount
CONNECTION EG
FLEX & PLUG / TERMINAL Terminal
Photometric diagrams
Accessories
RX RUNNING MAN LABEL STRAIGHT 305X305 FOR DUALITE MINOR REXDW211RMS
RX RUNNING MAN LABEL RIGHT 305X305 FOR DUALITE MINOR REXDW211RMR
RX RUNNING MAN LABEL LEFT 305X305 FOR DUALITE MINOR REXDW211RML
Dimensions
DUALITE MINOR WALL MOUNTED
RX LIGHTING HYGIENE RANGE

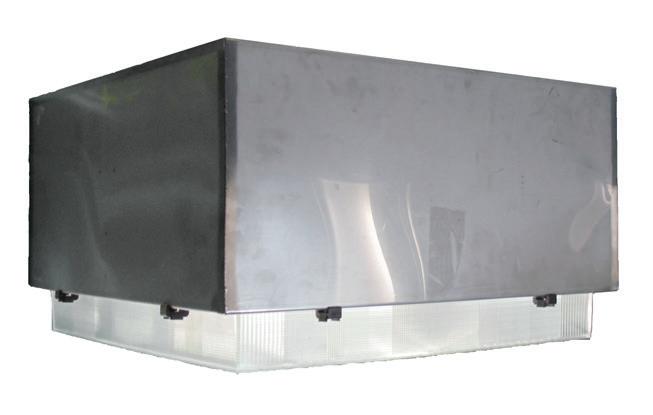

RX HEPA LED
The HEPA is a recessed luminaire with top access to the LED gear tray.
Designed to be mounted in a Rudnev/poly panel ceiling. Full wash down capability. The HEPA has “walk-on” ability and can withstand up to 160kg on the Top of fitting. Retro fit LED kit is available for older Metal Halide installations.
Suitable for Hygiene areas using polypanel construction such as freezing works, dairy factory, bakeries and general food handling or refrigerated storage areas. HEPA is top accessed allowing servicing to be carried out remotely. Triumph Lens, Y5 and Clear Lens available.
UPS and 2HR battery back emergency options available on request.
• Ceiling mount
• Hygiene areas
• Dairy, Meat & Food Preparation areas
• Pressurised rooms
• Laboratories Features Applications
Benefits:
• Top access for maintenance without entering the cleanroom
• Easy retrofit solution for upgrading from MH to LED
• Zhaga Footprint LED engine
• Remote control gear
• Suitable for use in pressurised rooms
RX HEPA LED Product Range
WATTS 168W
LUMEN OUTPUT
15792 lm to 18,246 lm
EFFICACY 108.6 Lumens per Watt
CCT & RX 4000
CRI >80 (>90 on Request)
IP RATING 65
IES FILES AVAILABLE? Yes
DIMMING / CONTROLS / DRIVER Standard Non Dimmable * dimmable on request
LIFETIME L70 50000hrs B10
WARRANTY 5 years
DIMENSIONS L,W,H 595mm x 595mm x 270mm
CUTOUT 600mmx600mm
WEIGHT 17kg
MATERIALS 316 Stainless Steel flange
BODY COLOUR Powdercoated white standard
MOUNTING OPTIONS Recessed, top access
CONNECTION EG
FLEX & PLUG / TERMINAL Flex & plug
Lens Options
• Clear
• Triumph
Note: Bodies DO NOT INCLUDED gear trays. See pages 16-17 for options.
Photometric diagrams
RX HEPA RETRO KIT HEPA 2X2 6LED C/W DRIVER 4000LM 840 REXHP226LEDRET REXHP226LEDTCL REXHP226LEDTT
Accessories Dimensions
RX HEPA RETRO 2X2 6X TRIDONIC 4000LM REMOTE GEAR WITH UPS EM REXHP226LTRETUP
RX LIGHTING HYGIENE RANGE
RX HEPA LED GEARTRAY
Gear tray option for the RX HEPA REXHP226LEDTCL and REXHP226LEDTT.
Also suitable for retrofit LED gear tray to replace the older HID RX HEPA.
Suitable for Hygiene areas using polypanel construction such as freezing works, bakeries and general food handling or refrigerated storage areas.
There is an emergency model which includes a stand-alone battery backed system. UPS and 2HR battery back emergency options available on request.
Features Applications
Existing Hygiene Areas specifically:
• Dairy
• Meat
• Food Preparation areas
• Into existing RX HEPA Body
• Easy retrofit solution
• LED • Energy saving
• Zhaga footprint LED engine Benefits:
Lifetime Warranty
L70 50000hrs B10 5 years
RX HEPA LED Geartray
WATTS 168W
LUMEN OUTPUT 15792 lm to 18,246 lm
EFFICACY 108.6 Lumens per Watt
CCT & RX 4000k
CRI >80 (>90 on Request)
IES FILES AVAILABLE? Yes
DIMMING / CONTROLS / DRIVER Non Dimmable
LIFETIME L70 50000hrs B10
WARRANTY 5 years
DIMENSIONS L,W,H 595mm x 595mm
MATERIALS Aluminium & Powdercoated mild steel
BODY COLOUR Natural Aluminum and white powder coated
MOUNTING
OPTIONS Retrofit to HEPA body only
CONNECTION EG FLEX & PLUG / TERMINAL N/A
REXHP226LEDRET
REXHP226LTRETUP
RX HEPA retro kit HEPA 2x2 6LED c/w driver 4000lm 840
RX HEPA retro 2x2 6x Tridonic 4000lm remote gear with UPS emergency
Note: 2hr Battery backed self contained emergency options available on request.

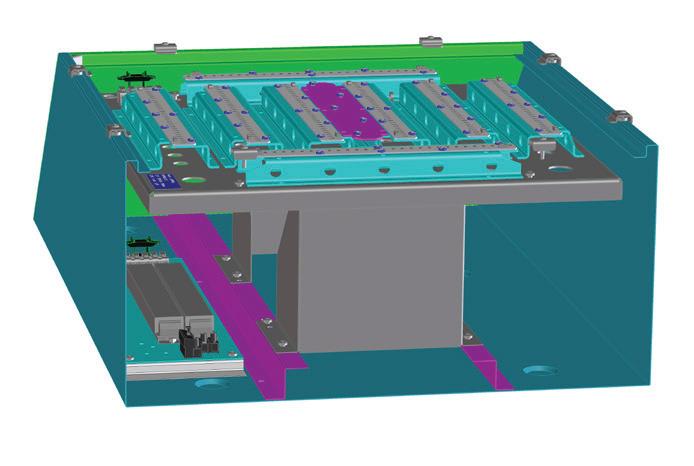

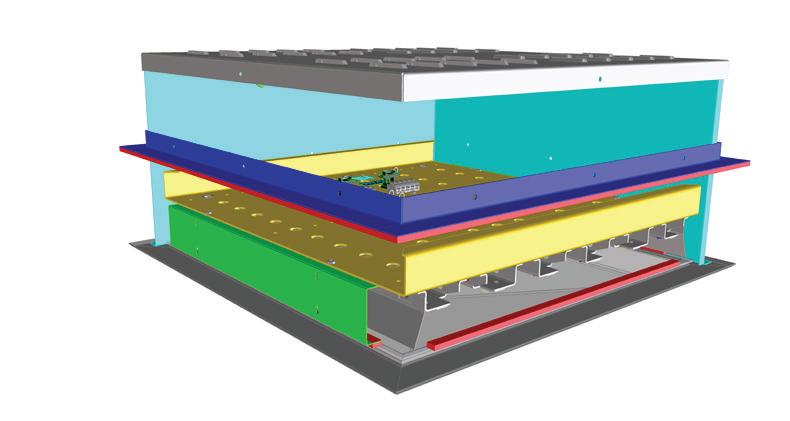

REXHP226LEDRET kit installed in to HEPA body. Gear Box is remote from body and not shown.

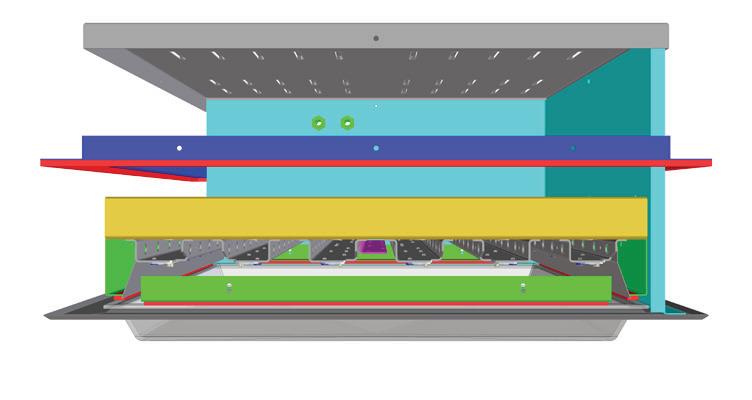

Side view of kit installed into HEPA Body. Body side panel omitted for clarity.

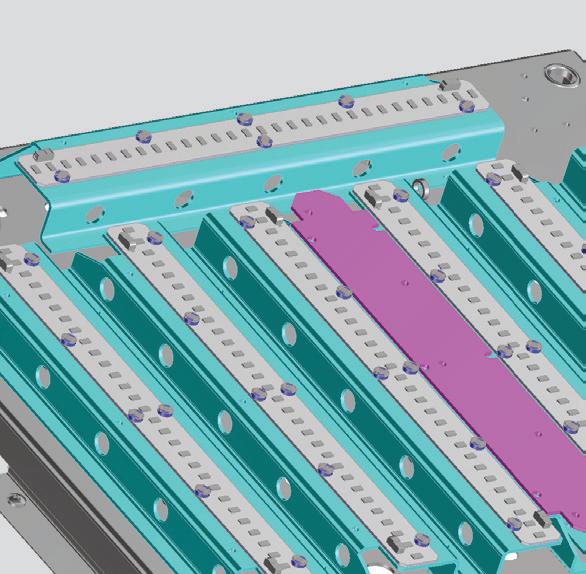

Corner view of installed kit. Body Side panel omitted for clarity.
Base view showing relation between lens and geartray as installed in HEPA body.
RX LIGHTING HYGIENE RANGE
RX ACRO & RESOLUTE GEARTRAY
Universal retrofit gear tray fits both RX Acro & Resolute luminaires.
Available as 2x40W LED which is a direct replacement for 2x58W option. Economy Model. Instant start.
Replacement gear tray does not require any modification to 2x58W Resolute or Acro original bodies.
Features Applications
• Hygiene Areas
• Corridors
• Circulation Areas.
• Easy retrofit solution
• LED
• Energy saving
• Diffuse cover over LED engine Benefits:
Lifetime Warranty
L70 50000hrs B10 5 years
RX Acro & Resolute Geartray Product Range
WATTS 80W
LUMEN OUTPUT 10,000 lm
EFFICACY 125 lumens per Watt
CCT & RX 4000k
CRI >80 (>90 on Request)
DIMMING / CONTROLS / DRIVER Standard Non Dimmable * dimmable on request
LIFETIME L70 50000hrs B10
WARRANTY 5 years
DIMENSIONS L,W,H 1560mm x 137mm x 60mm
WEIGHT 3KG
MATERIALS Powdercoated mild steel
BODY COLOUR

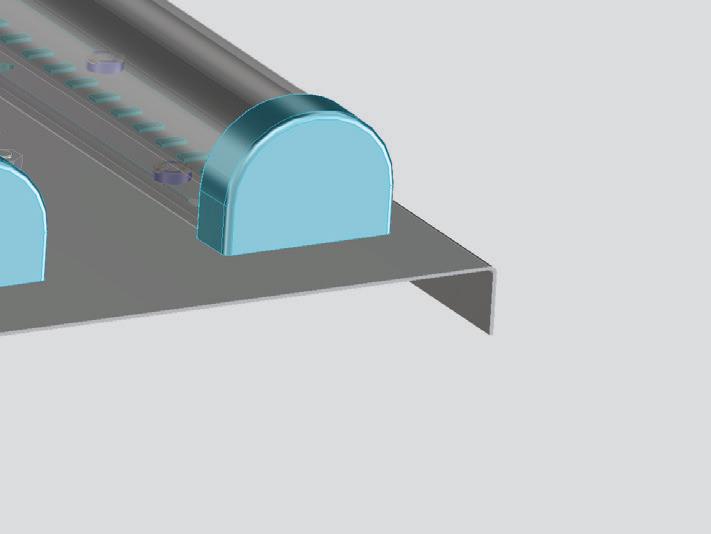

DRIVER SIDE
LED SIDE WITH UPS
RX LIGHTING HYGIENE RANGE
RX DEFENDER HARDSKIN LED
Features
These luminaires are suitable for both suspending and surface mounting.
The Defender Hardskin range comes standard with grey RAL 7035 base, photo engraved self-extinguishing polycarbonate diffuser with protective treatment for use in environments where corrosive substances are used. Luminaire efficiency ranges between 115 and 130 Lumens per watt with a rated life of L80 B10 100,000 tq +25°C. Body and diffuser resistant to the following substances: Ethyl alcohol (24 hours at 20°C), aqueous detergents, hydrochloric acid (leaves slight mark), DOT4 brake oil, sulphuric acid (leaves slight mark), ammonia.
The 12W version replaces the standard 18W fluorescent, 24W replaces 36W, and 30W replaces 58W. This can give up to a 48% reduction in energy consumption. 2hr Battery Maintained and UPS supplied Emergency options available.
Applications
The Defender Hard Skin under verandahs are suitable for a wide range of applications such as:
• Hygiene areas
• Food Processing
• Storage Areas
• Garages
• Workshops
• Production
• Applications that require waterproofing and or high impact IK 10
Benefits:
• High powered LED Chips.
• Spring loaded gear tray clips for quick installation and service
• Photo engraved opal cover for maximum lightoutput and comfort
• Stainless steel fixing clips standard
• Gear tray clips for easy install and maintenance
• Complete with suspension hooks and surface mount clips
• IK10
L80 B10 100,000 tq +25°C
Lifetime Warranty
5 years
RX Defender LED Hardskin
IP RATING 65
IES FILES Yes
Photometric Diagrams
Typical Polar distribution for 1x30W
RX LIGHTING HYGIENE RANGE
RX DEFENDER HARDSKIN LED
RX Defender LED Hardskin Emergency Maintained 2 hour duration
Photometric Diagrams
Exit Decals
Note:
RX Defender LED Hardskin 8W LED on UPS
