TECHNICAL SPECIFICATIONS Version 22-05-04


A HOUSE OF OPPORTUNITIES Ibsenhuset, located in Skien in the county of Vestfold and Telemark, is the natural choice for all occasions. The house is an institution among Norway’s cultural arenas. It is a modern and flexible meeting point suitable for cultural experiences, events and meetings. Ibsenhuset contains three large halls and four meeting rooms in different sizes. This includes Dovregubbens Hall, for 800 people in amphi (expandable to 1000 people), Peer Gynt and Club Scene for a standing audience of 1100 or 350 seated around tables. In addition, our large foyer, approximately 700 square meters, is perfect for fairs. Our facilities provide an inspirational setting and are also well suited for disabled persons. All our halls and rooms are equipped with the latest technology. We organize all types of events; small and important meetings, as well as large congresses or fairs and concerts of all types. Our reputable restaurant keeps the hunger away.

MULIGHETENES HUS Telemark og Skiens storstue er en arena for alle anledninger. En institusjon blant norske kulturhus, som fortsatt fremstår som en moderne og fleksibel møteplass for kulturopplevelser og store konferanser – men også for de nære konserter og møter. Tre store saler, foajé og fire møterom til disposisjon. Dovre­gubbens Hall til 800 personer (kan utvides til 1000), Peer Gynt og Klubbscene med plass til 1100 stående og 350 i kaféoppsett og 700 kvadratmeter foajé til messe. Vi innbyr til inspirerende opplevelser med god universell utforming, hvor alle møte­rom er utstyrt med moderne teknisk utstyr. Vi arrangerer alt fra de små viktige møtene til store kongresser, messer og konserter. Bevertning av vår anerkjente restaurant. Med snart 50 års erfaring så er det hele i trygge hender hos oss.


FLOOR PLAN

Main entrance Mezzanine

Art exhibition

Restaurant Henrik & Kompani

Front desk Beverage / kiosk

Foyer

Dovregubbens Hall Toilet

Peer Gynt

Hedvig Stage entrance Terje Vigen Black box stage Helmer Dovregubbens Hall Stage

Mezzaninen Anitra

Foyer

Offices

VIP room

Dovregubbens Hall Peer Gynt

Hedvig

Terje Vigen Black box stage Helmer

– 3 –


CAPASITY, SETUPS AND MAPS

Main entrance Restaurant Henrik & Kompani

Mezzanine

Art exhibition

Mezzaninen Anitra

Front desk Beverage / kiosk

Foyer

Offices

VIP room

Foyer

Dovregubbens Hall Toilet

Dovregubbens Hall Peer Gynt

Peer Gynt

Hedvig

Hedvig Stage entrance Terje Vigen Black box stage

Terje Vigen Black box stage Helmer

Helmer Dovregubbens Hall Stage

Ground floor (01)

SAL/ROM

THEATRE

First floor (02)

CLASS

U-SHAPE

BOARD

BANQUET

CAFÉ

STANDING

Basement (U01)

M

2

Dovregubbens Hall 796+55+150 – – – – – 780m2 m2 m2 – bxh bxh m2 m2 m2 m2 m2 m2 m2 m2 m2 bxh bxh bxh bxh bxh bxh m2 bxh bxh m2 m2 bxh m2 Dovregubben On Stage 100 – – – – 80 – Peer Gynt 250 200 100 – 152 220 700 280m2 Peer Gynt + Foyer – 272 450 1100 410m2 Terje Vigen 80 70 40 40 48 130m2 Anitra 80 50 24 30 50 70 100m2 Restaurant Henrik 60 140m2 Helmer 50 25 20 25 – 20 50m2 Hedvig 40 20 20 16 – 20 40m2 VIP room – – – 16 – – – 25m2 Foyer – – – – – 100 450m2 Lundeparken (outdoor) 3000 4200m2 Mezzanine 65 75m2

CENTRUM OF SKIEN

LieTorvet

Skien kirke

RGS

LBE

HO

E GAT KIR

KVERNDALS

TA GA KE

KON

GATA

LIE GA TA

NR

R IST

TA GA RG TO

HE

ET

ED

SK

IK E AT

SG

EN IBS

Bibliotek

ATE SG

B

EL

SS

HE

GEN

E AT

G GS ER

Rådhuset

A AT

SG

RK

PR

TA USGA

Handelstorget

ATA EG

SS

E INS

ATA EG ND LU

MA

LE

TE

RÅDH

Thon Hotel Høyers

Arkaden kjøpesenter

UA BR

LE

L MØ

GA BRYG

Klosterøya

LANG

ENE BRU

HJELLE VANNET

BRYGGEVANNET

Clarion Hotel Bryggeparken

– 4 –

AREA

STAGE

i28x28m bxh ibxh bxh bxh

23,5x12m

iiii i iii i

20x10m 16x18m 25x16m

9x7m 9x7m

16x5m

4x2m

5x10m 5x8m

60x70m

i ii i

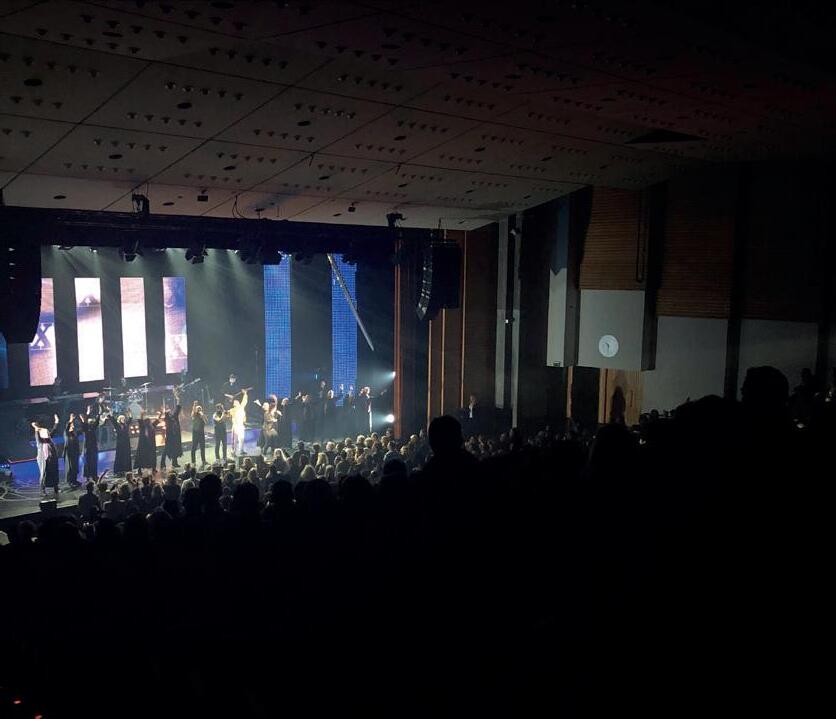

DOVREGUBBENS HALL The main hall


DOVREGUBBENS HALL · SEATING

12 13 14 15 16 1 7 18 19 2 0 21 2 22 12 1 11 13 14 21 21 9 10 15 16 8 7 17 1 6 8 19 5 4 20 22 23 24 25 26 27 28 3 21 20 19 2 18 29 30 31 1 2 2 20 15 16 17 32 33 20 1 2 13 14 34 35 1 12 36 3 10 1 7 38 8 9 39 7 19 20 21 22 23 24 25 26 27 28 29 30 31 40 6 16 17 18 32 33 41 5 14 15 34 35 42 4 2 13 43 36 3 3 11 1 44 0 7 1 2 38 3 9 45 24 23 22 25 21 26 20 9 1 27 8 28 29 30 40 17 18 19 19 19 7 16 31 41 32 33 6 14 15 4 3 1 2 4 34 35 5 12 1 3 1 4 36 3 44 10 3 7 9 45 38 8 2 20 21 22 23 24 25 26 27 28 29 30 39 46 7 17 18 19 31 32 1 40 6 18 18 15 16 33 34 41 5 3 14 42 35 3 12 1 4 1 6 4 1 3 4 37 3 3 0 8 4 9 1 24 23 22 25 2 26 27 28 29 20 21 39 45 8 17 18 19 40 1 30 31 7 15 16 32 33 41 17 17 6 3 14 42 34 3 5 12 1 5 36 43 4 0 11 1 44 37 3 9 23 24 22 21 25 3 20 26 4 19 8 27 8 5 28 29 30 2 17 18 39 7 46 15 16 31 32 40 1 6 16 16 3 14 41 33 3 5 12 1 4 35 42 4 0 11 43 3 6 9 1 3 37 44 20 21 22 23 24 25 26 27 28 29 8 19 2 18 3 8 3 17 7 30 31 45 1 15 16 9 4 6 32 33 15 15 0 4 13 14 5 34 3 1 4 1 12 5 3 42 0 1 6 3 1 3 23 22 24 7 21 25 4 9 26 27 28 19 20 3 38 2 18 17 8 29 4 16 39 30 31 4 1 7 4 15 40 32 3 14 14 13 1 6 3 34 41 5 1 12 35 42 0 1 4 36 43 9 1 21 22 23 24 25 26 27 20 19 3 3 18 7 3 8 28 29 44 16 17 8 2 15 7 30 31 39 45 3 14 6 1 32 3 13 13 40 12 1 3 34 5 41 0 11 4 35 9 1 42 36 19 20 21 22 23 24 25 26 27 3 18 8 17 4 37 28 29 3 15 16 2 7 38 30 3 44 6 13 14 12 12 1 1 32 39 5 1 12 33 40 0 1 4 34 9 1 41 21 3 20 19 3 22 18 23 5 8 24 25 26 42 3 16 17 18 6 2 7 15 27 28 37 43 3 14 6 1 29 3 38 12 1 11 11 5 0 3 39 0 11 1 3 4 2 3 40 9 1 3 20 21 22 23 24 25 3 19 8 18 17 4 3 26 27 1 4 3 2 7 15 16 14 4 2 5 3 8 29 6 2 1 10 10 36 12 1 30 3 5 37 1 3 0 11 4 2 3 9 1 38 3 3 3 8 39 16 17 18 19 20 21 22 23 24 25 26 4 7 2 15 35 27 28 40 6 13 14 1 36 09 09 29 3 5 1 12 37 0 3 10 1 4 1 3 9 38 2 3 3 8 19 20 18 17 21 16 3 22 3 3 23 24 9 7 2 14 15 13 2 4 40 5 26 6 12 1 35 08 08 27 0 11 5 28 36 9 1 4 29 8 37 30 3 7 31 38 15 16 17 18 19 20 21 22 23 6 14 2 32 24 2 39 5 12 13 5 26 07 07 33 1 4 0 11 27 2 34 9 1 3 8 2 8 35 9 3 2 7 17 16 18 3 15 19 20 21 0 3 6 6 1 12 13 14 22 23 1 5 06 06 10 11 32 24 2 4 5 26 33 8 9 3 7 34 27 6 2 28 3 16 17 15 5 18 14 19 5 13 1 20 21 29 12 4 22 23 30 10 11 05 05 3 24 31 8 9 25 2 7 32 26 6 1 2 7 2 5 13 14 15 16 17 18 12 11 8 19 4 04 04 20 21 9 10 29 3 22 30 7 8 23 2 6 31 24 5 1 25 4 13 14 12 15 03 03 16 17 26 10 11 3 18 1 8 9 27 9 20 2 28 6 7 21 1 5 22 4 2 3 02 02 3 2 4 2 25 1

3

4

5

6

7

8

9

10 11

01

01 Parkett (orchestra stalls) C: 01–21 Parkett (orchestra stalls) B: 01–19 Parkett (orchestra stalls) A: 01–15

Normal seating: Wheelchairs: Orchestra pit: Stairs:

796 persons 7 persons 55 persons (Standing: 150 persons) 2 x 75 = 150 persons (sitting on the steps) – 6 –

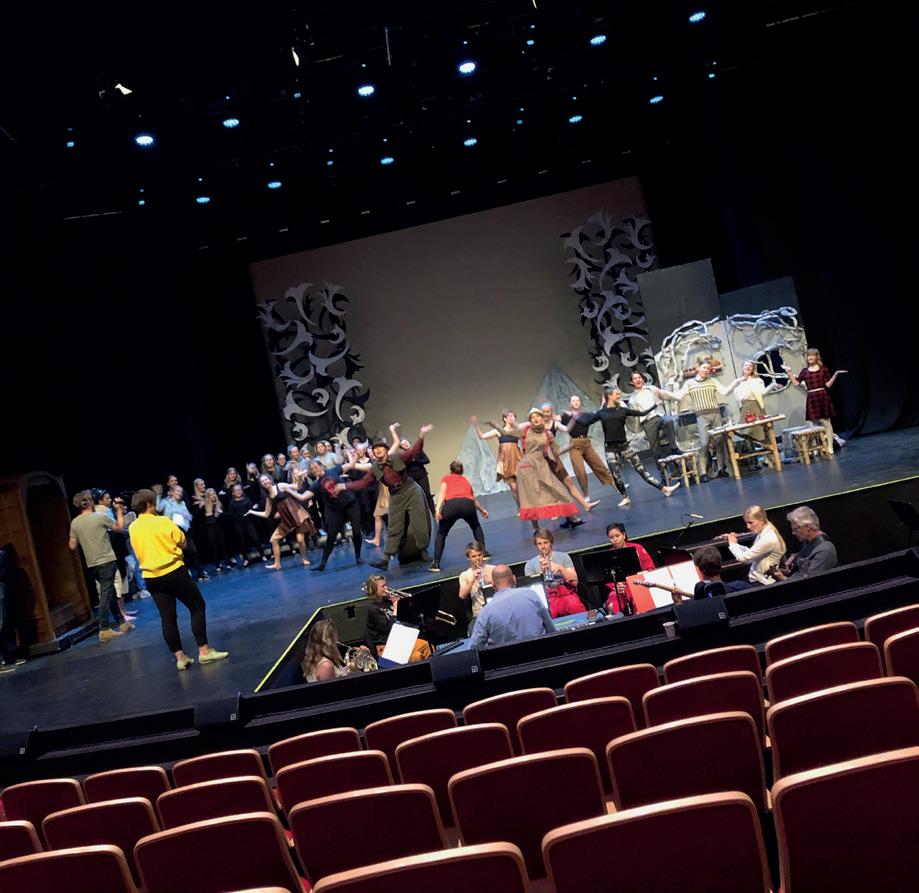

DOVREGUBBENS HALL · ORCHESTRA PIT

5,1m 3,85m 16,2m

Orchestra pit

– 7 –


DOVREGUBBENS HALL · PIPES, TRUSS, LIGHTS

– 8 –


DOVREGUBBENS HALL · PATCH LIST

– 9 –


DOVREGUBBENS HALL · SPECIFICATIONS FOR LIGHTS

LIGHTS / LYS

24.08.21

FOH:

MA grandMA3 Light v1.5.2.3 (Mode2: 3.9.60.18) MA grandMA3 8Port Node v1.5.2.3 (Mode2: 3.9.60.18) 1 pcs. Robert Juliat Korrigan HMI followspot 1200W w/ color frame changer

BRIDGE:

20 pcs. Dimmer channels 24 pcs. ETC Source Four Zoom 15º-30º 750W w/ color frame 10 pcs. Drop-in iris 10 pcs. B-Size pattern holder

TRUSS:

12 pcs. Dimmer channels 4 pcs. Selecon Arena Theatre Fresnel 7º-60º 2000W w/ barndoor, color frame

LX1:

12 pcs. Dimmer channels 4 pcs. Selecon Arena Theatre Fresnel 7º-60º 2000W w/ barndoor, color frame 6 pcs. Prolights Sunrise2L Led Blender, 2x85W Cob Led

LX2:

5 pcs. Clay Paky Alpha Spot QWO 800 ST 11°-55° 800W 6 pcs. Clay Paky A.leda Wash K10 14°-70° 19x15W RGBW 2 pcs. Prolights Sunblast3000FC Strobe 1728x1W RGBW Led

LX3:

6 pcs. Clay Paky A.leda Wash K10 14°-70° 19x15W RGBW 2 pcs. Prolights Sunblast3000FC Strobe 1728x1W RGBW Led

LX4:

7 pcs. Clay Paky Alpha Spot QWO 800 ST 11°-55° 800W 6 pcs. Clay Paky A.leda Wash K10 14°-70° 19x15W RGBW

LX5:

12 pcs. Dimmer channels 12 pcs. Strand Iris 1 Cyclorama 1000W asmetrisk w/ color frame

FLOOR PACK: (on request)

8 pcs. Prolights Jet Spot4Z 8°- 40° 180W 8 pcs. Prolights Pixie WashXB 7,6°-43° 280W single lens 12 pcs. Prolights Lumipar12UQPRO 12x8W RGBW Led

EFFECTS: (on request)

1 pcs. MDG ATMe Haze Generator (CO2) w/ DMX control 1 pcs. Martin Jem ZR45 Fog Machine w/ DMX control 1 pcs. Mirror Ball 23 inches w/motor

– 10 –


DOVREGUBBENS HALL · SPECIFICATIONS FOR SOUND

SOUND / LYD

05.03.21

Main Speaker System:

14 pcs. 2 pcs. 8 pcs.

d&b Audio Qi-series Qi1 d&b Audio Qi-series Qi10 d&b Audio Qi-series Qi-SUB

Front fill:

8 pcs.

d&b Audio E3

Center speaker system:

2 pcs.

d&b Audio Qi-series Qi7

Additional subs:

4 pcs.

d&b Audio Q-Sub

Amplification:

6 pcs. 1 pcs. 1 pcs.

d&b Audio D12 (Qi1 & Q-Sub) d&b Audio P1200 (E3) d&b Audio D6 (Qi10)

Monitor Wedges:

8 pcs.

d&b Audio M4

Amps monitors:

4 pcs. d&b Audio D12 (A total of 16 pcs d&b Audio M4’s on 14 mixes is available on the house)

Mix:

Allen & Heath DLive S5000/ DM 32 / 3x DX168

Wireless:

5 pcs. 10 pcs. 6 pcs. 6 pcs.

Analog Multicore:

40 input 20 returns

Digital Tielines:

2x CAT6, 1x CAT5e

Shure ULXD4D Rx Shure ULXD1 Bodypack Tx Shure ULXD2/Beta58A Handheld Tx DPA 4088

We have lots of microphones, DI’s & stands. Just let us know what you need.

– 11 –


DOVREGUBBENS HALL · GENERAL SPECIFICATIONS

Stage:

Width: 23,5 m / Depth: 12 m / Height: 14,5 m

Capasity:

Normal seating: Wheelchairs: Orchestra pit: Stairs:

Grand Piano:

Steinway D full concert. Serial nr. 568287. Bought in 2004.

Projector:

Epson Pro L1755U 15000 ANSI Lumen, Laser projektor

Dance mats:

Black or grey

Music stands:

50 pcs.

796 persons 7 persons 55 persons (Standing: 150 persons) 2 x 75 = 150 persons (sitting on the steps)

Risere: NIVOflex: NIVOflex safety rails: Available legs:

– 12 –

20 pcs. 200 x 100 cm 2 pcs. 100 x 100 cm 2 pcs. 200 x 100 cm x 45° 10 pcs. 200 cm 10 pcs. 100 cm 20, 40, 60, 80, 100 cm


PEER GYNT AND TERJE VIGEN Black box and black box stage


PEER GYNT AND TERJE VIGEN · FLOOR PLANS

Main entrance Mezzanine

Restaurant Henrik & Kompani

Front desk Beverage / kiosk

Foyer

Dovregubbens Hall

Peer Gynt

Hedvig

Terje Vigen Black box stage Helmer Dovregubbens Hall Stage – 14 –


PEER GYNT AND TERJE VIGEN · SEATING AND STAGE

Foajé

FOH

Height: 4,2m Stage: 0,8m 7m

9m

– 15 –


TERJE VIGEN, PEER GYNT AND FOYER · LIGHTS PLANVIEW

– 16 –


TERJE VIGEN · SPECIFICATIONS FOR LIGHT

TERJE VIGEN / BLACK BOX STAGE

25.02.21

FOH:

MA Lighting Grand MA2 Light v3.9.0.3 MA Lighting MA3 8Port Node v1.1.4.2 (Mode2: 3.9.0.3)

FIXTURE:

6 pcs. Prolights Eclipse fsbk Profil 25°-50° 91x3W RGBL 260W w/ color frame 6 pcs. Drop-in iris 6 pcs. B-Size pattern holder 12 pcs. Prolights Jet Spot4Z 8°- 40° 180W 12 pcs. Prolights Pixie WashXB 7,6°-43° 280W s ingle lens 4 pcs. Prolights Sunrise2L Led Blender, 2x85W Cob Led 4 pcs. Prolights Sunblast3000FC Strobe 1728x1W RGBW Led

FLOOR PACK (on request):

8 pcs. Prolights Jet Spot4Z 8°- 40° 180W 8 pcs. Prolights Pixie WashXB 7,6°-43° 280W s ingle lens 12 pcs. Prolights Lumipar12UQPRO 7,6° 12x8W RGBW Led

EFFECTS (on request):

1 pcs. MDG ATMe Haze Generator (CO2) w/ DMX control 1 pcs. Martin Jem ZR45 Fog Machine w/ DMX control

– 17 –


TERJE VIGEN · LIGHTS LEGEND

Legend Symbol

Name

Count

Prolights Eclipse fsbk Profil 25°-50°

Spares

Wattage

Lamp

Mode

# Channels

6

260W

LED

13 channel

13

Prolights Sunblast3000FC Strobe

4

1728W

LED

Advance 1

15

Prolights Jet Spot4Z 8°- 40°

12

180W

LED

Standard

23

Prolights Pixie WashXB 7,6°-43°

12

280W

LED

23 channel

23

Prolights Sunrise2L Led Blender

4

2x85W

LED

2 channel

2

– 18 –


TERJE VIGEN · LIGHTS PATCH AND CHANNELS

Legend Symbol

FixID

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 7.1 7.2 7.3 7.4 100.1 100.2 100.3 100.4

ChaID 1 2 3 4 5 6

FIXTURE Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Pixie WashXB 7,6°-43° Prolights Sunrise2L Led Blender Prolights Sunrise2L Led Blender Prolights Sunrise2L Led Blender Prolights Sunrise2L Led Blender Prolights Sunblast3000FC Strobe Prolights Sunblast3000FC Strobe Prolights Sunblast3000FC Strobe Prolights Sunblast3000FC Strobe

PATCH 8.001 8.014 8.027 8.040 8.053 8.066 1.001 1.024 1.047 1.070 1.093 2.001 2.024 2.047 2.070 2.093 2.116 2.139 1.116 1.139 1.162 1.185 1.208 1.231 2.162 2.185 2.208 2.231 2.254 2.277 1.280 1.282 1.284 1.286 1.300 1.315 2.300 2.315

– 19 –

Name

Count

Wattage

Lamp

Mode

# Channels

Prolights Eclipse fsbk Profil 25°-50°

6

260W

LED

13 channel

13

Prolights Sunblast3000FC Strobe

4

1728W

LED

Advance 1

15

Prolights Jet Spot4Z 8°- 40°

12

180W

LED

Standard

23

Prolights Pixie WashXB 7,6°-43°

12

280W

LED

23 channel

23

Prolights Sunrise2L Led Blender

4

2x85W

LED

2 channel

2

WATTAGE 260W 260W 260W 260W 260W 260W 180W 180W 180W 180W 180W 180W 180W 180W 180W 180W 180W 180W 280W 280W 280W 280W 280W 280W 280W 280W 280W 280W 280W 280W 2x85W 2x85W 2x85W 2x85W 1728W 1728W 1728W 1728W

LAMP LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

Spares

MODE 13 channel 13 channel 13 channel 13 channel 13 channel 13 channel Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard 23 channel 23 channel 23 channel 23 channel 23 channel 23 channel 23 channel 23 channel 23 channel 23 channel 23 channel 23 channel 2 channel 2 channel 2 channel 2 channel Advance 1 Advance 1 Advance 1 Advance 1

CHANNELS 13 13 13 13 13 13 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 2 2 2 2 15 15 15 15


PEER GYNT · SPECIFICATIONS FOR LIGHT

PEER GYNT FIXTURE:

25.02.21

12 pcs. Prolights Jet Spot4Z 8°- 40° 180W 22 pcs. Prolights Pixie WashBK 6°-50° 60W single lens

– 20 –


PEER GYNT · LIGHTS LEGEND

Legend Symbol

Name

Count

Prolights Eclipse fsbk Profil 25°-50°

Spares

Wattage

Lamp

Mode

# Channels

6

260W

LED

13 channel

13

Prolights Jet Spot4Z 8°- 40°

12

180W

LED

Extended

25

Prolights Pixie Wash 7°- 40°

22

60W

LED

16 channel

16

– 21 –


PEER GYNT · LIGHTS PATCH AND CHANNELS

Legend Symbol

FixID

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

ChaID 1 2 3 4 5 6

Name

Count

Spares

Wattage

Lamp

Mode

# Channels

Prolights Eclipse fsbk Profil 25°-50°

6

260W

LED

13 channel

13

Prolights Jet Spot4Z 8°- 40°

12

180W

LED

Extended

25

Prolights Pixie Wash 7°- 40°

22

60W

LED

16 channel

16

FIXTURE Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Eclipse fsbk Profil 25°-50° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Jet Spot4Z 8°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40°

PATCH 8.001 8.014 8.027 8.040 8.053 8.066 3.001 4.001 3.026 4.026 3.051 4.051 3.076 4.076 3.101 4.101 3.126 4.126 3.151 3.167 3.183 3.199 3.215 3.231 3.247 3.263 3.279 3.295 3.311 4.151 4.167 4.183 4.199 4.215 4.231 4.247 4.263 4.279 4.295 4.311

– 22 –

WATTAGE 260W 260W 260W 260W 260W 260W 180W 180W 180W 180W 180W 180W 180W 180W 180W 180W 180W 180W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W

LAMP LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

MODE 13 channel 13 channel 13 channel 13 channel 13 channel 13 channel Extended Extended Extended Extended Extended Extended Extended Extended Extended Extended Extended Extended 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel

CHANNELS 13 13 13 13 13 13 25 25 25 25 25 25 25 25 25 25 25 25 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16


PEER GYNT / TERJE VIGEN · SPECIFICATIONS FOR SOUND

SOUND Main Speaker System:

8 pcs. 4 pcs. 4 pcs. 2 pcs.

d&b Audio Y8 (fixed installation) d&b Audio Y12 (fixed installation) d&b Audio V-Subs d&b Audo T10 (infill)

Amplification:

3 pcs. 3 pcs.

d&b Audio 30D (PA) d&b Audio D12 (M4)

Monitor Wedges:

8 pcs.

d&b Audio M4

Mix:

Allen & Heath S3000 / DM0 / 3xDX168

Wireless:

Shure ULX-D

Digital Tielines:

3x CAT6

AV SPECIFICATION Black box / Terje Vigen: Epson pro L1755U, 15 000 ansi lumen. Laser projector with HDMI-connection at FOH and stage Peer Gynt:

Grand Piano

Barco CLM HD6 projector with HDMI-connection

Bøsendorfer: Semi concert modell, 225 92 tangents Restaured in 2014

– 23 –


PEER GYNT / TERJE VIGEN · GENERAL SPECIFICATIONS

MEASUREMENTS Stage:

Width: 9 m / Depth: 7 m / Height: 4,20 m / Height of stage: 80 cm

Chain hoist:

Trusses

Capasity:

220 seats with small tables/chairs (expandable to 350) 250 seats with chairs in line 700 people standing (expandable to 1100)

It is possible to open the sliding walls to expand the room into the foyer.

CHAIRS

– 24 –


FOAJÉEN Foyer


FOYER · FLOOR PLAN

Mezzanine

k Beverage / kiosk

Foyer

– 26 –

Restaurant Henrik & Kompani


FOYER · SPECIFICATIONS FOR LIGHT

FOYER FIXTURE:

25.02.21

12 pcs. Prolights Jet Spot4Z 8°–40° 180W 22 pcs. Prolights Pixie WashBK 6°–50° 60W single lens

– 27 –


FOYER · LIGHTS LEGEND

Legend Symbol

Name

Count

Prolights Pixie Wash 7°- 40°

Spares

Wattage

Lamp

Mode

# Channels

10

60W

LED

16 channel

16

Prolights Lumipar 12UQPRO

12

12x8W

LED

9 channel

9

Prolights Eclipse Fresnel JTW 15°-51°

6

130W

LED

8 channel

8

Prolights Jet Spot2 20°

10

150W

LED

Extended

15

– 28 –


FOYER · LIGHTS PATCH AND CHANNELS

Legend Symbol

FixID 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

ChaID

Name

Count

Spares

Wattage

Lamp

Mode

# Channels

Prolights Pixie Wash 7°- 40°

10

60W

LED

16 channel

16

Prolights Lumipar 12UQPRO

12

12x8W

LED

9 channel

9

Prolights Eclipse Fresnel JTW 15°-51°

6

130W

LED

8 channel

8

Prolights Jet Spot2 20°

10

150W

LED

Extended

15

FIXTURE Prolights Eclipse Fresnel JTW 15°-51° Prolights Eclipse Fresnel JTW 15°-51° Prolights Eclipse Fresnel JTW 15°-51° Prolights Eclipse Fresnel JTW 15°-51° Prolights Eclipse Fresnel JTW 15°-51° Prolights Eclipse Fresnel JTW 15°-51° Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Lumipar 12UQPRO Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Jet Spot2 20° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40° Prolights Pixie Wash 7°- 40°

PATCH 5.001 5.009 5.017 5.025 5.033 5.041 5.055 5.064 5.073 5.082 5.091 5.100 5.109 5.118 5.127 5.136 5.145 5.154 5.163 5.178 5.193 5.208 5.223 5.238 5.253 5.268 5.283 5.298 5.313 5.329 5.345 5.361 5.377 5.393 5.409 5.425 5.441 5.457

– 29 –

WATTAGE 130W 130W 130W 130W 130W 130W 12x8W 12x8W 12x8W 12x8W 12x8W 12x8W 12x8W 12x8W 12x8W 12x8W 12x8W 12x8W 150W 150W 150W 150W 150W 150W 150W 150W 150W 150W 60W 60W 60W 60W 60W 60W 60W 60W 60W 60W

LAMP LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

MODE 8 channel 8 channel 8 channel 8 channel 8 channel 8 channel 9 channel 9 channel 9 channel 9 channel 9 channel 9 channel 9 channel 9 channel 9 channel 9 channel 9 channel 9 channel Extended Extended Extended Extended Extended Extended Extended Extended Extended Extended 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel 16 channel

CHANNELS 8 8 8 8 8 8 9 9 9 9 9 9 9 9 9 9 9 9 15 15 15 15 15 15 15 15 15 15 16 16 16 16 16 16 16 16 16 16


FOYER · TECHNICAL SPECIFICATIONS

LIGHTS

25.02.21

FIXTURE: 6 pcs. Prolights Eclips Fresnell 15°–51° 130W color mixing w/barndoor, color frame 12 pcs. Prolights Lumipar12UQPRO 7,6° 12x8W RGBW Led 10 pcs. Prolights Jet Spot2BK 20° 150W 10 pcs. Prolights Pixie WashBK 6°–50° 60W single lens SOUND Main Speaker System: 10 pcs. d&b Audio T10 2 pcs. d&b Audio T-Sub Amplification: 3 pcs. d&b Audio D12 Digital Tielines: 3x CAT6 CHAIRS

Main entrance Restaurant Henrik & Kompani

Mezzanine

Art exhibition

Merch 4 Merch 3

Front desk Beverage / kiosk

Merch 2

Merch 1

Foyer

Dovregubbens Hall Merch 5

Toilet

Merch 6

Peer Gynt

– 30 –


ANITRA Function room, meeting room and club stage


ANITRA · GENERAL SPECIFICATIONS

SOUND Speakers

2 pcs

d&b Audio C6

Amplifier

1 pcs

d&b Audio P1200

Stage monitor

1 pcs

HK Audio aktiv 12” monitor

Mixing consoles

1 pcs

Allen & Heath Qu-Pac

Wireless

2 pcs

Sennheiser Evolution

AV Projector

Optoma ZH406ST

Screen

Width: 2 m

CHAIRS

– 32 –


ANITRA · LIGHTS LEGEND

FixID 1 2 3 4 5 5 6 6

ChaID

FIXTURE Briteq BT Theatre 50W Fresnell 10°-50° Briteq BT Theatre 50W Fresnell 10°-50° Briteq BT Theatre 50W Fresnell 10°-50° Briteq BT Theatre 50W Fresnell 10°-50° Prolights Lumipix12UQPRO Led Bar Prolights Lumipix12UQPRO Led Bar Prolights Lumipix12UQPRO Led Bar Prolights Lumipix12UQPRO Led Bar

PATCH 1.001 1.002 1.003 1.004 1.005 1.005 1.009 1.009

WATTAGE 50W 50W 50W 50W 12x8W 12x8W 12x8W 12x8W

LAMP LED LED LED LED LED LED LED LED

MODE 1 channel 1 channel 1 channel 1 channel 4 channel 4 channel 4 channel 4 channel

CHANNELS 1 1 1 1 4 4 4 4

Legend Symbol

Name

Count

Briteq BT Theatre 50W Fresnell 10°-50° Prolights Lumipix12UQPRO Led Bar

Spares

Wattage

Lamp

Mode

# Channels

4

50W

LED

1 channel

1

4

12x8W

LED

4 channel

4

– 33 –


HELMER AND HEDVIG Meeting rooms


HELMER AND HEDVIG · GENERAL SPECIFICATIONS

Projector

Optoma Short throw

Seating

See page 4

Size

Helmer: Hedvig:

5 x 10 meters = 50 square meters 5 x 8 meters = 40 square meters

– 35 –


NICE TO KNOW Other information


Hedvigs Hybel

all

all

BACKSTAGE

G6

H6

Dressing rooms A1

B1

Green Room

C2

F2

D10

(Lounge)

E8

BACKSTAGE • Ibsenhuset offers a backstage area and several dressing rooms with good capacity • Dressing rooms in different sizes, all with shower and toilets • Wi-Fi • Wireless printer and copy machine • Green room • Kitchen with cooking top, refrigerator, microwave, coffee maker, water, etc. GREEN ROOM • Suited for up to 10 persons • Cooking facilities • Toilet in the next room • No shower DRESSING ROOMS • Dressing rooms for one person: A1+B1 • Dressing rooms for two persons: C2+F2 • Dressing rooms for up to six persons: G6+H6 • Dressing rooms for up to ten persons: D10 All dressing rooms contains shower(s) and toilet(s) For approximately 45 persons

– 37 –


PARKING AND ACCESSIBLE FACILITIES

ce

in Ma

ran ent

Crew Parking

PARKING • Tour buses, trucks and so on, have their own parking lots in attachment to the stage entrance. • Electrical power is available. These spaces must be booked in advanced. • Artists and crew have access to two parking lots each performance day. Please, ask for a ticket at the reception desk at arrival. Extra parking is available at official places nearby. • People and smaller part of equipment may be dropped off in front of the main entrance (maximum 15 minutes stop). ACCESSIBLE FACILITIES • Ibsenhuset provides assisted hearing facilities, and the site is suited for wheelchairs. • We offer a free companion ticket for disabled people with suitable valid certificate. • Disabled persons may be dropped off in front of the main entrance.

– 38 –


HOSPITALITY AND RESTAURANT

HOSPITALITY • Foods are prepared and served according to contracts and riders • Cold foods are served in the backstage area, warm foods are prepared and served in our restaurant; Henrik & Kompani • Own food and beverage are not allowed in our premises • Needs not covered by the contract, may be possible by extra invoicing. RESTAURANT • Ibsenhuset has its own a la carte restaurant; Henrik & Kompani • www.henrikogkompani.no

– 39 –


Lundegata 6, 3724 Skien Postboks 133, 3701 Skien www.ibsenhuset.no info@ibsenhuset.no


Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
