DESIGNING
2017. 06 ~ 2017. 12 7개월 2015. 01 ~ 2015. 06 6개월
공사개요 : Remodeling
대지 면적 : 393.50 m2
건축 면적 : 272.74 m2
연면적 : 1938.10 m2
건폐율 : 69.31%
용적율 : 425.09%
규모 : 지하 1층 / 지상 8층
높이 : 28.5 m
공사 진행 개월 수 : 10개월
DUTIES ACCORDING TO PART DIVISION

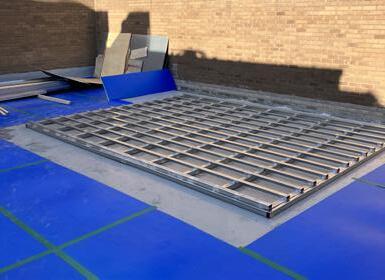

Signature Pool Villa - 8th Floor
Family Spa Room (Family Bathtub) - 6th & 7th Floor
Laundry & Staff Area - G1 Floor
Field Supervision
업무 및 세부 사항]
현장 운영 및 관리>
지시 사항 전달 등 원활한 공사 진행을 위한 현장 지원
건축주와의 현장 미팅에서 생기는 요구 사항 문서 기록 - 시공 과정에서 문제 발생시 신속한 전달을 위한 현장 감리
<설계 및 모델링 디자인 시안 제작>
- 8층 시그니처 풀빌라 리모델링 기본 설계 및 실시 설계, 시안 3D 모델링

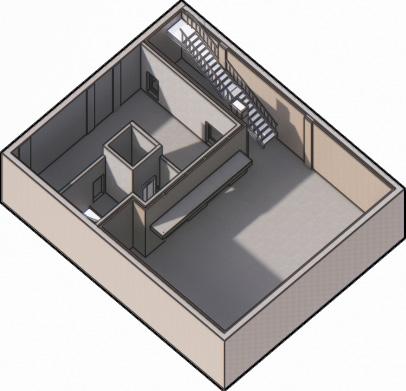

- 지하층 창고, 세탁실, 직원 공간 기본 설계 및 실시 설계

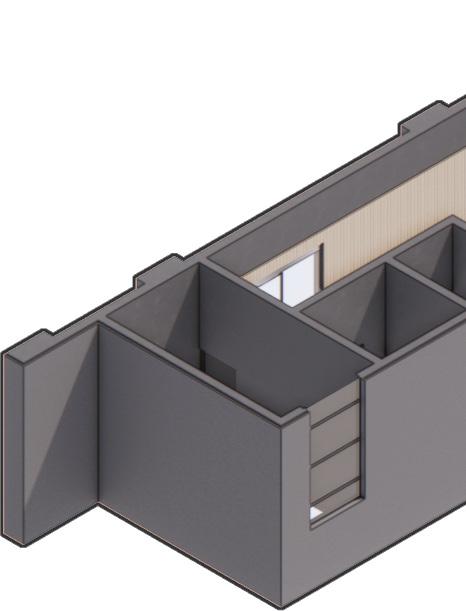

- 6, 7층 패밀리 스파룸 시안 결정을 위한 3D 모델링 - 메뉴얼 설계 오류 파악 및 현장 실측 후 반영
8층

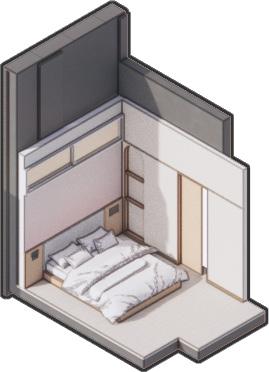

8th Floor Bedrooms
4
5
6 1 2 3
5 6 1 2 3 4
1st Floor Reception Area
1
5
2 6
3
7
4 8
크리스 루스의
아트워크를 인용하여
표현하였다.
이 조명을 인용하기
위해 관찰했고, 그
결과 빛 번짐을 활용한
디자인임을 확인할 수
있었다.
스테인레스로 형태를
만들고 빛이 통과될
수있도록 천공 후 판낼
사이에 아크릴 커버를
끼우는 방식을 택했다. 빛이 아크릴 커버로
통과되면서 번짐
효과와 동시에 빛의
양을 조절함으로써 보조적인 조명 역할을 한다. 결과적으로
Valdosta State University
졸업 작품
Main Issue : <Before> & <After>
<Before> - Undergraduate Standard
<After> - Graduate Standard
SELF-RATING
- To arrange the building lines
- To try and practice the mass study
- To review the structural issues after work experience
REVISION & DESIGN DESCRIPTION
PROJECT LOCATION : Tokyo, Japan20004
ARCHITECT : Haeseong Lee
DATE : 2023.11.15 ~
The Ritz-Carlton, located in the heart of Tokyo, Japan, captures the essence of the city’s tourism and economy. Designed by Haeseong Lee, the RitzCarlton Hotel in Tokyo is a unique interpretation of a contemporary urban hotel, with a view of the waves of Lake Ota nearby.From the outside, the Ritz-Carlton Hotel is an imposing sight, with its advanced facade and dome ceiling windows that offer natural light for the lobby area.
MASSING EXPLORATION
In the center of the building, the curved curtain wall with the dome ceiling window gives natural light, as if the building is a part of organic flows from nature. The effect is both mesmerizing and calming, a testament to the power of architecture to create an emotional response in the viewer.
The wavy ceiling for the pool area is a marvel of engineering. Made of lightweight and durable materials, they are designed to provide sun light and sense of motion. As one approaches the building, the advanced truss for the wavy ceiling creates a sense of curiosity and intrigue, inviting the viewer to explore the space within.
In the past project, the design would be focused on color scheme related to material selection and changes. The color scheme effected on the revised design
6th - ROOF TOP LEVEL
FINAL BUILDING STRUCTURES
4th - 5th LEVEL & CEILING
CONSTANT BEAMS & MAIN CURTAIN SYSTEM
3rd - 4th LEVEL & CEILING
ADVANCED TRUSS & BEAMS TO BEAR WEIGHTS OF STRUCTURES
MEZZANINE - 2nd LEVEL
CONTINUOUS COLUMNS
BASE LEVEL COLUMNS SUPPORTING STRUCTURES GROUND - 1st LEVEL
The revised mezzanine level would be updated from the error of the designated level in the past project
In the original project, height standard of the mezzanine level was based on only circular building structure, which where is hospitality area. However, the level would meet with 2nd level of the building for the accommodations. The height boundary was ambiguous to call ‘Mezzanine Level.’
In the revised project, the boundary did clear up this point. The desitination for the mezzanine level includes cafeteria and wide stair case. There is no way going direct to the level, and the way has to be gone through the 2nd level area. Nevertheless, the waiting area of mezzanine level is worth enjoying the natural day light, from wide curtain wall windows, and void space of the building shape. The cafeteria of the level provides calm and relax mood with design partition.
There is different atmosphere that created by lighting and partion, even though the level has similar characteristics in terms of public waiting area.
While the wide curved wall is built into need ambient lights, the curtain wall window provides daylights for the wide stair case area. The atmosphere with natural lights can make gathering people, who use the building facilities, with bright wood flooring.
The differance of the atmosphere is created by lights. The artificial lights in the cafeteria support ambient mood to improve the characteristic of the private space.
The original project was focused on ceiling design. The lack of roof design made seperation of the ceiling dramatic as following the curved line. Accordingly, wall material changing was important elements to make better scene and view in terms of interior design in terms of color scheme of the space.
In the reviesed project, ceiling design for 2nd floor of the hospitality area becomes simple as making roof elements. The ceiling design is jsut following curved wall, but there is repetition according to leveling. The dome shaped curtain window system makes void, and this space made exposures of many building components including mechanical equipments. However, the problem was solved by interior design materials.
PROGRAMS |
AutoCAD | Revit | Photoshop | InDesign
STANDARD |
STEELCASE PROJECT / SENIOR CLASS / STUDIO V / FALL 2019
For the contemporary higher education, the requirements of the building can be classified in to three great groups: space, pedagogy and technology. This project focuses on these three features through use of products from Steelcase Inc. portfolio. The design for Next Hub could be an educational building for students who want to study and gain additional knowledge, skills and certifications.
Scene 1. Reception Area
STEELCASE가 주최한 미국 내 공모전으로 평생교육을 위한 공간 제공을 목적으로 한다. STEELCASE는 오피스 가구 전문 회사로 다양한 공간 솔루션을 제공하고 있고, 자사 가구만 사용하여 현대 사회에 부합하는 가장
아이디어를 채택하고자 한다.
| SITE INFORMATION | 1000 F Street 10th and 11th Floors Washington, D.C.
Parking Lot Metro
| COLOR CONCEPT |
대한 적극적인 활동을 도모함을 의미하고 있다.
| M1 & M2 | 시각적 공간 구획 기능을 주된 목적으로 하기 위해 사용된 바닥재이다. | M3 | Wayfinding 기능을 위해 설치된 바닥재로 주로 통행로에 사용하었다. | M4 & M5 | M1 바닥재와
함께 Large Active Multi-Purpose Classroom의 공간 디자인을
위한 재료로 사용하였다. 활발한 분위기를 도모하면서 동시에
안정감을 표현하기 위해 트리콜로 배색기법을 활용하였다. | M6
| Learning Commons에서 사용된 카펫 타일로 개인 공부 공간과 그룹화된 공부 공간 사이에서 발생하는 소음을 저감시키는 기능을 한다.

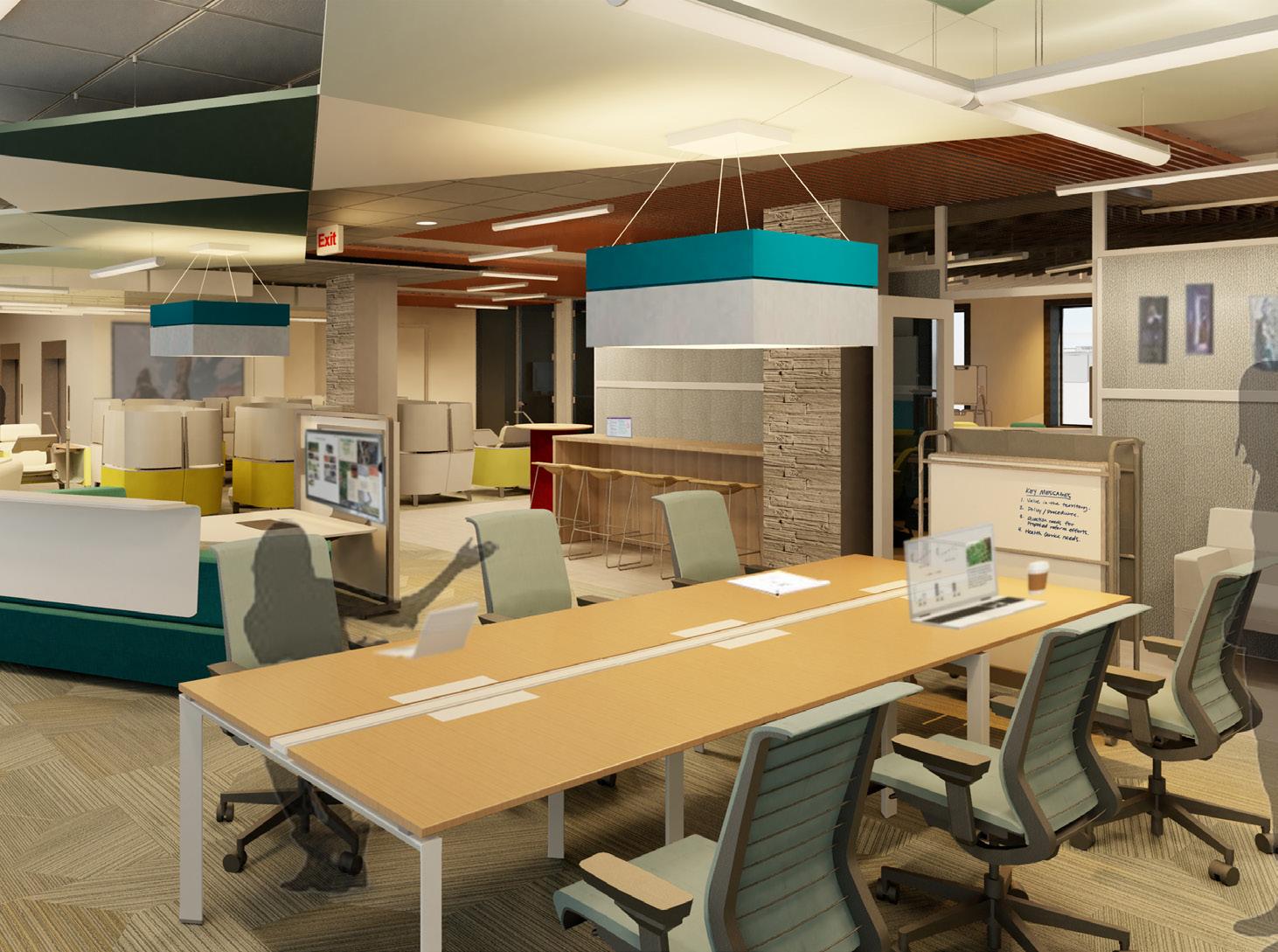

Scene 2. Learning Commons View1
the limit of the stepped structure was a restriction for flexible spaces required for blended learning models, which is a key element of the NEXT Project. In order to solve this problem, the design used a brighter color scheme such as soft tones of off-white, blue and green instead of white and neutral interiors. The colors are valuable for the students as the color of nature in terms of pedagogy. This made the flexible furniture distributed and blended through free movement and could support interactive learning spaces. In addition, use of the flexible furniture could enhance creativity and innovation of the students by providing the spaces for people who want to study new technology through collaboration.

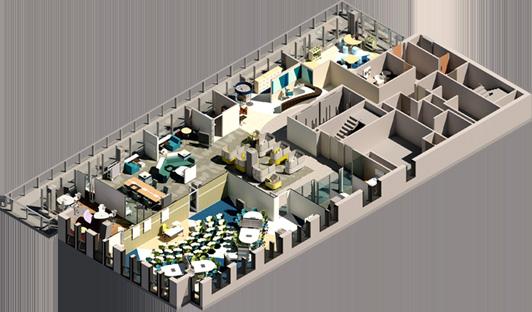

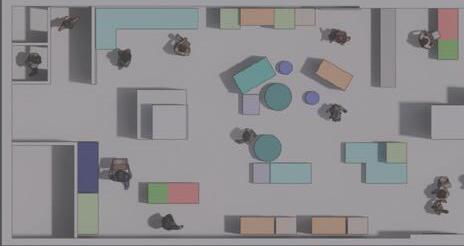

10th FlOOR’S FURNITURE LAYOUT PLAN |

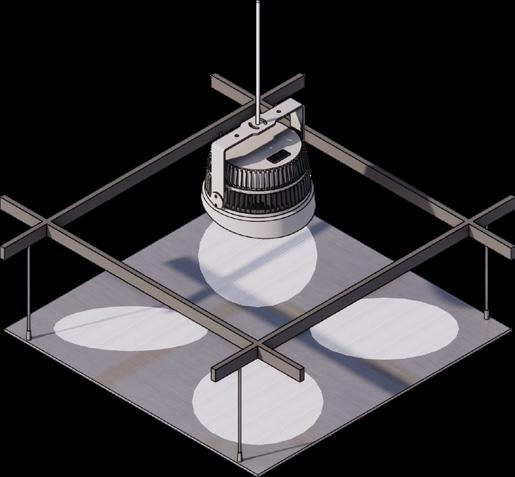

| CM1 | EMEA Optima Triangle | Armstrong | Canopy
| L1 | Shaper Sense Box | Cooper Lighting | Pendant Light
| M6 | Linear Shift Hexagon | Shaw Congract | Carpet Tile
| MATERIAL SELECTION | M6의 육각형 형태를 활용하여 적절한
조합을 통해 디자인하였고 L1과 함께 흡음 역할에 일조한다.
| LIGHTING SELECTION | L1의 흡음 기능을 통해 그룹형태의
학습에서 발생할 수 있는 큰 소음을 저감시키기 위해 사용하였다.
이를 통해 개인 공부 구역에 백색 소음 역할이 가능한 정도의
분위기를 만들 수 있도록 하였다.
| IDEA APPLICATION | CM1의 삼각형 캐노피 형태를 활용하여
디자인하였고 강조색으로 활용한 톤온톤 배색을 적용시켜 공간에
자연스럽게 녹아들 수 있도록 하였다.
Green Certification Contents
Recycled Contents
Fire Performance Contents
Acoustics
Noise Reduction Coefficient
INTERNATIONAL PROJECT / SENIOR CLASS / FALL 2019 PROGRAMS
전체적인 주거 공간의 주제는 고급화되고
진보적인 이슈를 담고있다. 하지만 건축물이
지어질 지역의 문화와 건축 법규 등을 이해하고 이에 알맞게 녹이는 것이 주목적이다.
고민하였다. 요구되는 모
The primary focus was for the inhabitants, to be comfortable space physically and mentally as residential space. The whole residential building was designed to emphasize being alive and to bring overall harmony and coherence through combination of color scheme and finish materials.
INSPIRATION IMAGES
DESIGN STATEMENT | The monotone and white color throughout the building provide feeling of inviting, homey, optimistic, encouraging and stimulating to be alive. The color concept was chosen by finish materials, which meet sustainable and durable issues. Maximum natural light access to nature and views to the outside supports the mental functionality for the residential building through harmony between natural and artificial lighting.
| 1st & 1.5 FLOOR FURNITURE PLAN | 공사 지역 특성상 뒤쪽에
기차길이 있기때문에 소음 및 진동 발생 우려가 있어서 주차
공간을 위치시켜 주거 공간과의 거리를 넓혔다.출입구는 교통 진행
방향에 가까이 위치시켰고 부엌공간에 작은 식탁을 추가적으로
설치해 주로 조식에만 활용할 수 있도록 하였다. 1.5층은 켄틸레버 형식을 의도했지만 이를 취하기에는 구조적으로 취약했기때문에
아래에 기둥을 설치하였다.
| CELA SHAGREEN
SQUARE | RH Modern |
Coffee Table | 클래식한
디자인이면서 모던한
질감이 집 전체의 분위기와
부합하며 주조적인 역할을 한다.
| OVIEDO | RH Modern | Chaise | 가구 자체로서 거실 공간의
| ITALIA TUFTED SHELTER SERIES (METAL BASE) | RH Modern | Arm Sofa & Arm Chair | 심플한 형태의 조합과
| 2nd FLOOR REFLECTED CEILING & ELECTRIC WIRING PLAN |

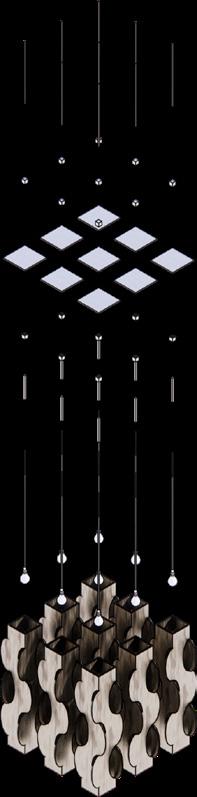

| MICRO RING II 3D | Betacalco | Suspended System | 거실의 높은 천정을 활용해 은은하면서 분위기를 강조할 수 있는 역할을 한다.
| LC32 | Cooper Lighting | Linear LED Cove System | 거실 천장에 코브 조명을 활용하여 MICRO RING II 3D의 직접적인 조명과 함께 조명의 분위기를 조절할 수 있다.
| LED OVAL CHANDELIER OLDE BRONZE | Moderne (Kichler) |
Valdosta State University의 예술 음악 교육 센터인 POWELL HALL은 보수 작업을 통해 음악 전공
학생들과 교육자들에게 더 나은 교육환경을 제공하여 교육의 질을 높이고자 한다.
Scene 1. Lobby & Student Lounge
1964년, 도서관 증축.
1970년, 여성
대학교는 새로운 빌딩으로 이전. 이후
다양한 부서들이 건물에 자리 잡게 되면서 엘레베이터, 계단 등이
The primary focus was for the students and staffs to create useful and comfortable building environment. Especially, the mental functionality of the building is one of the most important elements in terms of educational auditorium. Study space for students, work space for faculty members and performance space of recital hall were designed for the convenience of each facility’ s user.
2nd FLOOR
| IDEA SKETCH & DESIGN FOR 1st FLOOR’S WAYFINDING METHOD |
Ceiling Suspended Signage | Valdosta State University

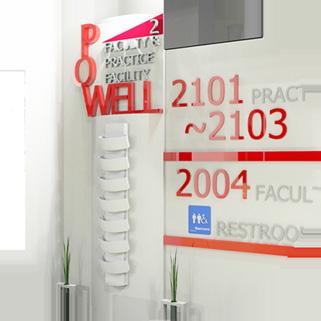

| IDEA SKETCH & DESIGN FOR 2nd FLOOR’S WAYFINDING METHOD |
Wall Mounted Signage | Powell Hall이라는
STANDARD |
Scene 1. Show Room (Display Area) AutoCAD | SketchUp | V-Ray | Photoshop
| BUBBLE DIAGRAM | 발렌시아가가 최근
렌드를 파악하여 반영하고자 하였다. | AIDMA | VMD 측면에서 고
| IDEA SKETCH FOR THE EXTERIOR OF A BUILDING | 건축물의 외관은 대한민국의
하였다. | INSPIRATION IMAGE OF IDEA SKETCH | 대한민국의
| INSPIRATION IMAGES | 발렌시아가 기존 스토어의 이미지를 각각의 공간에 반영하여 일관적인 브랜드 이미지를 극대화시키는 데 활용하였다.
| 2st FLOOR DESIGN
ISSUE | 계단을
올라오면 VIP 라운지가
바로 보일 수 있도록
설계하였다. 브랜드
로열티를 증가시키기
위한 수단으로 작용하여
쇼핑을 비공개적이면서
특권을 누릴 수 있도록
설계하였다.
| UX DESIGN ISSUE
| 계단과 계단 난간을
디자인 요소로 활용하였다. 특히,
천장에 매단 수직선형의
계단 난간을 설치하여
발렌시아가가 가진
브랜드의 혁신성 및
도전성을 표현하였다.
EMERGENCY
가로수길에 있는 3층 건물을 리모델링한다는 조건을 기반으로 계획되었다. 1층에는 상업
| 2nd FLOOR FURNITURE PLAN | | 2nd FLOOR
PROJECT #3 RITZ-CARLTON
PAGE 2. TIMELINE
[12] 2D FLAG ICON_VECTOR
CLASS 101 [건축 인테리어 I BIM-REVIT]
DESIGN REFERANCE
