Wolverine X2 Utility

Page 1

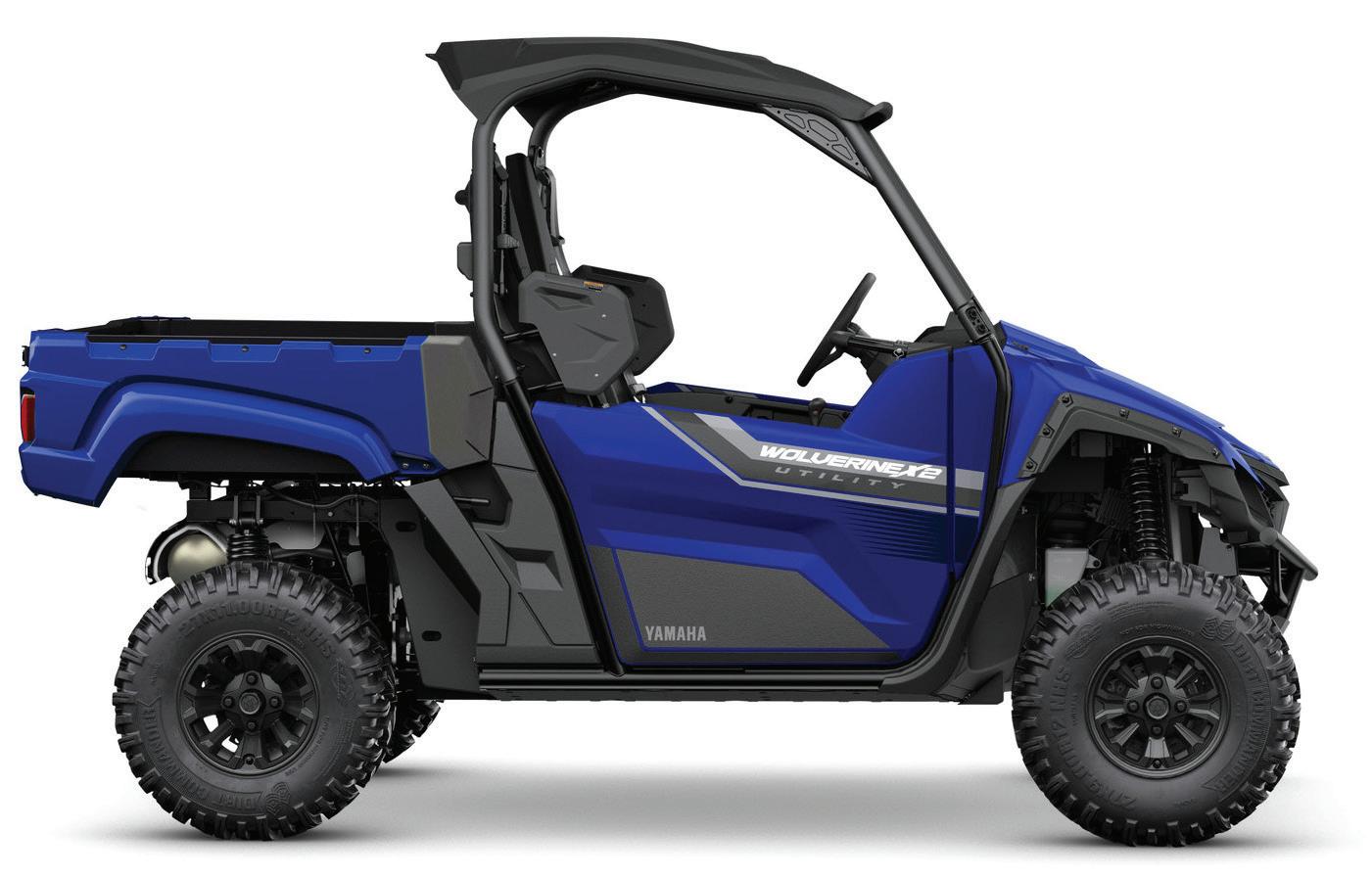

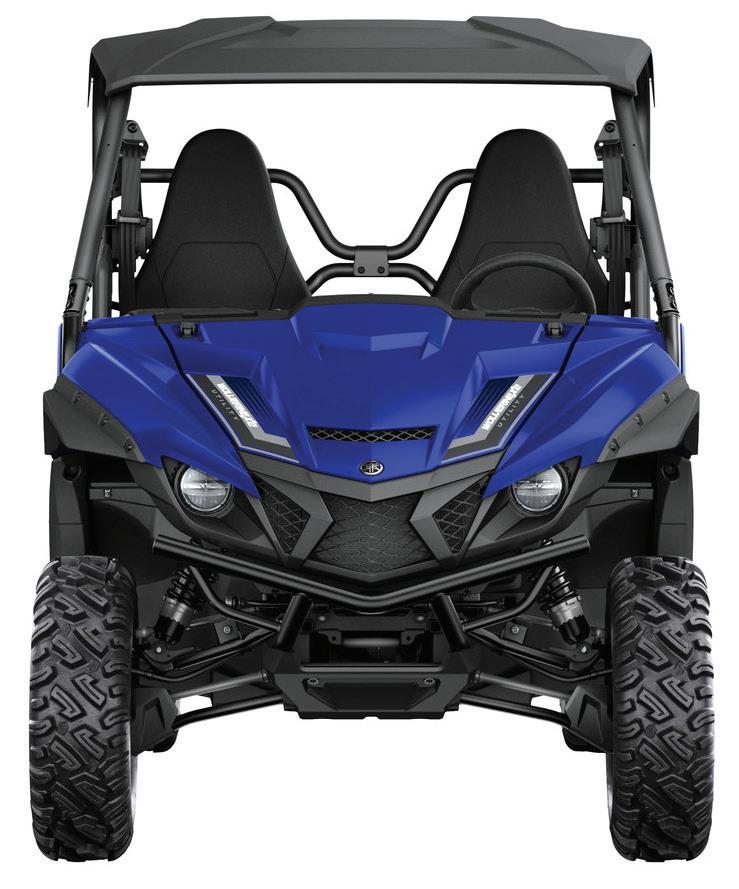

WOLVERINE X2 UTILITY

The new Wolverine X2 Utility is specifically designed for the tough environment of Aussie farms. Featuring Yamaha’s legendary Real World Tough durability and reliability, the new X2 prioritises work over recreation by featuring a larger cargo bed than standard and the same hydraulic-assist tilting device fitted to the hard working Viking three seater utility SSV. Smooth, ultra-quiet power comes from an 847cc twin-cylinder engine, along with Yamaha’s Real World Tech including the proven Ultramatic CVT transmission, Yamaha’s On-Command System with 2WD, 4WD and 4WD with full differential lock, and Yamaha’s exclusive EPS. Kitted out to tackle tough tasks, the X2 comes with high-back seats, refined cabin features and aluminium wheels. It also shares the comfort, capability and confidence of the XT-R model, and with practical features to help get the job done.

High Performance Suspension

The Wolverine X2 Utility features well-damped suspension at all four corners for improved chassis control and handling feel.

Built for Yamaha by KYB®, these shocks give the X2 a flexible, balanced ride character, whether the day calls for cargo carrying or bush trail blasting.

Maximum Versatility

Powerful Twin Cylinder Engine

The 847cc parallel twin cylinder engine features the full range of Yamaha’s advanced performance technologies. Forged pistons and connecting rods ensure durable high-rpm performance, with Yamaha’s 270o Crossplane Concept Crankshaft for linear torque development and excellent power throughout the rpm range. To improve efficiency, the engine features a dry-sump design for a more compact layout and offset cylinder block to reduce friction loss, while rubber engine mounts and a geared counter balancer ensure smooth running from idle to redline.

On-Command 4WD

Yamaha’s renowned On-Command 4WD system lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD. Unlike competitors’ automatic 4WD systems, On-Command puts the driver in full control to make the most of available traction in any sort of terrain.

The Wolverine X2 Utility features a Viking-spec large tilting cargo bed (only fitted to Australian Wolverine X2 Utility) which is wider, longer and deeper than stardard, and is designed to take a pallet. Built with hydraulic assistance and robust latch system, the bed transports up to 272kg, with multiple tie-down points to secure cargo or attach accessories.

Add in a full 907kg of towing capacity thanks to the standard 2-in receiver, and the Wolverine X2 is ready to get to work when you are.

Speed Management System

The Wolverine X2 also comes standard with a Speed Management System which allows the owner to limit the vehicle to a top speed of 40km/h, ideal for work sites or other special operating conditions.

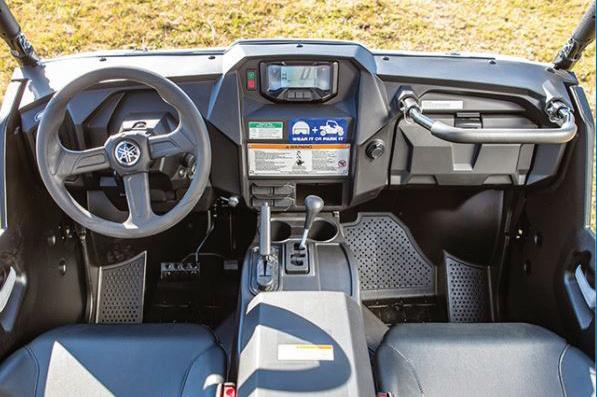

Quiet and Comfortable

The Wolverine X2 is one of the smoothest and quietest side-by-sides ever made. Noise, vibration and harshness is minimalised thanks to the refinement of the twin-cylinder powerplant as well as an array of specially-formed body panels and insulating dampers throughout the chassis.

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388
Holeshot Yamaha | www.holeshotyamaha.com.au

SPECIFICATIONS – WOLVERINE X2 UTILITY

Engine

Type: Liquid cooled, 4-stroke, DOHC, parallel twin

Displacement: 847cm3

Bore & stroke: 82.0 × 80.2mm

Compression ratio: 10.5 : 1

Starting system: Electric

Fuel tank capacity: 35 litres

Fuel management: Fuel injection

Ignition system type: Transistor Controlled Ignition

Transmission: Ultramatic® V-belt, OnCommand 2WD, 4WD, 4WD with Diff-lock

Final transmission: Shaft

Chassis

Front suspension: Independent double wishbone, 221mm of wheel travel

Rear suspension: Independent double wishbone, 236mm wheel travel

Front brake: Hydraulic dual discs

Rear brake: Hydraulic dual discs

Front tyres: 27 x 9-12

Rear tyres: 27 x 11-12

Dimensions

Wheelbase: 2,125mm

Ground clearance: 293mm

Wet weight (oil and full fuel tank) 796kg

Towing capacity: 907kg

Cargo bed load limit: 272kg

Seating capacity: 2

Other Information

Warranty: Three years factory warranty

Colour: Steel Blue

Price: $28,849.00

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388
Holeshot Yamaha | www.holeshotyamaha.com.au
Dimensions (mm): L: 3,150 / W: 1,580 / H: 1,913
Price quoted is the manufacturers recommended retail price. Prices current as at 15 May 2023. Prices subject to change without notice. The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Yamaha Motor Australia reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets.
