1

01

WONDER This was a Year 1 project for model making, where we were creating parasitic architecture and make a model with an inspiration of an animal.

This space is a leisure space that goes across two buildings. Having sharped edges, many eye-openers and eye catching to stand out in the space. This project showcases my ability to create unqiue designs and create a model to describe what I was visualising.

This project showcases my ability to think outside the box and create something is simple yet frightening in nature.

2020-2021

2

01

02

03

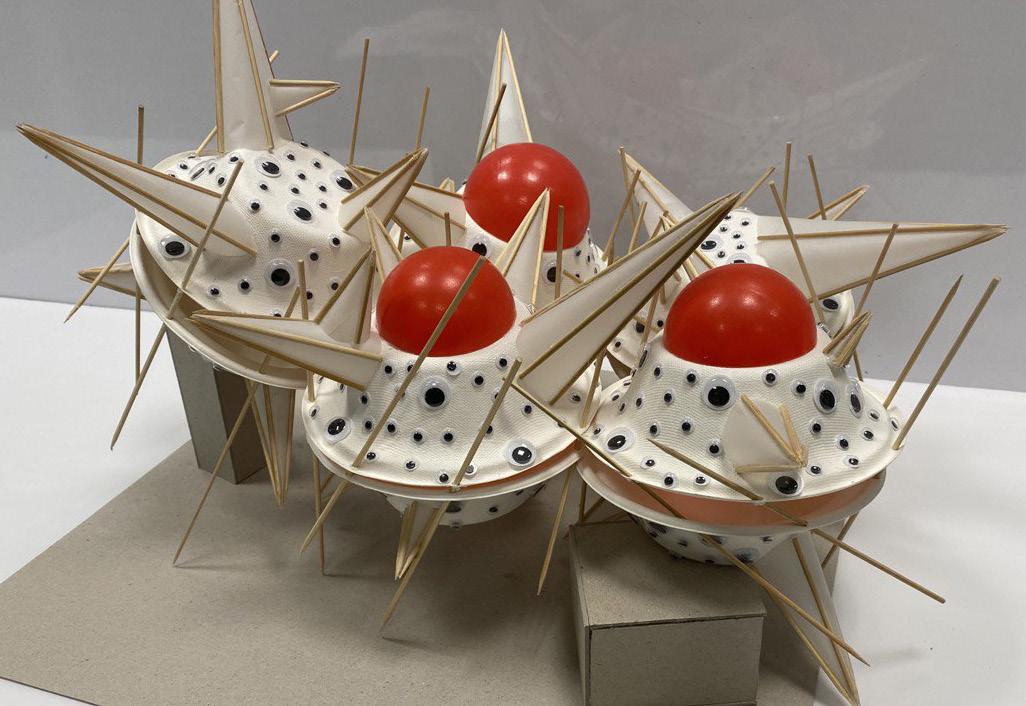

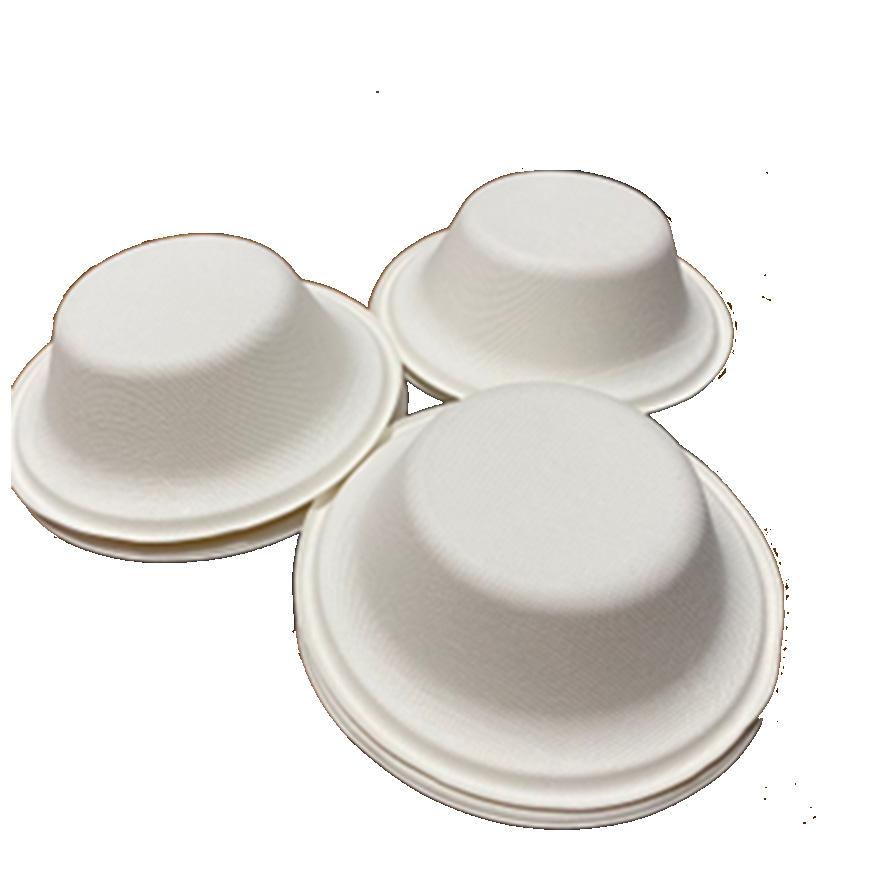

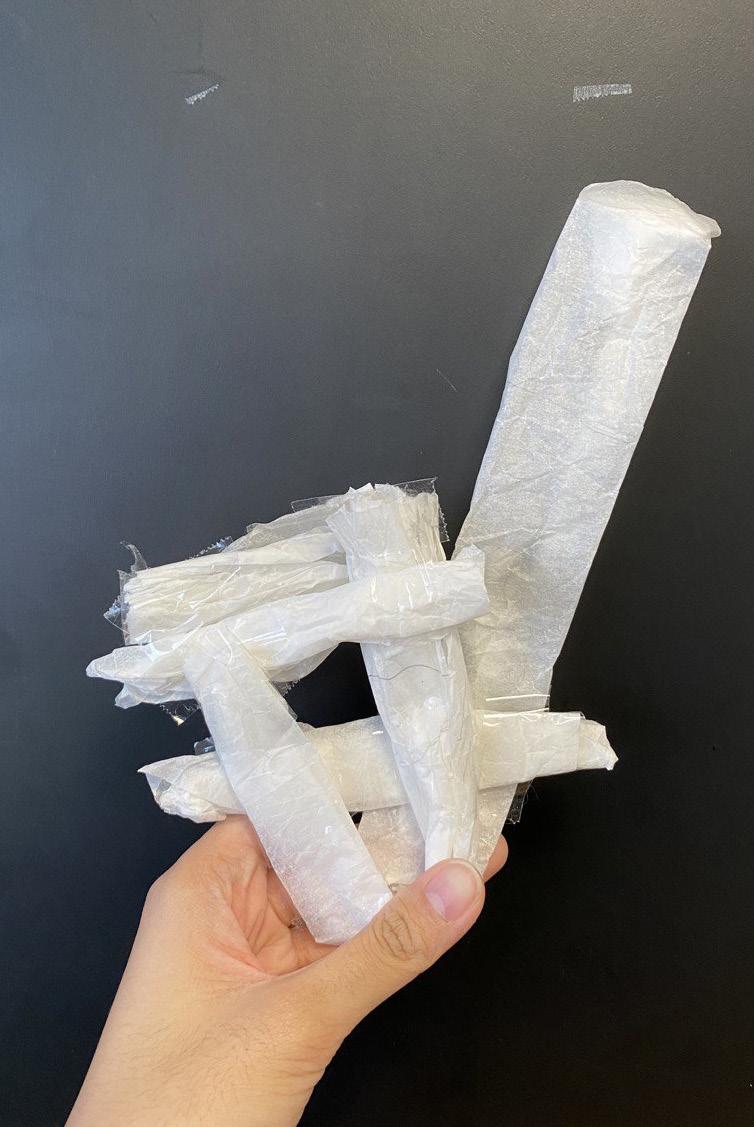

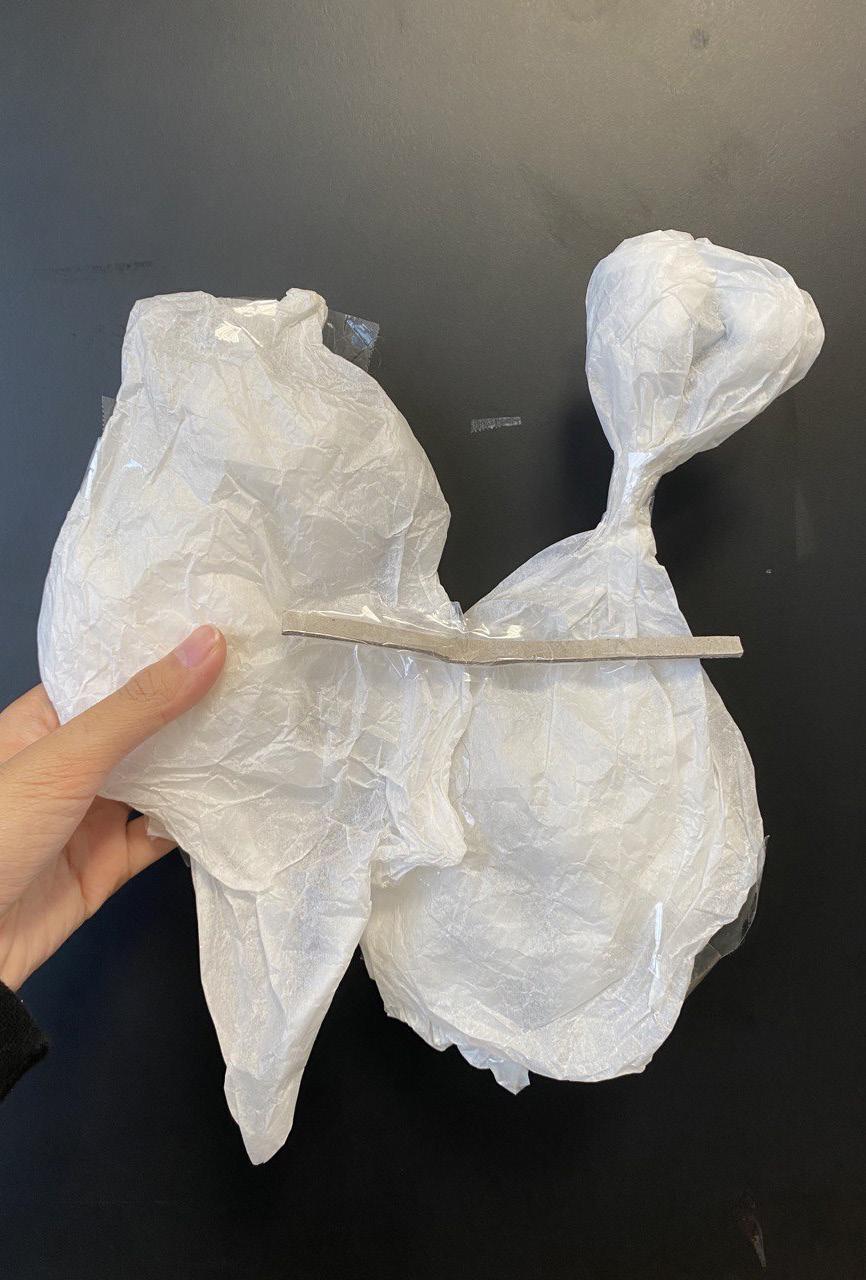

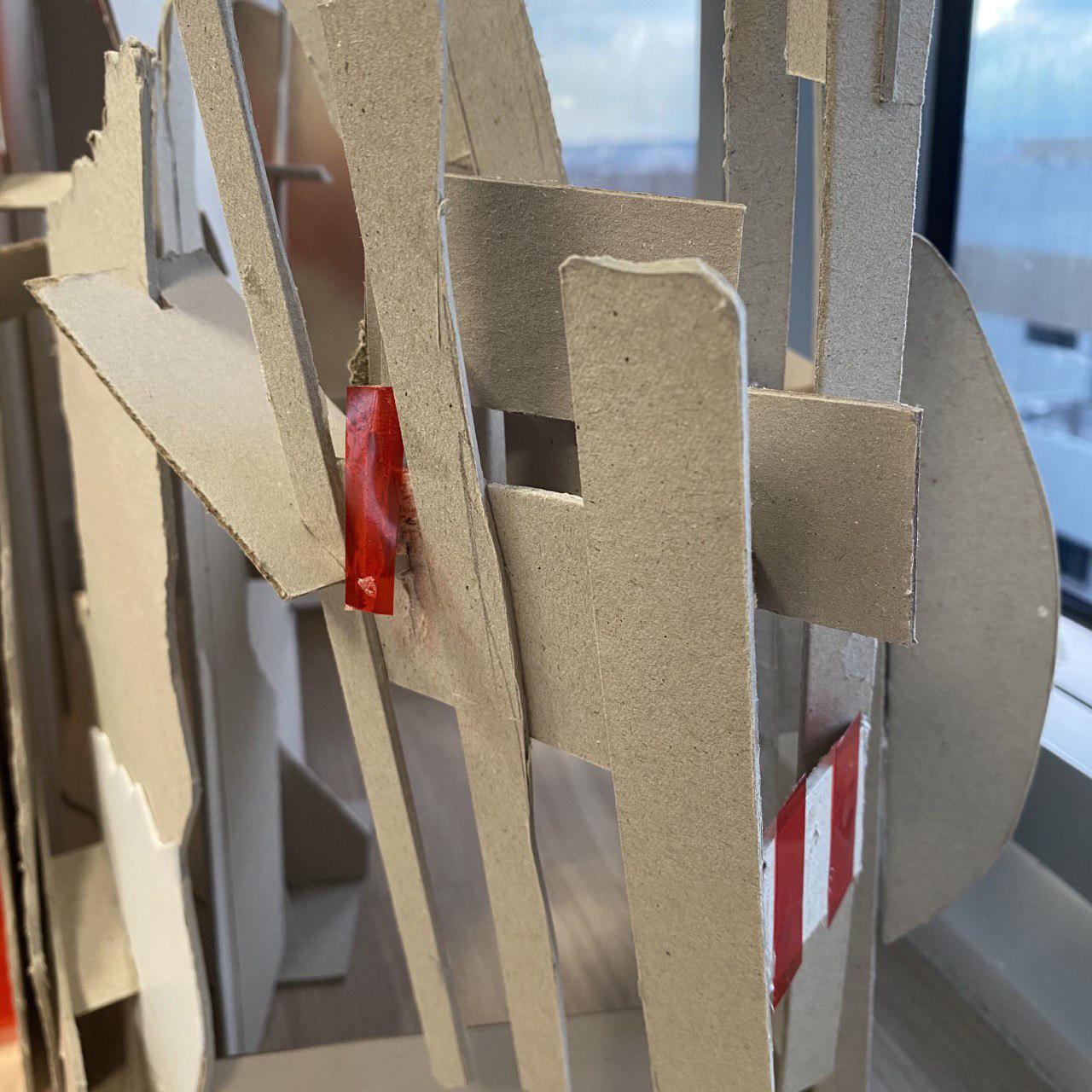

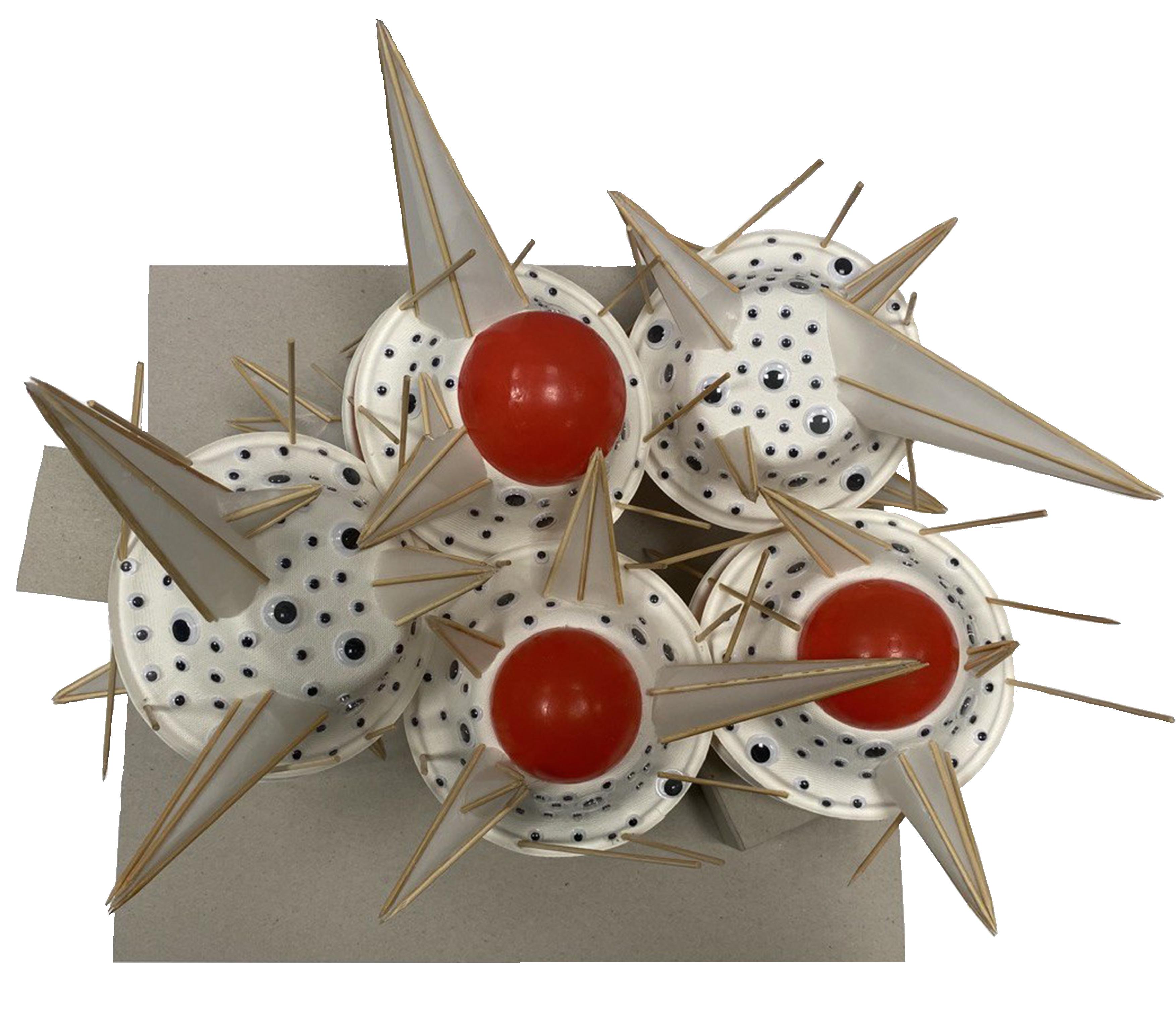

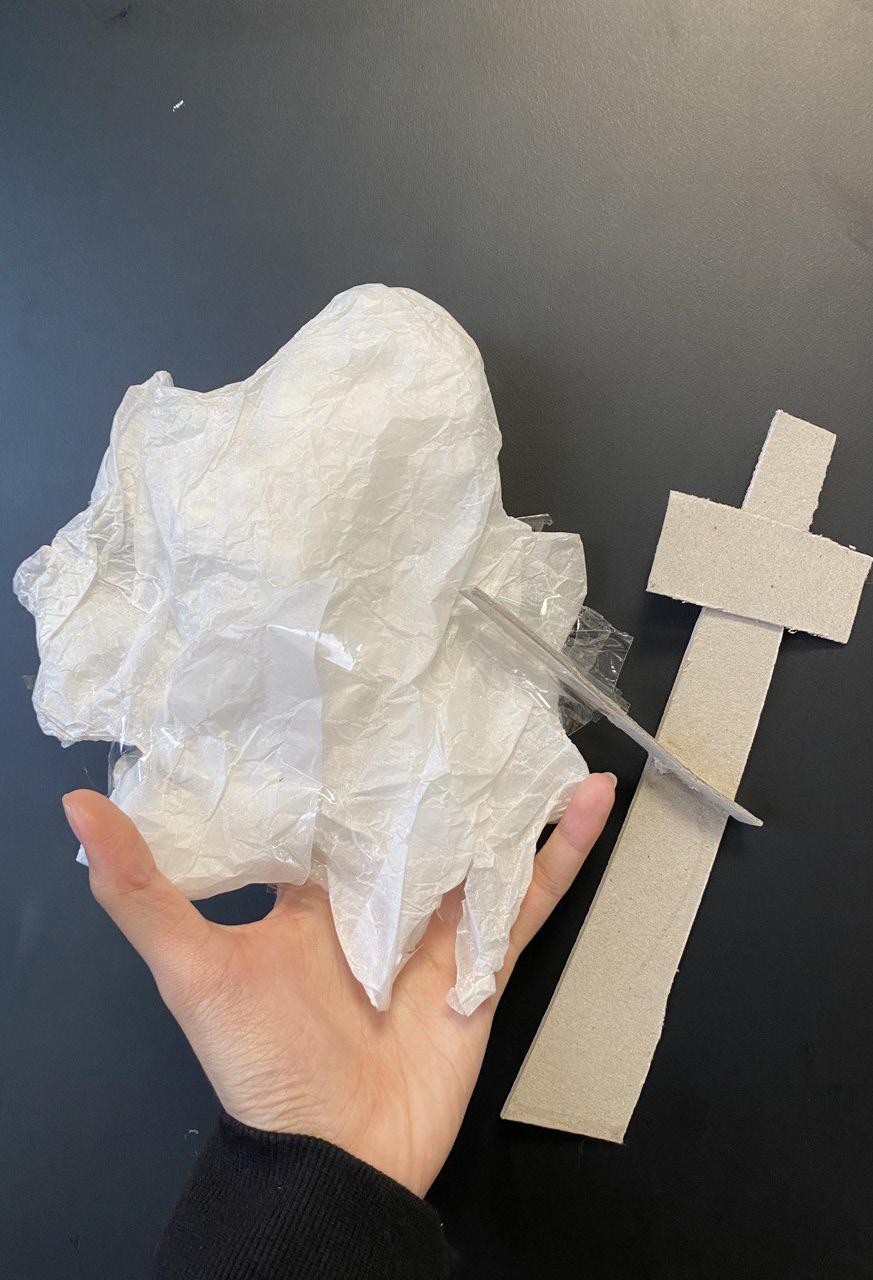

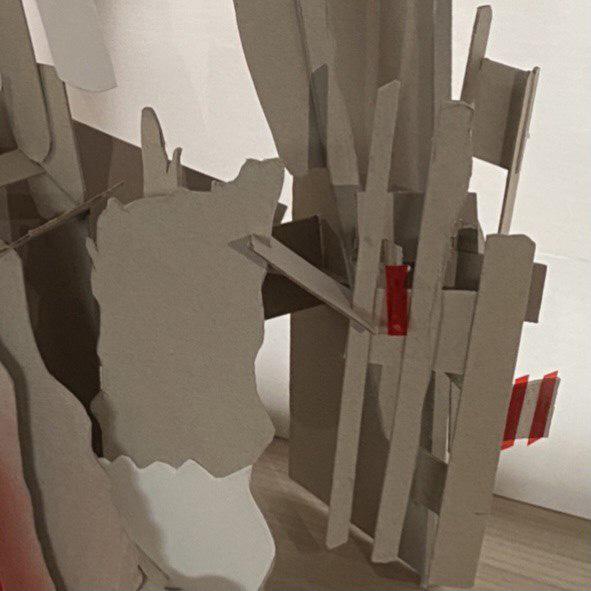

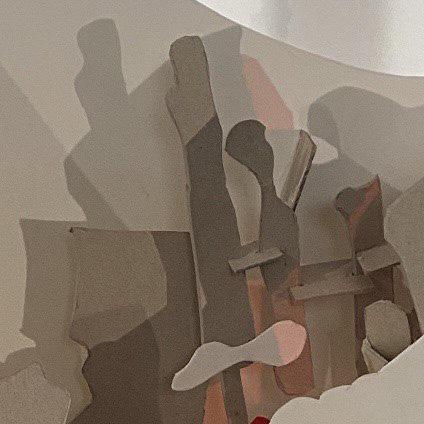

Initially I started off at 01-03 which are my study models by taking up a form of a pufferfish and made them using paper/newspaper and masking tape fo start with ideation and visualisation of my end product. Creating a component and evolving it to a bigger structure. Eventually getting the form I desired.

04-06 is the process of placing materials into respective placement to form structure using paper bowls, red plastic balls, sticks and plastic eyeballs. The wooden sticks were able to shape the paper giving it a rigid, angled structure. Making use of conventional items to create this abstract model.

PROTOTYPE

3

04

05

06

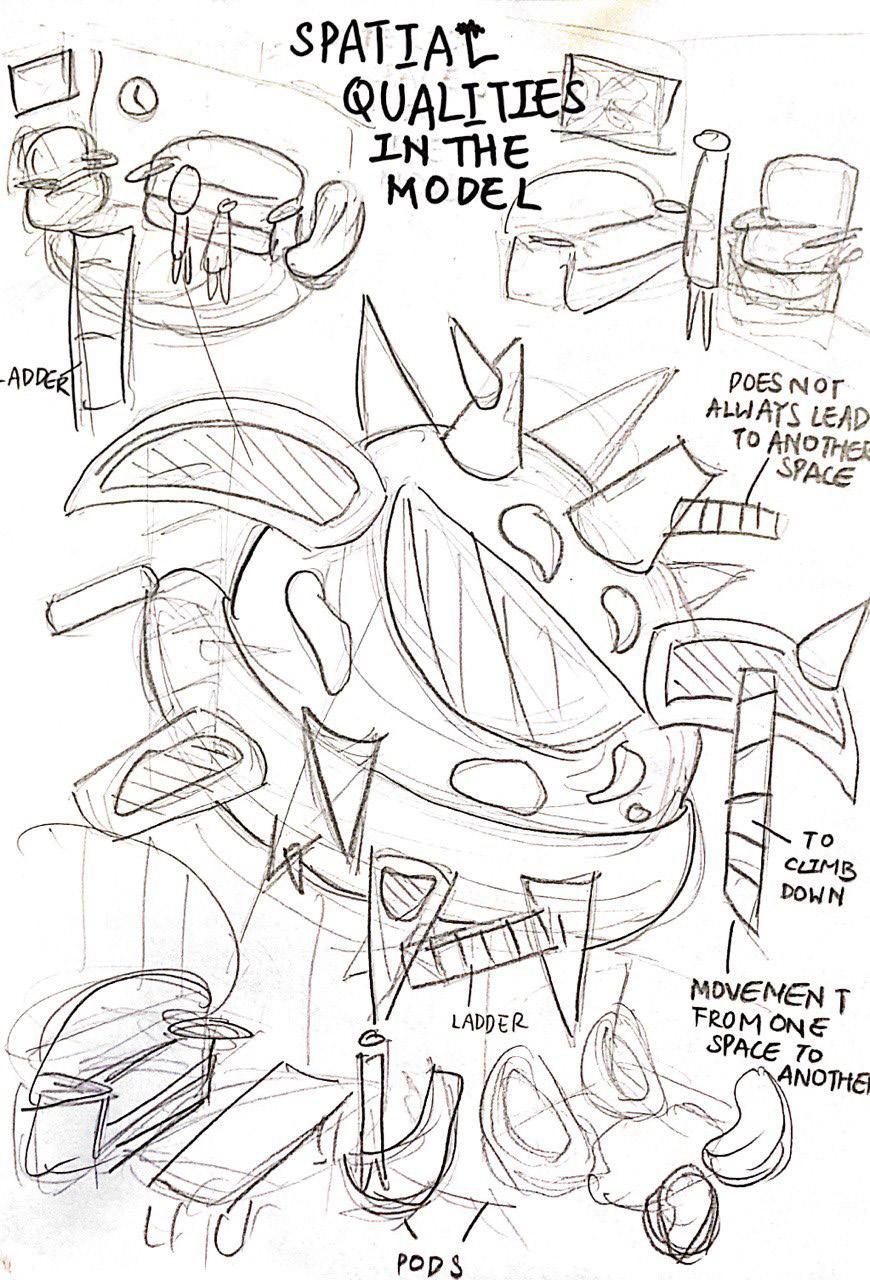

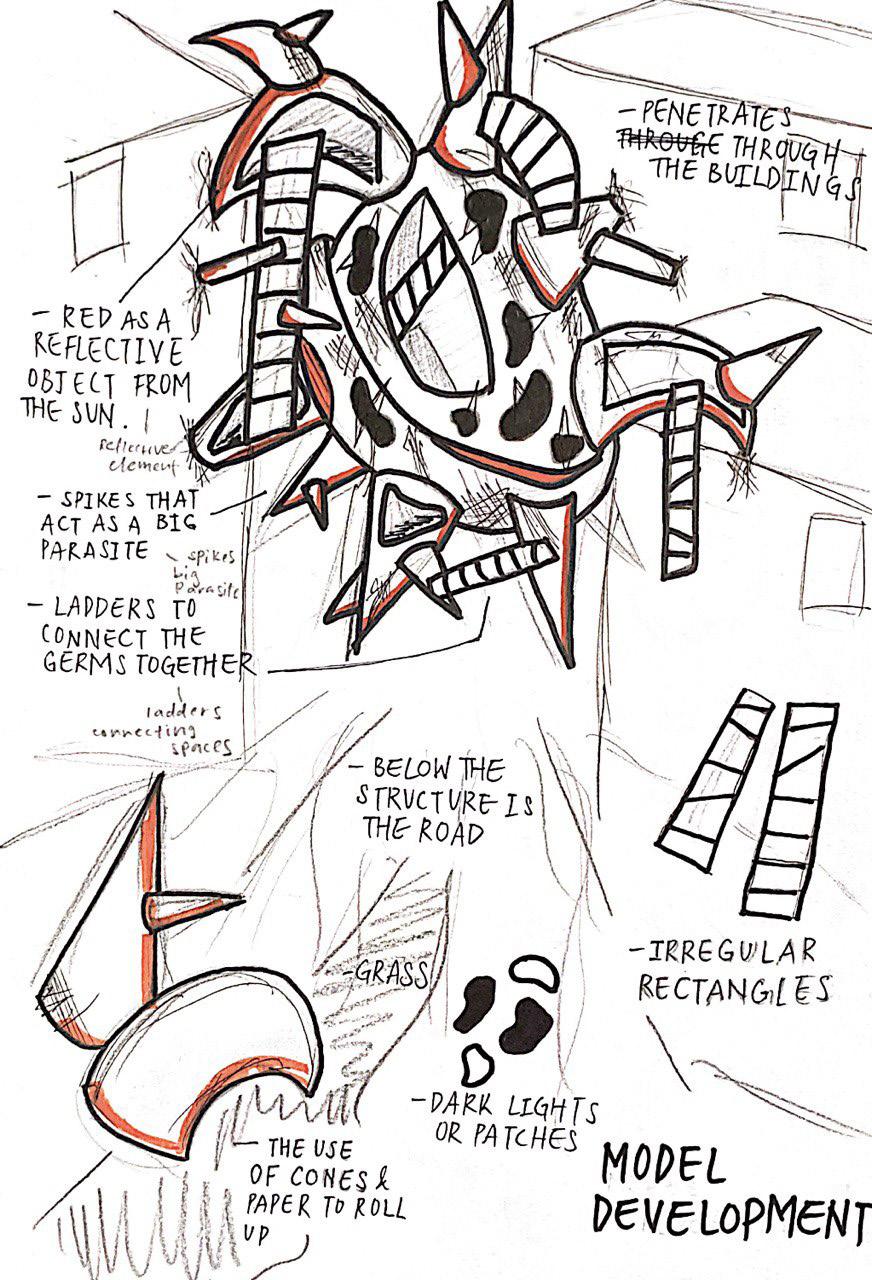

My sketches showed my thought process when creating the model and how I visualised the model to look like. As my site is between 2 office buildings, I had to create connections from one space to another. Needing to add one structure and eventually having multiple structures in the same area. After sketching, I was concerned of how complicated it might be and I ended up deciding to simplify my model towards the end. Where I would still get my message across.

Having this opportunity to be able to create such a space that is out of the ordinary, it was a fun experience for me and I was plesantly surprised by the outcome that I managed to showcase. Finding simplicity in Chaos.

SKETCHES

4

02

PROSPECTIVE Year 2 Semester 1 Project where the modules were derrived from starting off with verbs, creating a collage, derriving a floorplan from the collage and section to create a model. Thereafter zooming into areas of a model, to produce study models and create blue styrofoam modules to start forming a structure.

The whole project was also reliant on the company chosen for us and how we inccorporate the design to create the best user experience. I ended up getting allocated to Dji, this was a studio project. Having a site of choice, I chose a neighbourhood area. Showing how the space allows people to know the company in relation to their surroundings.

The abstract and eye catching colours can be spotted from a mile away. The design was to also act as a green screen and form a transitional space and creating a complex and interesting spatial experience for the users that pass by the space.

2021

5

6

PROCESS

7

VERBS

FLOORPLAN & SECTION

We were grouped into groups of 3, we had to create a short clip of two verbs of our choice, which made us land on parasailing and parachuting The video consists of elements relating to the two verbs. The video was about a minute long and we had to capture 10-12 freezeframes from the video and print them out. The images were then compiled and analysed to piece out like a puzzle. The freeze frames needed to be all black and white. Finding similar tones and textures that may stretch similarly to each other. Compling them into a collage to express my thought process.

Upon completing the collage, I had to trace out elements that we used to compile these images. I was surprised when we were using the tracing as a floorplan. I had to then follow and understand the connections within the collage and the layer above is the end result.

Personally I felt that this was a challenge for me and I struggled a lot but overall I was really proud of the end result. It really required me to look at things from a different perspective.

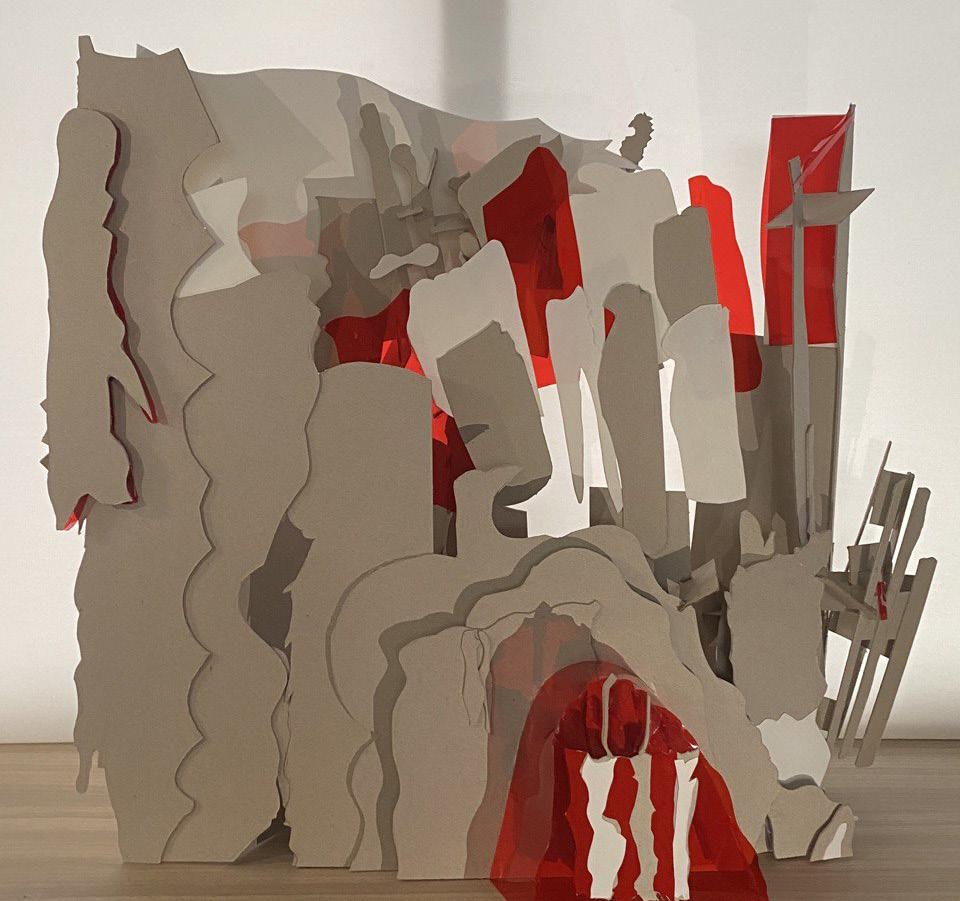

SECTION MODEL

After the tracing, a section could be done by viewing the floorplan by following the lines, shapes I saw while connecting them together. It was defintiely a challenge having to achieve a section from an unconventional way of producing a floor plan.

The section was cut based off my lectuers choice. I had a difficult time understanding which made me end up having cuts from my section below. Despite that I still managed to get out the section and formed it into a model.

8

EXPLORATION MODELS

A1

After abstracting components of the model, we had to craft out lines in specific detailed parts of the model that shows a form of connection that I find interesting. We had to analyse three zoomed in spaces within the model. Drawing 3 stick drawings, 3 three dimensional drawings and make 3 exploration models.

What was interesting to me was that the space had a big and wide element connected to multiple thinner and longer elements and how it held them together in place despite the differences in size and shape.

The exercise required me to analyse further for different forms and connections instead of drawing directly off what I see which allowed me to see certain elements that I did not notice before.

This was fun to explore knowing I had many details and intersections throughout my model. After the creation of the model we had to develop modules to create the structure of the final structure.

MODULE EVOLUTION

A2 This was mainly focused on the multiple connections it had together in a row. It was connected by slotting them into the middle piece that has two slits.

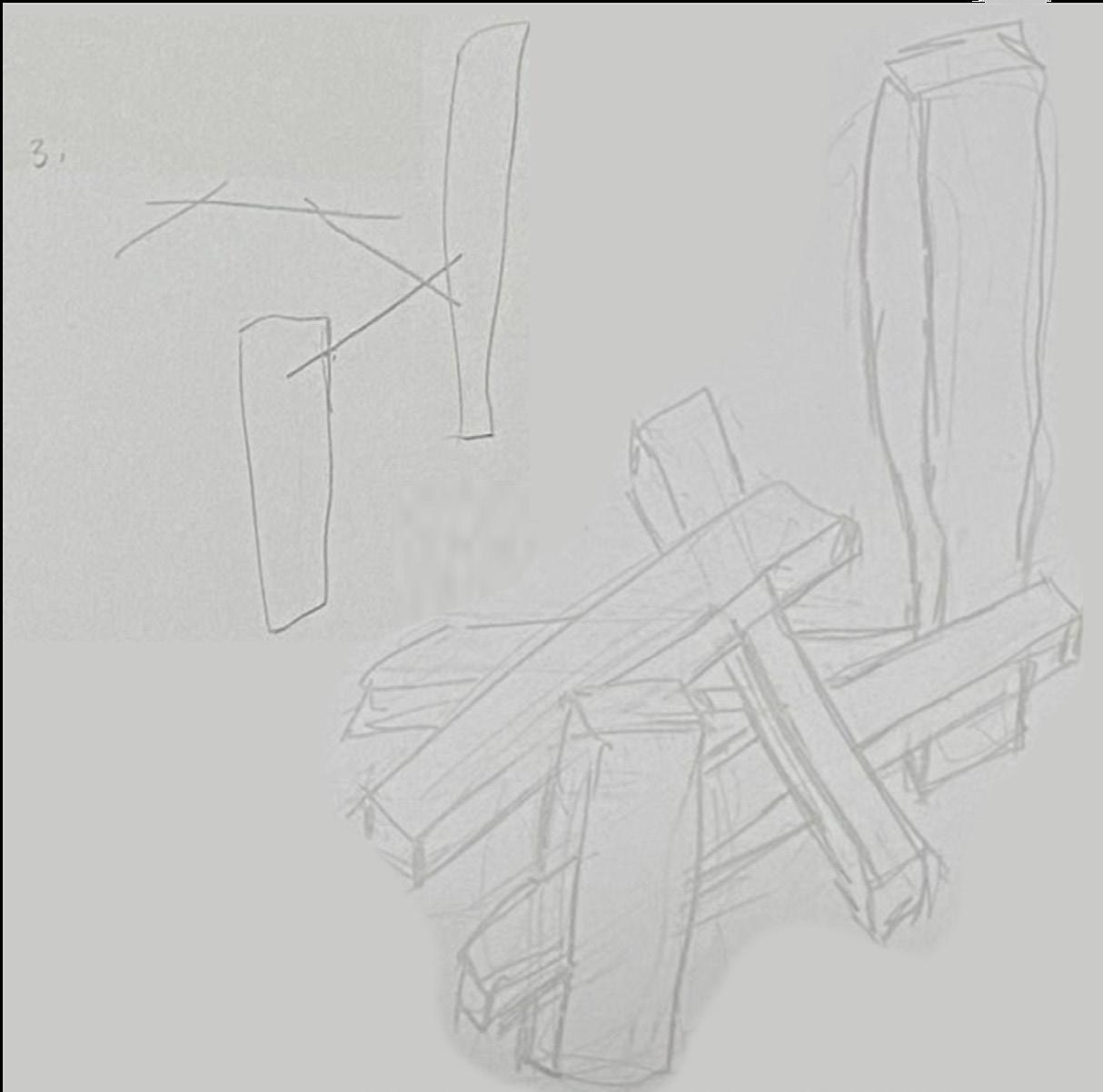

A3 The connection between these are the stacking formation that took place between the elements. Some had similar connections to A2 as well.

MODULE A

MODULE B

I made reference to A3 to create my modules. Among all the exploration models A3 looks the most rigid and I felt that it could have been interesting to develop further on.

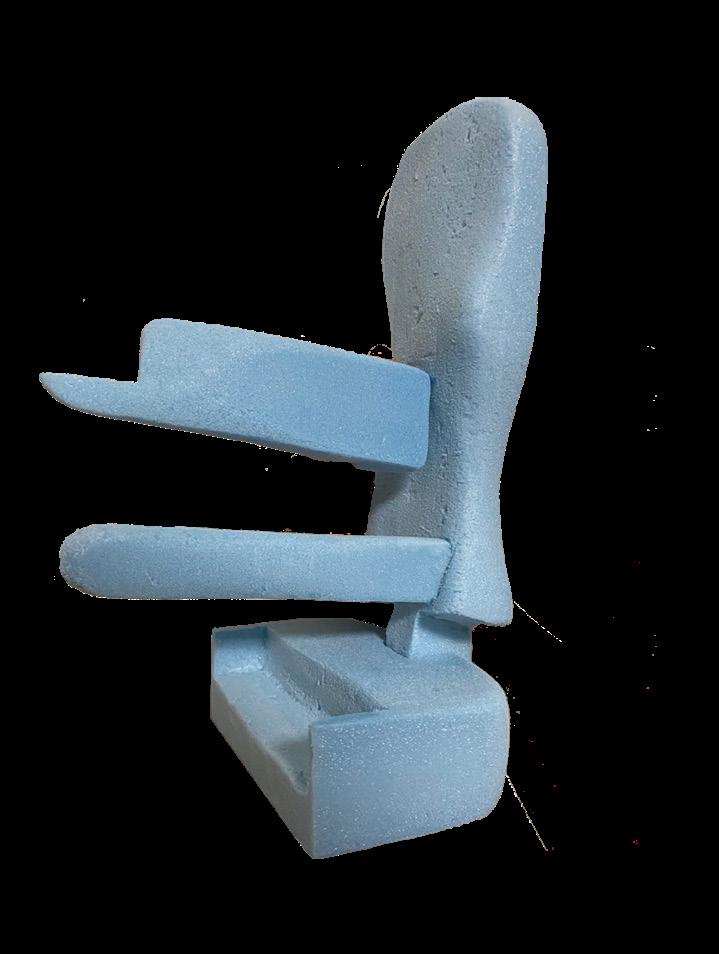

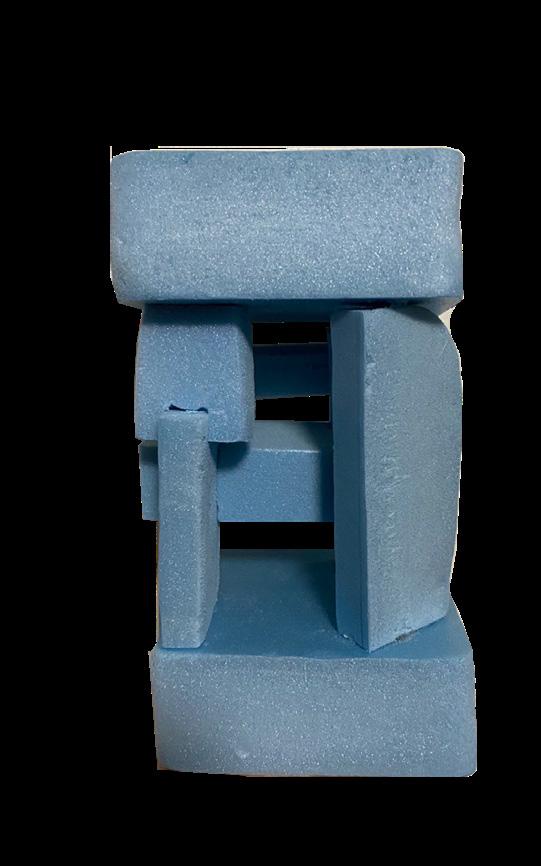

I had to use blue foam to experiment with the different shapes and models.

I redid my modules twice and this is my final outcome. I made it more solidified with more connections.

After making the first model, I had to create another module(Module B) that can connect or intersect with my first module(Module A).

Wanting to implement contrasting forms of rigidity and fluidity. Module B will consist of more curved shapes which will enhace the form of the overall module better.

9

After using these modules and combining them, I joined and multiplied each combination into a big transitional space and created my presentation boards in the following page.

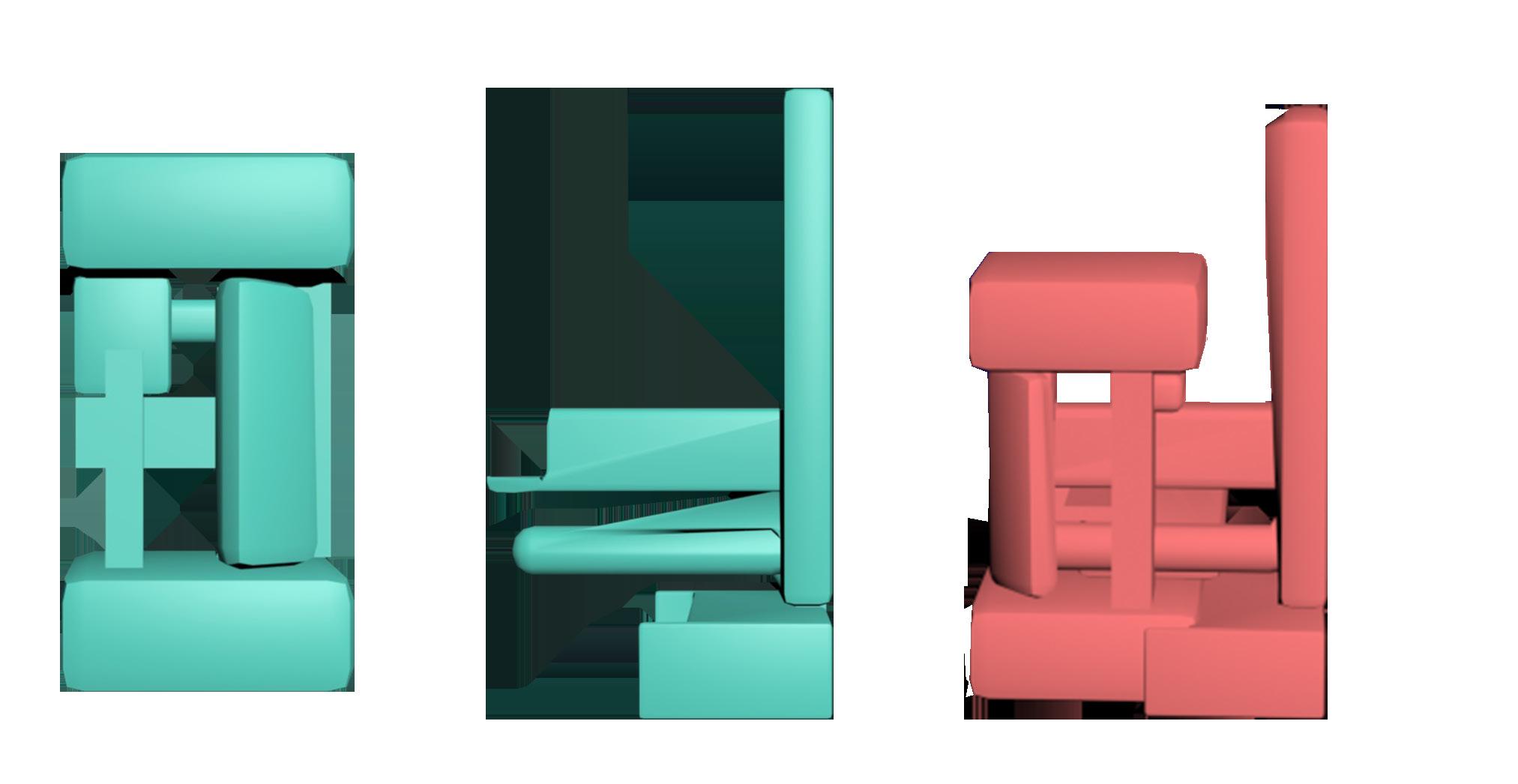

MODULE A & B IN 3D MAX COMBINED

A1

A2

A3

EXPLORATION MODELS 10

PROSPECTIVE

Why I chose a neightbourhood space is due to the fact that I want the residents to have more exposure to such advanced technology that they may not be aware of. At this shopping mall there is not one store that has sold or talked about drones. With many intergenerational families within the space, this encourages social interactions within the space through taking photos and flying drones.

Reason for choice of site

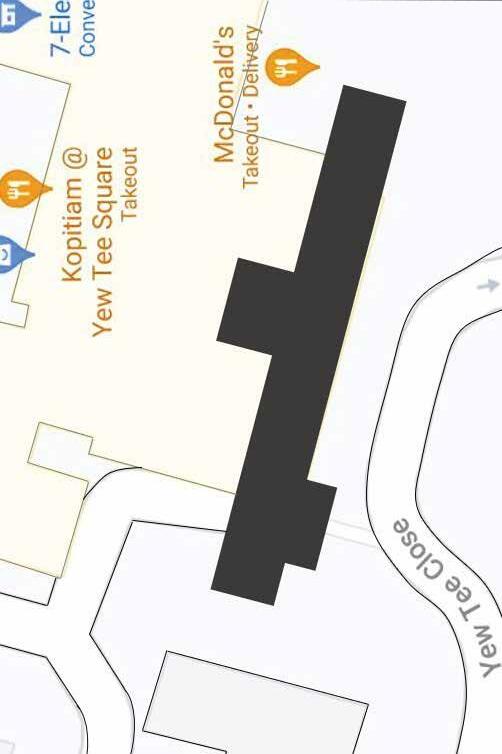

The space is at Yew Tee Square. Yew Tee Square is located right next to Yew Tee MRT station. It has a wide range of goods and services for shoppers to choose from. Yew Tee Park and Yew Tee Community Club are just a walking distance from the mall.The site I’ve chosen has many passerbys as this site is the linkway to different amentities such as MRTs and HDBs. Among the whole site that space has the most people. During different times of day, there will be plenty of people that linger in the space and/or wait as the drop off/pick up point is right beside it.

Site Information & Analysis

“Prospective” was named for being within view, just like a drone when you see one in the air you’d be surprised. Users should feel as though they are walking through a tunnel to the future, or as if they are walking into a spaceship. As the facade has many detailed components and how they are irregularlly arranged should explain how the future is always unexpected and unpredicttable. Following a long pathway with a double volume space, for different experiences. The green-ish colour chosen is a different approach from the surroundings as it contrasts to the space where the building acts as a large green screen which does not limit one’s imagination in the space. The space has many gaps and for different weather changes, example if it is sunny there will be shadows casted onto the floor.

About The Building

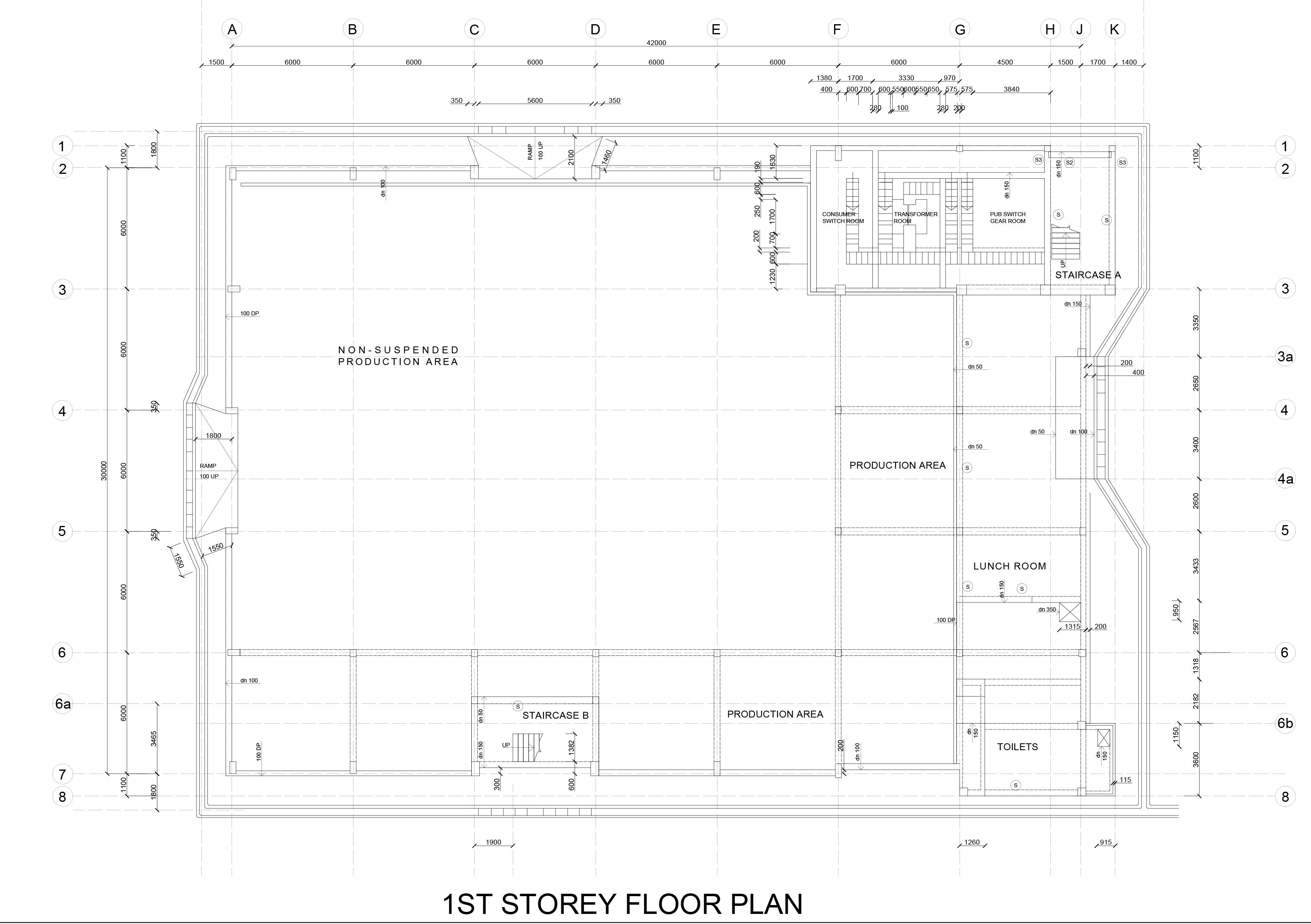

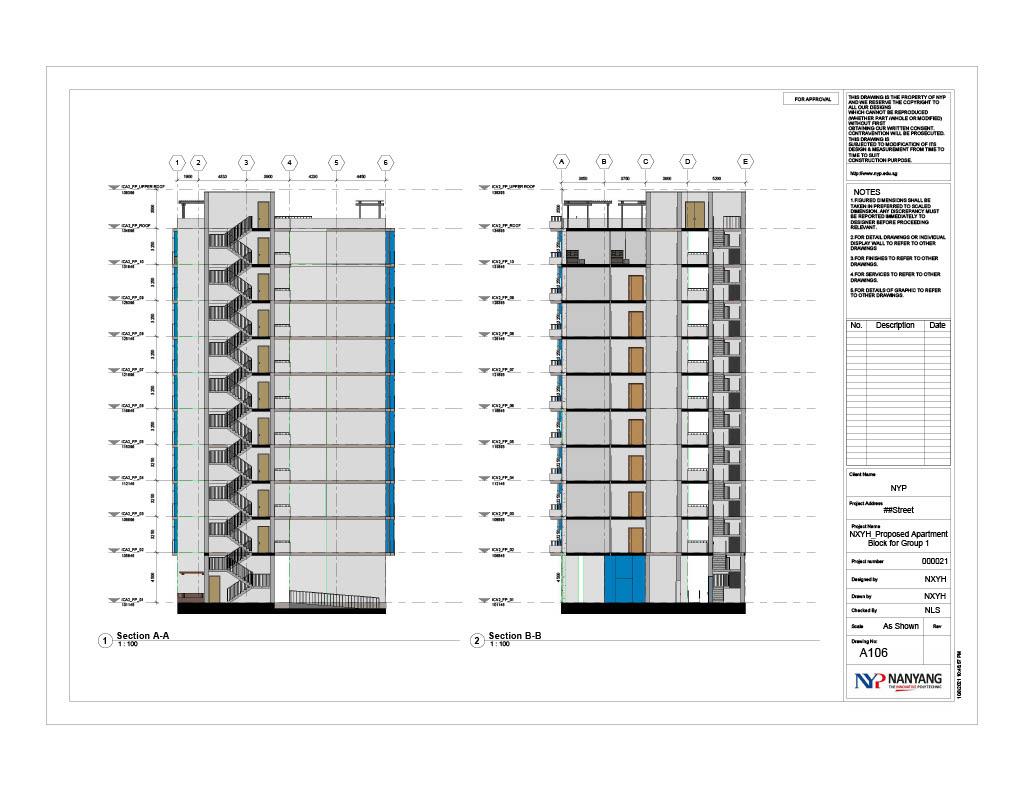

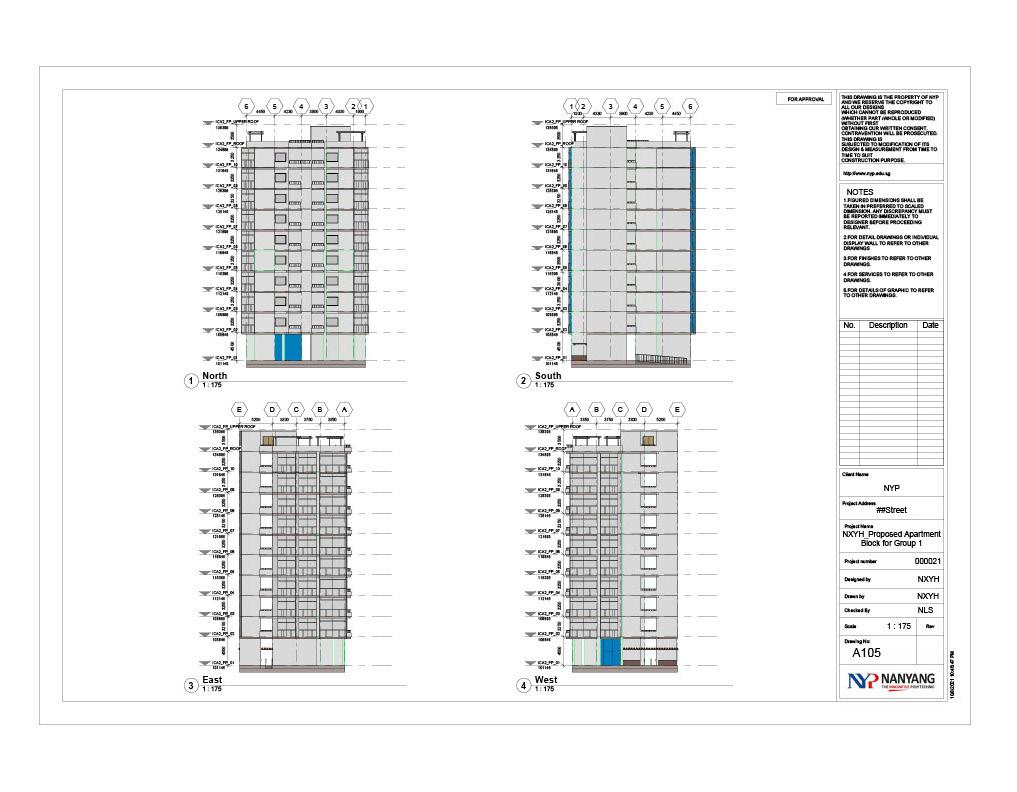

11 FLOOR PLAN

BACK ELEVATION

FRONT ELEVATION

RIGHT ELEVATION

LEFT ELEVATION

12

03

SUBCONCIOUS

Year 2 Semester 2 Project for studio and it was another challenge. I was not entirely sure what I was doing throughout my whole project but I ended up enjoying the project a lot. Throughout my portfolio I will guide through the journey This project is referred to as the slice. We are given a route to follow along City Hall to Fort Canning Park and to create a space within this route and to create an experience within a site of choice, South Beach. My space I have created is for people to let go their inner child. Within a leisure, office environment creating such a space, it is like an adult playground with bright ambience which will keep people that pass by wondering what it is.

2021

13

THE SLICE This was the route I was given. Everyone has a different route for their slice and it was such an interesting way of discovering unseen elements while walking throughout the city.

Throughout the space I got the chance to walk through 6 prominent spaces: Fort Canning Park, Central Fire Station, Peninsula Plaza, City Hall MRT, Raffles City and South Beach.

THE JOURNEY Discovered the slice by two different routes.

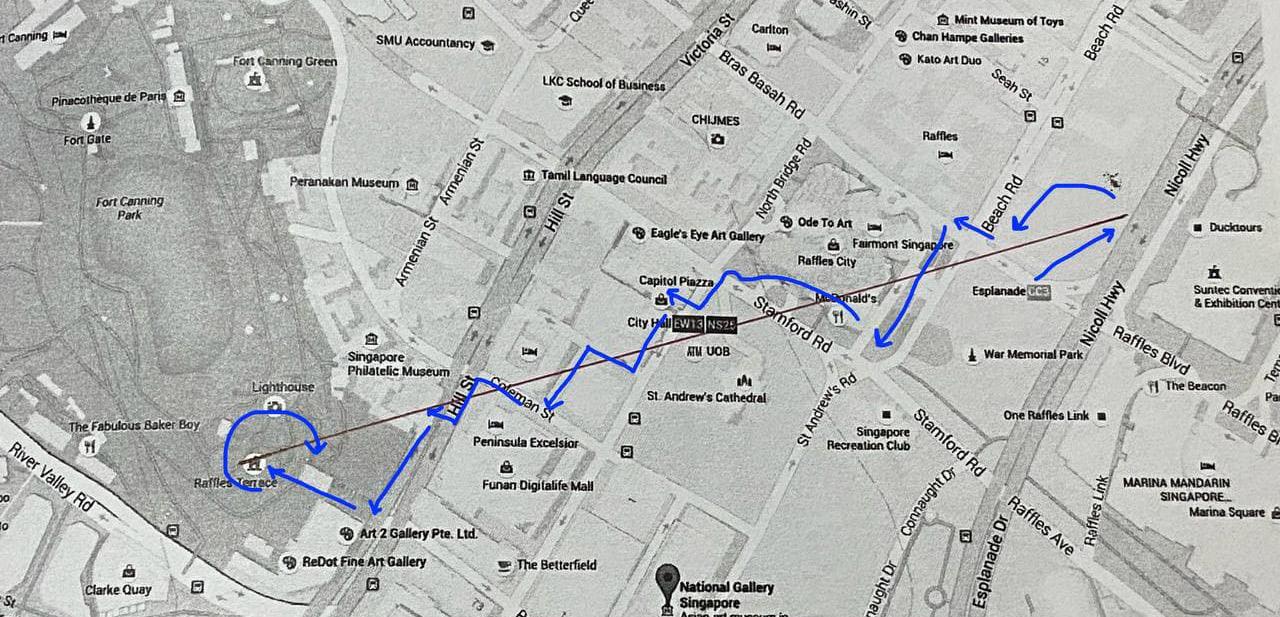

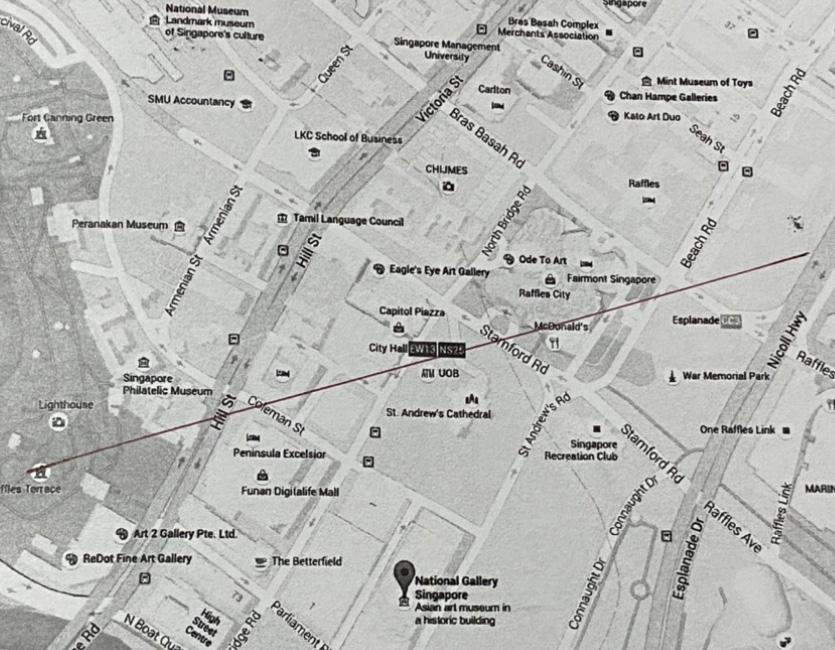

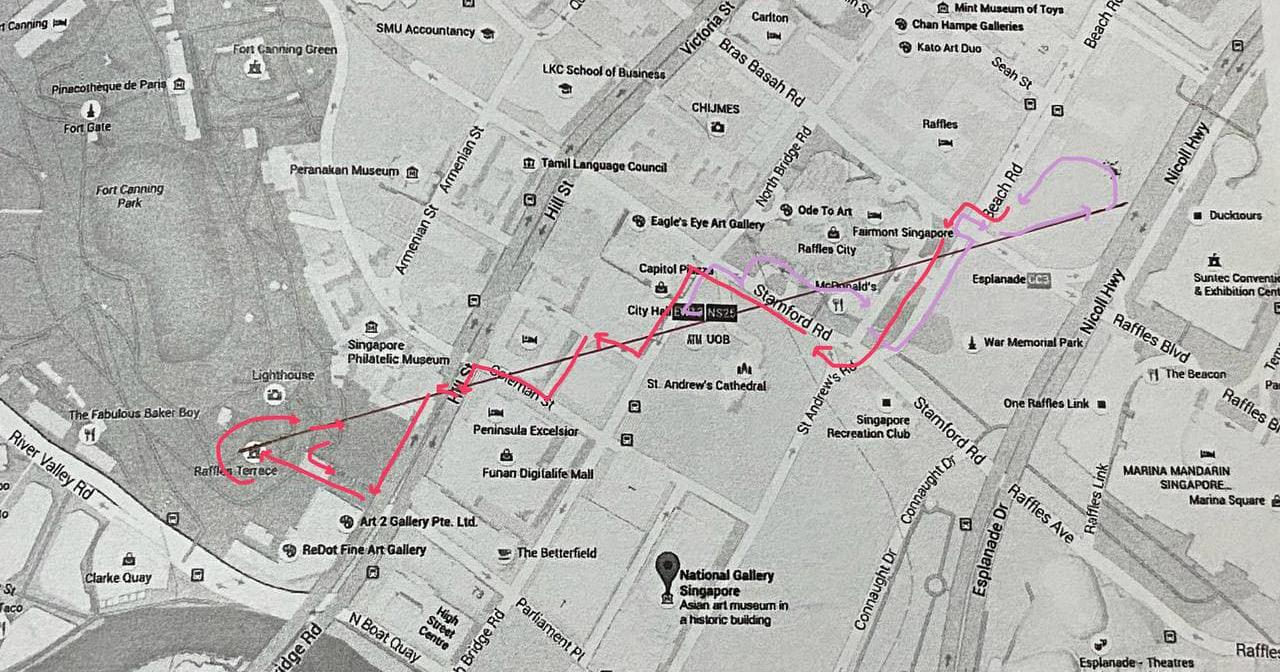

Red Route 1: Pink to Red Arrows | 20 Oct @ 5pm-8pm, Rainy & Cloudy City Hall Mrt and towards nearer to Esplanade then walking back down the slice to Fort Canning Park.

Blue Route 2: Blue Arrows | 24 Oct @ 7pm8:30pm, Cloudy & Windy Changed directions and alighted @ Esplanade MRT & walked down the slice which was my preferred route

COLLAGE A compilation of images I managed to took throughout my slice. I had to observe for patterns, similarities in the entire slice. I made this collage to showcase the elements I have noticed throughout my walk. Thereafter, we had to search up on the backgrounds and my understanding in each space.

It was difficult for me to understand what I was looking out for but it was an interesting experience to look at the city in a different light.

PROCESS 14

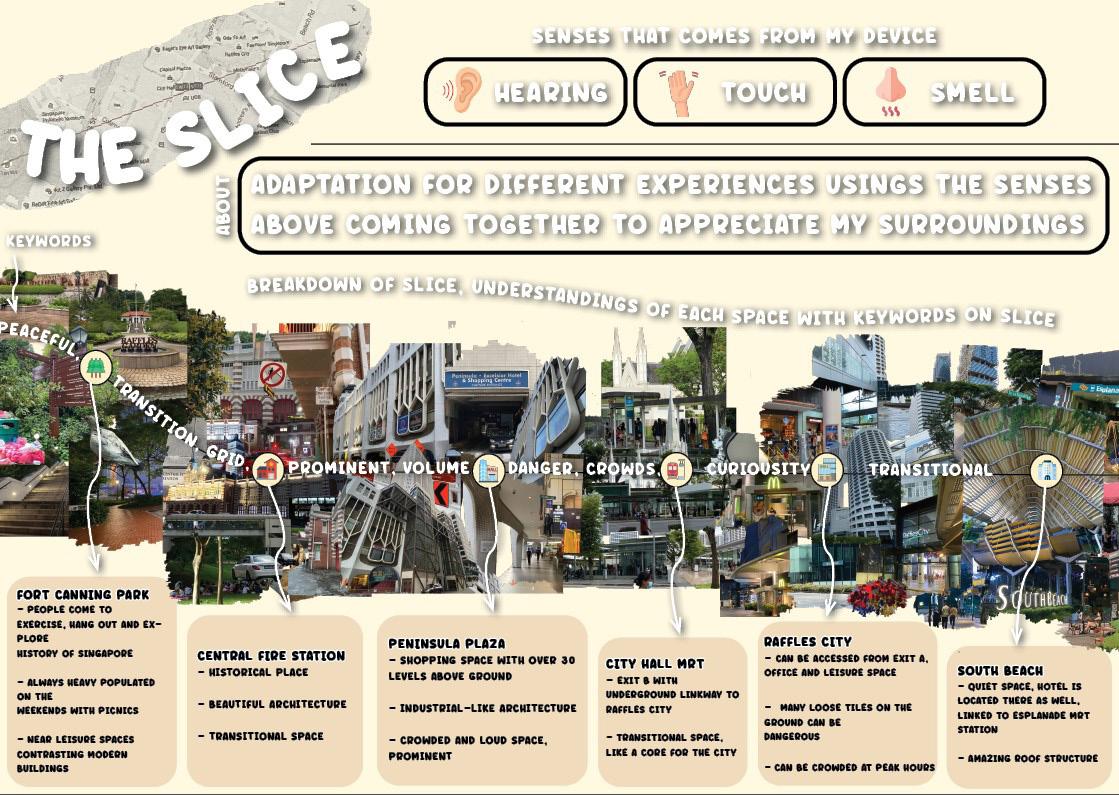

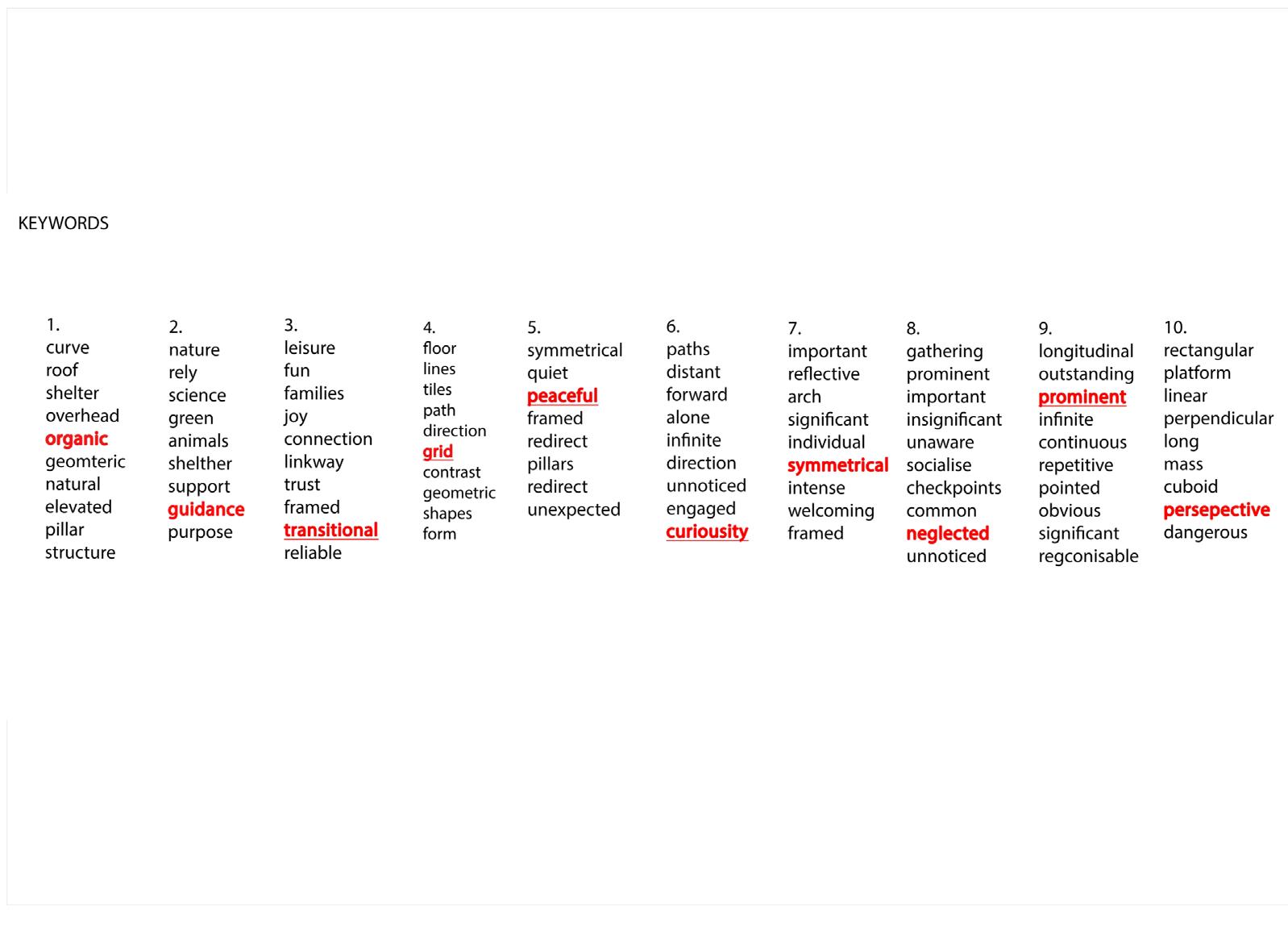

KEYWORDS Discovering keywords from the collage above and discovering similarities in each space and had to decide on the underlined keywords that stood out in relevance to me.

PROMINENT, GRID, TRANSITIONAL, PEACEFUL AND CURIOUSITY Many important spaces that frames 2D to 3D. Transiting through the space, there was peace and it brings curiosity to ponder on why or how it was so peaceful.

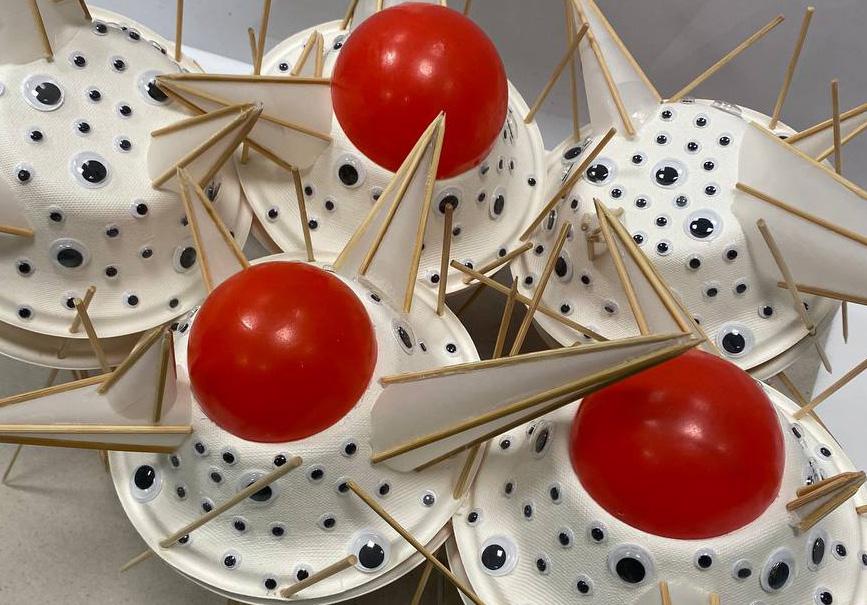

DISCOVERY FROM DEVICE My device has a filter paper in front to produce out with different textures on the paper when I look at something. The cuppings at the ears are to narrow out sounds that are more distinctive that drew attention to me.

Restricting my hearing/sight/sense of smell and it allowed me to be appreciative for my senses.

I got to draw out a graphic on each space throughout my slice as an analysis of the entire space.

DEVICE INTERVENTION Being able to combine my analysis into an entire space and being able to point out significant things that would potentially end up as my chosen site as well.

Being able to use a device I created to make my own form of analysis in my way of understanding which was such a interesting way of looking out for factors that go unnoticed.

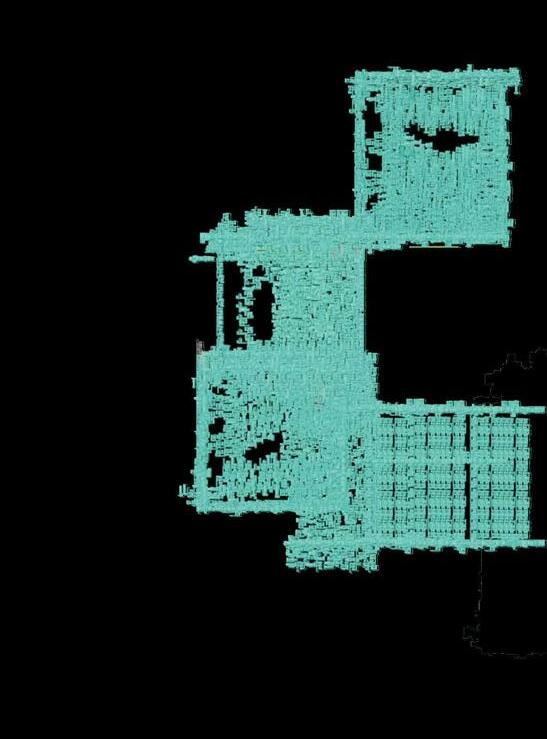

From my device, the images that showed up in my device results and I had to observe and take notes of the sounds and textures that appeared from my device intervention as shown on the right. The bigger the circular image the louder the sound was.

Capturing the city in a different light, as if I was still unaware of the world.

15

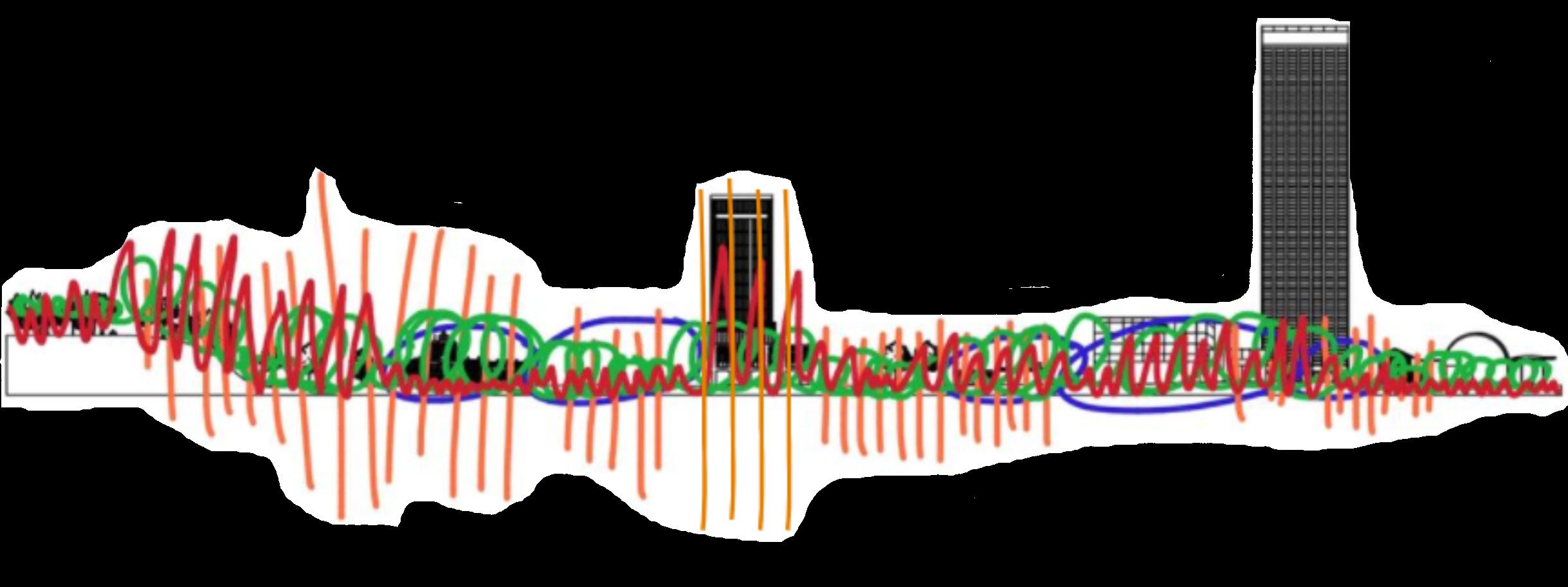

LEGEND Green: Sound Prominence Orange: Danger Zones Red: Crowd Flow Blue: Transitional

DEVICE INTERVENTION

16

MY SLICE IS A CITY OF...?

IDIOSYNCRASY

ANALYSIS AND DESIGN DEVELOPMENT

After analysing my device's data and based off my previous observations. The slice has many different type of spaces, in each space, they have their own personality and ambience. Based of the infographic on the bottom, for example, Fort Canning Park can be very eventful or very peaceful at different times. Which made me arrive to Idiosyncrasy. Each space and their individuality and hence

It took a lot of analysing to figure out an exact word that describes my space. Each space has its own personality which drew me to Idiosyncrasy.

My slice is a city of IDIOSYNCRASY. Definition: A distinctive mode of behaviour or way of thought to a particular place or thing.

I made an infographic for the things I noticed throughout my slice as well.

17

Along my whole slice, South Beach had the least crowd and it had the most subtle and yet stressful environment due to people rushing to different places.

It is ideal for me to create a space that stands out from its surroundings such as offices, retail spaces and hotels. Developing these ideas for my space was complex and getting out a form which would be prominent in an neutral environment. Had to do some sketches on how visualise what would be appropriate in the spatial planning.

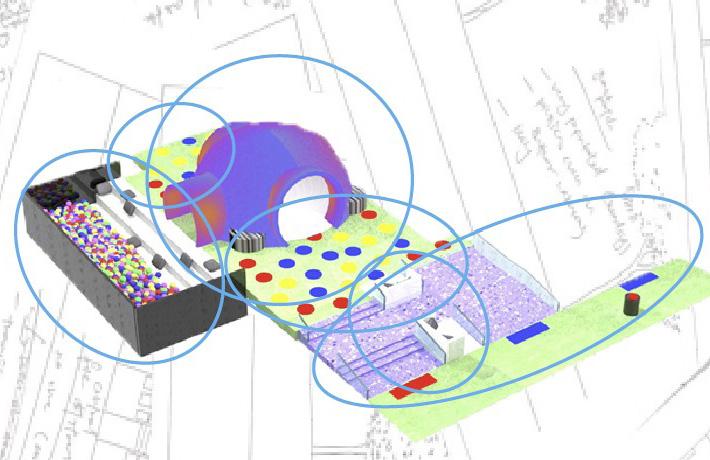

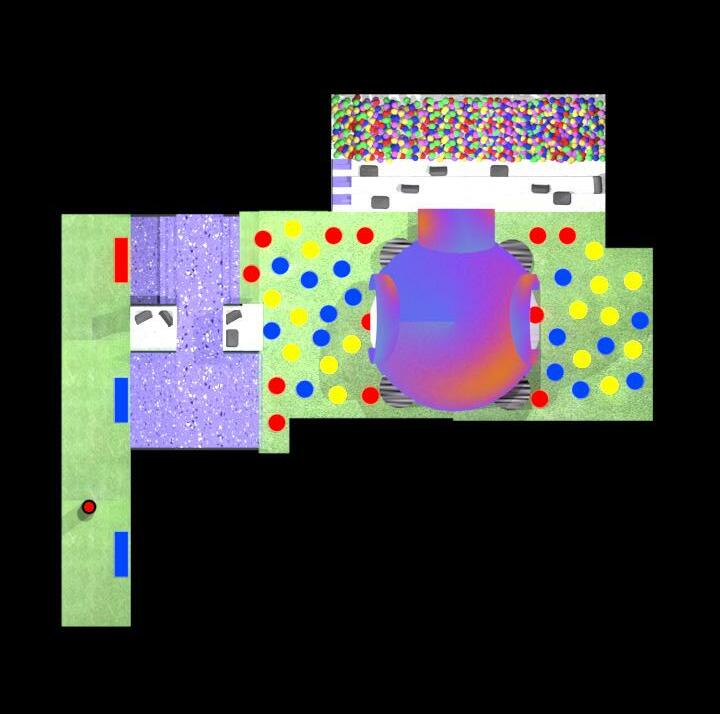

ZONING There were a total of 4 zones in the space.

Showing different spaces within the entire site. Having this overall view, shows the experiences that could potentially be in each individual space.

There are additional spaces for chairs in the center, replacing existing plants for people who would prefer more privacy.

2a

4

3 2

1

ZONE 1: CURIOSITY

ZONE 3: CORE SPACE

Consisting of 3 red buttons. Showing different panels on the ground and the button provokes people to press it while not knowing what it does.

It is the main space, has an illuminating treelike structure in the center while the exterior is shaped like a dome. The capsules for people to place their own thoughts into and to hang them up or bring them home. Creating a discussion space, people can share their experiences and thoughts.

The panel then lights up when pressed and people can walk towards it or go by another route along the space.

THE QUESTION: "WHAT ARE YOUR UNUSUAL HABITS?".

ZONE 2 & 2a: TRANSIT

ZONE 4: RELAXATION

The colour circles on the ground are lighted panels consisting 3 primary colours: Red, Blue and Yellow. Acting as pavements for moving from one space to another attempting to engage users. Bringing us back to the basics of simplicity in colour.

This is the last zone within the space. A big ball pit made from an existing staircase.

This space opens the variation of things the user can choose to do. Whether they want to have some fun, relax or to enjoy the ambience of others.

18

Z1: CURIOUSITY

FLOOR PLAN

19

subconscious

Z3: CORE SPACE

Z2 & Z2a: TRANSIT

20

Z4: RELAXATION

RIGHT ELEVATION

Fabric

Cotton with LED

MATERIALS

Granite

Plastic Balls

Rubber Tiles

This space encourages users to move about the space freely with no restrictions but with their subconscious. Having certain framing of each space, and how each user interacts with the space.

This space is located at the heart of a busy city, within offices and leisure spaces. A space where people from different backgrounds can come together to relax, refresh and have fun.

DESIGN CONCEPT

FRONT ELEVATION

04

INTERNSHIP I had the opportunity to intern at Voila Design Pte Ltd over the course of 6 months.I went for my internship at the start of the semester in Year 3. Being able to get first hand experience from a residential interior design company. I got to see how the company works with other designers, drafters, suppliers and even clients.

I got to experience a lot on site visits and enhancing my technical skills, specifically Abobe Photoshop and AutoCAD. I had to do AutoCAD floorplans, elevations and Adobe Photoshop Moodboards by using images from Pinterest and "render" these Photoshop floorplans as well. I got to help out in 54 projects for drawings. Through this experience I realise that I really love to do AutoCAD. I did not get the chance to render any visualisations due to the fact that they had a in-house drafter and did not require me to help to render, despite asking whether they wanted help. Towards the end they realised that it is nice if I get to try out which shows the minor renders that I have done during my internship. I got the chance to help modify their logo and helped to change the font and add in an additional statement below as well.

This internship has helped me to interact and understand more about the industry. I had a lot of experience during my internship and I am grateful I got to go through this memorable, insightful and emotional experience.

2022

21

VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899 T : 64558861

F: 64512028

PROJECT TITLE

:

PROJECT ADDRESS : BLOCK 605 CHOA CHU KANG ST 62 #05-149 (S)680605 DRAWING TITLE : PROPOSED FLOORPLAN LAYOUT DATE

:

DESIGNER : SCALE :

1-100

AGREEMENT NO.: REVISION : MATERIALS :

MEASUREMENTS :

CLIENT'S NAME: CLIENT'S SIGNATURE:

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST. BY

THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION

THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899

FRIDGE (W)660 x (L)950 DEPTH: 660MM

T : 64558861

F: 64512028

PROJECT TITLE

1400

KITCHEN

:

PROJECT ADDRESS : BLOCK 605 CHOA CHU KANG ST 62 #05-149 (S)680605 DRAWING TITLE : KITCHEN DETAIL DRAWING (2)

1700

DATE COUNTER DEPTH: 600MM

:

DESIGNER : AS SHOWN

SCALE :

AGREEMENT NO.: KITCHEN PART PLAN

SC : 1:40

REVISION : MATERIALS :

MEASUREMENTS :

CLIENT'S NAME: CLIENT'S SIGNATURE:

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST. BY

THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION

THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

KITCHEN DETAIL (2)

SC : 1:40

VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899 T : 64558861

PROJECT TITLE

:

PROJECT ADDRESS : BLOCK 605 CHOA CHU KANG ST 62 #05-149 (S)680605 DRAWING TITLE : WARDROBE DETAIL DRAWING (3) DATE

:

DESIGNER : SCALE :

AS SHOWN

AGREEMENT NO.: MASTER BEDROOM WARDROBE PART PLAN

SC : 1:40

REVISION : MATERIALS :

MEASUREMENTS :

CLIENT'S NAME: CLIENT'S SIGNATURE:

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST. BY

THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION

THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

WARDROBE EXTERIOR DETAIL (3)

SC : 1:40

WARDROBE INTERIOR DETAIL (3)

SC : 1:40

TRAINING

F: 64512028

During Internship, the managers thought that it would be good to have a training for some of the newer staff including me to go through a training that consists of site visits and technical drawing training. They allowed us to use our own home's plans for training. During site I got to experience first hand on how my managers interact with the client. These are some of the work I have completed.

22

FIRST STOREY

SECOND STOREY

ht. of rooms: 3.332m

301sqft

WALL AREA (SQFT)

ROOM

WALL AREA (SQFT)

288sqft

M. BATH

265sqft

BATH 1

265sqft

WET KITCHEN & BACKYARD MAID 49sqft

BATH 3 38sqft

1550

274sqft

1180

BEDROOM 3 NANNY

POKER ROOM

95sqft

265sqft

65sqft

62sqft

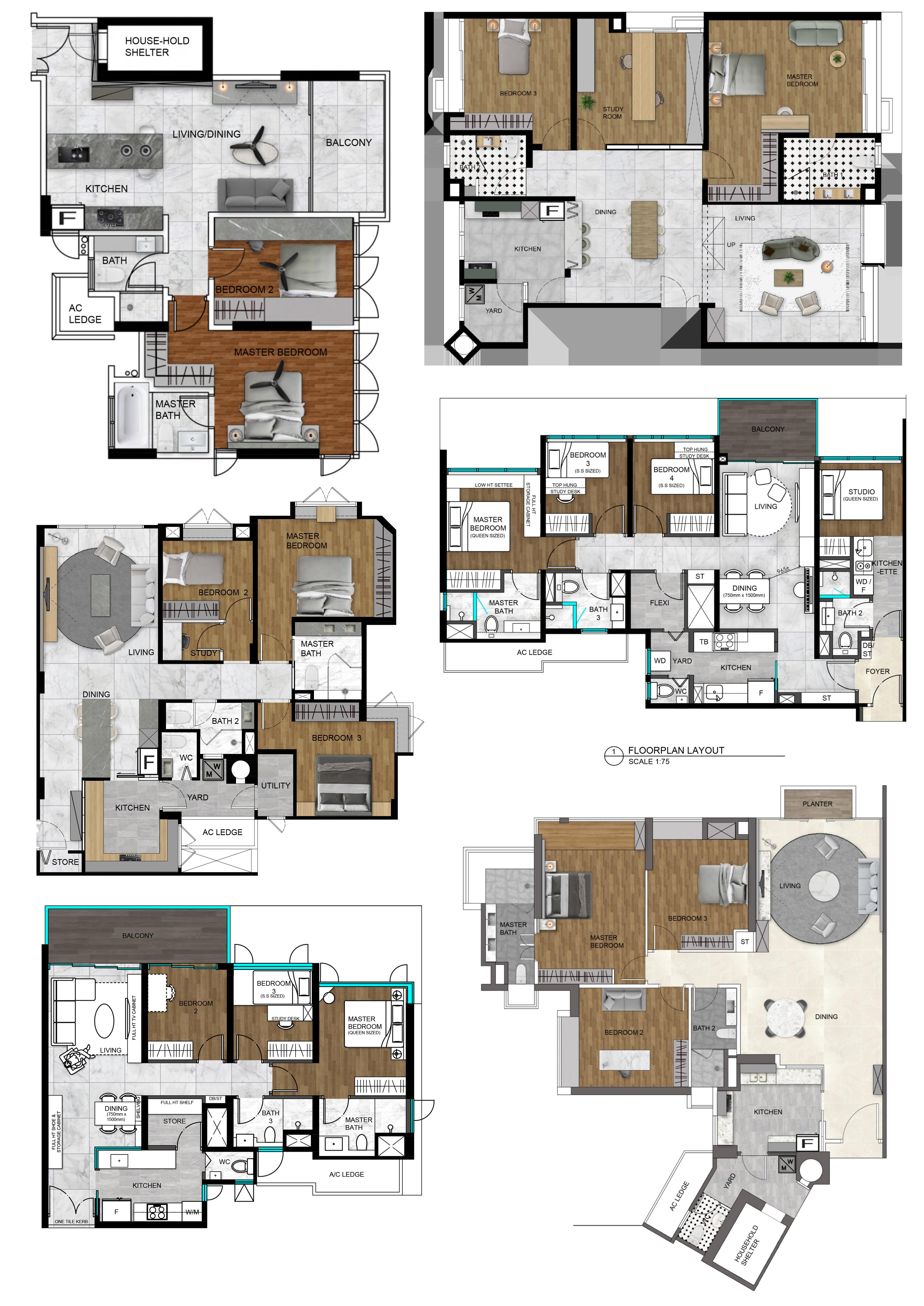

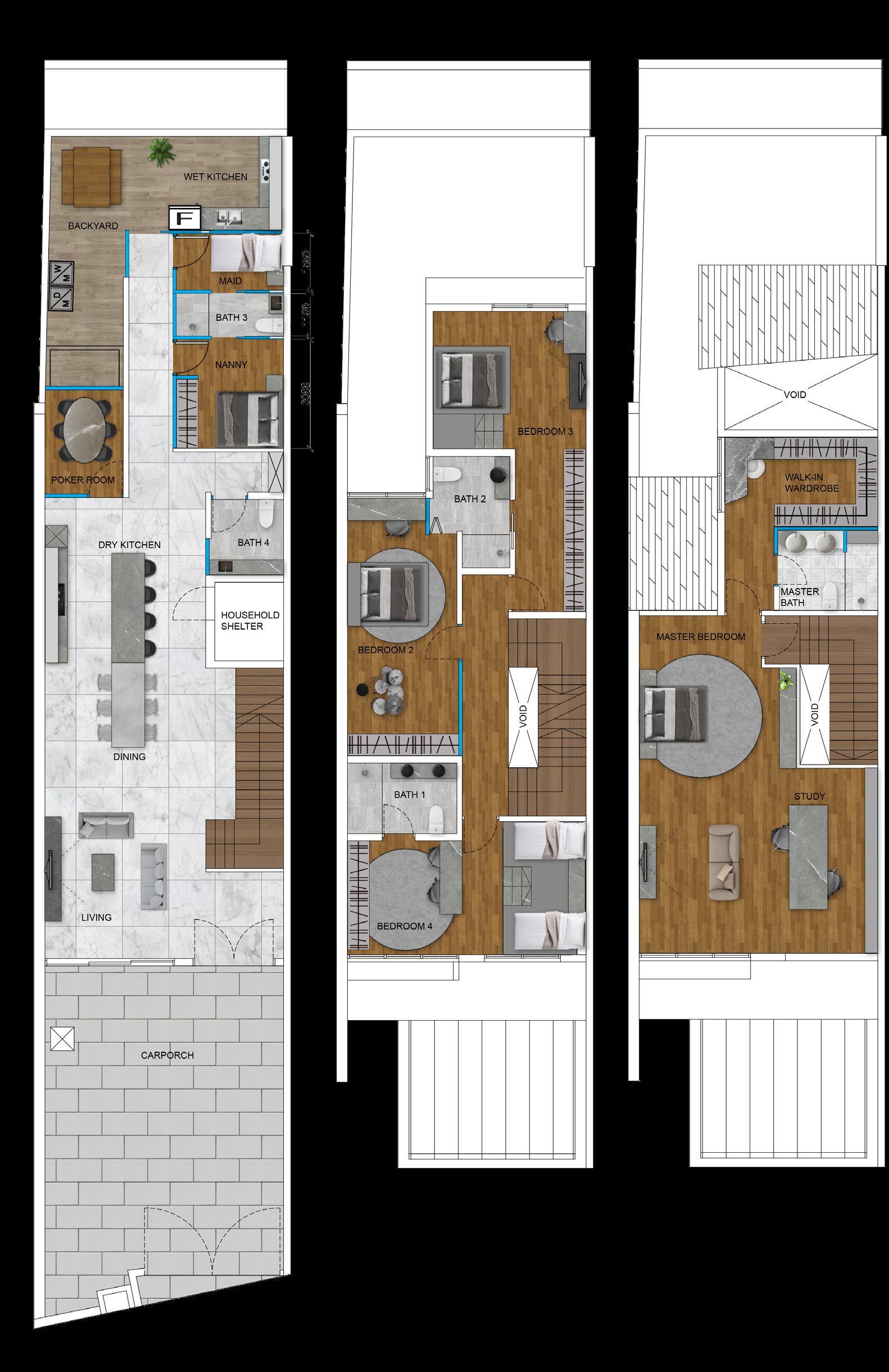

The floorplans are blanked out because there are mood board images from pinterest.

144sqft

BATH 45sqft

M.BATH

BEDROOM 2 HS

64sqft

220sqft

46sqft

15sqft

STAIRS

DRY KITCHEN, DINING, LIVING ROOM AND CORRIDOR

I had some difficulty on trying to plan out a space and this was something quite new to me. I enjoyed the whole process of the planning.

WALK-IN WARDROBE

BATH 2

924sqf (including under staircase

89sqft

100sqft

STAIRS 69sqft

BATH 1 62sqft

MASTER BEDROOM & STUDY 535sqft

STAIRS 100sqft

BEDROOM 4 240sqft

CARPORCH 614sqft

105 Tanah Merah Kehil Road South 23

2450

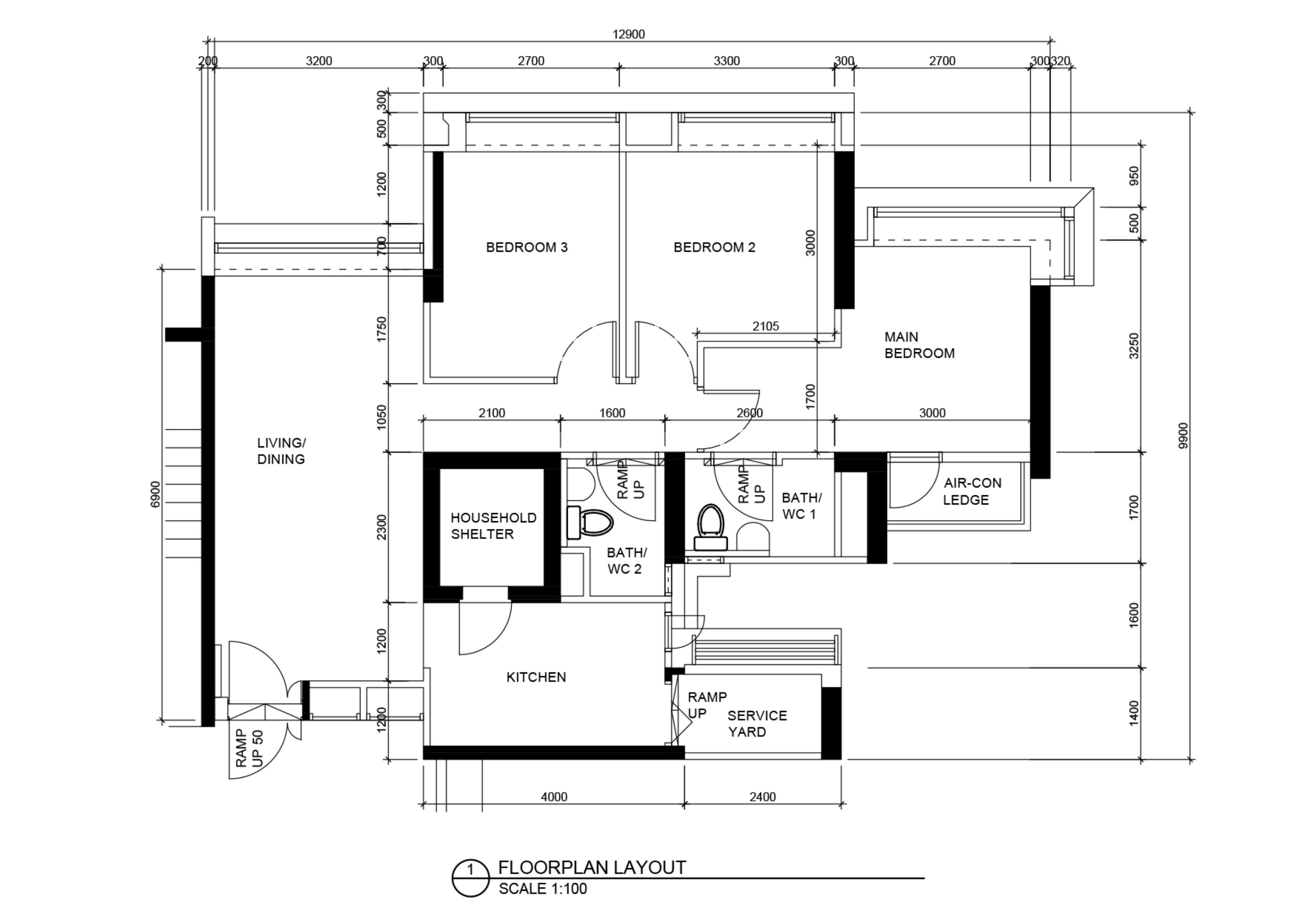

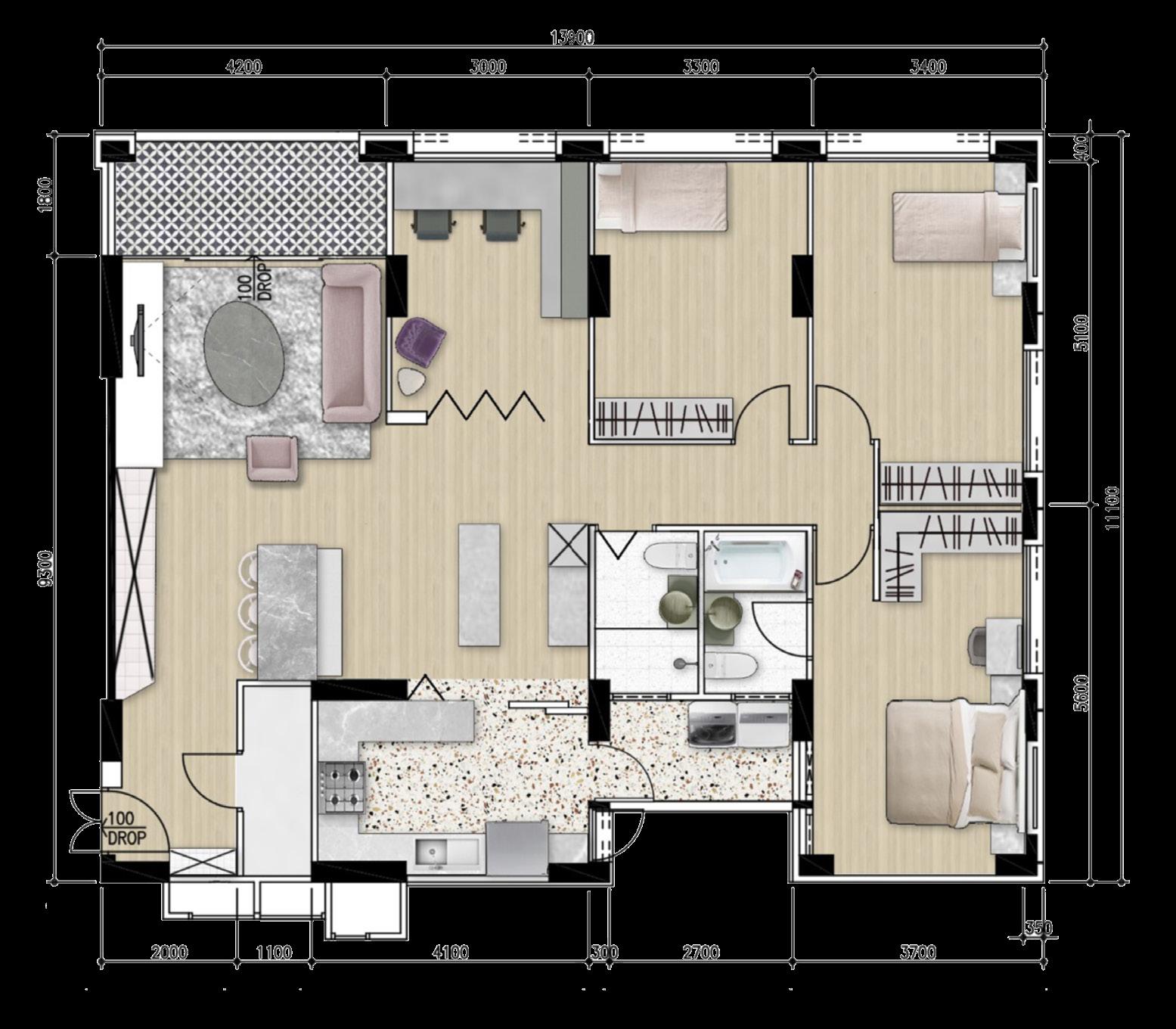

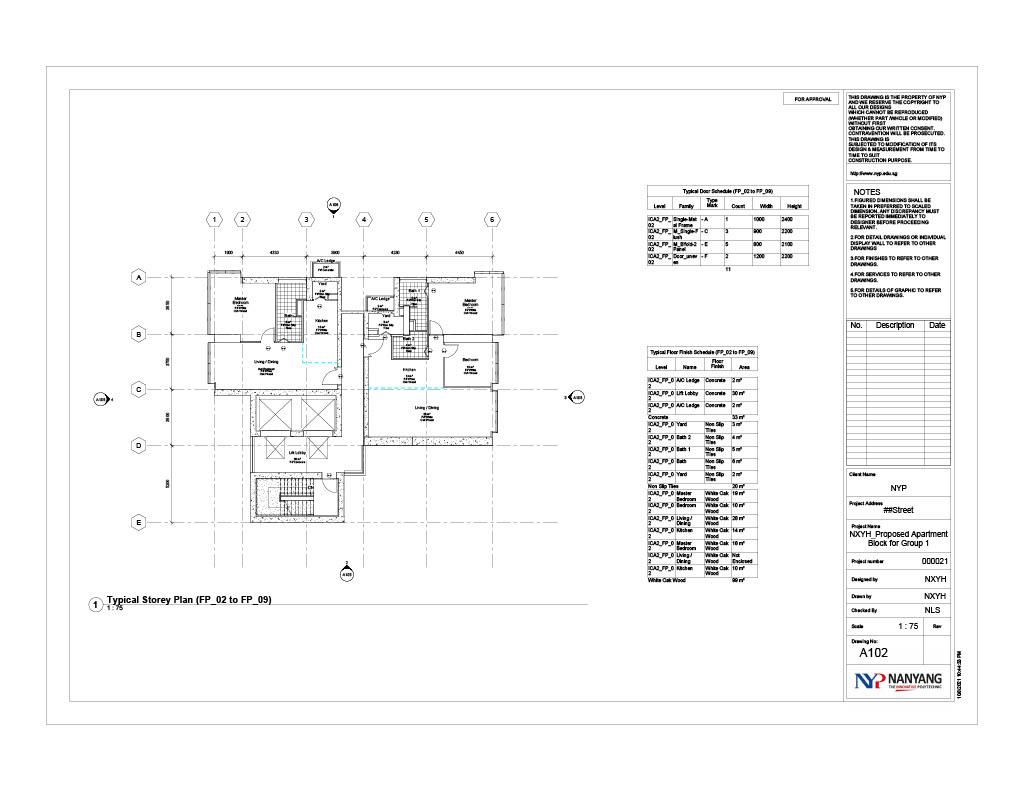

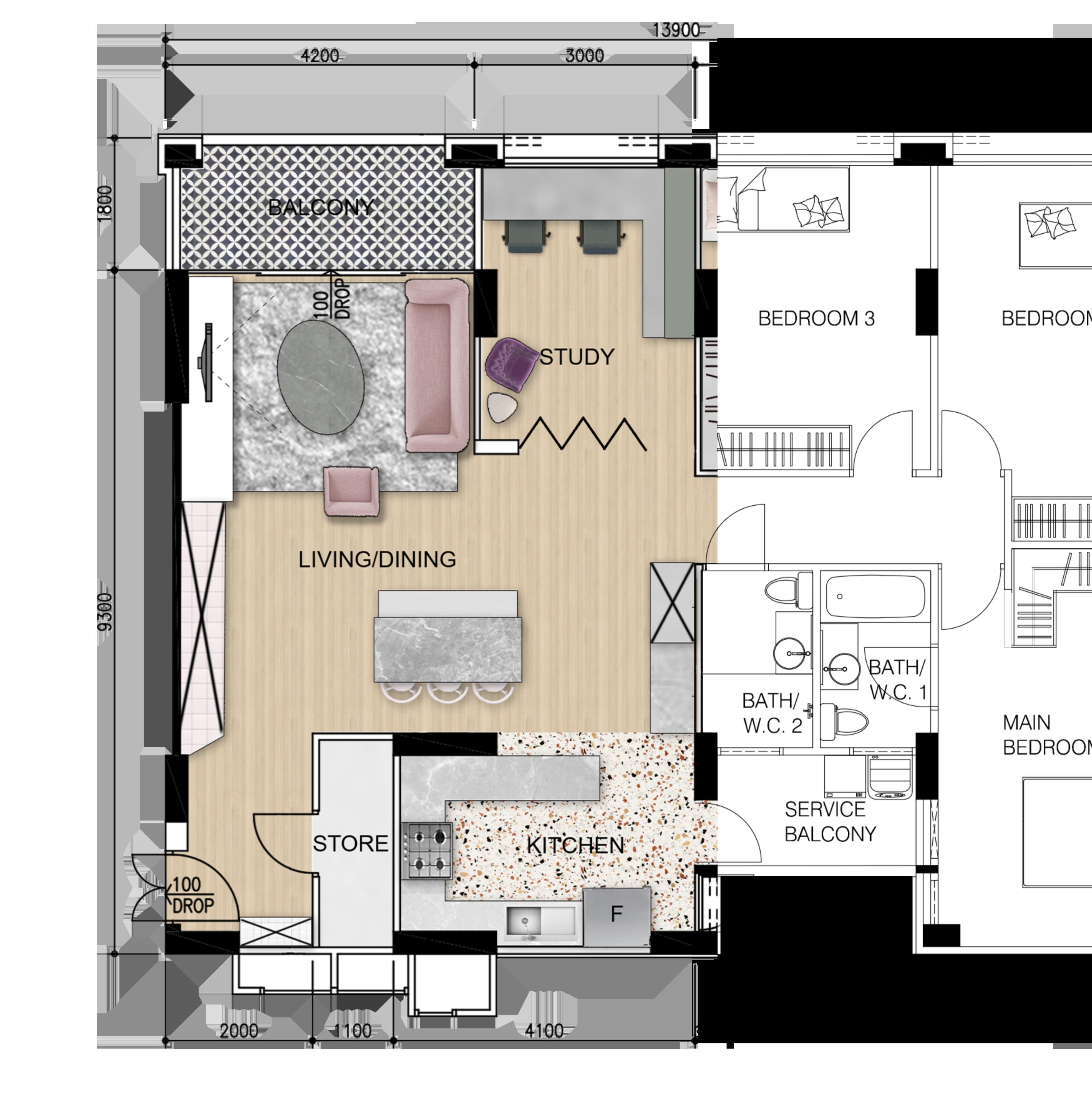

For 105 Tanah Merah Kehil Road South, I got to help draw a floorplan, some elevations, develop a mood board of my own planning and as well as do out some renders as well. It is a three level inter terrace and they were planning to go for a modern luxury theme. My manager gave me the chance to design the space.

201sqft 114sqft

BATH 3 @ MAID/ NANNY

ht of rooms: 2.5m

ROOM BATH 2

3000

I wanted to showcase the two bigger projects that I got to help out in.

WET KITCHEN DRY KITCHEN

THIRD STOREY

ht of rooms: 2.5m

WALL AREA (sqft)

ROOM

BATH (ht. of BATH : 2.665m) 235sqft

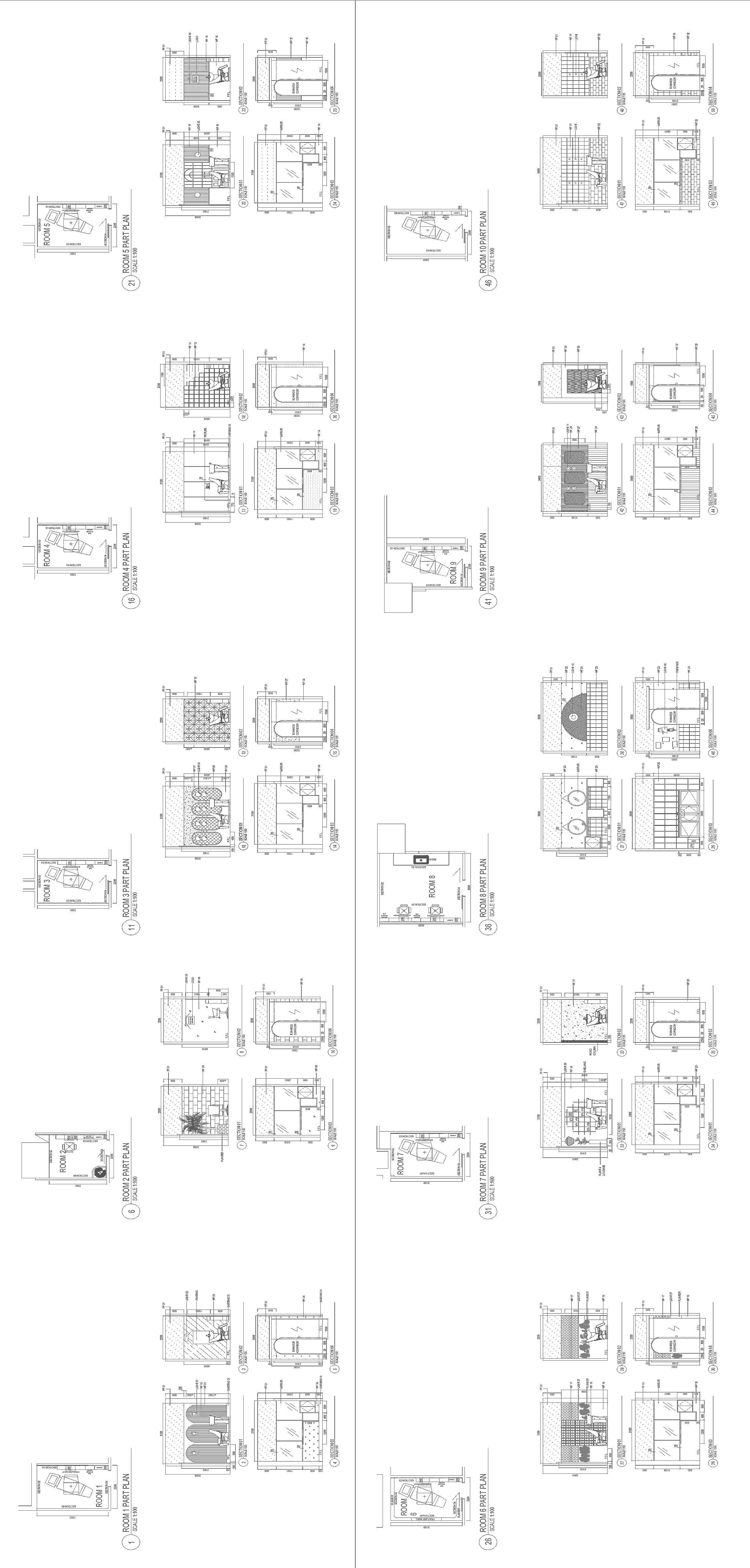

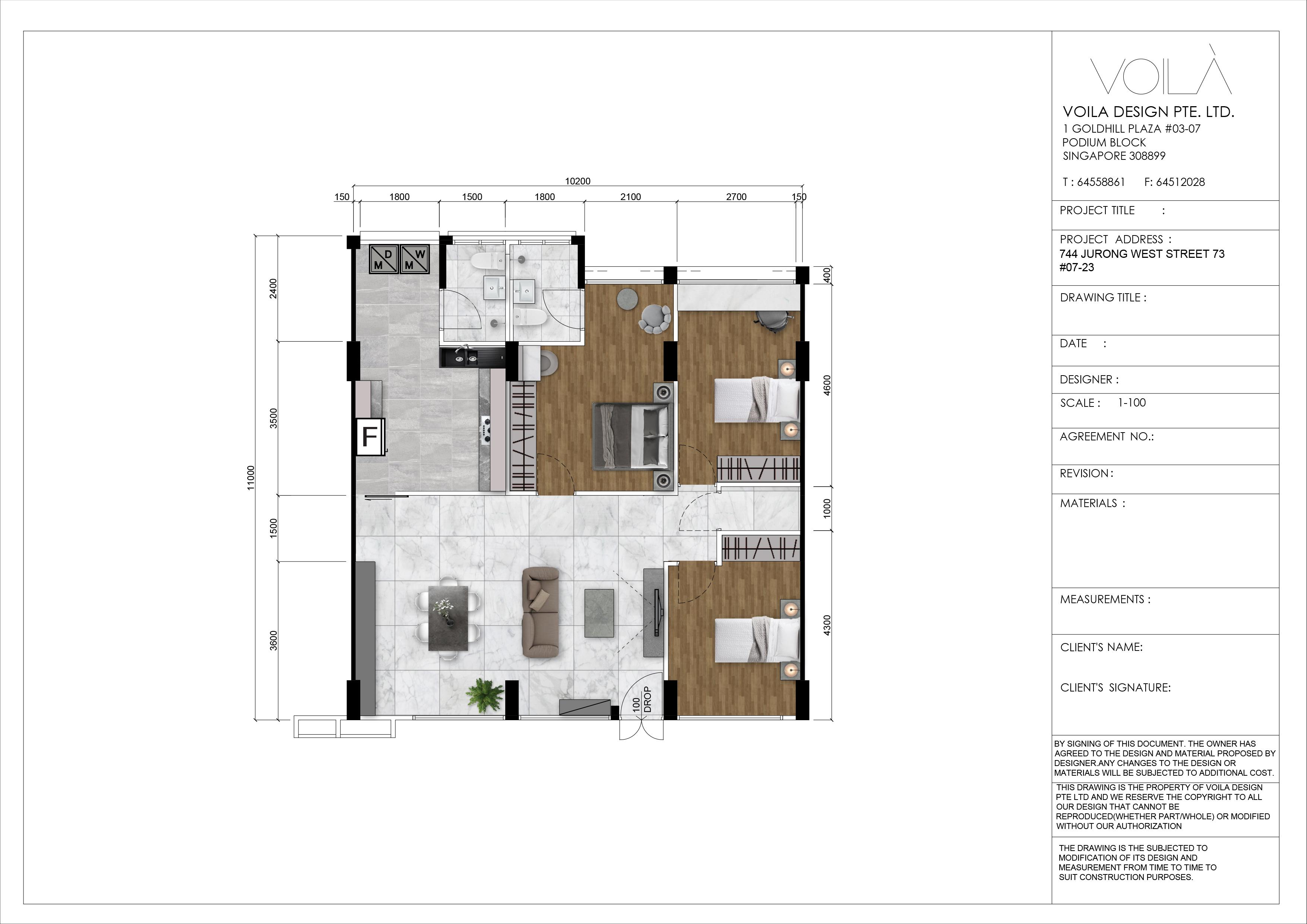

744 Jurong West Street 73 This is a small resale HDB. I got the chance to do some renders, elevations, floorplans, 3D preperations to send to the drafter as well as an electrical plan as well.

I was excited that I got the chance to help out in so many drawings. I was really proud of the work I produced these are some of the works that I am most satisfied with.

±1715 ±900

VOILA DESIGN PTE. LTD.

±515

±15

±1145

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899 T : 64558861

±570

F: 64512028

PROJECT TITLE

BATH/ W.C. 2

:

PROJECT ADDRESS : 744 JURONG WEST STREET 73 #07-23

KITCHEN

DRAWING TITLE : KITCHEN CARPENTRY DRAWING (2) DATE

:

DESIGNER : JASON

BATH/ W.C. 1

AS SHOWN

SCALE :

SCALE 1:40

FURNITURE LAYOUT PLAN AGREEMENT NO.:

±590

REVISION :

±590

±900

±570

MATERIALS :

±830

±570

±830

±900

±2550 ±85

±570

BATH/ W.C. 1

±730

±15

±1715

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST.

±55

±70 ±570

SIDE OF CABINET

±785 ±345 ±20

±730 ±55

SIDE OF CABINET

±85

±855

±70 ±855

SERVICE BALCONY

CLIENT'S NAME: CLIENT'S SIGNATURE:

±15

KITCHEN

±865

±865

±2550

MEASUREMENTS :

BEDROOM 2 BATH/ W.C. 2

MASTER BEDROOM

±785 ±345 ±20

SERVICE BALCONY

PART PLAN

THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION

BY

±1715

THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

KITCHEN CARPENTRY (2)

MASTER BEDROOM

BEDROOM 2 VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899

LEGEND SYM

STORE

DESCRIPTION

T : 64558861

LIGHTING POINT SINGLE POWER POINT DOUBLE

KITCHEN DINING

FURNITURE LAYOUT PLAN

SCALE 1:40

BATH/ W.C. 1

SERVICE BALCONY

DATA

H

15 AMP

BATH/ W.C. 2

LIVING

CEILING FAN

HEATER SINGLE SWITCH

H

DOUBLE SWITCH

F: 64512028

PROJECT TITLE

:

PROJECT ADDRESS : 744 JURONG WEST STREET 73 #07-23 DRAWING TITLE : FLOORPLAN LAYOUT DATE

:

TRIPLE SWITCH

DESIGNER : SCALE :

MAIN BEDROOM

KITCHEN/ DINING

1-100

BEDROOM 2 AGREEMENT NO.: REVISION :

H

MATERIALS :

STORE

STORE

MEASUREMENTS :

LIVING

CLIENT'S NAME:

FUTURE ROOM 100 DROP

BEDROOM 3

DINING

CLIENT'S SIGNATURE:

LIVING

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST. BY

THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION

BEDROOM 3

THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899

BEDROOM 3

1500

SERVICE BALCONY 46ft²

1800

2100

2700

150

BATH/ W.C. 1 38ft²

DATE 4600

121ft²

:

PROJECT ADDRESS : 744 JURONG WEST STREET 73 #07-23 DRAWING TITLE : FLOORPLAN LAYOUT

32ft²

KITCHEN/ DINING

F: 64512028

PROJECT TITLE

BATH/ W.C. 2

MAIN BEDROOM 160ft²

BEDROOM 2 138ft²

1500

1500

STORE 20ft²

:

DESIGNER : SCALE :

1-100

AGREEMENT NO.:

1900

11000

Silver Handles

1800

400

150

REVISION : 1000

WALL TILES Hafary MA36252P https://www.haf ary.com.sg/colle ction/Tiles/JDDCeramica-STRORI60L-1444

3500

Countertop Caesarstone 5141 Frosty Carrina https://www.caesarst one.sg/catalogue/su pernatural/5141frosty-carrina/

2400

WALL TILES Hafary MA36252P https://www.haf ary.com.sg/colle ction/Tiles/JDDCeramica-STRORI60L-1444

Countertop, white marble Arkstone QM96 BORGHINI NATURALE

T : 64558861

10200

MATERIALS :

FLOOR TILES Hafary STR ORI60L https://www.hafary.com.sg/collection/Tile s/JDD-Ceramica-STR-ORI60L-1444

FLOOR TILES Hafary STR ORI60L https://www.hafary.com.sg/collection/Tile s/JDD-Ceramica-STR-ORI60L-1444

130ft²

LIVING

BEDROOM 3

259ft²

122ft²

100 DROP

3600

Cabinet Doors Panaplast N-EW 15813D2 BONHEUR CHERRY LIGHT https://panaplast.com.sg/product/bonheur-cherry-light/

FUTURE ROOM

4300

MEASUREMENTS :

Cabinet Doors Lamitak WY 1270D KARLA TIVOLI ELM https://sg.lamitak.c om/karla-tivoli-elm

CLIENT'S NAME: CLIENT'S SIGNATURE:

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST. BY

THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

24

05

FREELANCE I started doing AutoCAD drafting works at NG3 Consultants Pte. Ltd. They do commercial and minor residential works as well.

I had currently helped out in 4 projects so far as they are still starting out on interior design works. I really enjoyed myself as there was a lot of freedom to do these drawings and since I am doing freelance works for them.

I will only showcase some works here as I have yet to complete as much works.

This is the first work I have done for the company. 118 Serangoon Avenue 3.

2022

25

This project was for a salon but there are more elevations I did because it was a big space.

This was actually the second project I got to help draw, it was very fun for me being able to do so many drawings.

Salon

After completion, I was proud of all the work I hace managed to do.

26

Site Plan for Warehouse 27

HoneyPot @ One Raffles Place

This project was for a brazilian waxing company where I got to experience how to produce more technical drawings for them.

These are lighting,fire safety provision, power/sprinkler/camera layouts and more. It was interesting for me to learn so much on the different floorplans that are out there out of academic based works.

28

06

TECHNICAL SKILLS I will showcase some of my technical skills that I have.

Examples are from AutoCAD, Adobe Photoshop, Revit and 3DsMax. The works are across Year 1 till Year 3 showcasing all the works that I have completed throughout my academic years.

2020-2023

29

3DsMax V-ray

This was a residential project for a competition for one of the modules. The objective is to design a condominium bathroom. The theme was urbanisation and targeted for young families with children aged 6-8. I chose to design the Treasure at Tampines condominium.

This work was done in Year 2 and I used 3DsMax and V-ray to achieve the renders in the images above.

2021

30

Revit This was a academic work where we had to do out a HDB and learn to use the components in Revit.

The renders were also done in Revit as well.

2020

31

32

Most of my best AutoCAD works are from Internship and here are some commercial and residential works. I did mostly floorplans and some elevations here and there. I was given the opportunity to improve my technical skills during my internship.

33

AutoCAD

VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899 T : 64558861

BATH 02

F: 64512028

PROJECT TITLE

:

PROJECT ADDRESS : 333A YISHUN STREET 31 #14-197 DRAWING TITLE : DETAIL DRAWING DATE

Here is the few elevations that I did.

It was for a resale HDB. I had to do about 10 different versions for this project. I had to do elevations for the carpentry and I had a lot of fun doing this.

:

DESIGNER : BATH 2 PART PLAN

SC : 1:40

AS SHOWN

SCALE :

AGREEMENT NO.: WALL HAFARY 2CA01

COUNTERTOP ABKSTONE ESSENCE AVANA NAT0006256

800

OPEN SHELF

400

2000

OPEN SHELF

MIRROR CABINET

WALL MOUNTED HANGING RACK

CLIENT'S NAME:

OPEN SHELF

CLIENT'S SIGNATURE:

200

DRAWER

280

OPEN SHELF

DRAWER

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST.

ALL DRAWERS DOOR LAMITAK TRUFFLE SCX1165D

250

800

MEASUREMENTS :

OPEN SHELF

LOUVRE WINDOW

OPEN SHELF

MATERIALS :

BOX UP

175

450

SIDE OF BOX UP

REVISION :

OPEN SHELF LAMITAK BLACK OREGON TEAK WY4219X

THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION

SHOWER CURB

910

1900

990

THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

TOP & BOT.

FROSTED GLASS DR

BATH 2 DETAIL (1) SC : 1:40

BEDROOM 03

DESK

T : 64558861

FULL HT MIRROR

FULL-HT

VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899

F: 64512028

PROJECT TITLE

:

PROJECT ADDRESS : 333A YISHUN STREET 31 #14-197 DRAWING TITLE : DETAIL DRAWING

FULL-HT

DATE

:

DESIGNER : AS SHOWN

SCALE :

AGREEMENT NO.: BEDROOM 3 PART PLAN

SC : 1:40 REVISION :

mat

MATERIALS : ALL DRAWER DOORS LAMITAK BLACK OREGON TEAK WY4219X

OPEN SHELF

HANGING ROD

HANGING ROD

1174

HANGING ROD

OPEN SHELF

FROSTED GLASS DOOR

343.5

DRAWER

DRAWER

GOLD HANDLE

880

595

DRAWER

DRAWER

SC : 1:40

CLIENT'S SIGNATURE:

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST. THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION

DRAWER

580

595

2770

BEDROOM 3 WARDROBE EXTERIOR DETAIL (2)

DRAWER

DRAWER 343.5

200 150

SIDE OF DESK

DRAWER

240

SIDE OF DESK

CLIENT'S NAME:

696

OPEN SHELF

FROSTED GLASS DOOR

OPEN SHELF

MEASUREMENTS :

1205

±373 20

OPEN SHELF

2550

OPEN SHELF

OPEN SHELF

OPEN SHELF

1190

THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

580

BEDROOM 3 WARDROBE INTERIOR DETAIL (2)

SC : 1:40

VOILA DESIGN PTE. LTD.

1 GOLDHILL PLAZA #03-07 PODIUM BLOCK SINGAPORE 308899 T : 64558861

F: 64512028

PROJECT TITLE

:

PROJECT ADDRESS : 333A YISHUN STREET 31 #14-197

KING BED

DRAWING TITLE : DETAIL DRAWING DATE

MAIN BEDROOM

:

DESIGNER : SCALE :

AS SHOWN

AGREEMENT NO.: MAIN BEDROOM PART PLAN SC : 1:40 REVISION : DRAWER DOOR LAMITAK TRUFFLE SCX1165D

BED HEAD LAMITAK BLACK OREGON TEAK WY4219X

DRAWER TOP LAMITAK LOFTY SCA1109D

WALL NIPPON PAINT GRAY SWEATSHIRT NP N 3014D

MATERIALS :

MEASUREMENTS :

CLIENT'S NAME:

740

1650

CLIENT'S SIGNATURE:

550

600

OPEN SHELF LAMITAK BLACK OREGON TEAK WY4219X 373

ALL CABINET DOORS LAMITAK BLACK OREGON TEAK WY4219X

2550

ALL DRAWER DOORS LAMITAK BLACK OREGON TEAK WY4219X

550

OPEN SHELF LAMITAK BLACK OREGON TEAK WY4219X 480

LIGHTING FIXTURE

DRAWER

DRAWER

DRAWER

DRAWER

70

450

2650

BY SIGNING OF THIS DOCUMENT. THE OWNER HAS AGREED TO THE DESIGN AND MATERIAL PROPOSED BY DESIGNER.ANY CHANGES TO THE DESIGN OR MATERIALS WILL BE SUBJECTED TO ADDITIONAL COST. THIS DRAWING IS THE PROPERTY OF VOILA DESIGN PTE LTD AND WE RESERVE THE COPYRIGHT TO ALL OUR DESIGN THAT CANNOT BE REPRODUCED(WHETHER PART/WHOLE) OR MODIFIED WITHOUT OUR AUTHORIZATION THE DRAWING IS THE SUBJECTED TO MODIFICATION OF ITS DESIGN AND MEASUREMENT FROM TIME TO TIME TO SUIT CONSTRUCTION PURPOSES.

2750

MAIN BEDROOM DETAIL (1)

SC : 1:40

34

Adobe Photoshop

35

I had to use Photoshop to design the feature wall and modify the drafter's original render on the bottom left.

It was definitely a fun experience as I got to enhance my skills and also design something that will be for a client.

In the end, the final design chosen was the one on the top. The client was very happy with the design choice.

The floorplans on the left was made using AutoCAD and Photoshop, by finding PNGs from Pinterest and forming out moodboards which will be used for visualisation for the client.

36
