Studio Perancangan Arsitektur 5 TABLES OF CONTENTS Apartement CO-Housing Mahasiswa 'Stelar Apartement' Studio Perancangan Arsitektur 4 Creative Center 'Pegasus Center 17 4 29 18 Studio Perancangan Arsitektur 3 Home Based Enterprises Development Kampoeng Boenga Grangsil ''Rumah Pak Sukri ' 55 40 Playground 39 30 Hand Drawing 62 56 1 HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO iv

HIKMAL RIVALDY S PORTFOLIO

HIKMAL RIVALDY S PORTFOLIO

Apartement CO-Housing Mahasiswa ''Stelar Apartement''

mapS OF CONTENTS

Creative Center ''Pegasus Center

Playground

Home Based Enterprises Development Kampoeng Boenga Grangsil ''Rumah Pak Sukri''

HIKMAL RIVALDY'S PORTFOLIO

HIKMAL RIVALDY'S PORTFOLIO

2 3

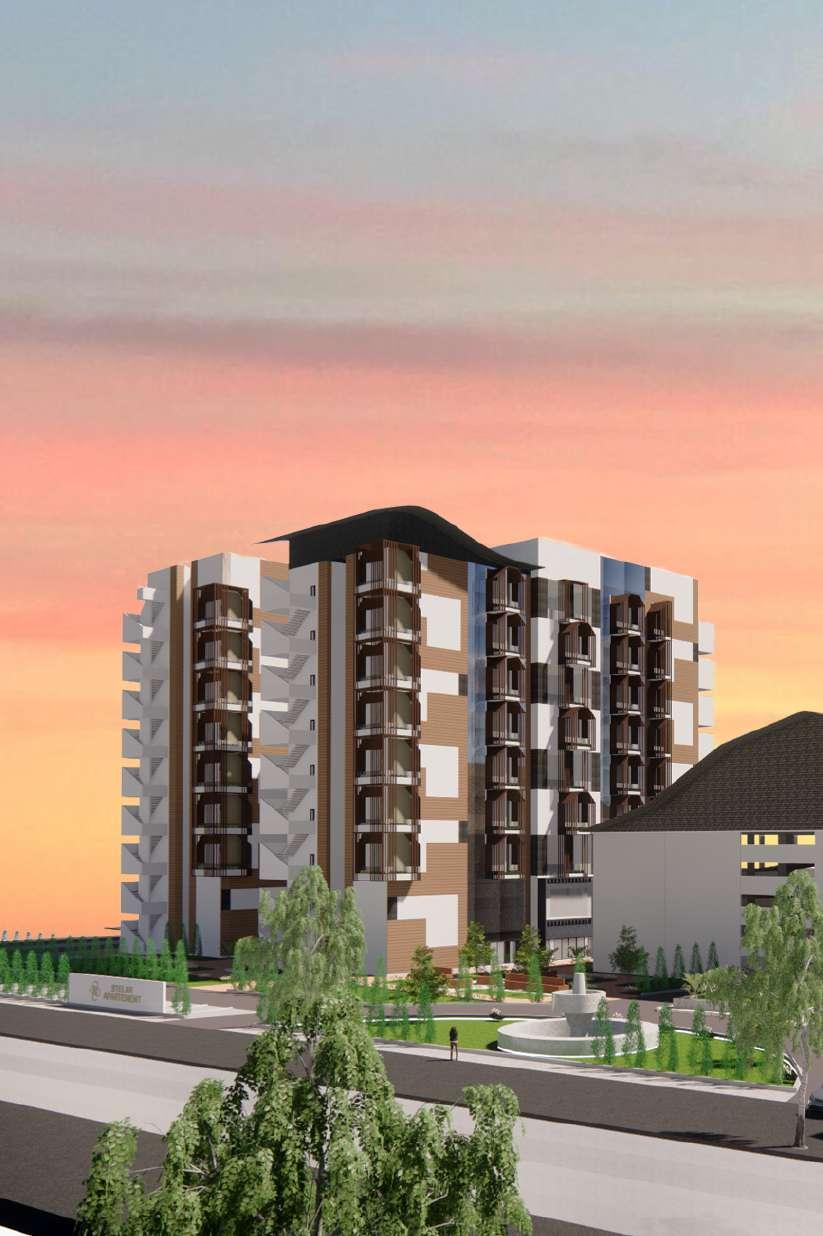

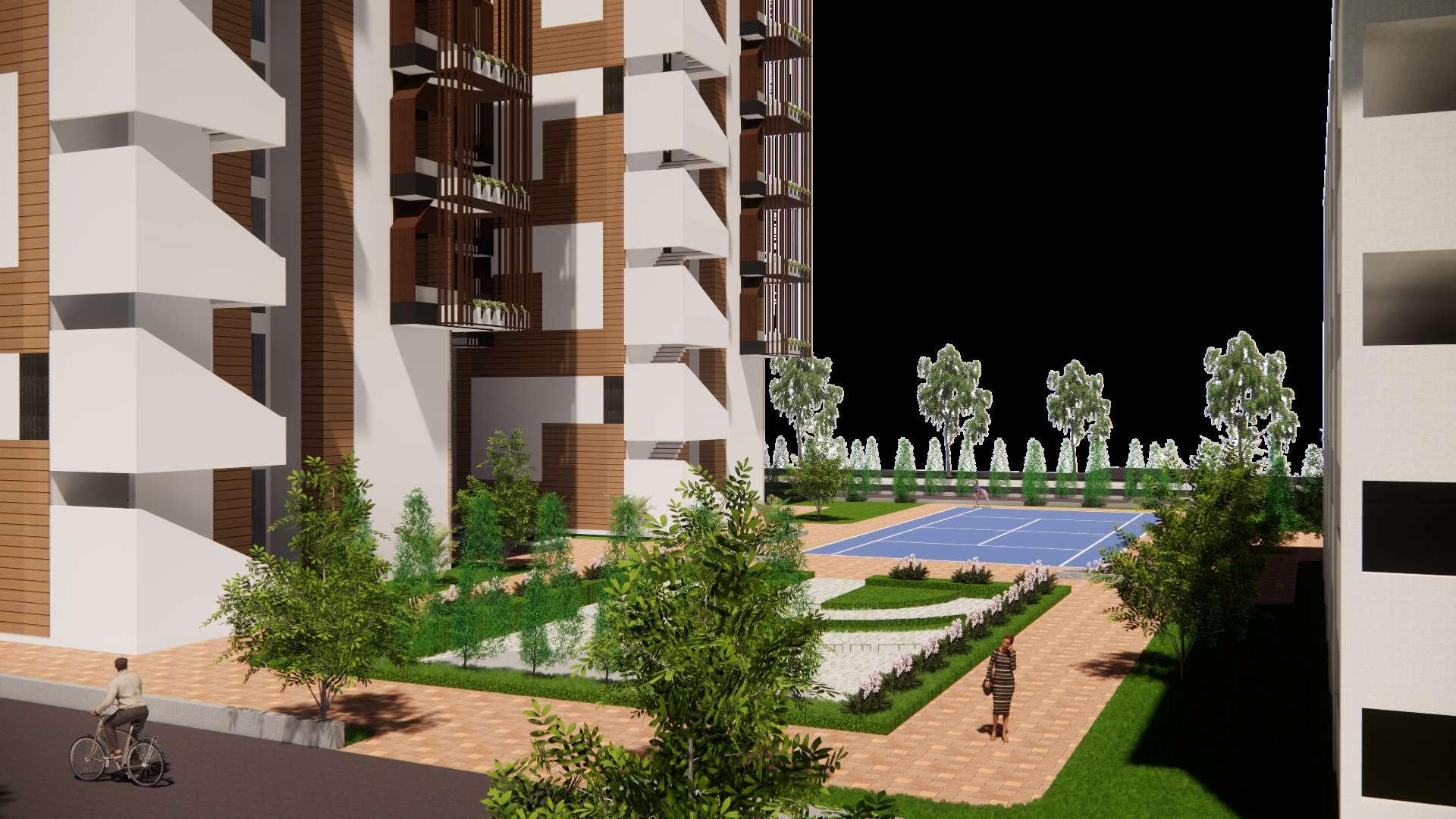

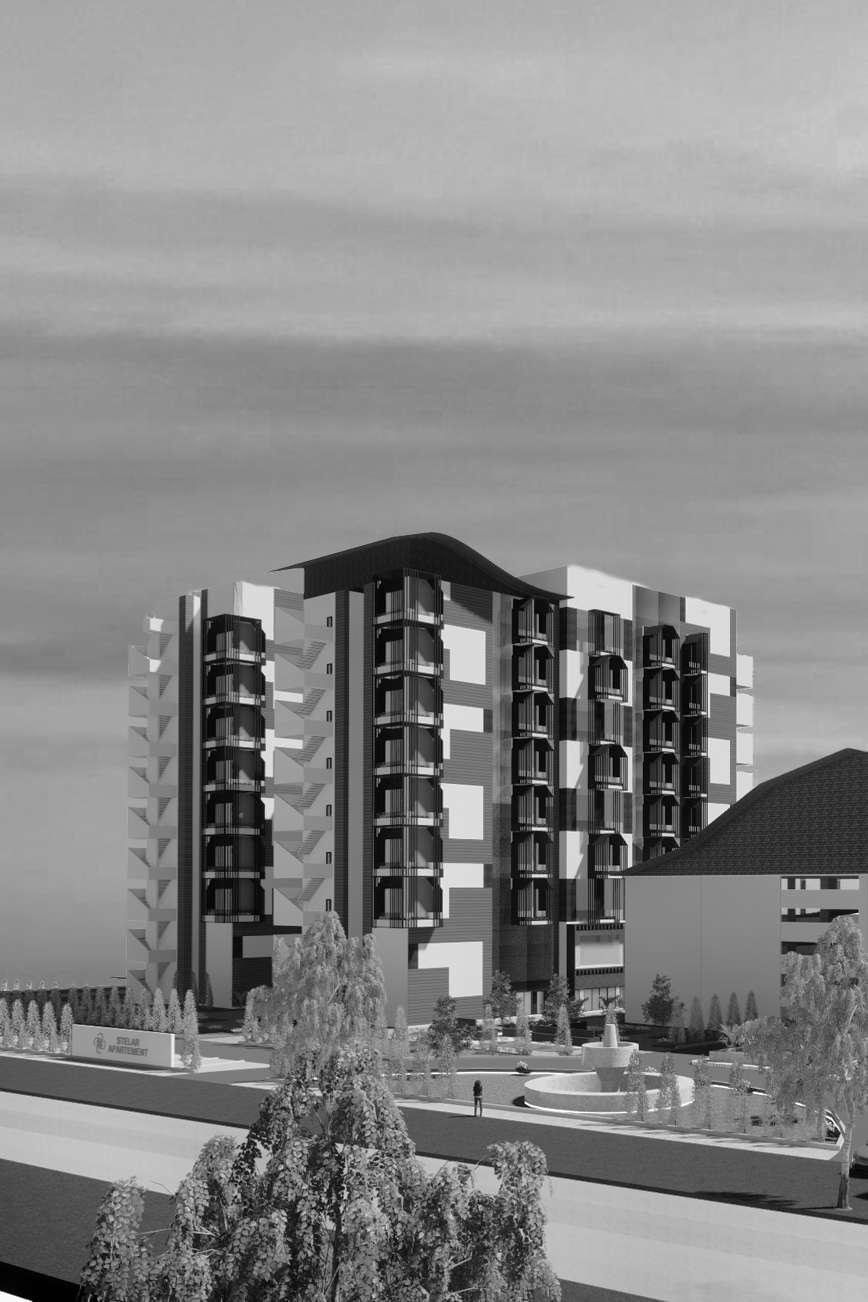

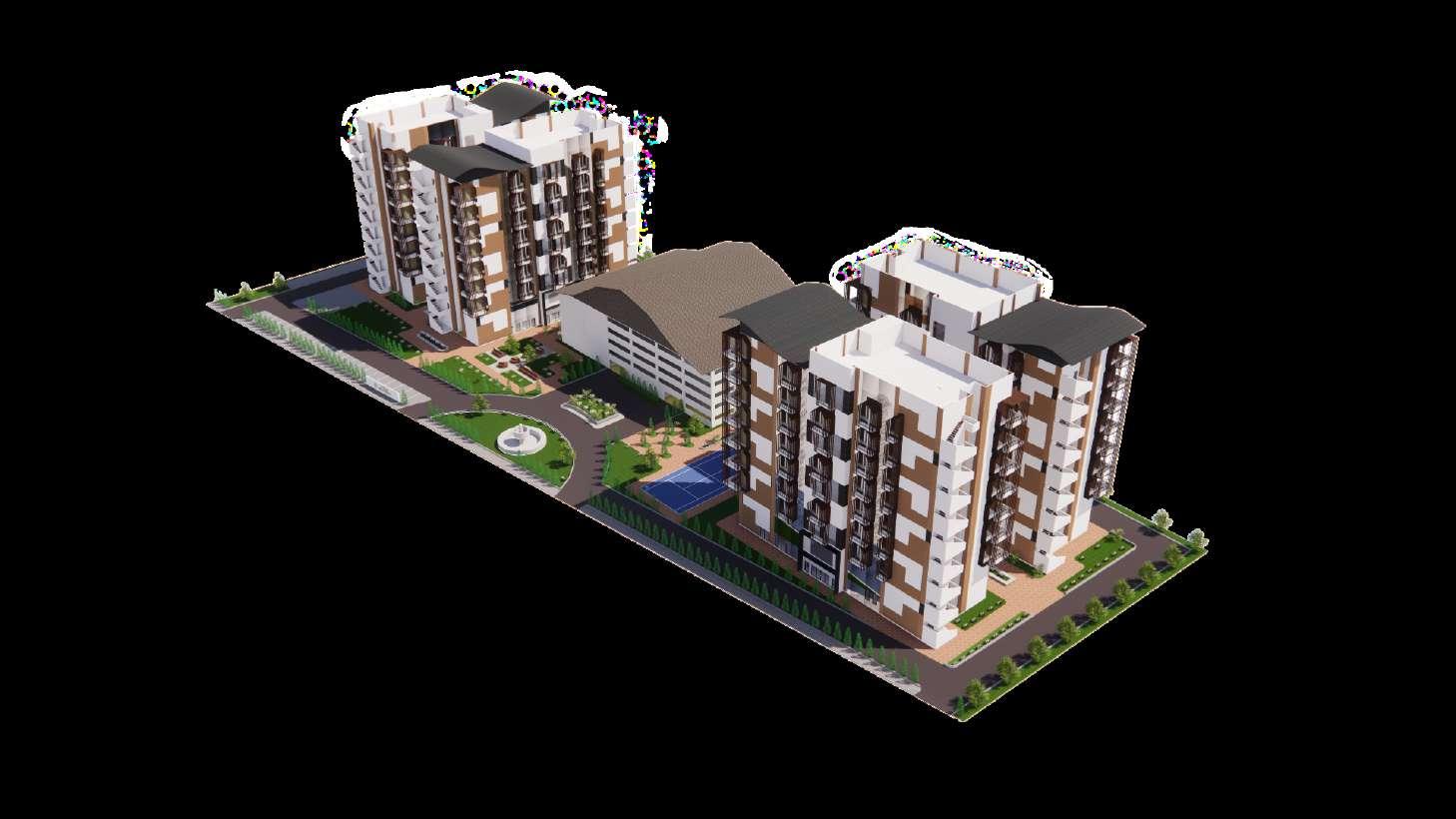

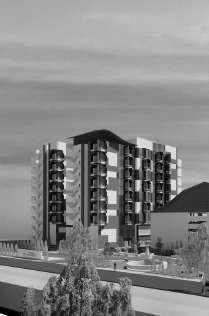

STELAR APARTEMENT

After the Covid-19 pandemic, various activities began to be carried out offline again, including academic activities in universities. The demand for boarding rooms is high, making it difficult to find a boarding room at an affordable price but has decent facilities and the absence of privacy obtained is not even neatly and narrowly arranged, giving rise to one of the options for the existence of "student co-housing apartments".

4 5
APARTEMENT CO-HOUSING MAHASISWA AT SURABAYA Academic Work 2022
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

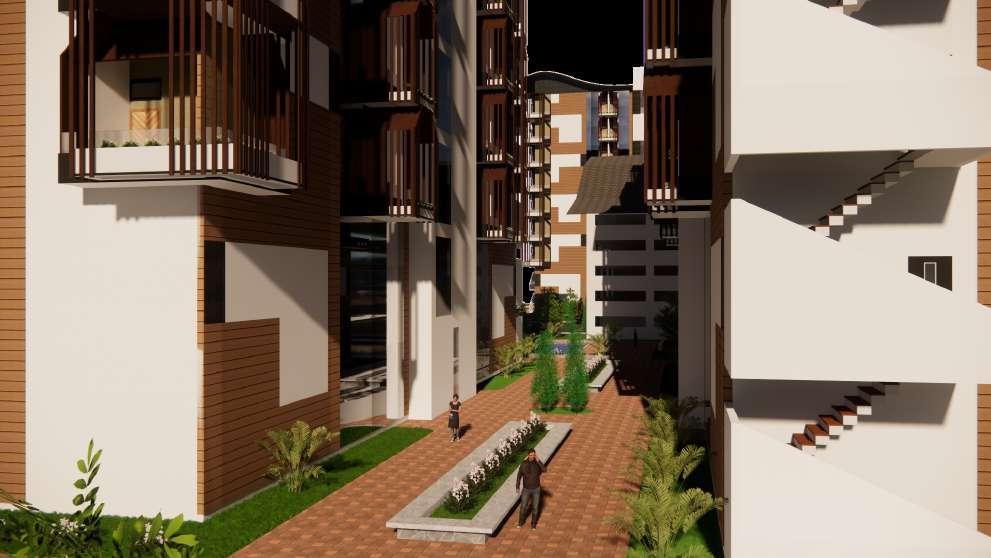

STELAR APARTEMENT

Sociality

Sociality diambil dari karakteristik mahasiswa yang merupakan makhluk sosial. Salah satu penerapan tema ini pada desain adalah adanya open space dan ruang komunal yang diharapkan dapat dimanfaatkan oleh penghuni untuk saling berinteraksi dengan sustainable arsitektur

Sustainable Architecture Principle

Sustainable Architecture

Pendekatan ini akan memperhatikan semua aspek desain mulai dari perencanaan pelaksanaan, pemilihan material, hingga aplikasi (penggunaan).

DESIGN APPROACH

HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
Low impact materials Energy efficiency Land use efficiency Waste management
6 7
8 9 GOALS Can Socialize Provision of Open Space Student Behavior Response Building Able to Accommodate Student Activities at Affordable Prices MASSA TRANSFORMATION Can Socialize Can Socialize Can Socialize Can Socialize Can Socialize Can Socialize PROGRAM HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
10 11
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

HIKMAL RIVALDY S PORTFOLIO

HIKMAL RIVALDY S PORTFOLIO

HIKMAL RIVALDY'S PORTFOLIO

HIKMAL RIVALDY'S PORTFOLIO

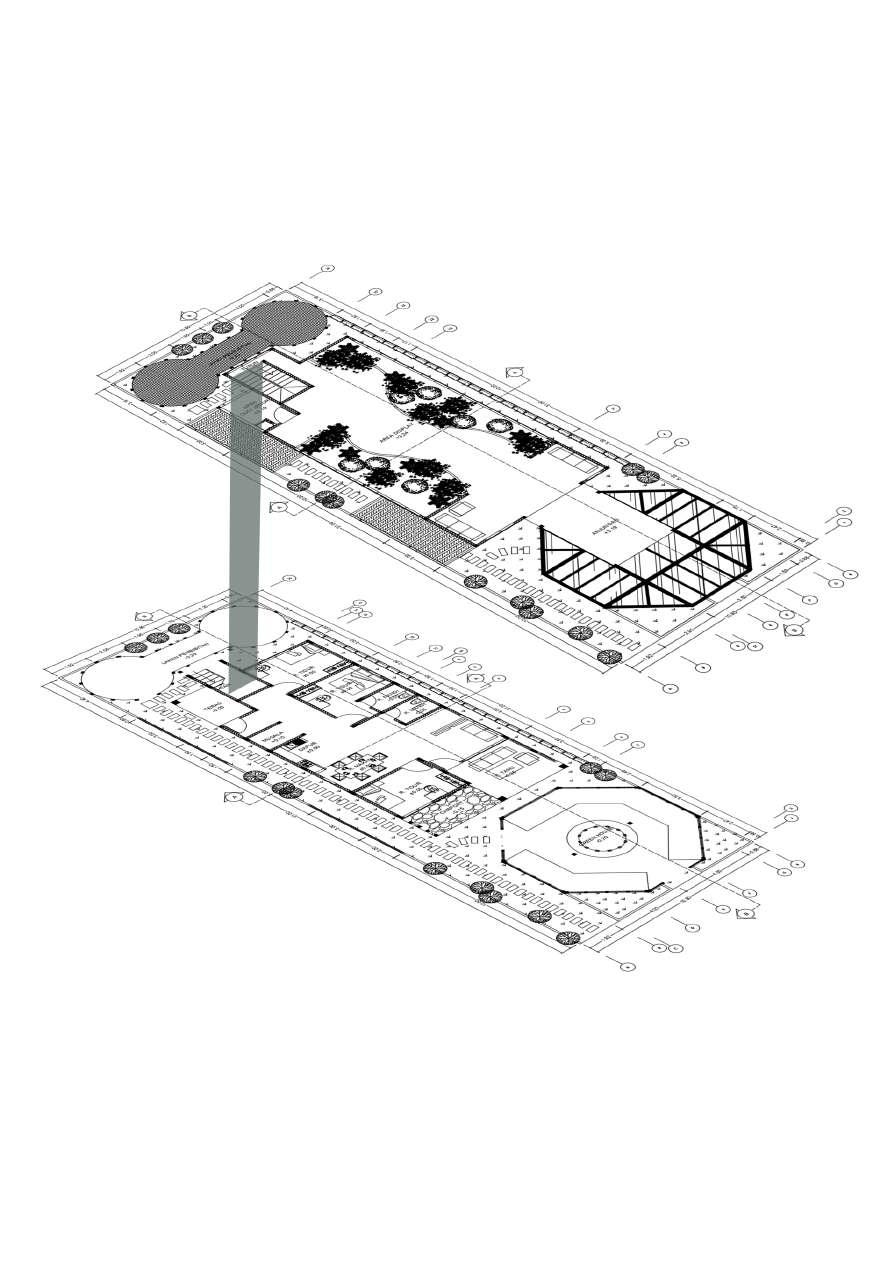

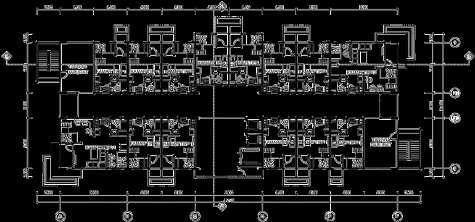

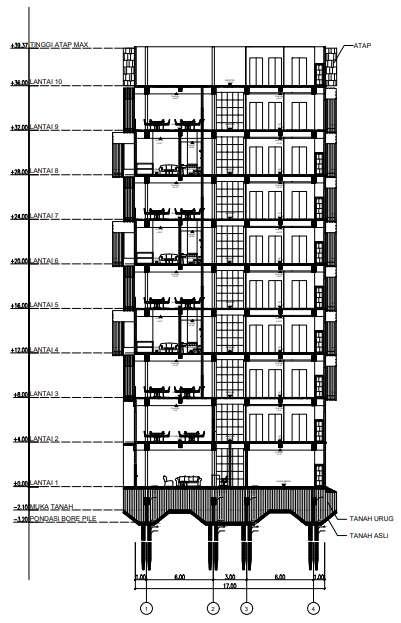

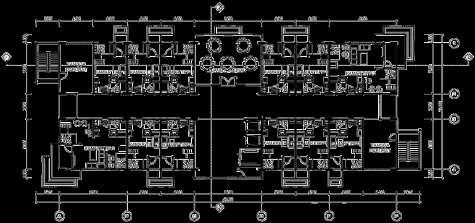

APARTEMENT SECTION FLOOR PLAN 12 13

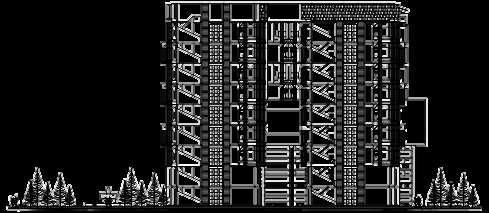

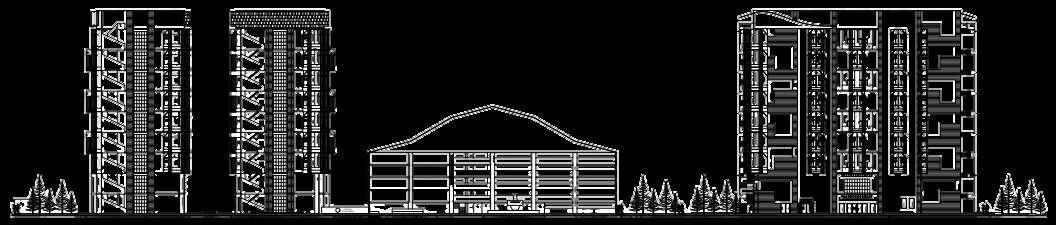

SITE SECTION WEST ELEVATION NORTH ELEVATION 14 15
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

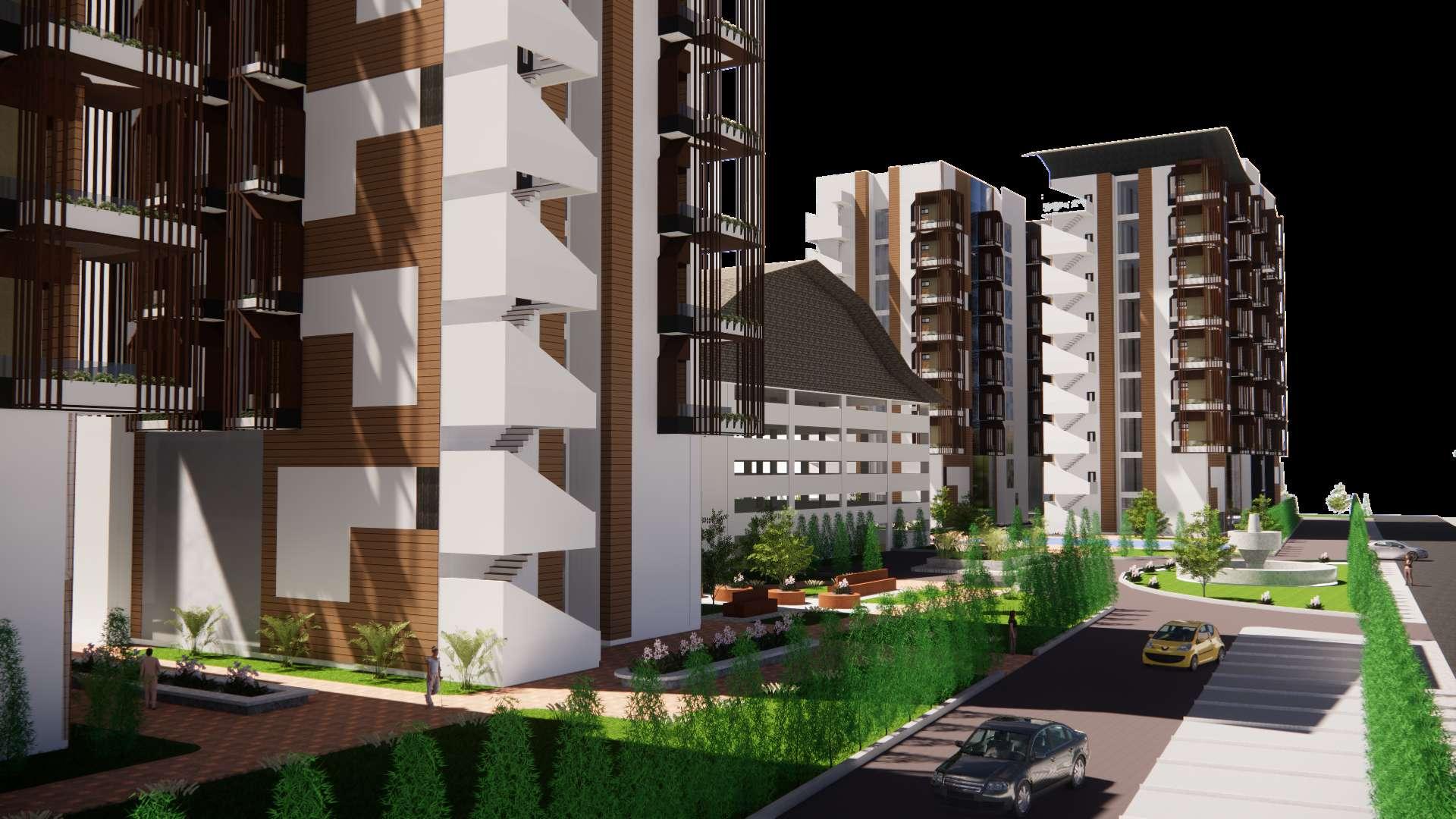

LAYOUT

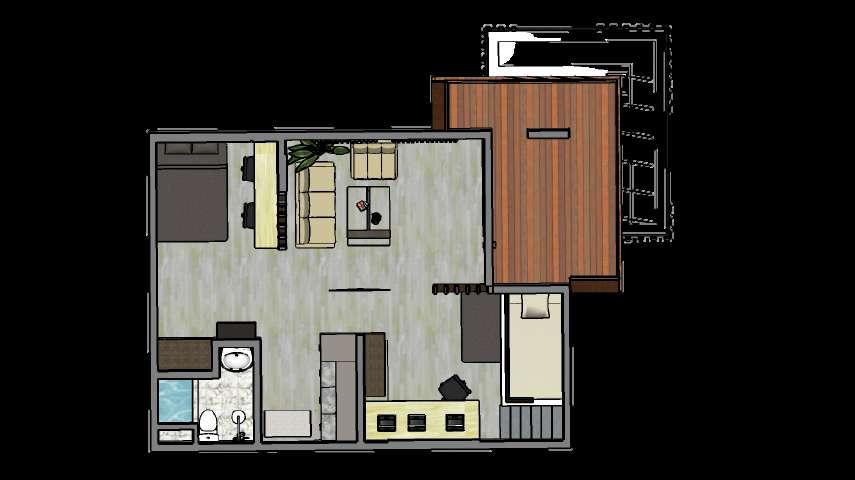

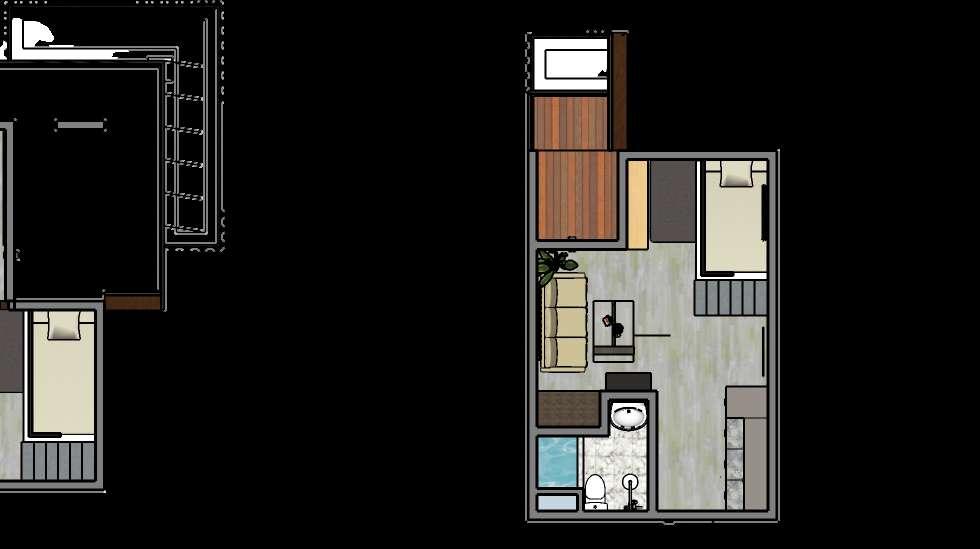

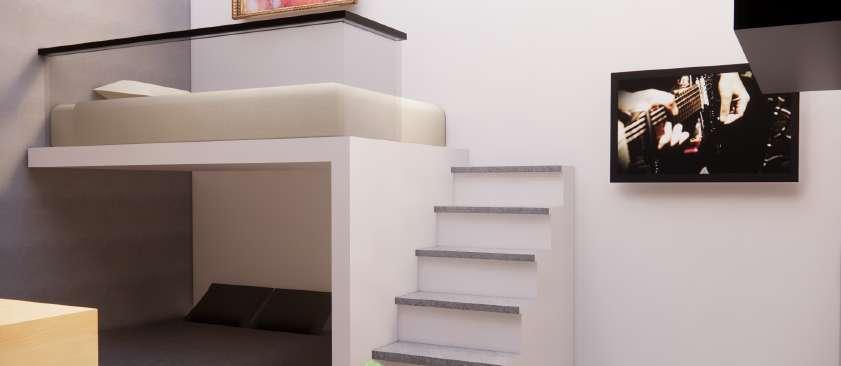

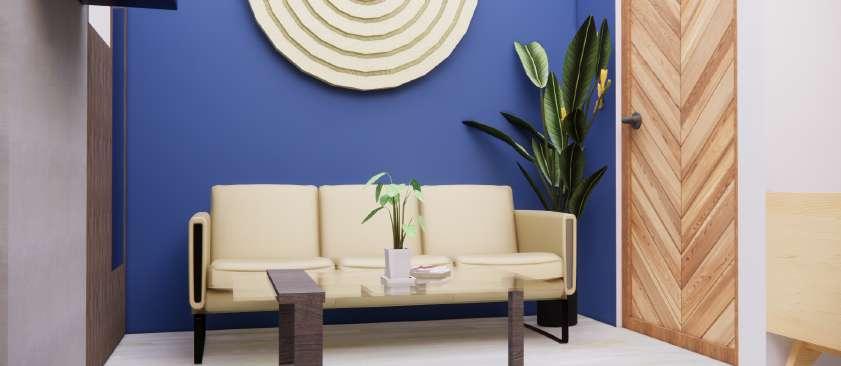

INTERIOR HUNIAN TIPE 2 8 X 6 METER TIPE 1 4 X 6 METER 16 17 HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
HUNIAN

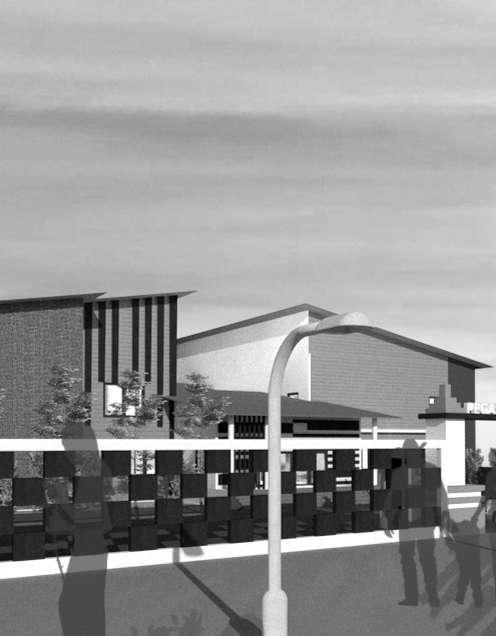

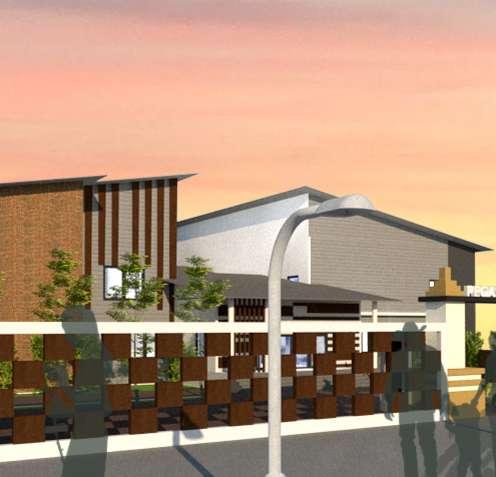

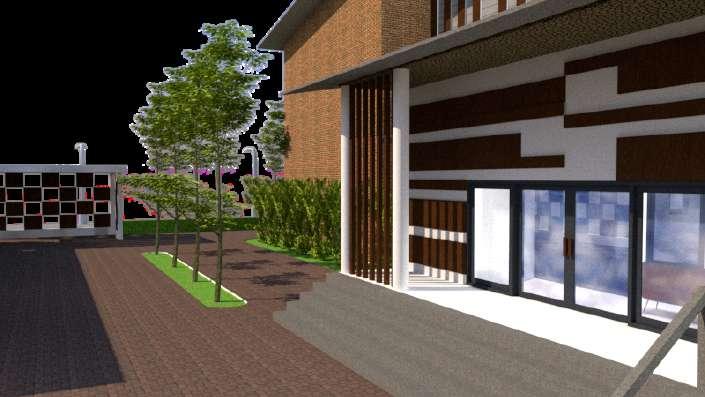

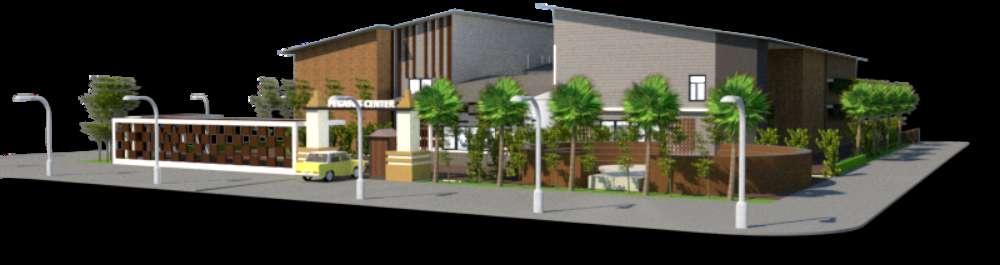

PEGASUS CENTER

The Creative Center building is located at JL. Rungkut Madya and accommodates the growing creative industry, namely the fashion industry, games, painting, music, crafts, etc The creative center building is also equipped with an auditorium and also classes to be able to increase academic and economic potential. The creative center building is also equipped with an auditorium and classrooms to be used as a community gathering space and also perform.

18 19
CREATIVE CENTER AT SURABAYA Academic Work 2022 HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

PEGASUS CENTER

SONJO

Creative Center merupakan sebuah bangunan yang mewadahi segala hal yang berhubungan dengan kreativitas dan inovasi yang digunakan untuk pengguna yang bertujuan untuk meningkatkan potensi akademik dan ekonomi. Bangunan ini menggunakan konsep budaya atau tradisi yang dipegang teguh oleh masyarakat Jawa dan Yogyakarta. Sonjo, tradisi berkunjung dan kearifan lokal berupa perilaku sosial.

Concept Poins

Implementation Desain bangunan yang kokoh dan kuat

Sturdy Simple Opens

Implementation Bangunan terlihat sederhana dengan fasad minimalis

Implementation Desain ruang yang memanfaatkan banyak bukaan

DESIGN APPROACH

Pendekatan ini membuat sebuah lingkungan lebih mampu merespon keberagaman manusia. Penerapan desain arsitektur inklusif dengan memberikan bebas hambatan pada bangunan ini bertujuan untuk memudahkan pergerakan dan akses bagi setiap jenis pengguna.

Inclusive Architecture

HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
20 21

HIKMAL RIVALDY'S PORTFOLIO

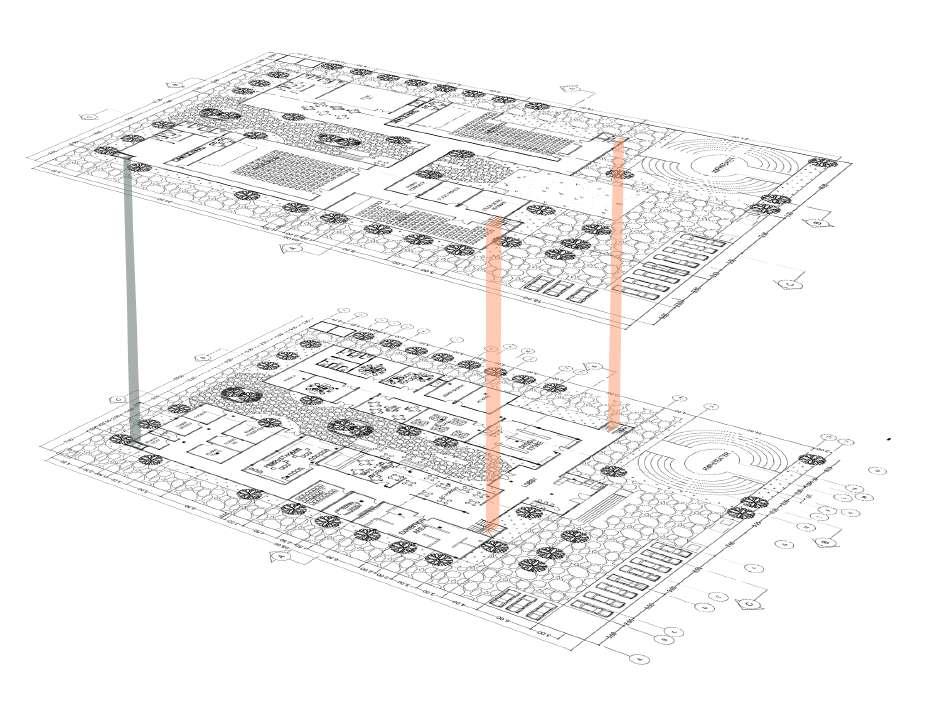

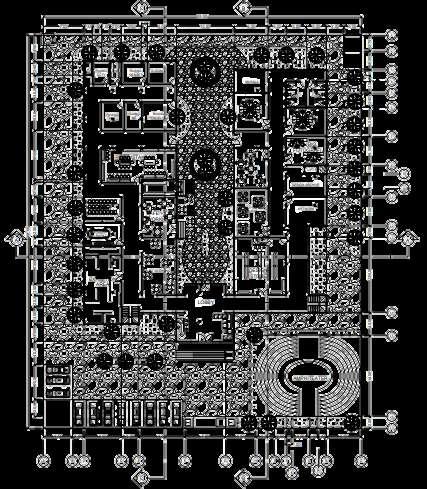

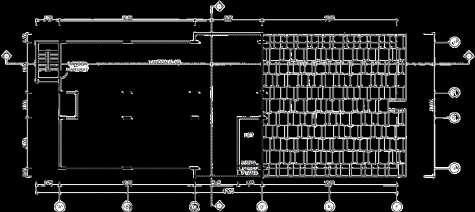

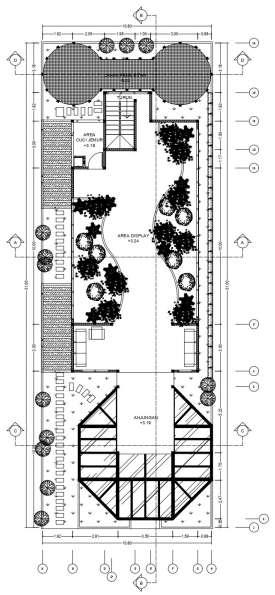

FLOOR PLAN
SECTION B-B AXONOMETRI
Lift 22 23

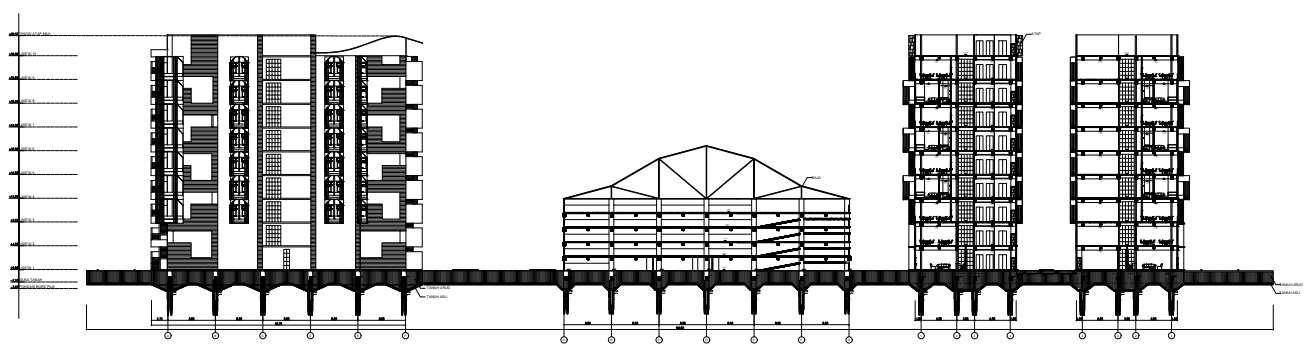

SECTION A-A

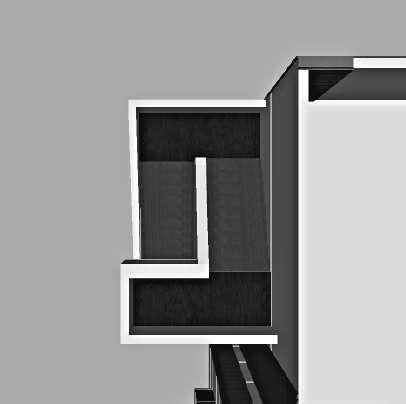

SIRKULASI VERTIKAL Tangga
HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

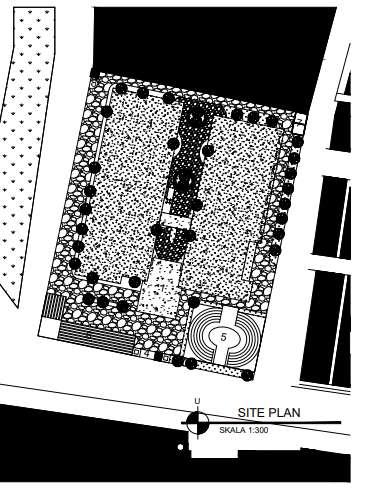

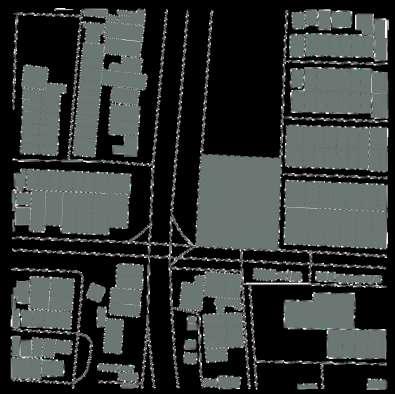

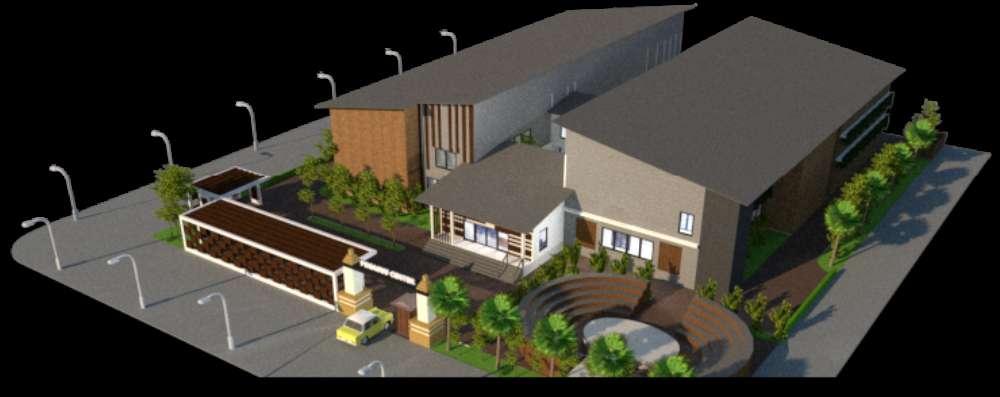

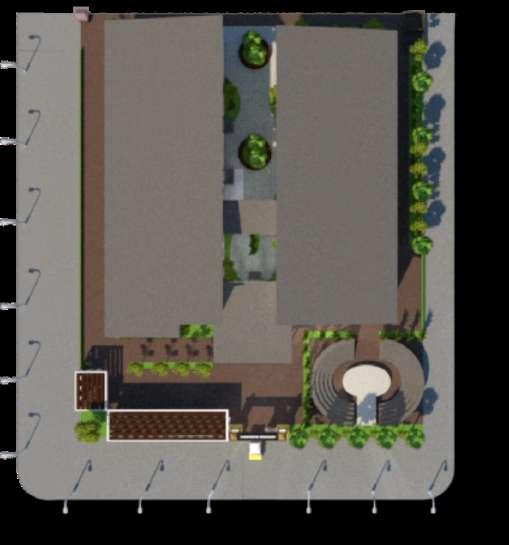

1 LAYOUT 2 3 4 5 6 7 8 KETERANGAN: LOBBY BANGUNAN MASSA 1 BANGUNAN MASSA 2 MAIN ENTRANCE AMPHITEATHER PARKING LOT TPS PINTU KELUAR 1 2 3 4 5 6 7 8 24 25 HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

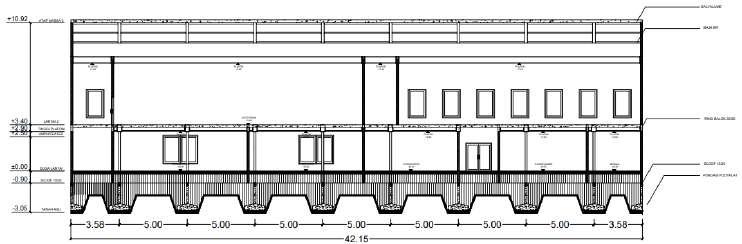

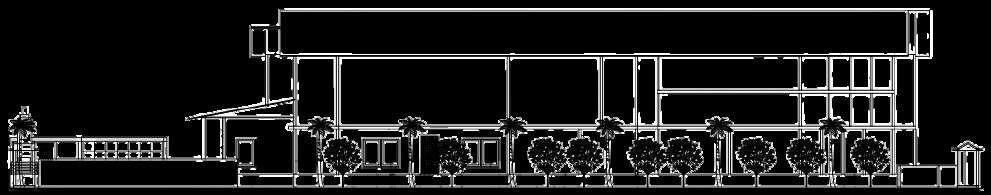

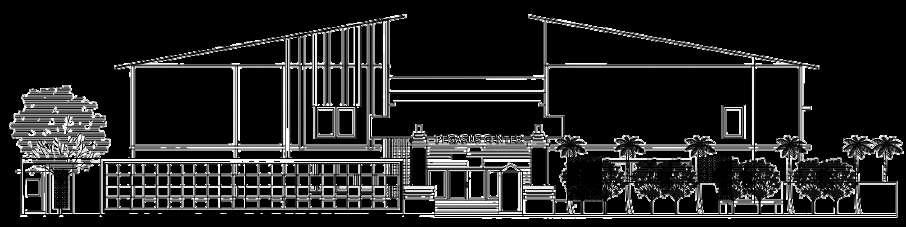

ELEVATION

NORTH ELEVATION

EAST ELEVATION

26 27
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

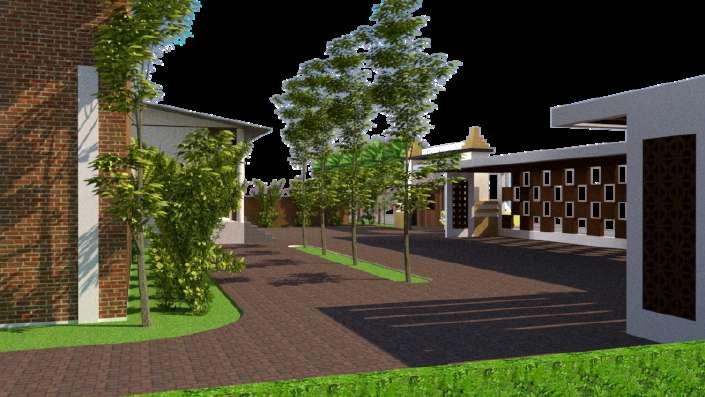

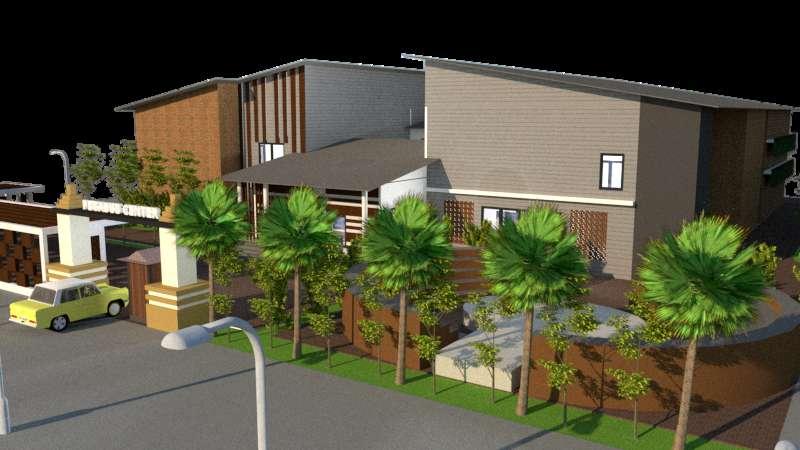

Arsitektur berusaha menciptakan desain yang berdampingan dengan lingkungan sekitar. Interact with nature

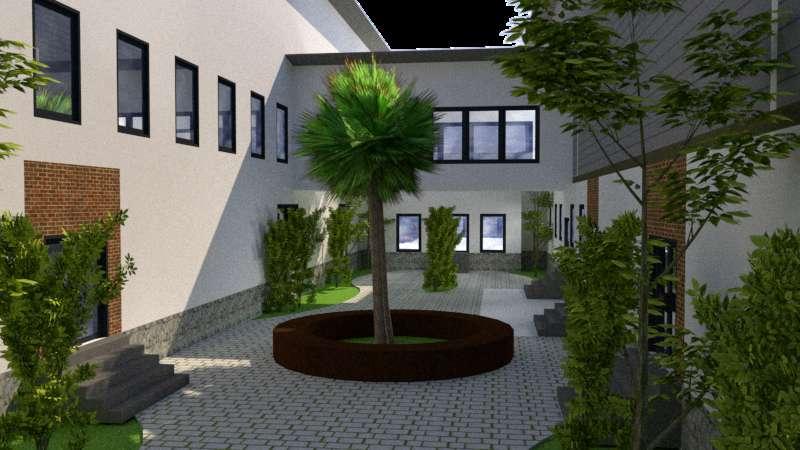

Penempatan vegetasi di sekitar sitting area memberikan efek tenang kepada pengunjung

Menciptakan bangunan creative center yang memperhatikan kebudayaan setempat, kondisi lingkungan, faktor alam serta keadaan thermal pada bangunan

28 29
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

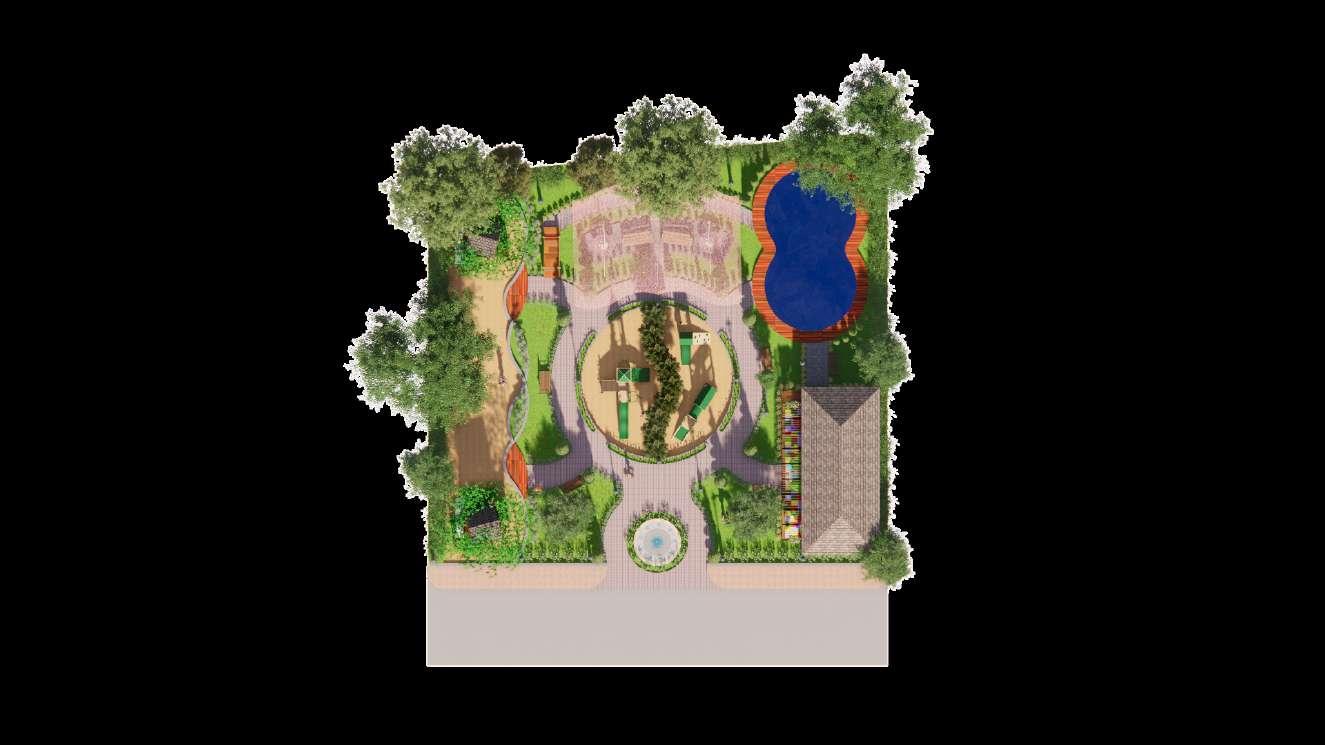

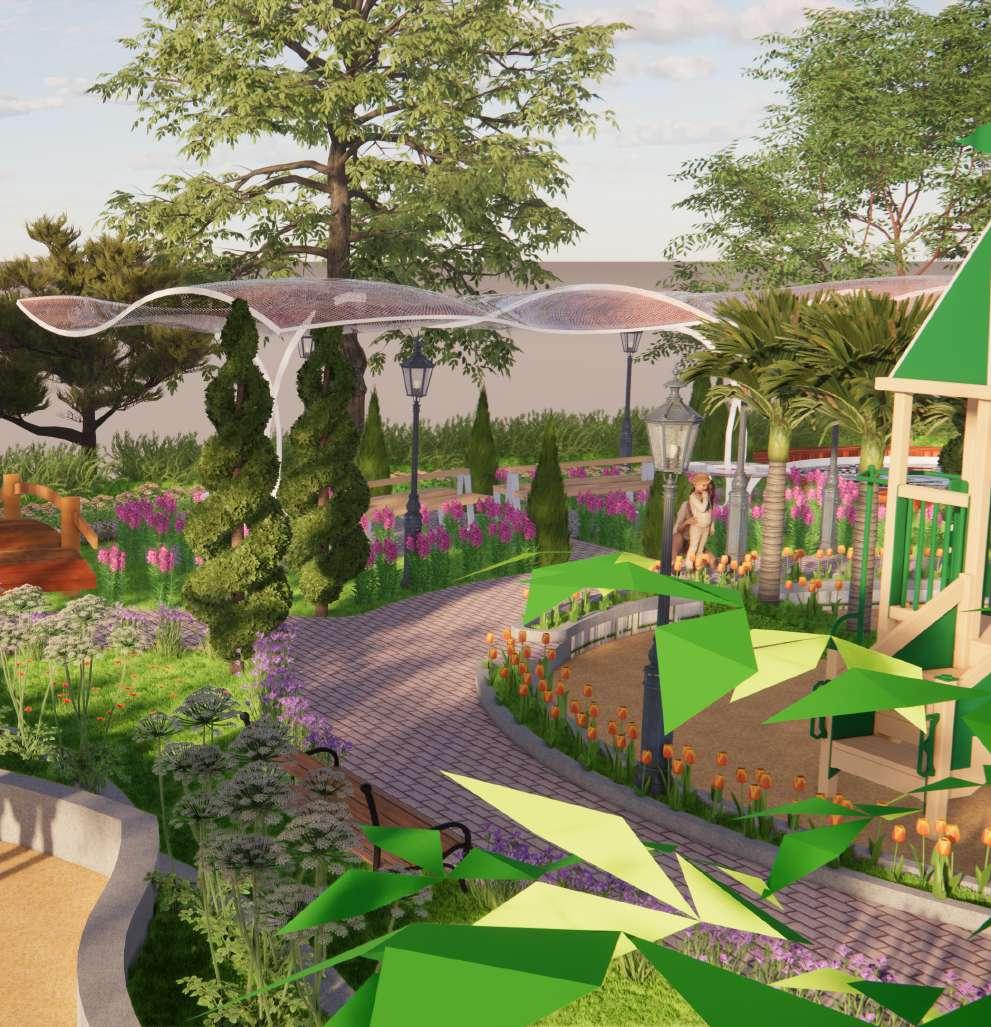

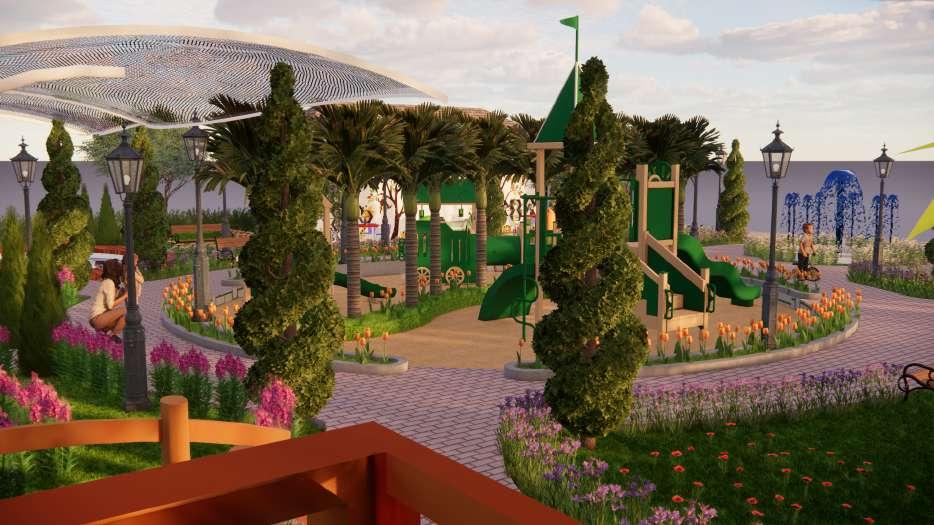

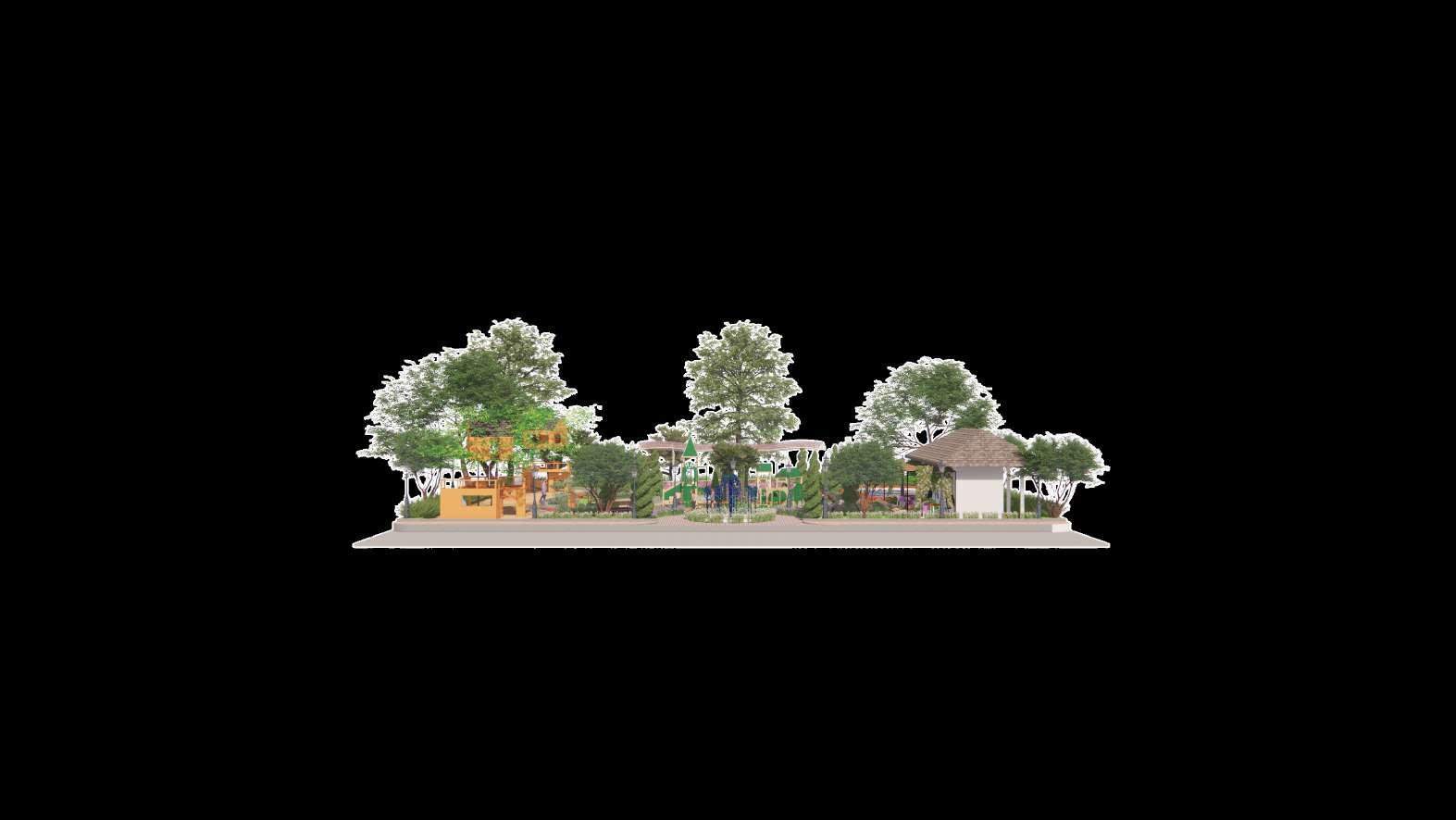

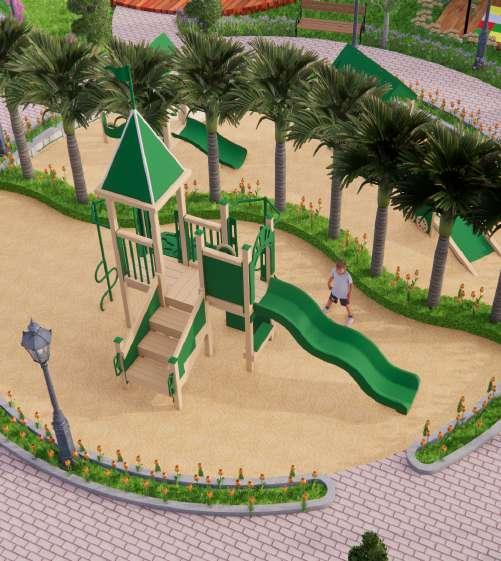

BEHAVIOR PLAYGROUND

Playgrounds provide safe, comfortable and usable play facilities for all children including children with physical disabilities. In accordance with the design programming model, the design of a children's playground should be based on issues, goals and criteria. This programming is in the form of safety, comfort, and convenience.

30 31
PLAYGROUND AT MALANG W/ Ayu Dewi Maulidia Academic Work 2022 HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

Playground yang dirancang dengan mempertimbangkan perilaku dan aktivitas pengguna, sehingga dapat digunakan oleh semua usia. Mulai dari usia 2 sampai 5 tahun dan 6 sampai 12 tahun Salah satu implementasi dalam perancangan ini adalah dengan membedakan jenis permainan yang digunakan

BEHAVIOR

HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
PLAYGROUND
DESIGN APPROACH Behavior Architecture Behavior architecture digunakan untuk memahami perilaku anak dan diharapkan desain
karakter dan
anak. C r i t e r i a o f P l a y g r o u n d s Playground selection must fulfill the following components Game placement locations and play zones Segregation of games based on age of users Supervision of children at play 32 33
yang dihasilkan sesuai dengan
pola aktivitas

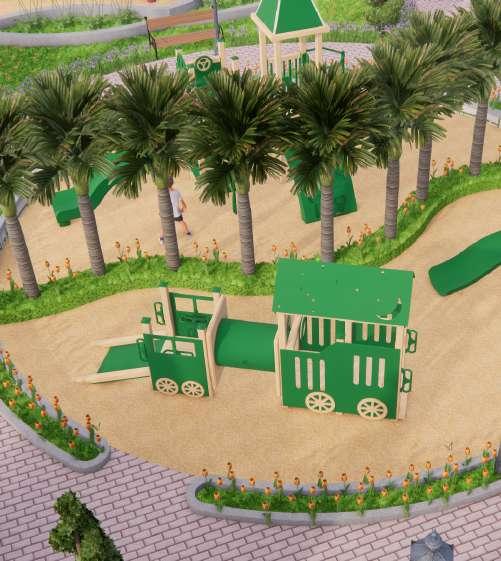

Perbedaan jenis permainan yang digunakan untuk anak usia 2 sampai 5 tahun dan usia 6 sampai 12 tahun

Anak-anak perlu istirahat dan sering kali terluka selama bermain. Oleh karena itu, anak-anak yang bermain perlu pengawasan orang dewasa. Area duduk ditempatkan di tengah sehingga tidak terlalu jauh dari area bermain.

HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
34 35
36 37
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

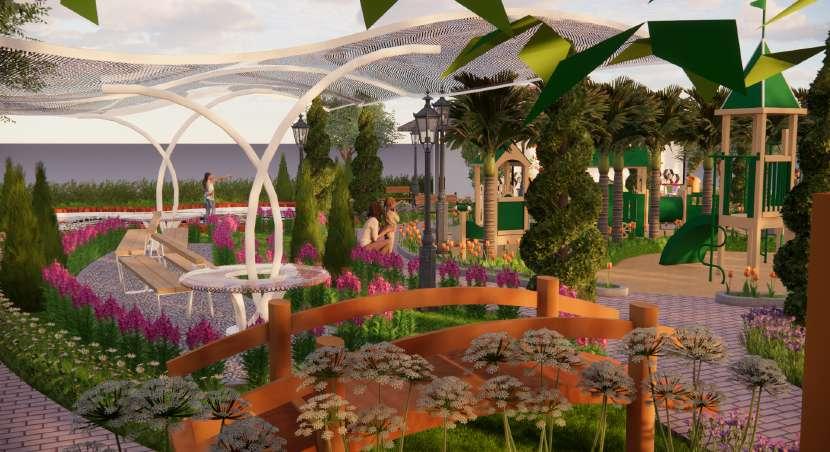

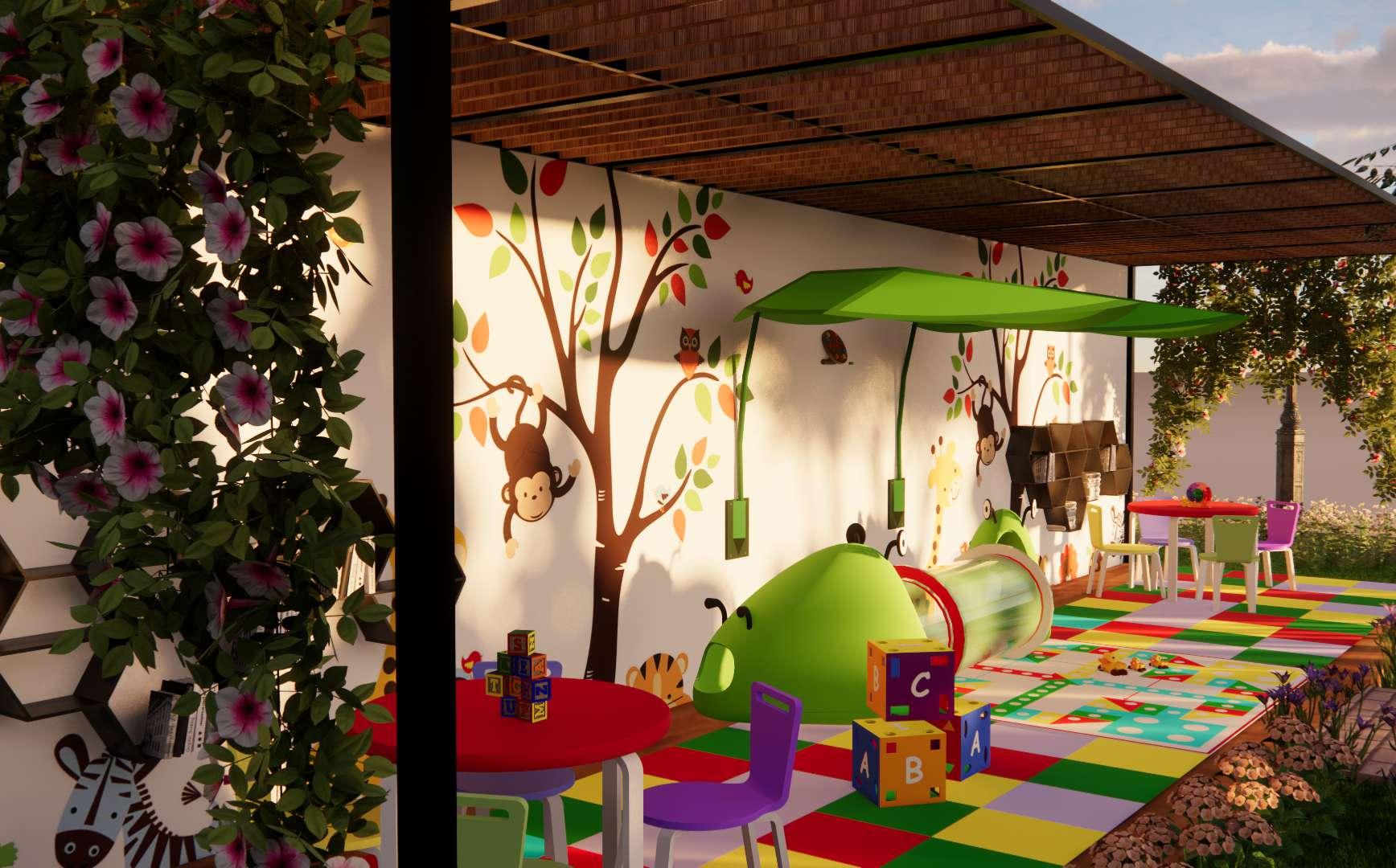

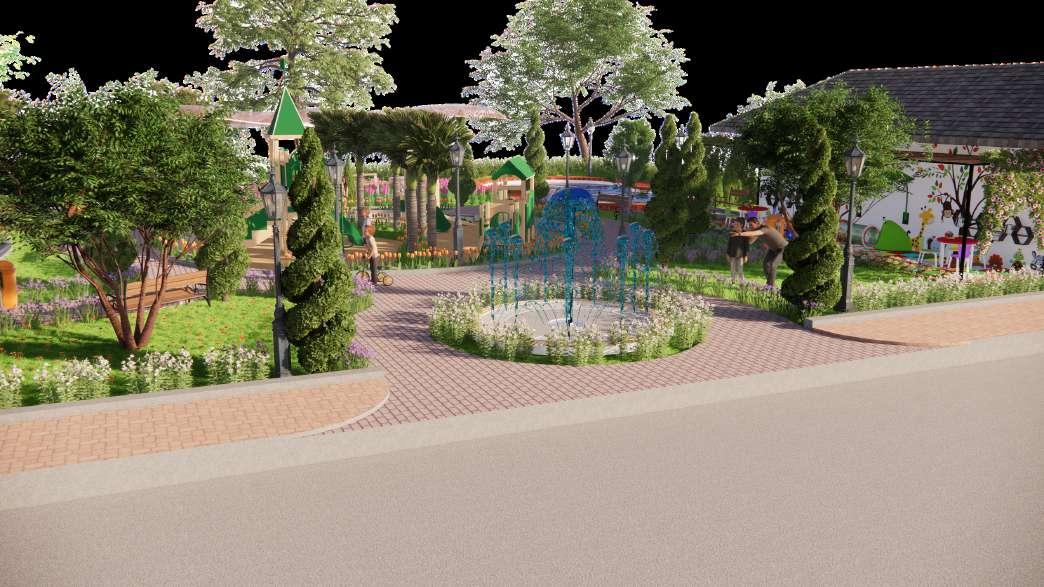

HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO SITE 2 3 4 5 8 7 6 9 Aspek kenyamanan desain memberikan efek restoratif bagi anak-anak karena memberikan rasa tenang dan aman untuk aktivitas bermain. LEGENDA: MAIN ENTRANCE RUMAH POHON KOLAM PASIR 1. 2 3 4 TEMPAT BERMAIN USIA 6-12 TAHUN 5. TEMPAT BERMAIN USIA 2-5 TAHUN 6. RUANG BACA DAN SENI LUKIS 7 KOLAM RENANG 8. SITTING AREA 9. JEMBATAN MINI Connected to nature, air mancur ini memberikan rangsangan kepada pengunjung berupa suara-suara alam seperti air hujan dan kesejukan saat vegetasi diterpa angin. 38 39

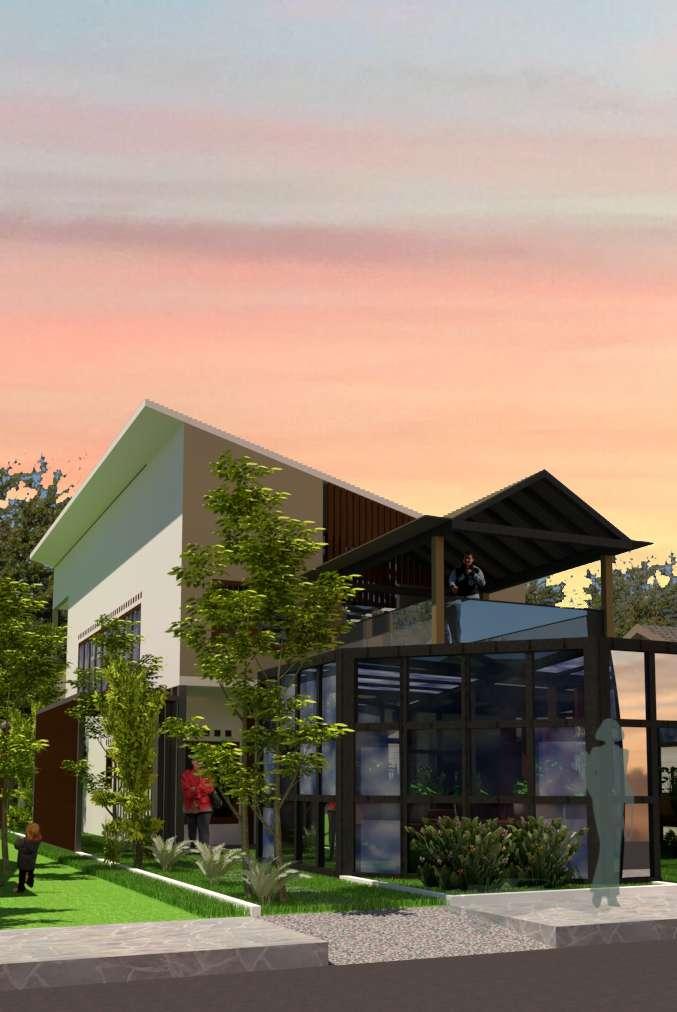

Home Based Enterprises Development

The pandemic era is a situation that causes several sectors to experience losses, one of which is the tourism sector Kampung Bunga Grangsil is a village affected by losses in the tourism sector. The potential of Grangsil Flower Village in the agricultural sector can be used as an alternative solution to overcome the losses that occur. The redesign of residents' houses is carried out to develop this potential

40 41
HOME BASED ENTERPRISES DEVELOPMENT AT MALANG Academic Work 2021
HIKMAL RIVALDY'S PORTFOLIO
HIKMAL RIVALDY S PORTFOLIO
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

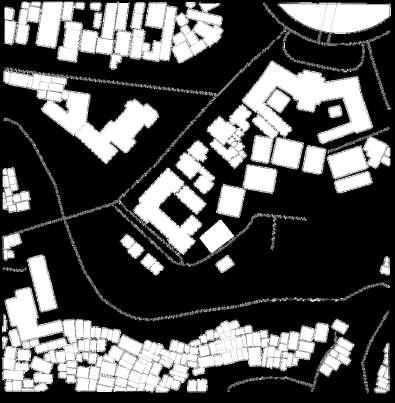

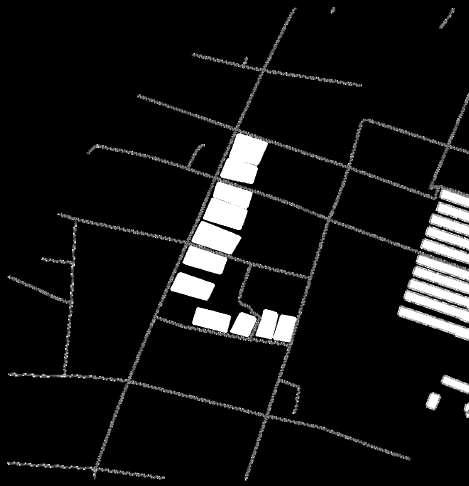

SITE CONTEXT ANALYSIS

Population Growth

Pada tahun 2021, kampung bunga grangsil mengalami pertumbuhan penduduk dan berjumlah 600 KK

Plantation Commodities

90%

Hampir 100% mata pencaharian masyarakat kampung bunga grangsil adalah petani tanaman hias dan bunga yang telah bekerja selama 20 tahun.

Accessibility

Perjalanan darat menuju lokasi sekitar 38 kilometer dari kota Malang, sehingga fasilitas umum sulit dijangkau.

RIVALDY S PORTFOLIO Potential Losers
Based Enterprises Development Tourism Potential Winners Agriculture
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL
Home
42 43

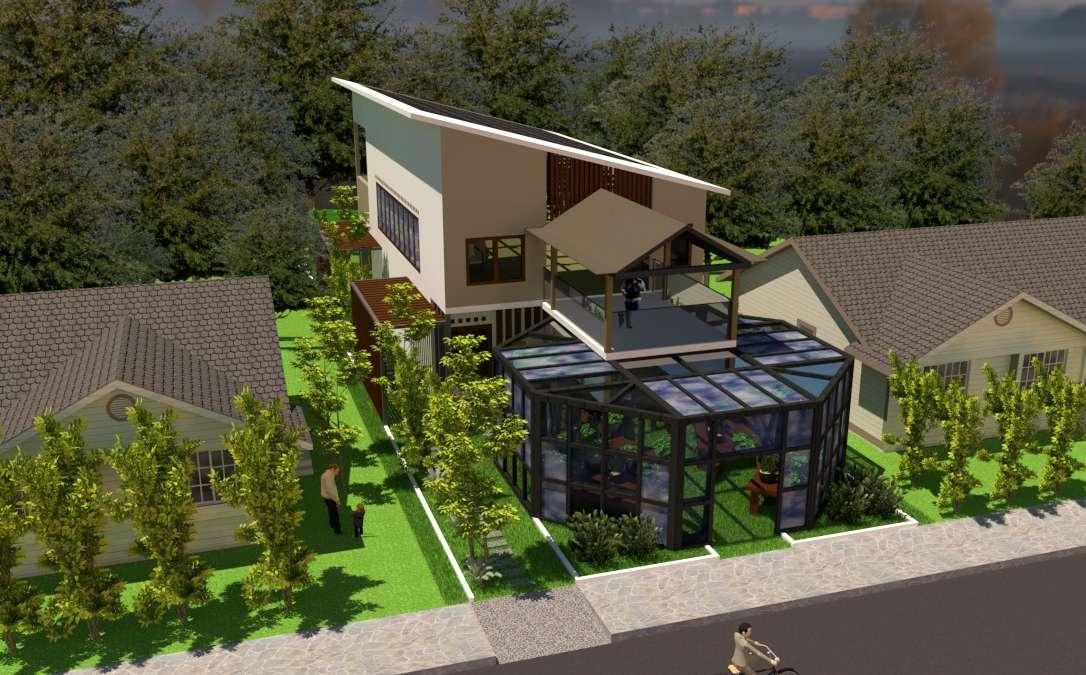

Bangunan ini cocok dan tepat untuk kondisi pandemi Sebuah bangunan yang selain berfungsi sebagai tempat tinggal, juga dapat difungsikan sebagai tempat untuk menenangkan pikiran dengan lingkungan sekitar yang mendukung tanpa melupakan hal-hal yang harus diperhatikan di era pandemi.

Dengan kata lain, merancang bangunan dengan fungsi yang lebih kompleks yang sesuai dengan lingkungan sekitar dan kondisi saat ini, yaitu bencana pandemi.

DESIGN

APPROACH

The healing architecture approach menciptakan bentuk arsitektur dan lingkungan yang mendukung relaksasi dan interaksi sosial penghuni dengan alam.

Healing Architecture

HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
44 45

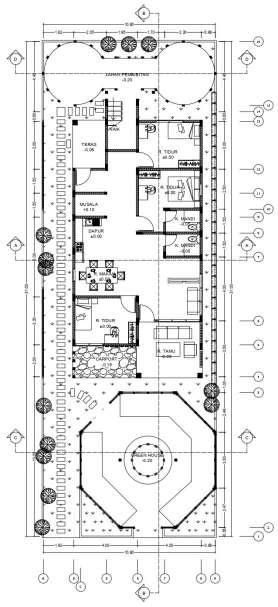

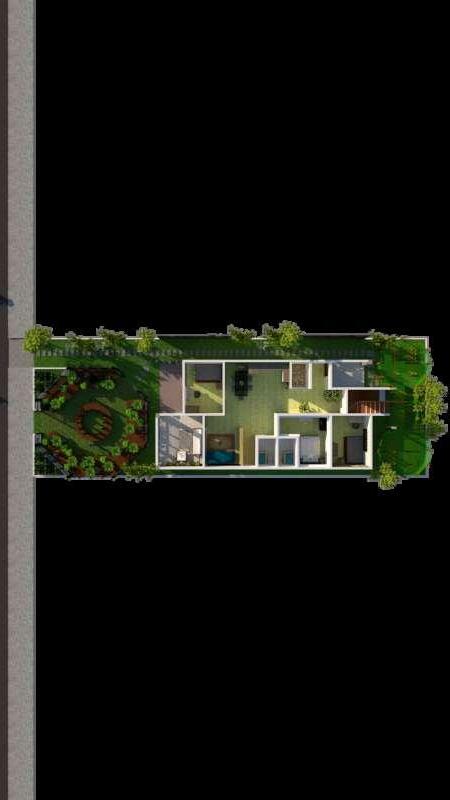

S LAYOUT Green house Living room outdoor Bath room Bed room Bed room Bed room Main entrance Living room indoor Kitchen Mushola
PLAN First Floor Second Floor 46 47
PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
FLOOR
HIKMAL RIVALDY'S
HIKMAL RIVALDY'S

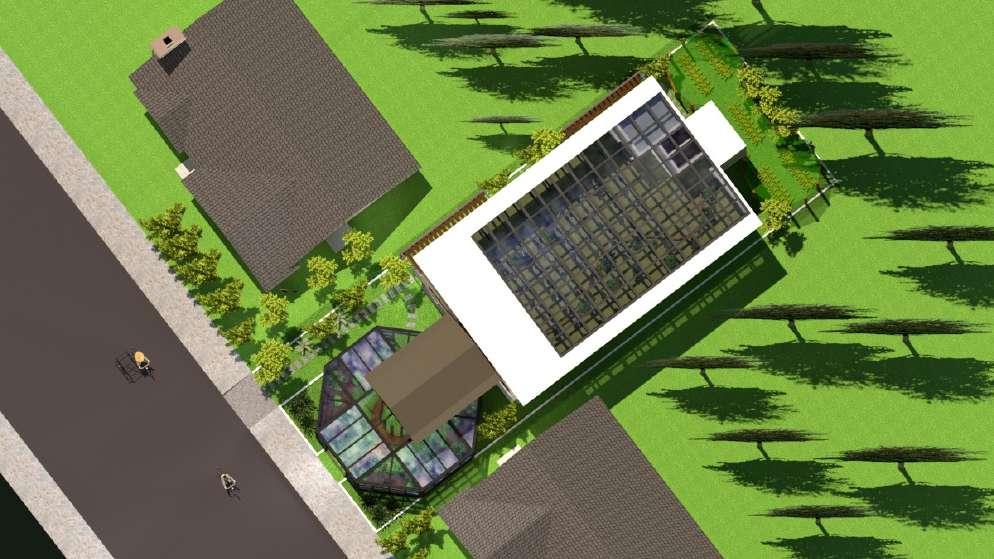

AXONOMETRI

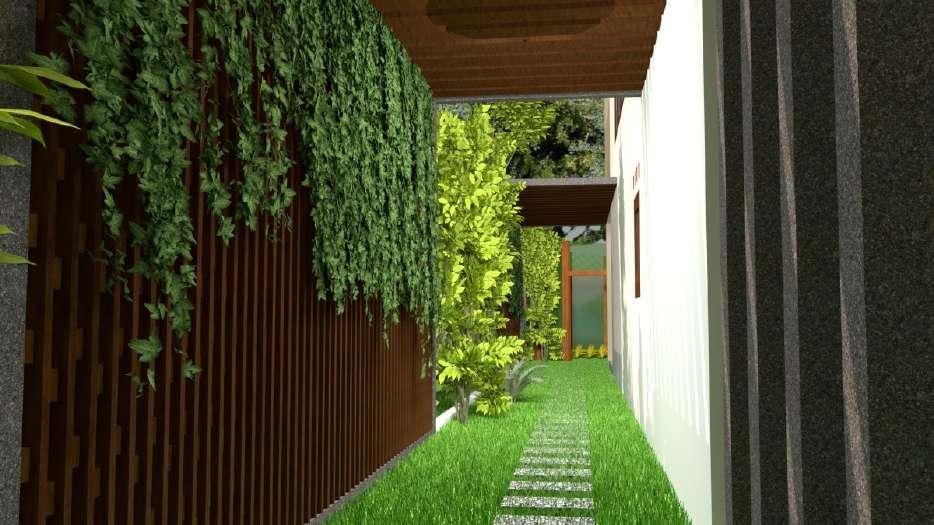

Healing environment membawa efek restoratif yang dapat mengurangi hormon stres dan memberikan energi positif Sensasi alam akan memberikan penghuni rasa tenang dan rileks.

HIKMAL RIVALDY'S PORTFOLIO
PORTFOLIO HIKMAL RIVALDY S PORTFOLIO
HIKMAL
RIVALDY S PORTFOLIO HIKMAL RIVALDY S

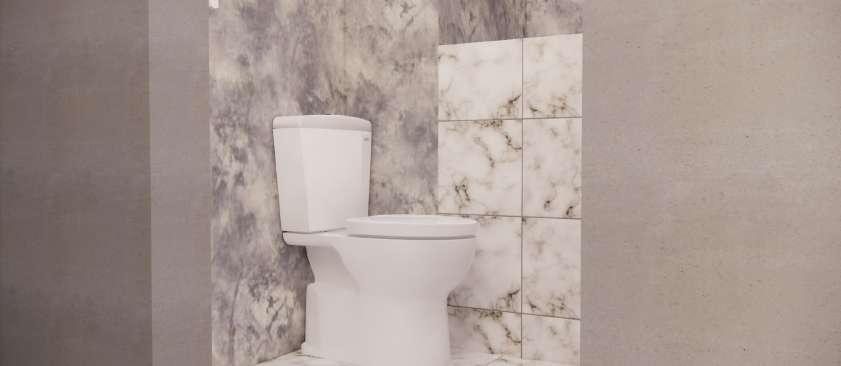

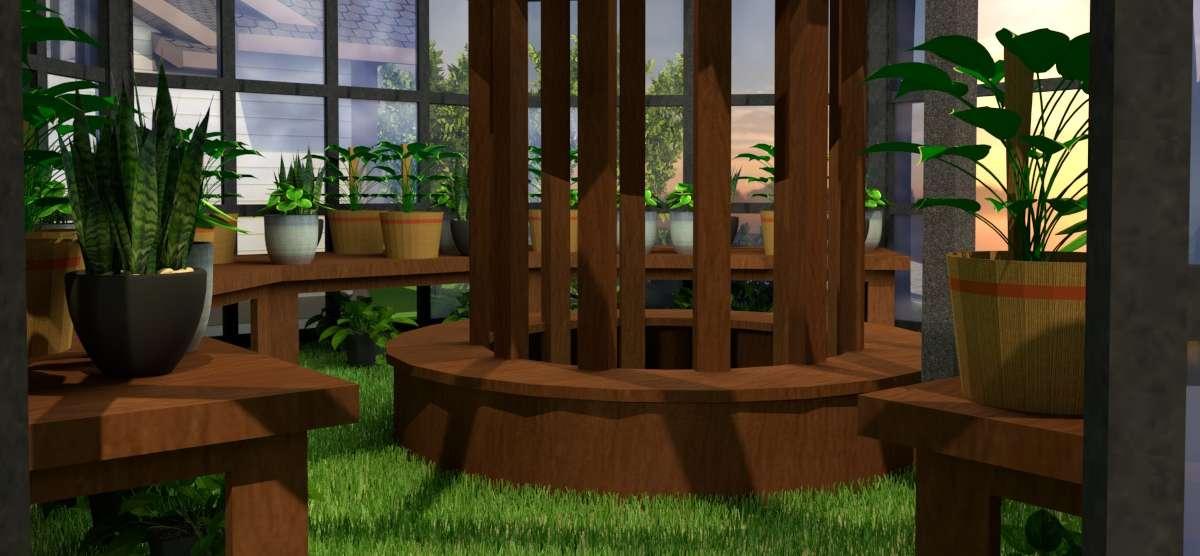

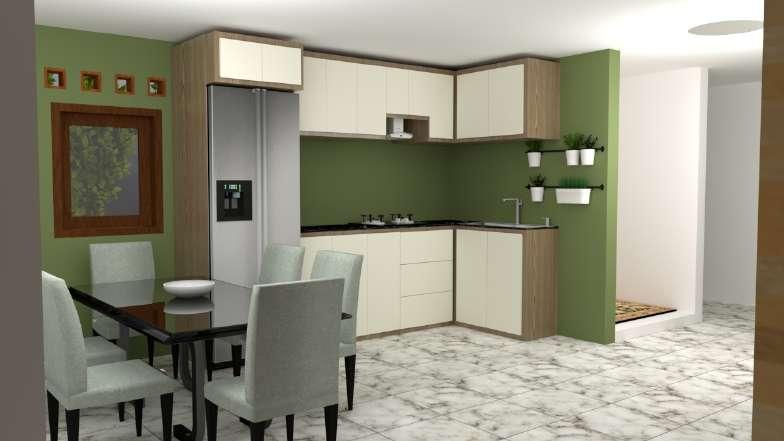

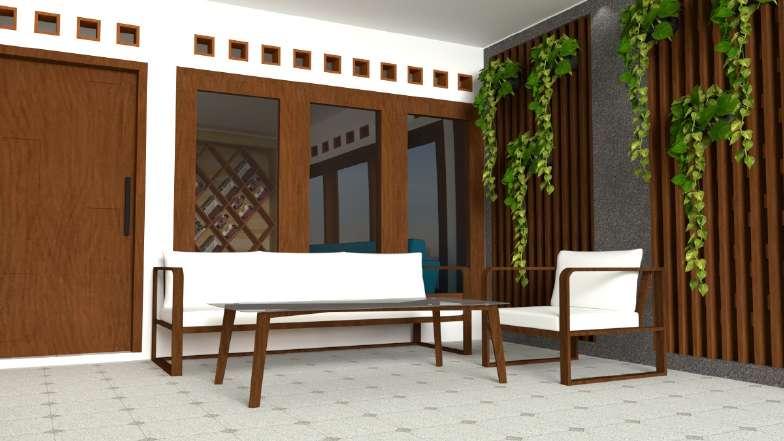

INTERIOR INTERIOR INTERIOR INTERIOR INTERIOR
48 49
Tangga

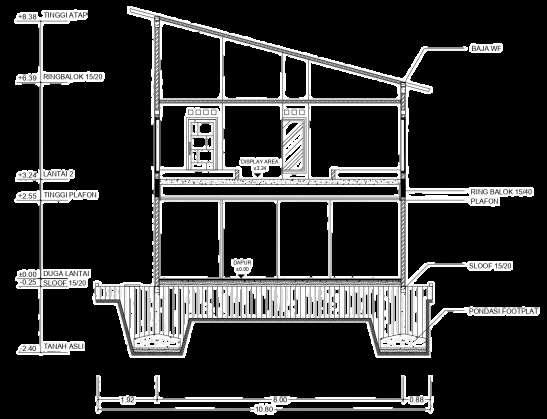

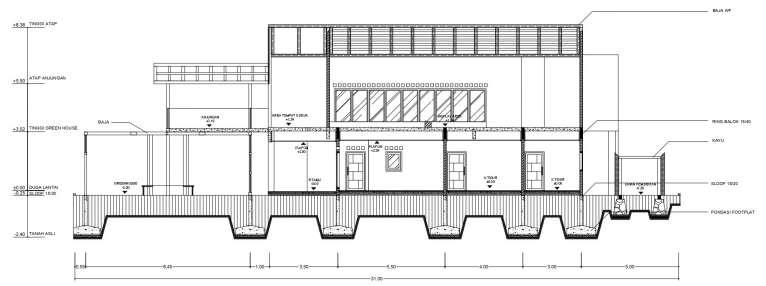

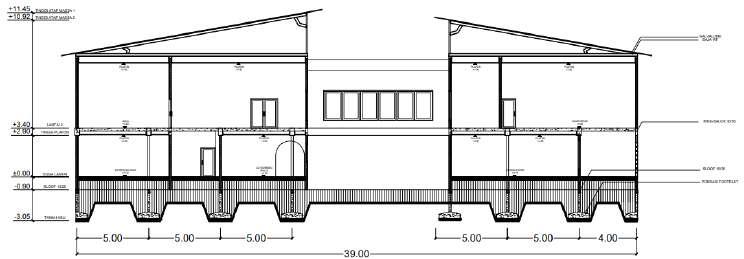

SECTION A-A SECTION B-B

HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO

HIKMAL RIVALDY'S PORTFOLIO

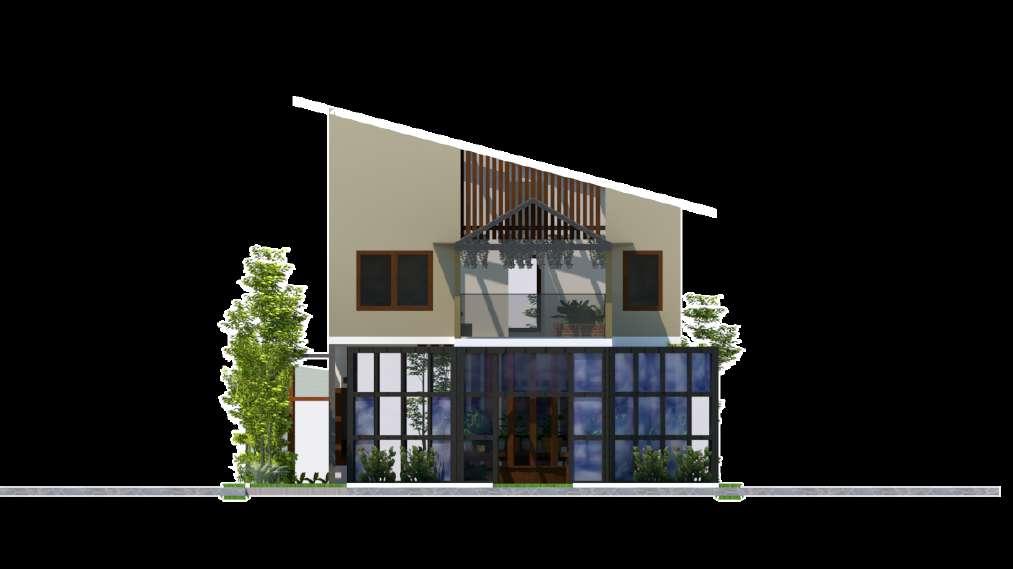

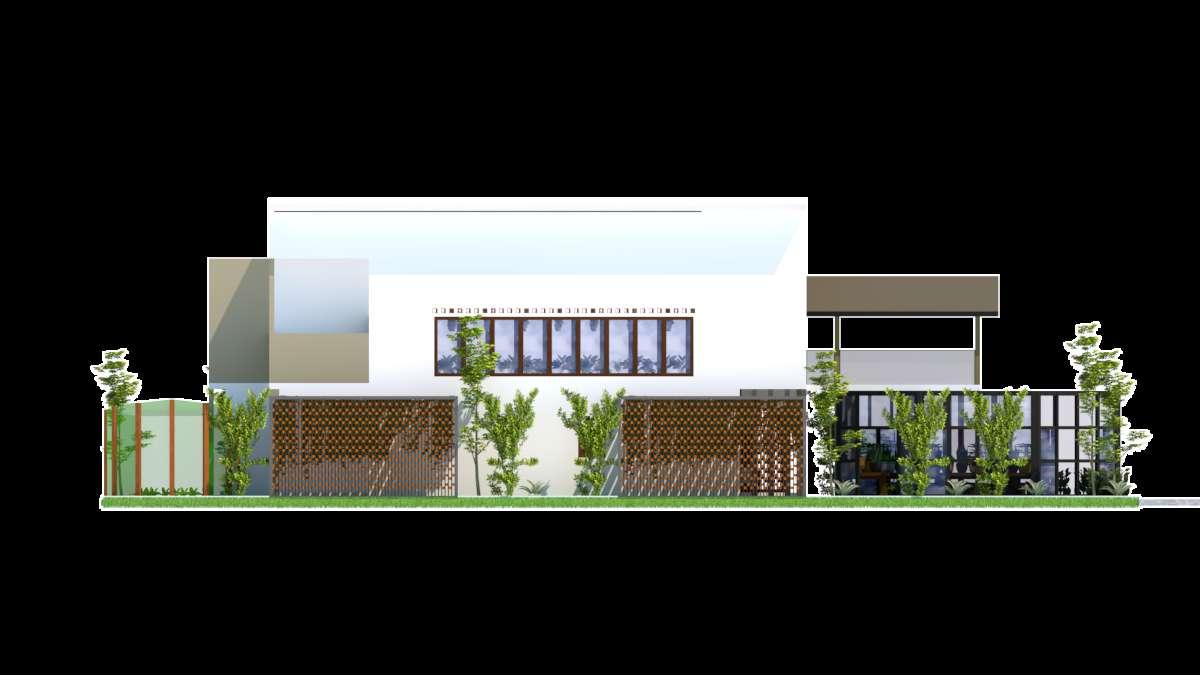

SOUTH ELEVATION EAST ELEVATION
50 51
HIKMAL RIVALDY S PORTFOLIO

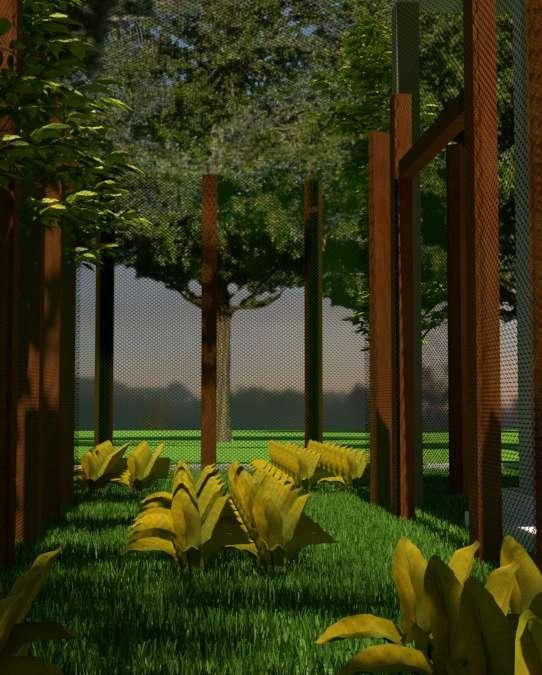

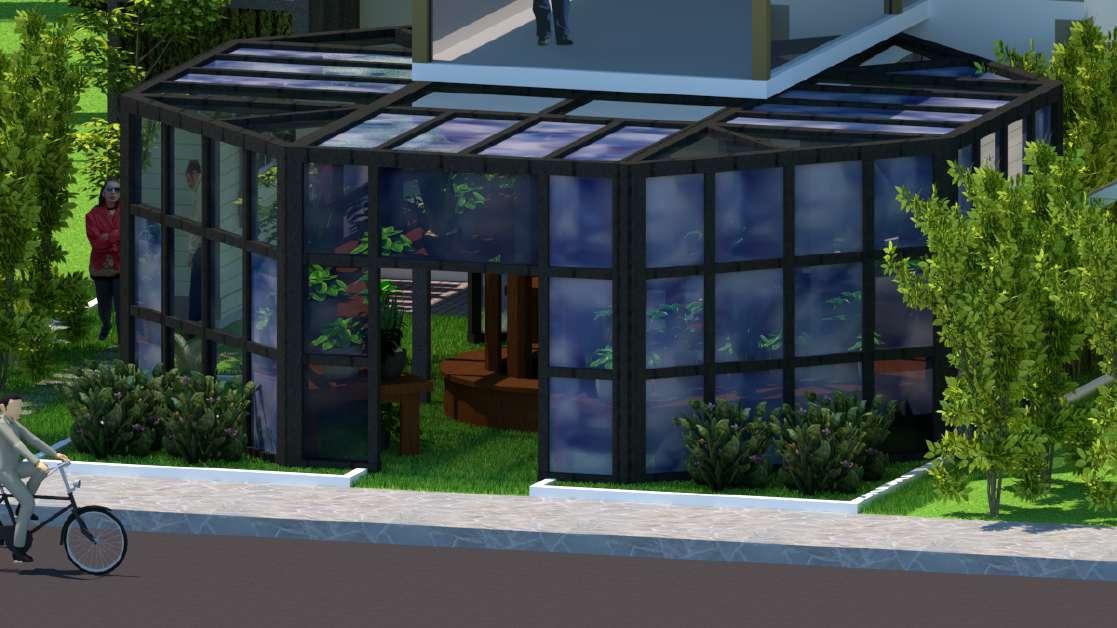

Potensi pertanian yang sudah berkembang selama 20 tahun dijadikan solusi atas masalah penurunan ekonomi dengan merancang usaha green house dan tanaman hias. Dampak dari green house tersebut adalah menstabilkan perekonomian dan menenangkan psikis warga.

HIKMAL RIVALDY S PORTFOLIO
HIKMAL RIVALDY S PORTFOLIO
52 53
54 55
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY S PORTFOLIO

HIKMAL RIVALDY S PORTFOLIO

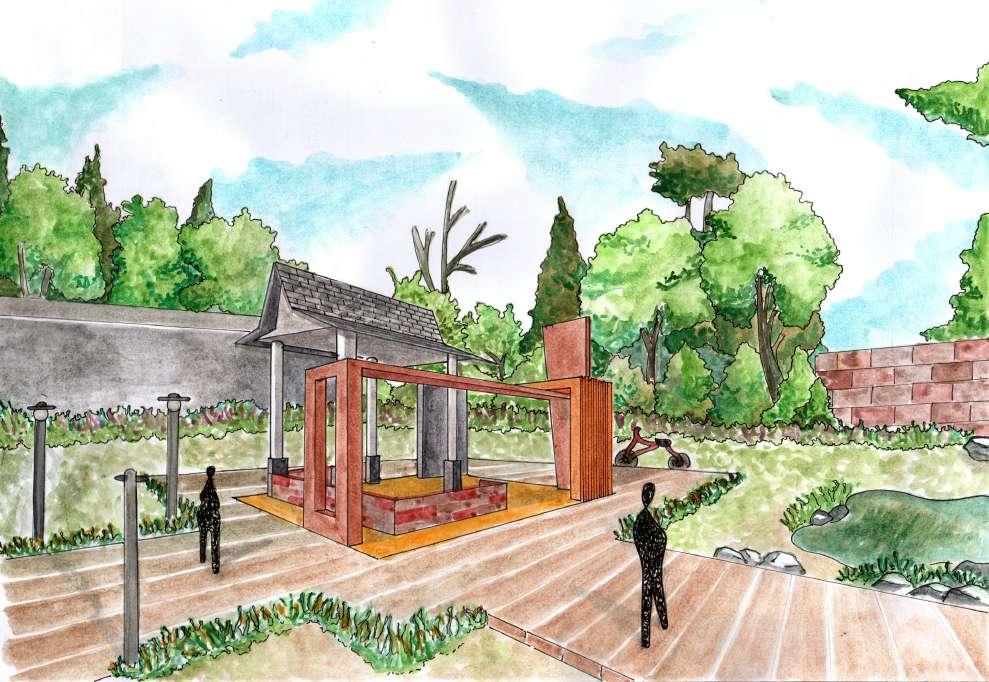

HANDDRAWING

HIKMAL RIVALDY S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO

HIKMAL RIVALDY'S PORTFOLIO

56 57
Pieces of my studio

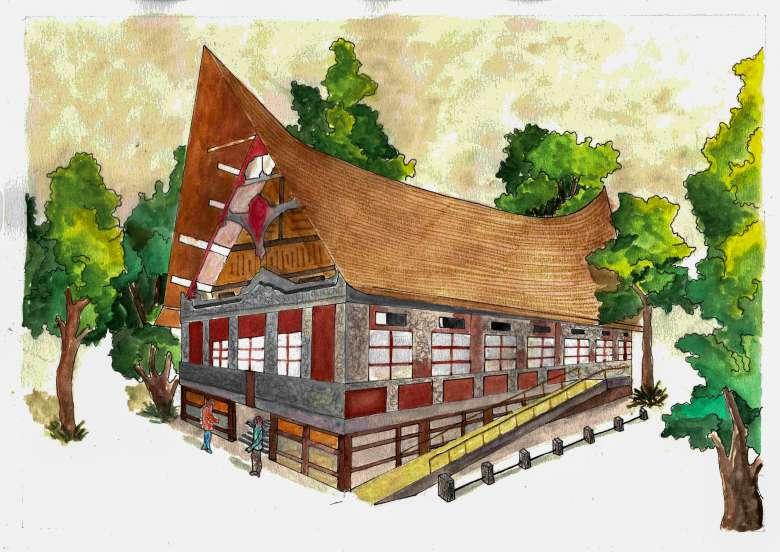

Traditional Architecture Academic Work 2020

HIKMAL RIVALDY S PORTFOLIO

HIKMAL RIVALDY S PORTFOLIO

Studio Perancangan Arsitektur 1

Academic Work 2020

HIKMAL RIVALDY'S PORTFOLIO

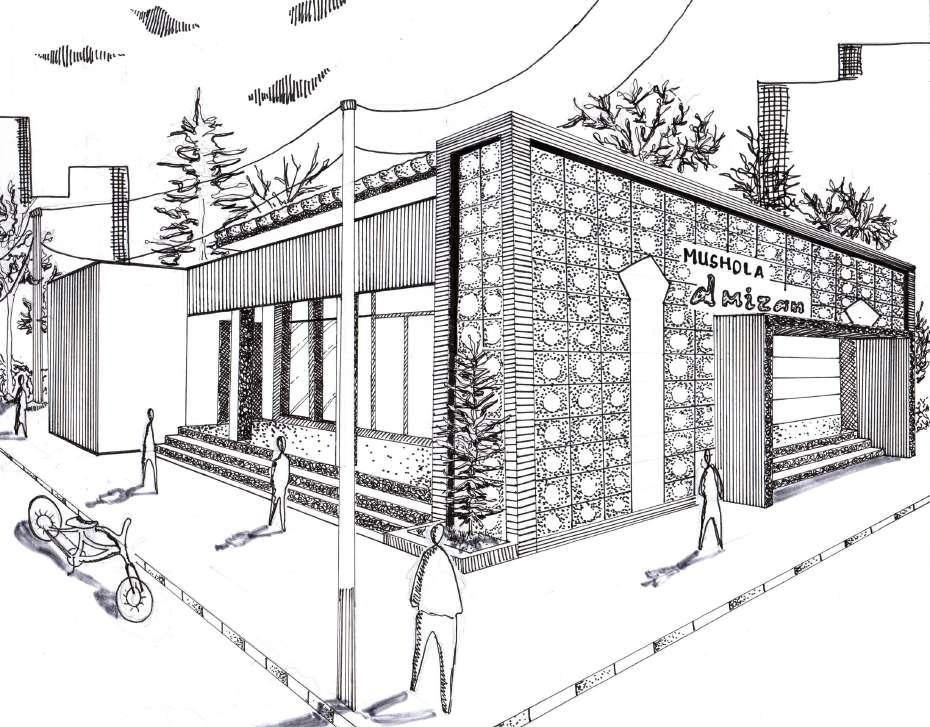

Mushola Almizan Academic Work 2020

HIKMAL RIVALDY'S PORTFOLIO

58 59

HIKMAL RIVALDY S PORTFOLIO

HIKMAL RIVALDY S PORTFOLIO

Furniture

Academic Work 2021

60 61
HIKMAL RIVALDY'S PORTFOLIO HIKMAL RIVALDY'S PORTFOLIO
Mono
Academic Work 2021

RIVALDY S PORTFOLIO

HIKMAL RIVALDY S PORTFOLIO

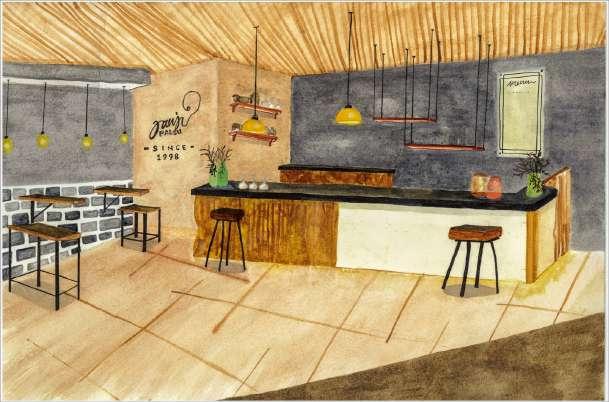

About Janji Jiwa

Academic Work 2020

A compilation Portfolio

A Set of Objects

Academic Work 2020

HIKMAL RIVALDY'S PORTFOLIO

HIKMAL RIVALDY'S PORTFOLIO

are Architecture
All
