Anatomy Permanent Maxillary Right Central Incisor
Dental
Contents * Table. * Drawing A- Kit. B- Steps.
Measurement
Drawing Kit 1- Graphical copybook. 2- Pencil. 3- eraser. 4- Ruler. 1 4 3 2
Drawing Steps
Note : Scale Drawing Each 1 mm in table = 1 medium square in graph paper.

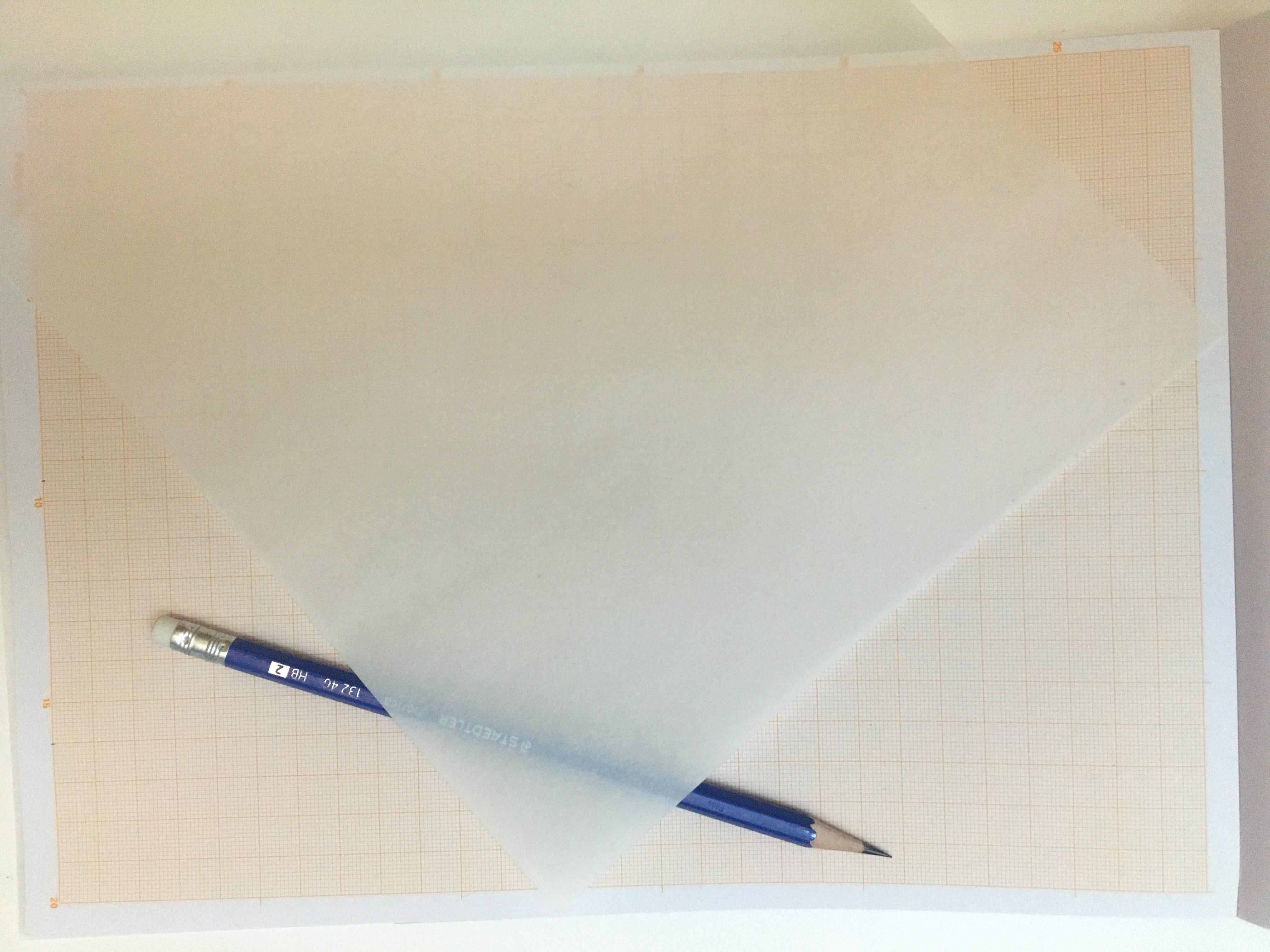

Tips : Drawing with tracing paper is helpful.

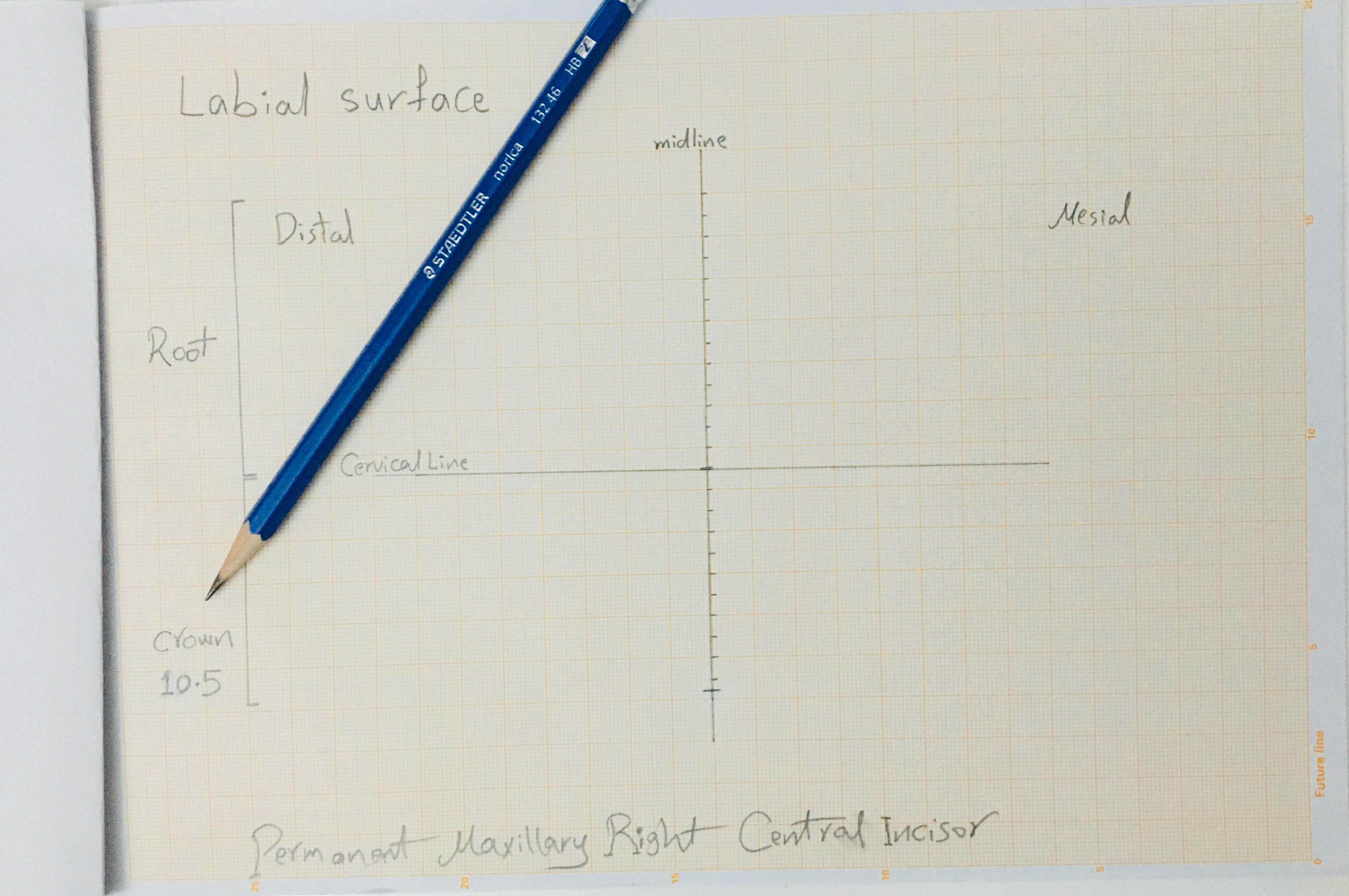

Labial Surface
1- Tooth name • Full name = Dentition + Arch + Side + Tooth
2- Surface name
• Labial surface.
Midline
• To identify the mesial and distal surfaces. Distal Mesial
3-
line
4-
Cervical
• To identify the crown and root. Root Crown
5-
Measurements : Table 6-1 • A- Length of crown.
• B- Length of Root. 5- Measurements : Table 6-1
C- Thirds division : • Cervico- Incisal = Cervical + middle + incisal • 3.5 mm for each third.
5- Measurements : Table 6-1
• D- Mesiodistal diameter of crown at cervical line.
• E- Mesiodistal diameter of crown.
• Location of contact area.
Mesial = within incisal third near mesioincisal angle. Distal = at junction between incisal and middle third . 4.25
4.25
5- Measurements : Table 6-1
6- Draw the surface. • Connect between the points (Mesial outline) slight convex . 4.25 4.25
6- Draw the surface.
• Connect between the points (Distal outline) more convex. 4.25 4.25
• Connect between the points (Root) cone + Blunt end . 4.25 4.25 6- Draw the surface.
7-
4.25 4.25
Draw the cervical line
8- The Final Draw 4.25 4.25

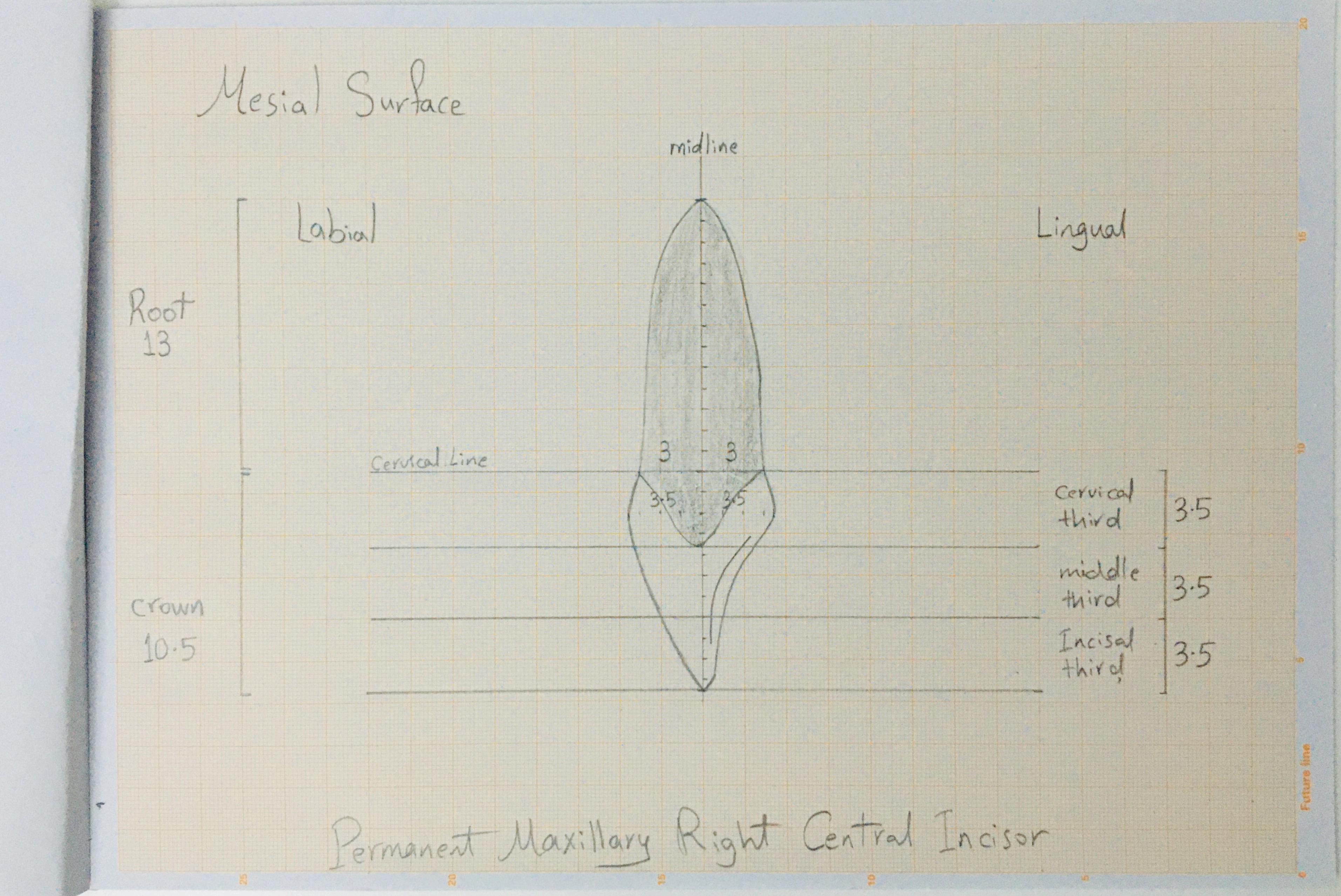

Mesial Surface
1- Tooth name • Full name= Dentition + Arch + Side + Tooth
2- Surface name
• Mesial surface
• To identify the Labial and Lingual surfaces.
3-
Midline
Cervical line
• To identify the crown and root.
4-
5- Measurements : Table 6-1
• A- Length of crown.
• B- Length of Root. 5- Measurements : Table 6-1
Measurements
Table
C- Thirds division : • Cervico- Incisal = Cervical + middle + incisal • 3.5 mm for each third.
5-
:
6-1
• D- Labiolingual diameter of crown at cervical line. 5- Measurements : Table 6-1
Measurements
• E- Labiolingual diameter of crown.
• Crest of curvature
Labial and Lingual = within cervical third.
5-
: Table 6-1
6- Draw the surface.
• Connect between the points (Labial outline) from crest of curvature to incisal ridge slightly convex .
6- Draw the surface.
• Connect between the points (Lingual outline) convex at cingulum then concave at mesial marginal ridge then convex at incisal edge.
6- Draw the surface.
• Connect between the points (Root).
7- Draw the cervical line
The final draw
8-
*Wheeler’s Dental Anatomy and Physiology.
