Hello, I’m Hibah!
I am a second year student at the University of Waterloo School of Architecture, looking for a four month co-op placement.
My passion for architecture started with the art of shaping spaces. It is a fascination that goes beyond bricks and clay, encompassing the profound ability to craft environments that inspire, intrigue, and engage.
Through my architectural journey, I hope to leave a legacy that extends far beyond aesthetics and functionality. I see architecture as a powerful tool for forging connections within communities. I aim to craft spaces that foster interaction, collaboration, and a sense of belonging, places where communities can thrive, learn, and grow together whilst respecting our environment.
I hope you enjoy this collection of my work!
1
Hibah Sadruddin
hppsadru@uwaterloo.ca 6479629938 in/hibah-sadruddin
SUMMARY OF QUALIFICATIONS
•Innovative, hardworking, and detail-oriented architecture student with strong communication and teamwork skills .
•Effective organization and time management abilities developed through balancing academic and personal ambitions.
•Dedicated to learning and applying advanced architectural principles to create innovative building designs through strong te chnical drawing skills and CAD proficiency.
EDUCATION
Bachelors of Architecture Studies, Co-op Program University of Waterloo • Cambridge, Ontario
EXPERIENCE
Map Designer
Mappedin Inc
January 2024 - April 2024, Waterloo
• Engineered 3D models for a variety of venues' indoor navigation systems, improving user experience and navigation efficiency.
• Developed and synthesized information from blueprints and architectural plans to digitize indoor venues and design visually a ppealing maps used for wayfinding and navigation using Adobe Illustrator, AutoCAD, and in -house CMS software.
• Contributed to the documentation of mapping processes and procedures for future reference.
• Collaborated with cross-functional teams, including developers and mana gers to align indoor mapping projects with overall project goals across 20+ unique building layouts.
Administrative Assistant
BDO Canada LLP
May 2023 - August 2023, Toronto
• Maintained confidentiality and security of sensitive information to protect privacy and security of company data.
• Scheduled office meetings and client appointments for staff teams.
• Drafted correspondence and other documents for partner and transfer pricing team.
• Developed and updated spreadsheets and databases to track, analyze, and report on performance.
• Answered multi-line phone system solved 95% of inquiries from the customers, routing calls, delivering messages to staff and greeting visitors.
Camp Counsellor
Camp Discovery
• Encouraging a safe environment for participants.
• Coaching participants to strategically approach problems.
July 2021 - August 2021, Remote
• Structuring and facilitating camp activities, while achieving excellent level of safety, engagement, growth and success for campers, evidenced by 95% positive feedback from camp's families regarding overall satisfaction of services provided.
• Acted as mentor and role model for campers, providing emotional support to ensure optimal experience.
• Implemented strategies for conflict management and resolution.
CERTIFICATIONS
CISC Steel Competition 2023
• 3rd Place Prize
High School Valedictorian Braemar College • 2022
Merit Scholarship 2022
ABRSM Piano Practical & Singing 2018
SKILLS
INTERESTS
Reading Travel Music Fitness Drawing
Languages: English, Urdu, French (Limited Working Proficiency) Skills: Rhino 7, Adobe Suite (PS,Ai,InDesign), Enscape, Procreate, Revit, AutoCAD, Painting, Freehand Sketching, Model Making, Laser Cutting, 3D Printing, Painting, Photography, Microsoft Office, Problem Solving, Critical Thinking, Communication, Teamwork, D etail Oriented
2
REFERENCE LETTER
April 24 2024
To Whom it May Concern,
I am pleased to provide this letter of recommendation for Hibah Sadruddin, who completed a co-op term from January to April 2024 as a Map Designer at MappedIn Throughout her time with us, she consistently demonstrated enthusiasm and initiation to gain knowledge, dedication, and adaptability
Despite encountering initial technical issues that caused her to be a day behind in onboarding, Hibah quickly caught up to the rest of the team She showcased a proactive attitude and a strong willingness to learn, eagerly taking on any new tasks that were prioritized for completion
As a map designer, Hibah demonstrated proficiency in digitizing floor plans for a diverse range of large and small scale international venues, including known brands such as DoorDash and H&M She demonstrated accuracy in interpreting and executing floor plans to meet client specifications while ensuring satisfaction and meeting deadlines without fail Additionally, her adaptability was evident in quickly learning various workflows such as AutoCAD, MappedIn CMS, MappedIn Self-Serve and Adobe Illustrator, facilitating digitization across different platforms. Her application of design skills to produce and work with architectural plans of varying complexity enabled her to provide simplified, user friendly navigation for our customers
Hibah proved to be an invaluable asset to our team, easily collaborating with colleagues of the mapping team and readily picking up new tasks Her ability to quickly learn and adapt to new challenges made her a valuable contributor to our projects She consistently demonstrated a proactive approach and a positive attitude, which greatly enhanced her effectiveness as a team member.
I have no doubt that Hibah will continue to excel in her future endeavors and make valuable contributions wherever she goes. Please feel free to contact me at (647) 639-5061 or tim.chu@mappedin.ca if you require any further information
Sincerely,
Tim Chu Map Designer & VS Delivery Manager) Mappedin Inc
Mappedin Inc 14 Erb St W, Waterloo, ON Canada N2L 1S7
594 - 0102 www mappedin com
(519)
3
4
5
01 02 03 04 05 06 07
Saree Stories
Museum
Dancing Circles
CISC Steel Competition
3 Place Prize
Stellar Slits Library
Pedestrian Bridge
Library x Event Space
The Barn House
Sustainable Home
Other Work
Professional Work
CONTENTS
Fabrication Mappedin Inc
6

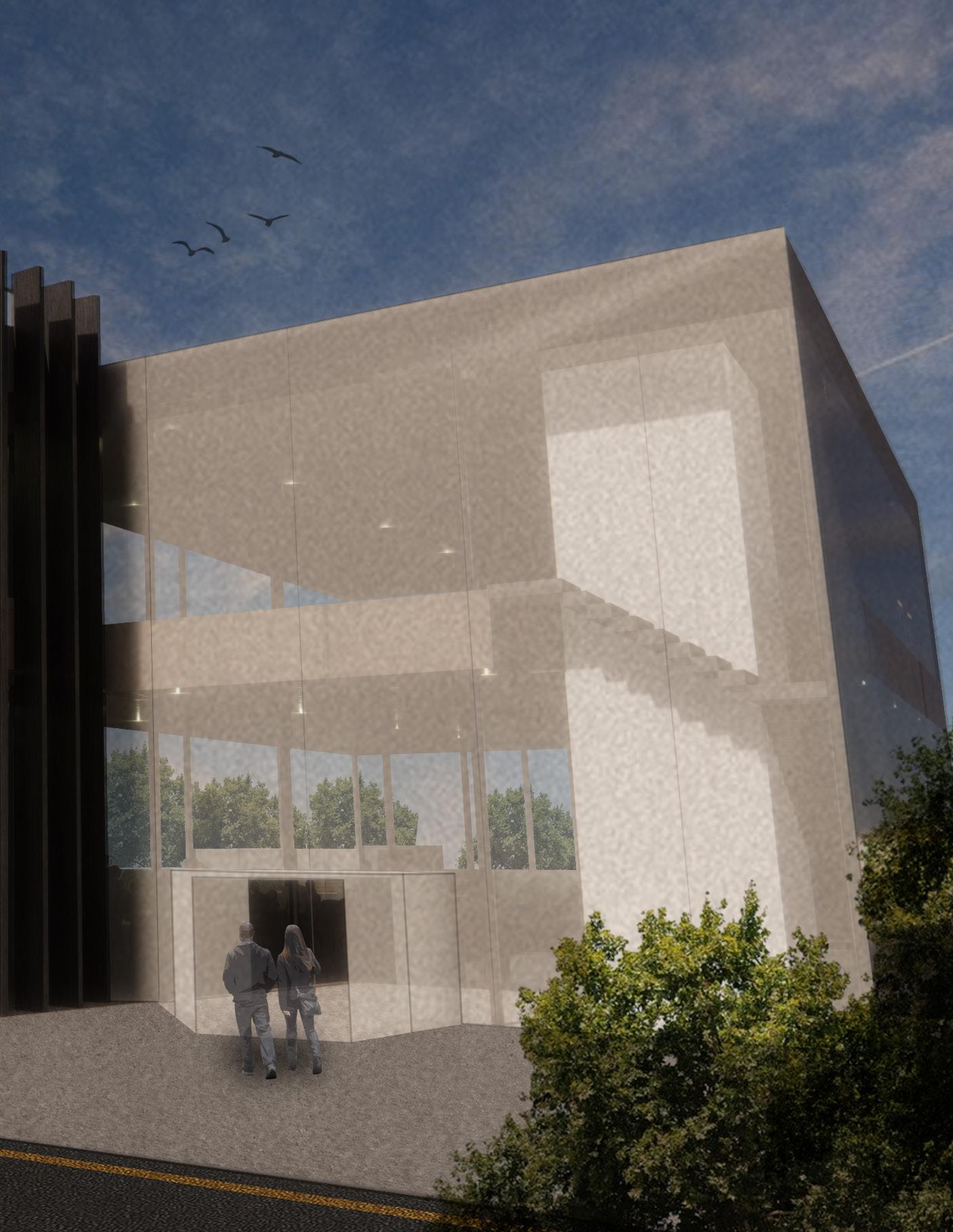

SAREE STORIES 01

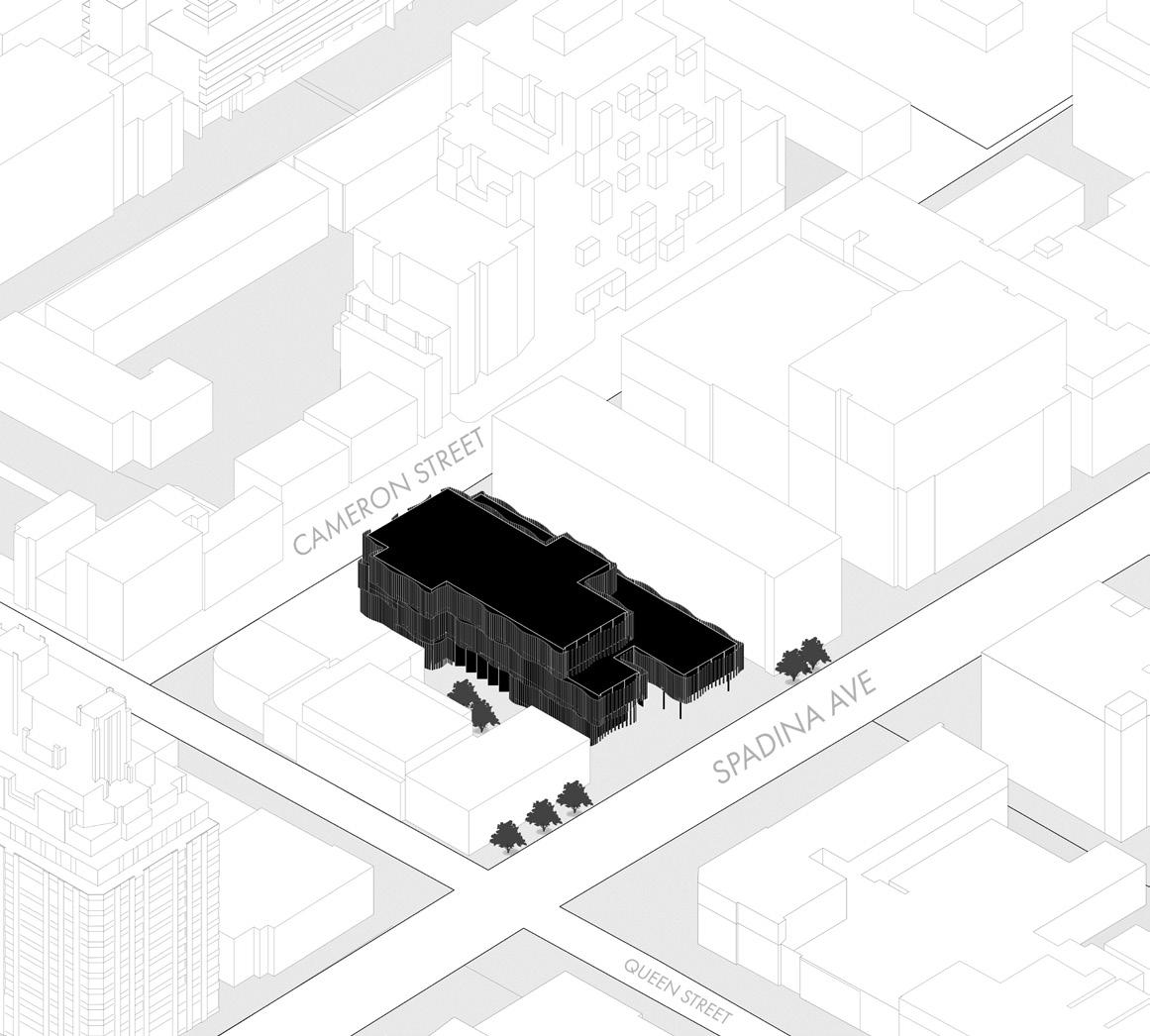

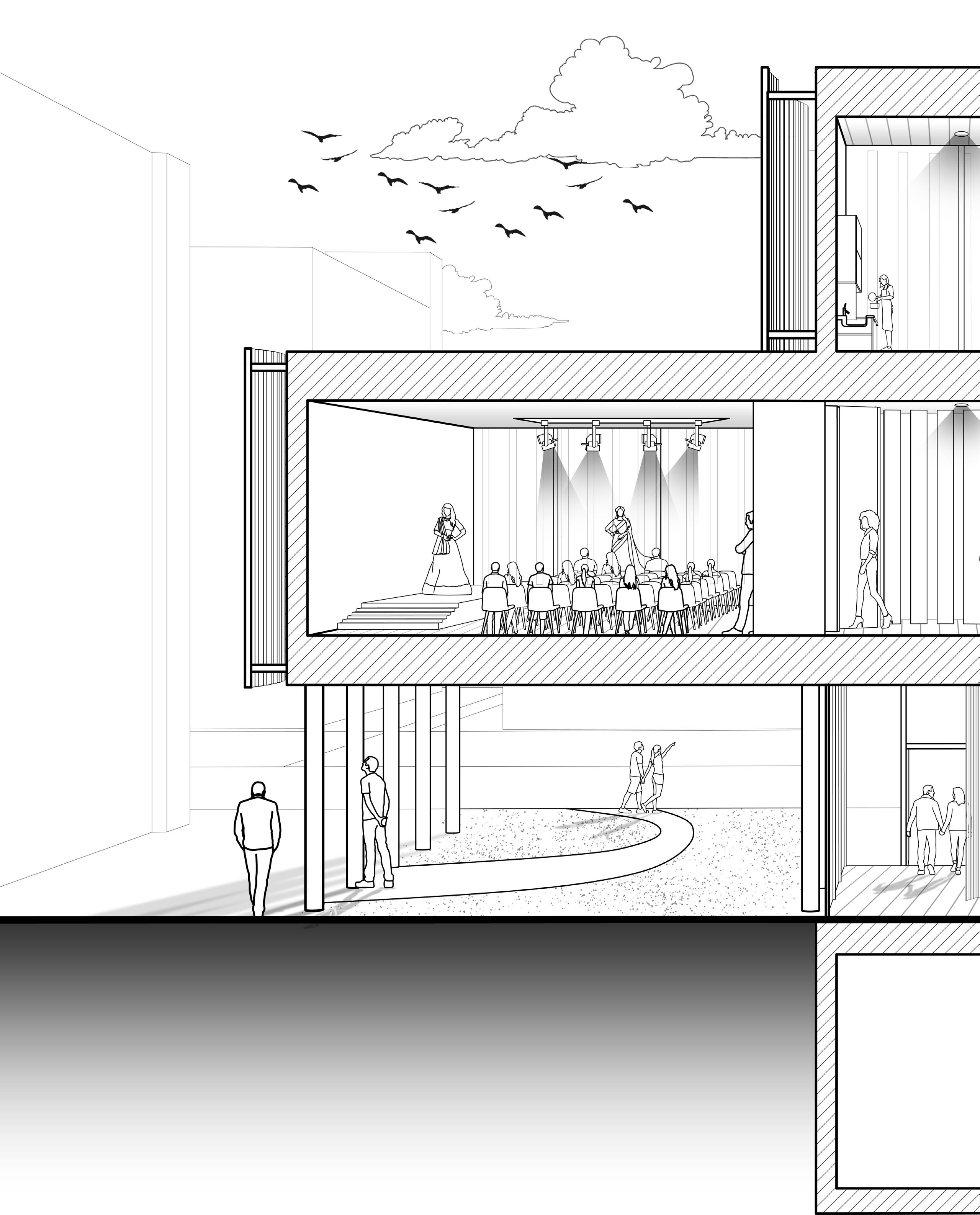

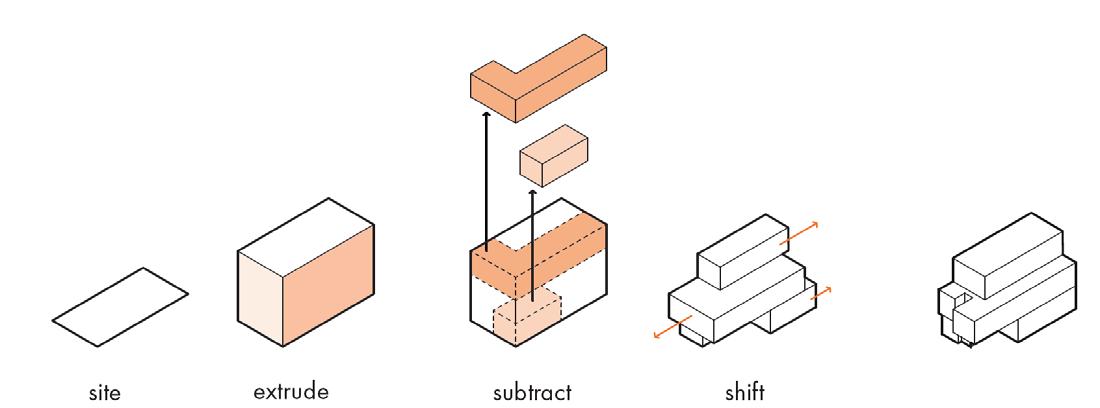

Nestled at the intersection of Spadina and Queen, the Saree Stories museum stands as a tribute to the timeless elegance of sarees showcasing the evolution of a cherished tradition. The museum’s exterior, a flowing facade mimicing the intricate folds of a saree wrap creating a visually captivating experience for visitors. The architectural flow mirrors the gentle drape of sarees and guides visitors in a way that resonates with the artistry and fluidity of the traditional attire where all circulations points are resembling the “body”. The slats strategically position throughout the museum highlight the concept of concealment and revelation echoing the tranformative nature of saree fashion over time.
COURSE: 2A DESIGN STUDIO FALL 2023
LOCATION: TORONTO, ON
SOFTWARE: RHINO, ENSCAPE, ADOBE PS, AI
7
8

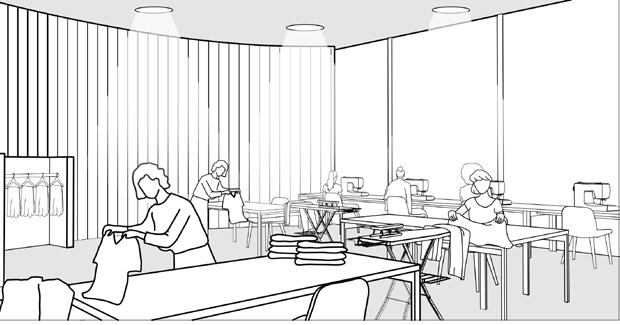

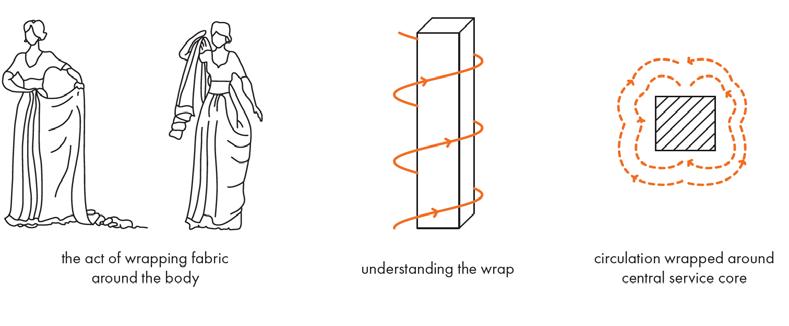

Saree Stories was drawn from the archived lost object research developed earlier on in the semester, object being - bringing back the traditional way of wearing a saree in Pakistan.
The sari is believed to bring a sense of dignity and grace to a woman’s personality, a thought that has been lost across the partition. So many people have forced themselves to forget parts of their own history due to the partition. These are histories of friendship, courage and sacrifice committed in a time of gross violence, it is an opportunity to realizing this.
BASEMENT GROUND FLOOR FIRST FLOOR SECOND FLOOR
9

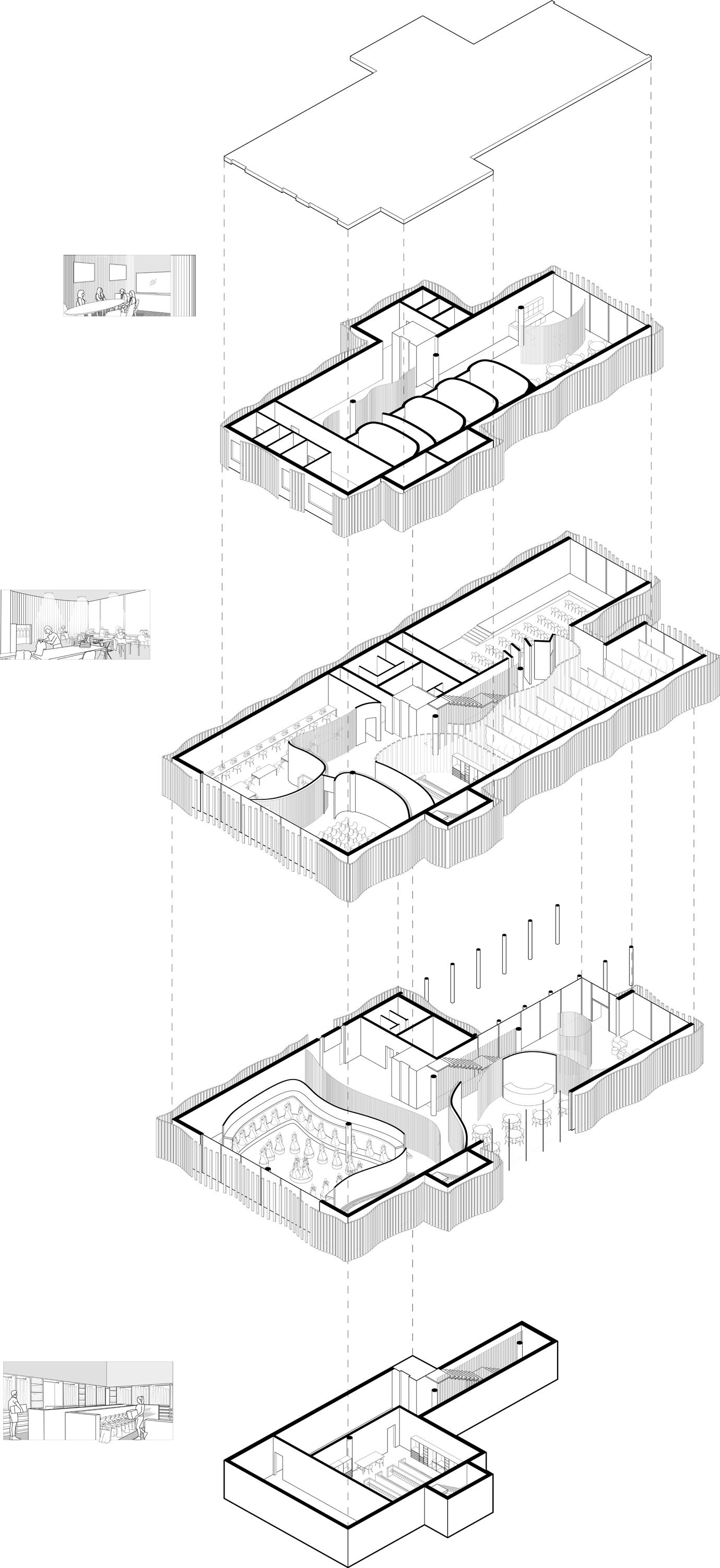

AXONOMETRIC 10
11
12
DANCING CIRCLES 02
CISC STEEL COMPETITION: 3RD PLACE PRIZE

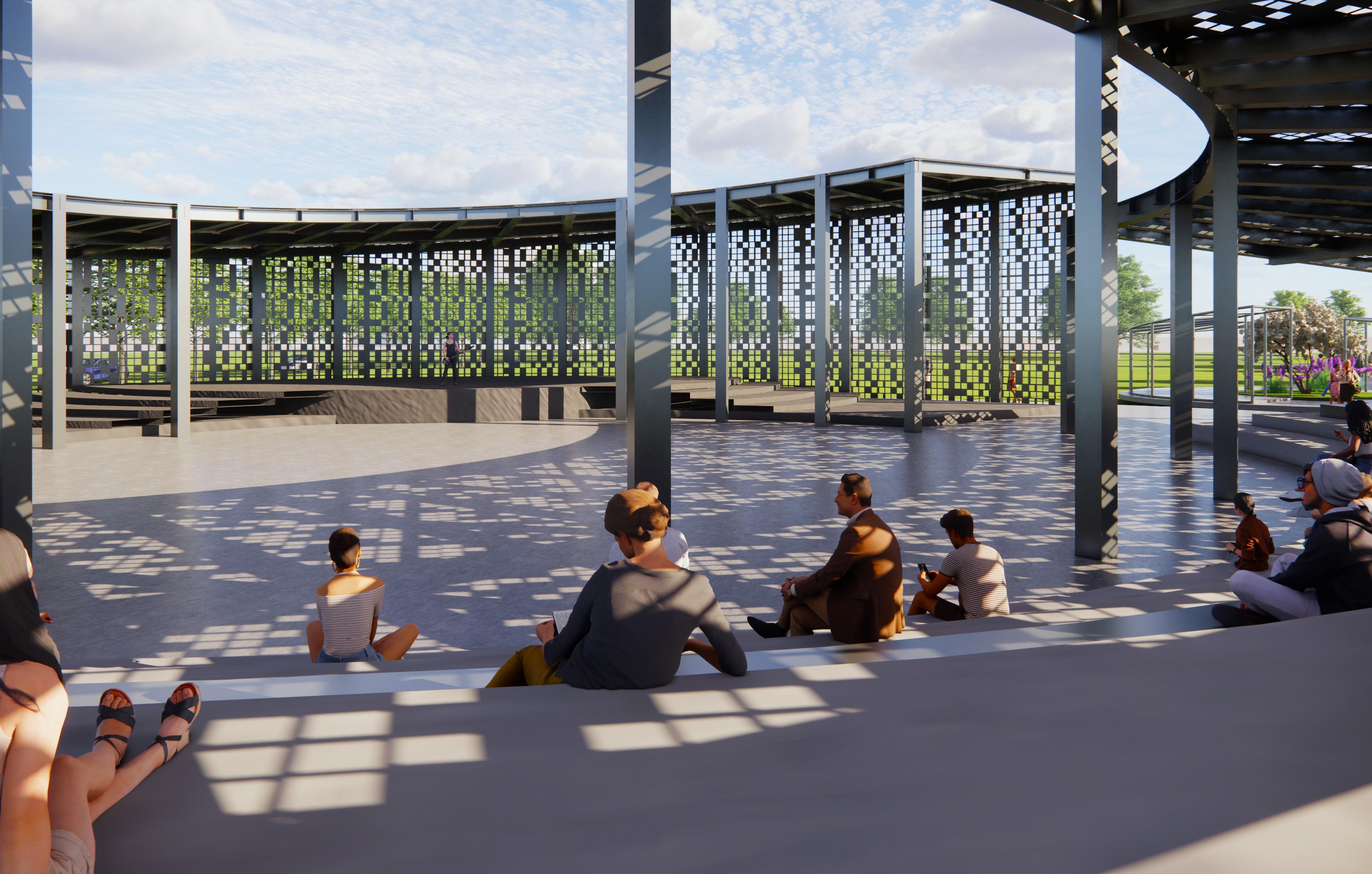

As an attempt to encourage outdoor activities while continuing to control the rules of social distancing during the COVID-19 pandemic, the city of Toronto drew circles on the grass at Trinity Bellwoods Park, located at the heart of Downtown, to give people the opportunity to safely enjoy the outdoors. The project takes inspiration from, and functions as a commermation of this installation of celebration. The features include a large, centerpieced outdoor pavillion accompanied with two smaller pavillions giving continuity to existing paths as well as further encoruage the surrounding nature. The use of perforated steel allow the playful dance of light and shadow throughout the day to celebrate harmony amoung thriving communties and mark the end of trying times.
COURSE: 1B BUILDING CONSTRUCTION WINTER 2023
LOCATION: TORONTO, ON
SOFTWARE: RHINO, ENSCAPE, ADOBE PS, AI
COLLABORATOR: EEMAN FATIMA KHAWAR
1 2 3 4 social distancing at Trinity Bellwoods park enlarge extrude paths for public engagement 15
16

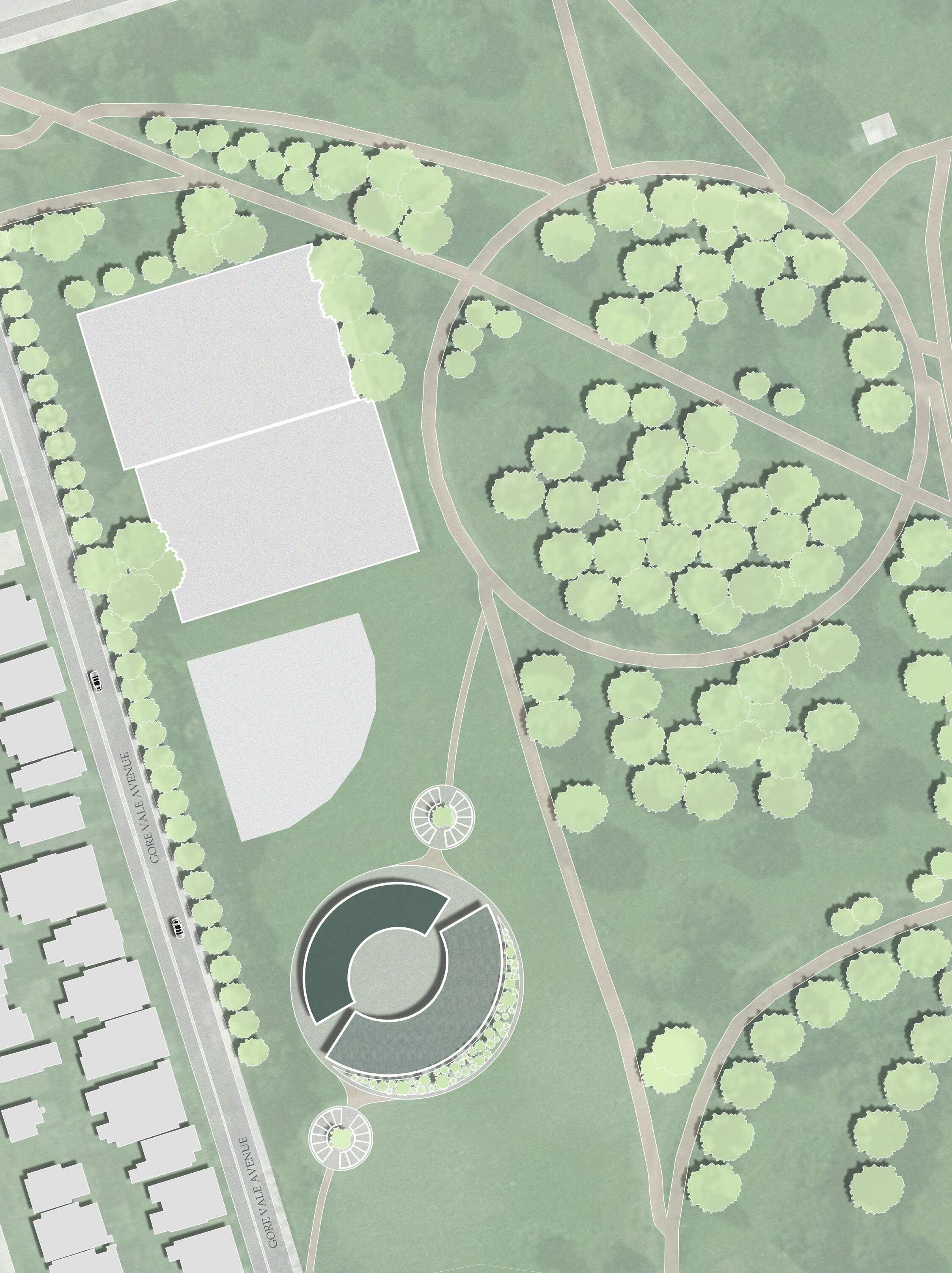

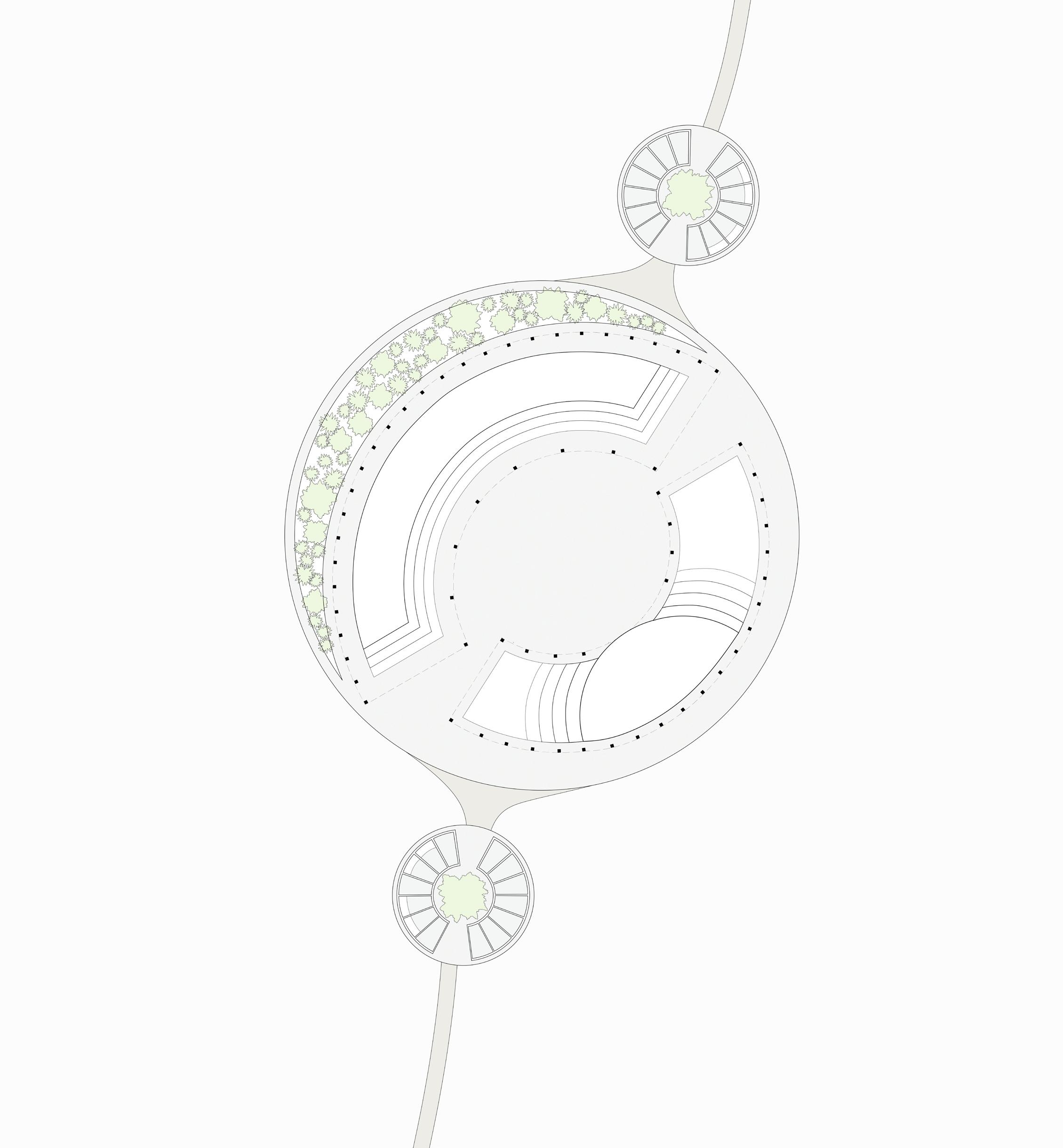

SITE PLAN 17
SEATING
STAGE
FLOOR PLAN

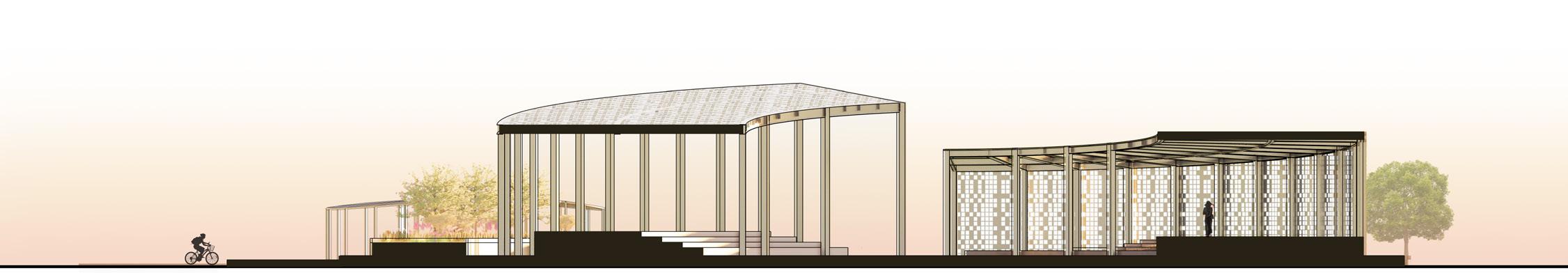

LONGITUDINAL SECTION 18
PANEL LAP WITH CONTINUOUS DOUBLE BEAD TAPE SEAL I-BEAM SWIITCH SCREW- LOCATE ONE AT EACH MEMBER AND REMAINDER SPACED EVENLY APART MEMBERS SCREW AT SUPPORT 1 2 3 4 3 2 5 CORRUGATED PBR PANEL TO BEAM CONNECTION DETAIL AESS 1 BOLTED BEAM TO COLUMN CONNECTION DETAIL AESS 3 BOLTED BEAM TO BEAM AESS 3 STEEL COLUMN TO PERFORATED ALUMINIUM PANEL CONNECTION DETAIL AESS 3 19
COLUMN BASEPLATE BOLTS, WELD TO COLUMN WITH FULL PENETRATION BUTT WELD BASEPLATE STIFFENERS, FILLET WELD TO BASEPLATE ALL AROUND COLUMN BASEPATE, WELD TO COLUMN WITH FULL PENETRATION BUTT WELD WEB STIFFENERS (BOTH SIDES), FILLET WELD PARALLEL FLANGE BEAM BASE PLATE STIFFENERS, FILLET WELD TO BASEPLATE ALL AROUND PERFORATED METAL PANEL STEEL RECTANGULAR TUBE STEEL ANGLE BAR BOLT AND CLAMP 5 6 BASE PLATE THREADED RODS SPREADED CONCRETE FOOTING WIDE FLANGE COLUMN 1 4 INCLINED BEAM TO HSS COLUMN CONNECTION DETAIL AESS 2 BEAM CONNECTION STEEL COLUMN TO CONCRETE FOOTING CONNECTION DETAIL AESS 3 NORTH ELEVATION 20
PERFORATED ALUMINIUM PANELS
CORRUGATED PBR PANELS
300mm HSS COLUMNS
300mm LONGITUDINAL I BEAMS
200mm LATITUDINAL I BEAMS
300mm WIDE FLANGE COLUMNS
PERFORATED ALUMNIUM PANELS
CONCRETE PLATFORM
1 2 5 4 4 3 6 STRUCTURAL AXONOMETRIC 21
PERFORATED ALUMINIUM PANEL
STEEL RECTANGULAR TUBE
STEEL ANGLE BAR BOOT AND CLAMP
300mm WIDE FLANGE COLUMN
METAL PBR PANEL TAPE SEAL SWITCH SCREWS
300mm I BEAM
200mm I BEAM BOLTS
MARLEY VINYL STAGE FLOORING STEEL TRUSS SUPPORT 200mm CONCRETE PLATFORM
BASE PLATE
THREADED RODS (250 mm embed)
330mm SPREADED CONCRETE FOUNDATION DETAILED
SECTION 22
WALL
STELLAR
Stellar is a pedestrian bridge that is located in Victoria Park in Kitchener, Ontario. The bridge seamlessly blends form and function to create an immersive experience, not merely a means of crossing from one side to another, it is a journey in itself.
The bridge’s structural framework is composed of mainly steel - perforated steel - crafted to interact with light and shadow. Inspired by the intricate patterns found in nature, the perforations in the steel are strategically designed, resembling the veins of a leaf. Sunlight dances through the perforation, casting ever-changing patterns on the ground that draws visitors deeper into the experience. The form is deliberate encouraging visitors as if they are being gently pulled into its form, as if the bridge itself is beckons one to explore its hidden secrets. Along the way are deliberatly placed viewing platforms providing dedciated vantage points where visitors can pause and appreciate the glimpses of natures.
Stellar is an attempt to emphasize the contrast of the openness of the nature versus the intentional closed off steel creating contemplative spaces for visitors.
COURSE: 1B DESIGN STUDIO WINTER 2023
LOCATION: KITCHENER, ON
SOFTWARE: RHINO, ENSCAPE, ADOBE PS, AI
03 experience through the bridge added perforation for light and shadow 25
26

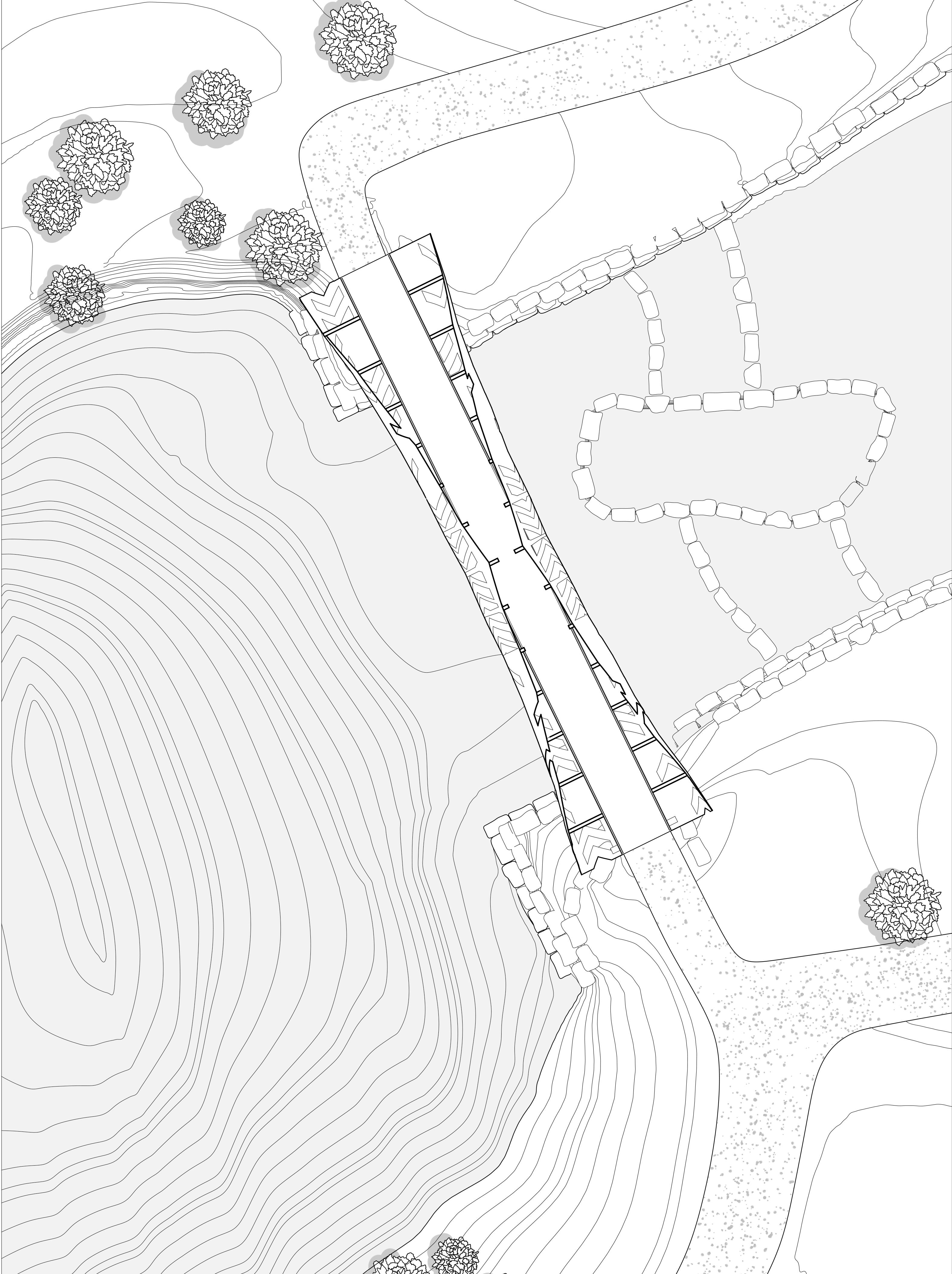

FLOOR PLAN 27
150mm x 150mm concrete:40cm x 280cm railings: 10mm x 1100mm
30cm x 35cm Shear Connectors: 7/8” diameter
STRUCTURAL AXONOMETRIC
Custom Steel Perforated Panels
Thickness: 2mm
STRUCTURAL
STEEL SHEETS BOLTED ONTO
STEEL
Reinforced
Steel
1 2 3 4 1 2 3 4 BEAM TO CONCRETE CONNECTION reinforced concrete deck sheer connectors steel beam 28
Structural Steel Skeleton
Concrete with Railings
I-Beams with Shear Connectors
29

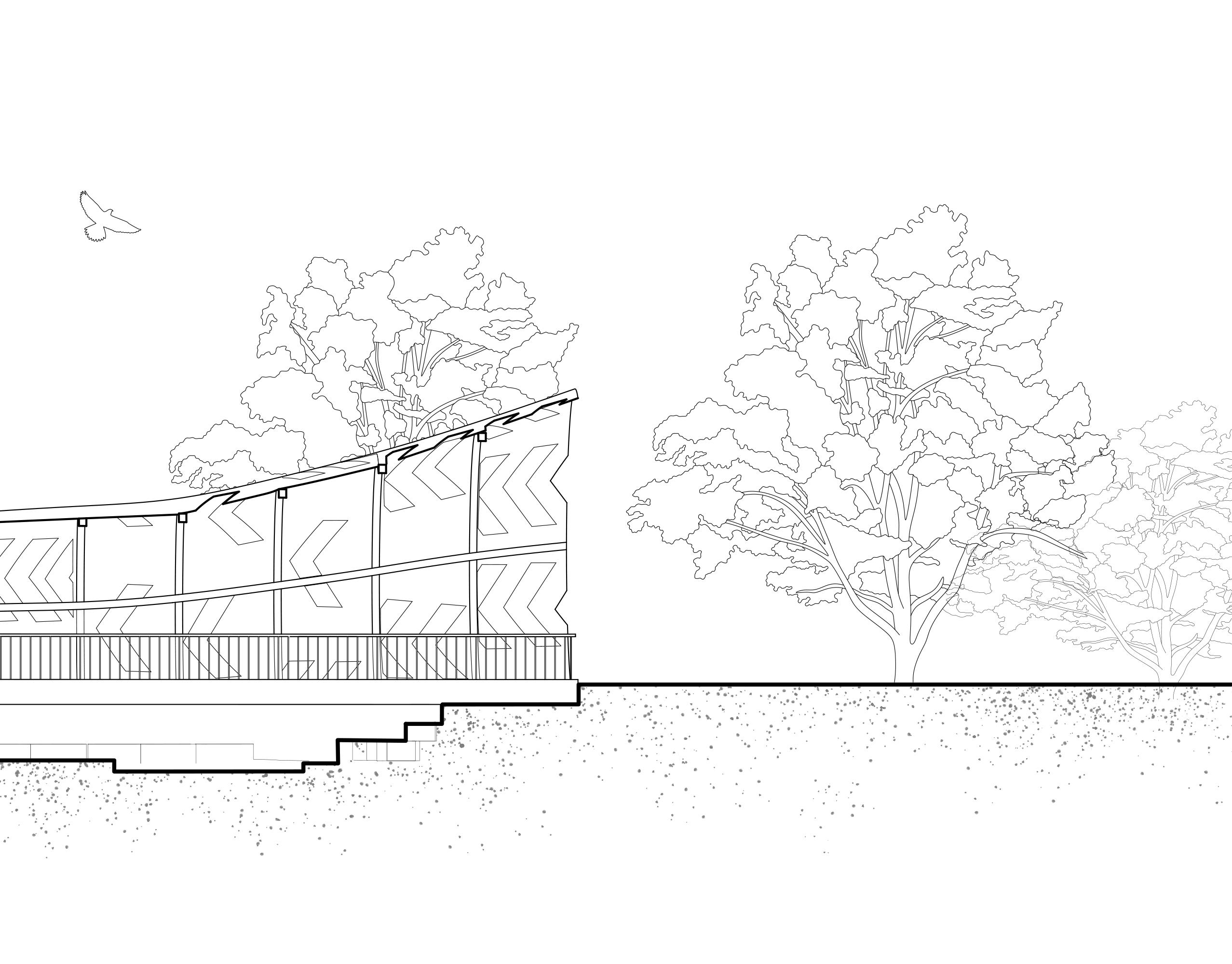

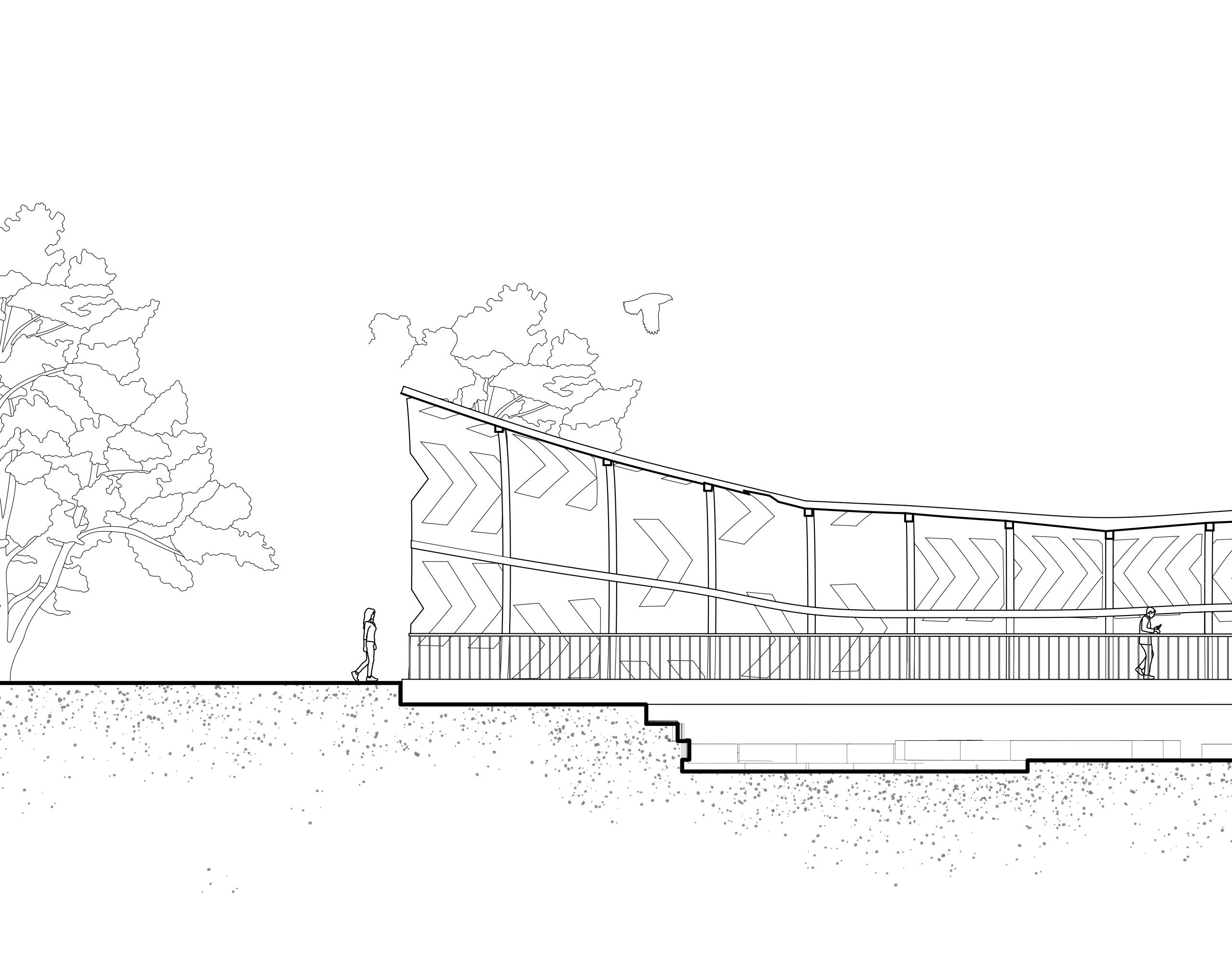

LONGITUDINAL SECTION 30
SLITS LIBRARY

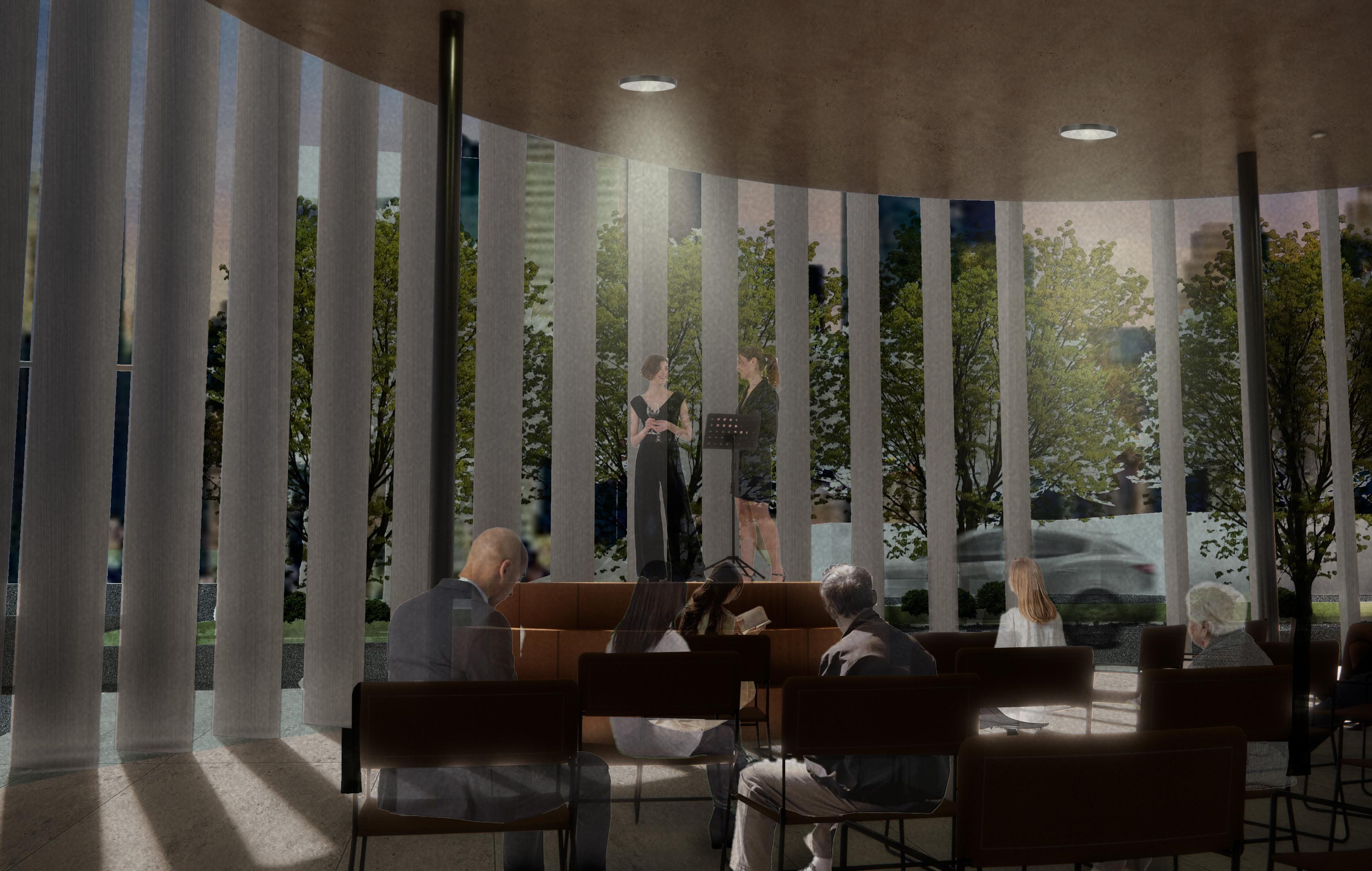

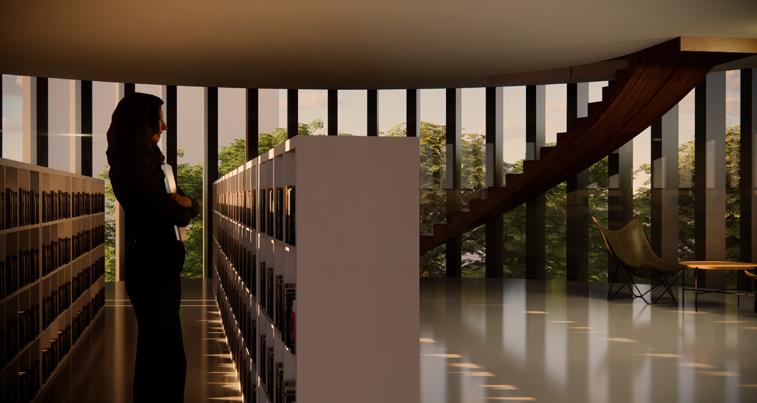

Located on the intersection of Thompson Street and Broadview Ave, the Slits Library acts as a library and local event spot - a complimenting space for communities to interact, encourage, share, learn and connect within the residential community. The shape follows the landscape serving as a welcoming entrance for residents within the community. The heart of the building lies within the circular form where the event space on the ground floor brings all communal spaces to intersect including the lobby and cafe.

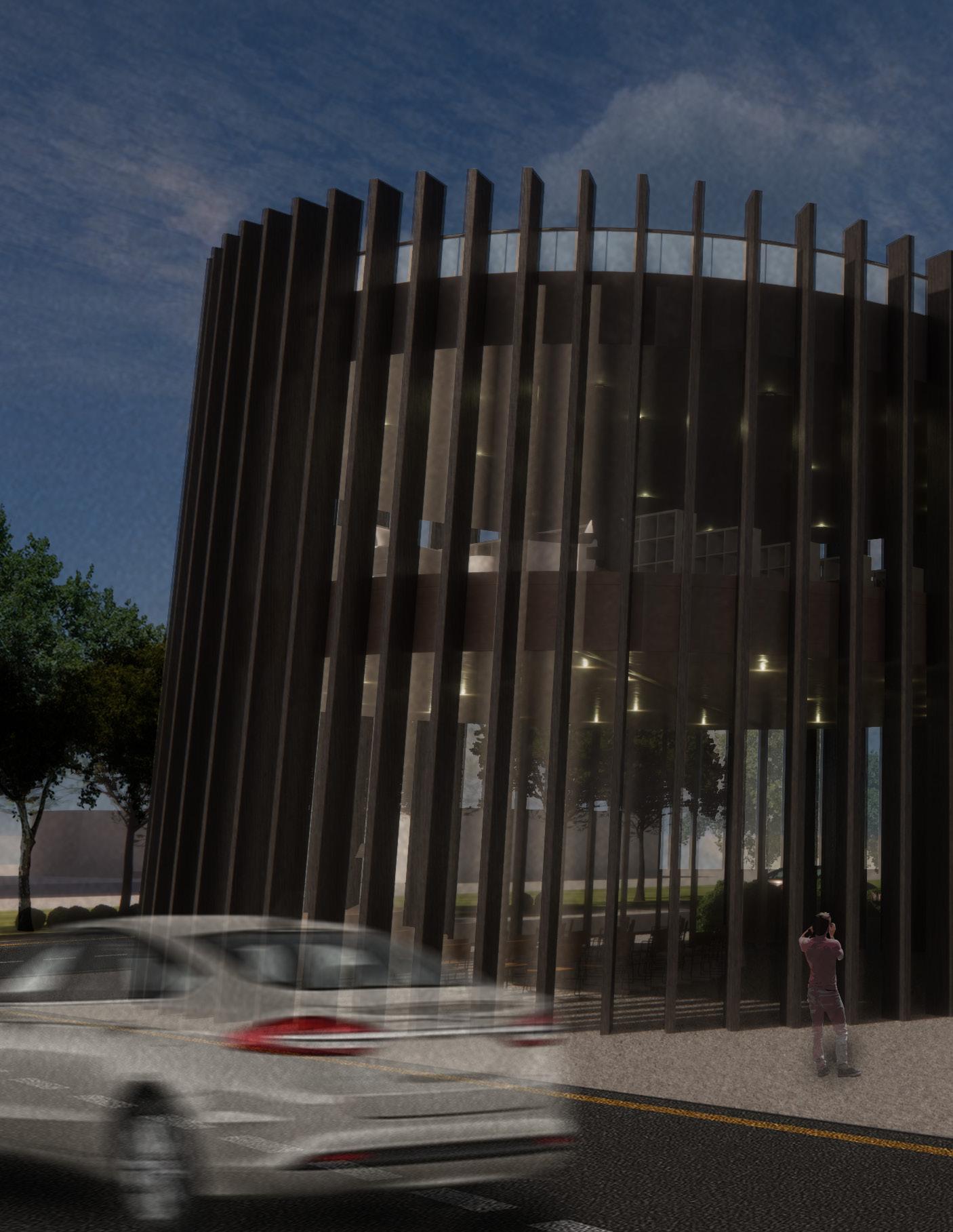

The overall structure plays with the idea of light. The building is covered in many vertical aluminum fins serving both aesthetic and practical purposes. The fins allow shade within the space as well as an opportunity for light to dance during different times of the day.
COURSE: 1B DESIGN STUDIO WINTER 2023
LOCATION: TORONTO, ON
SOFTWARE: RHINO, ENSCAPE, ADOBE PS, AI

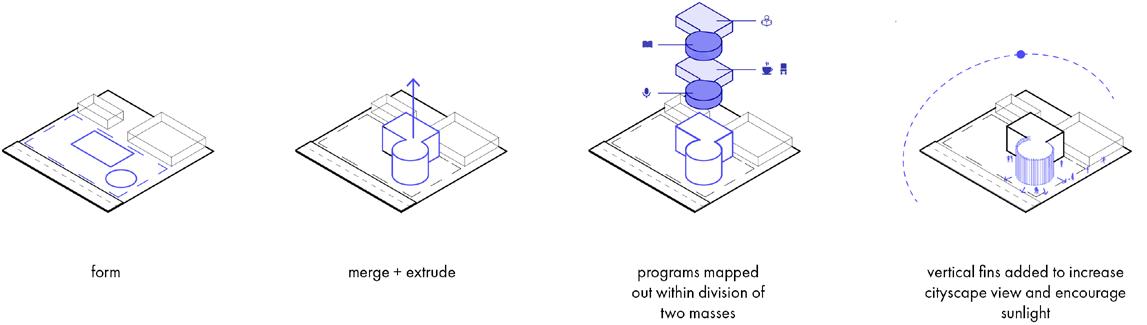

04 33
34

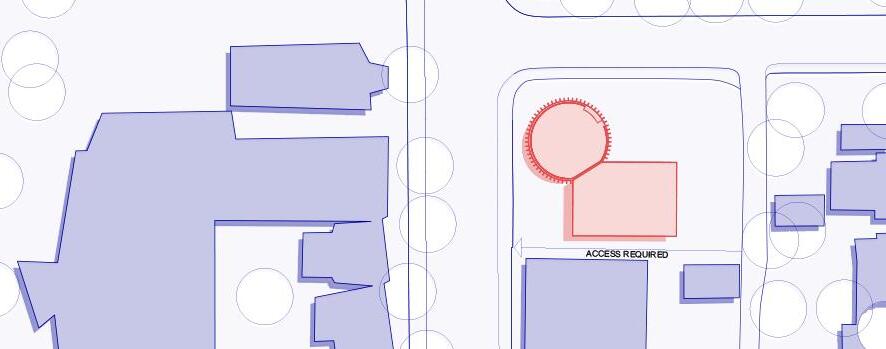

ACCESS REQUIRED
GROUND FLOOR PLAN
35
2ND FLOOR PLAN ROOFTOP PATIO PLAN

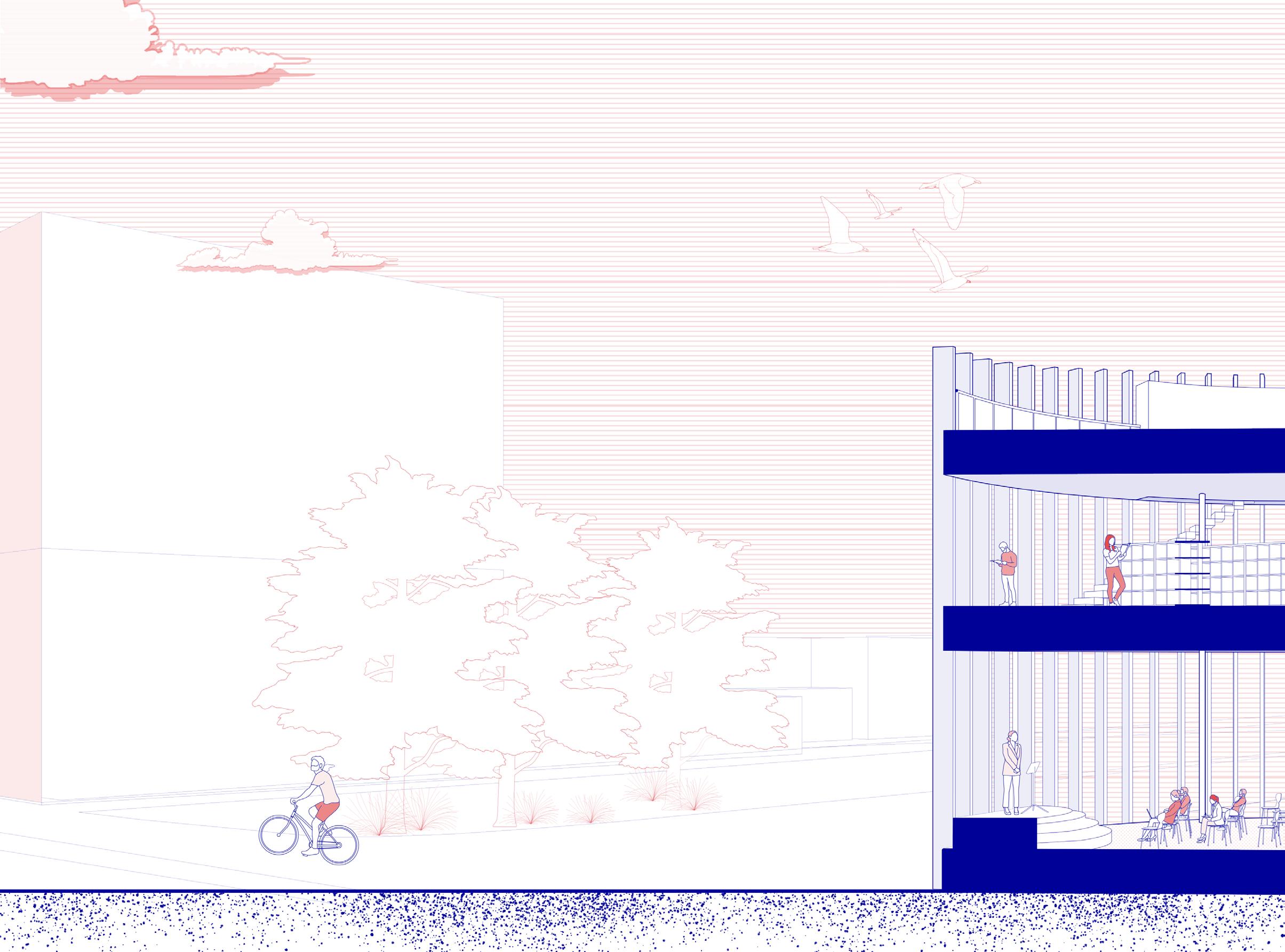

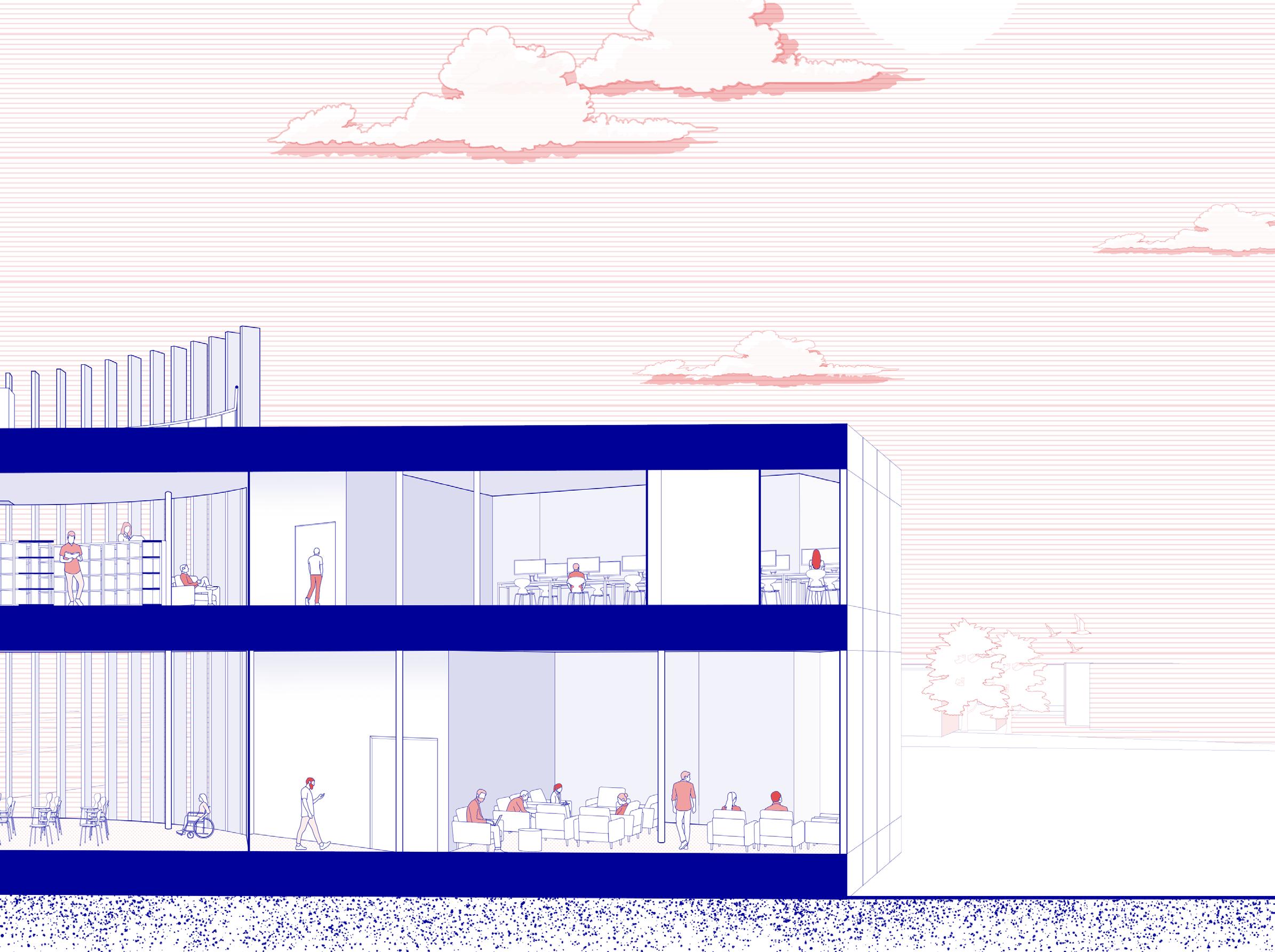

SECTIONAL PERSPECTIVE 36

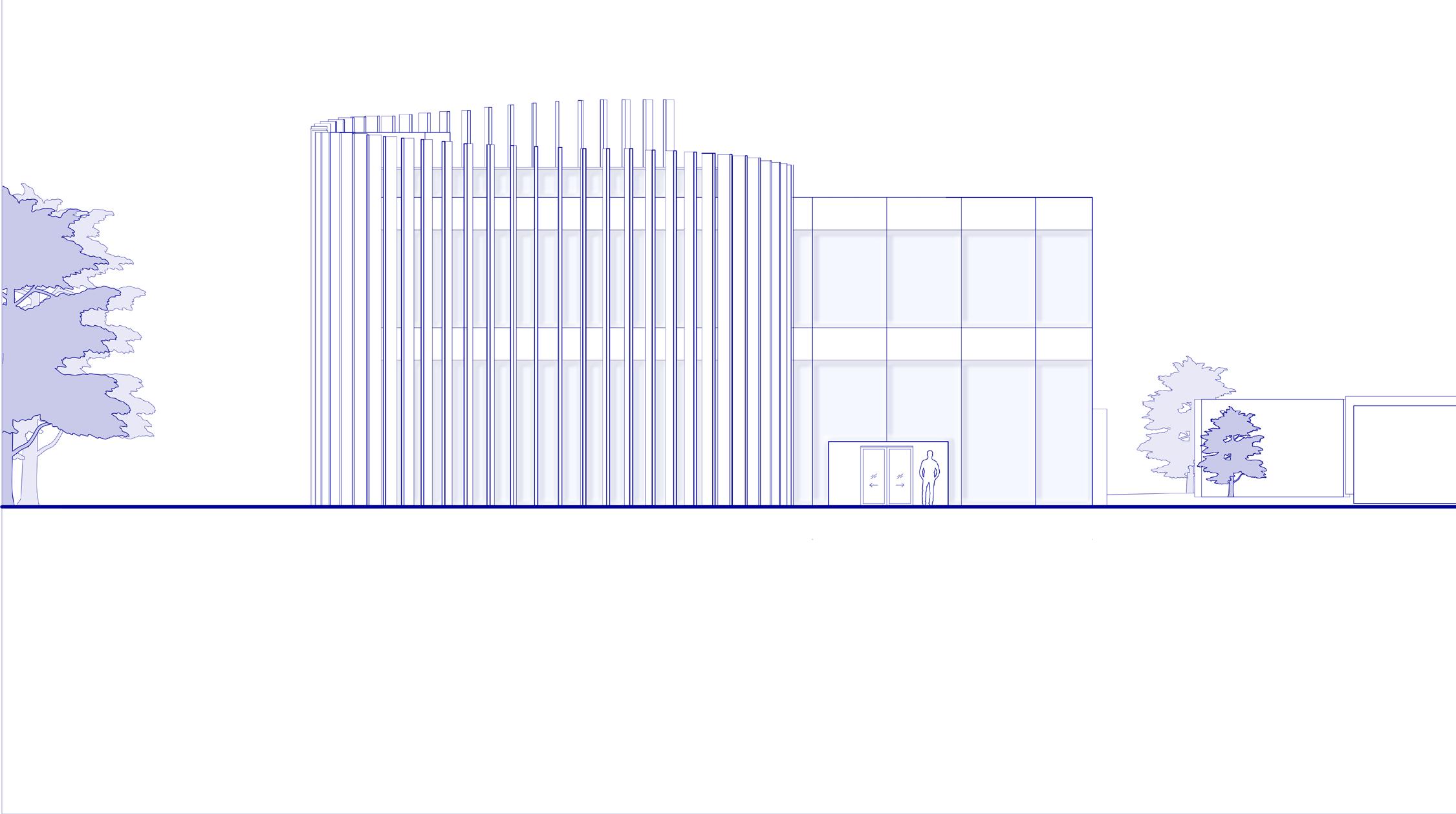

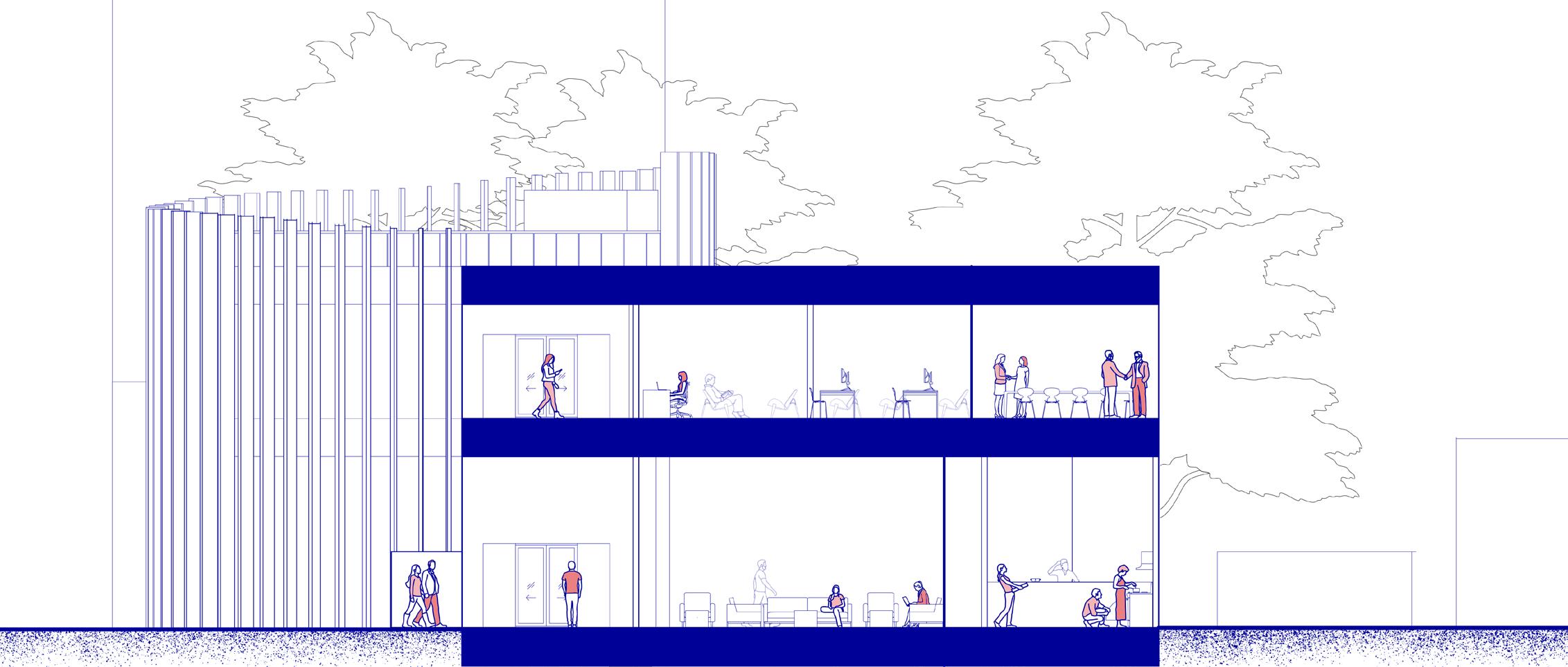

SITE PLAN LONGITUDINAL SECTION NORTH ELEVATION 37
CIRCULATION AND PROGRAMATIC AXONOMETRIC 38

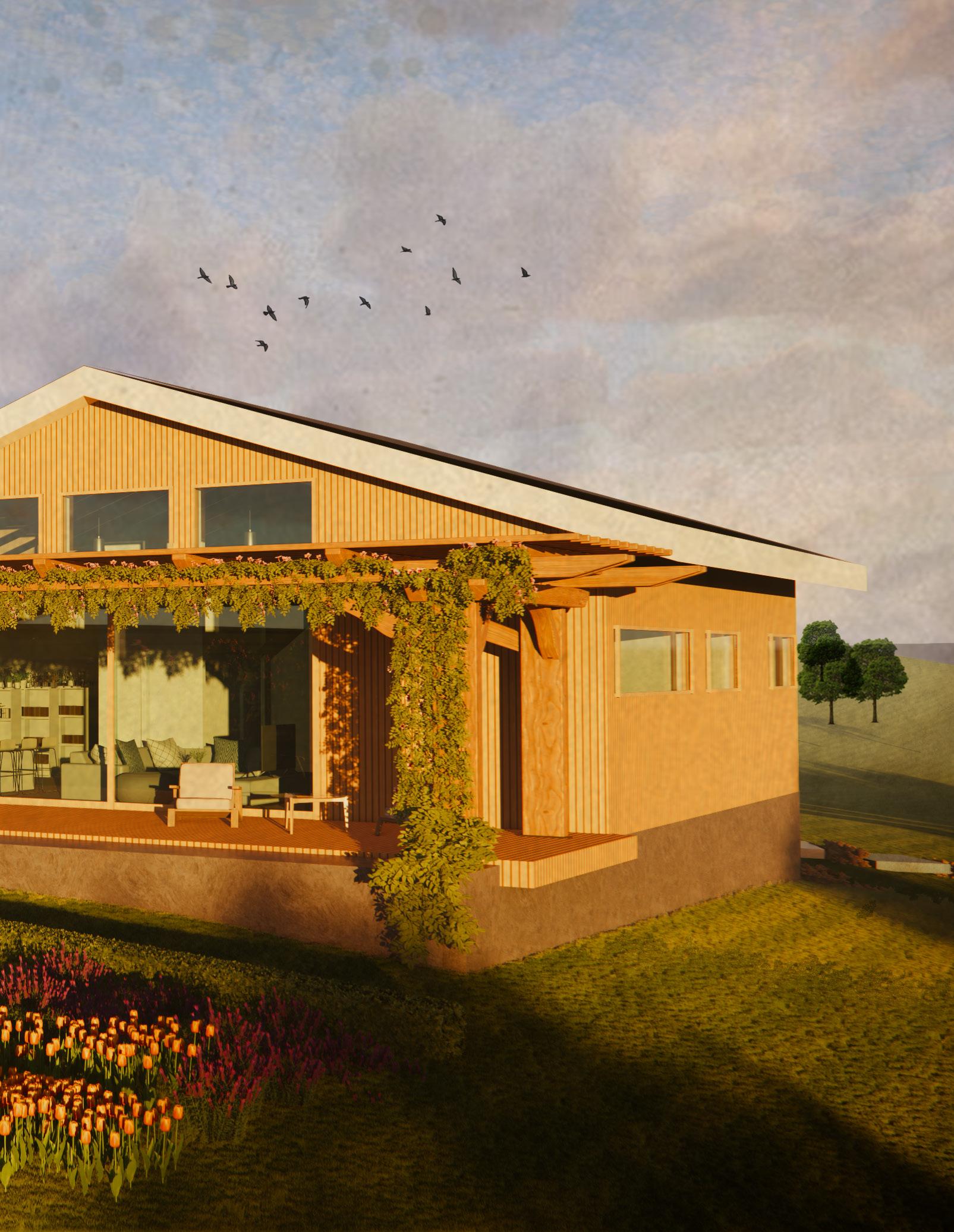

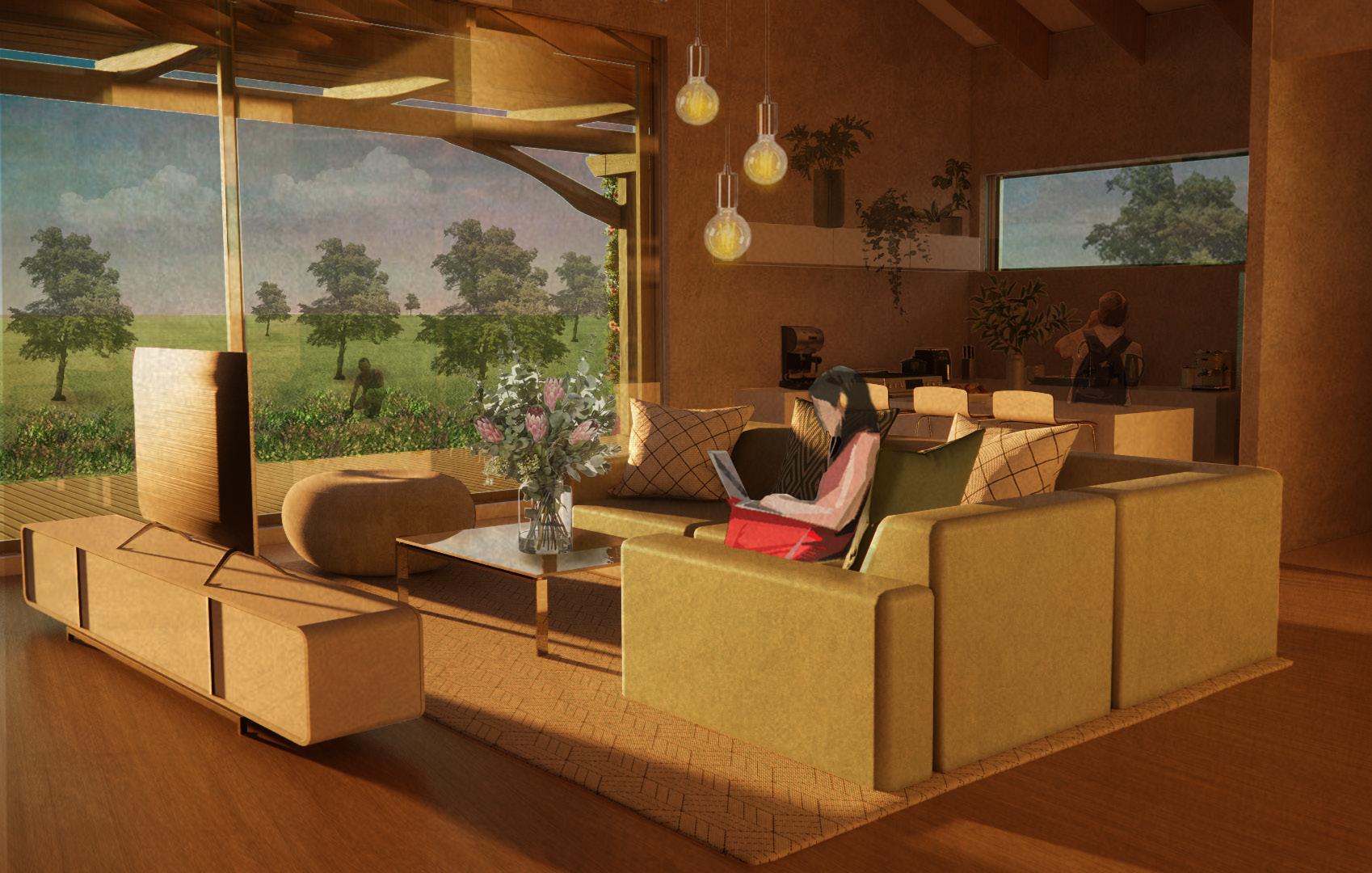

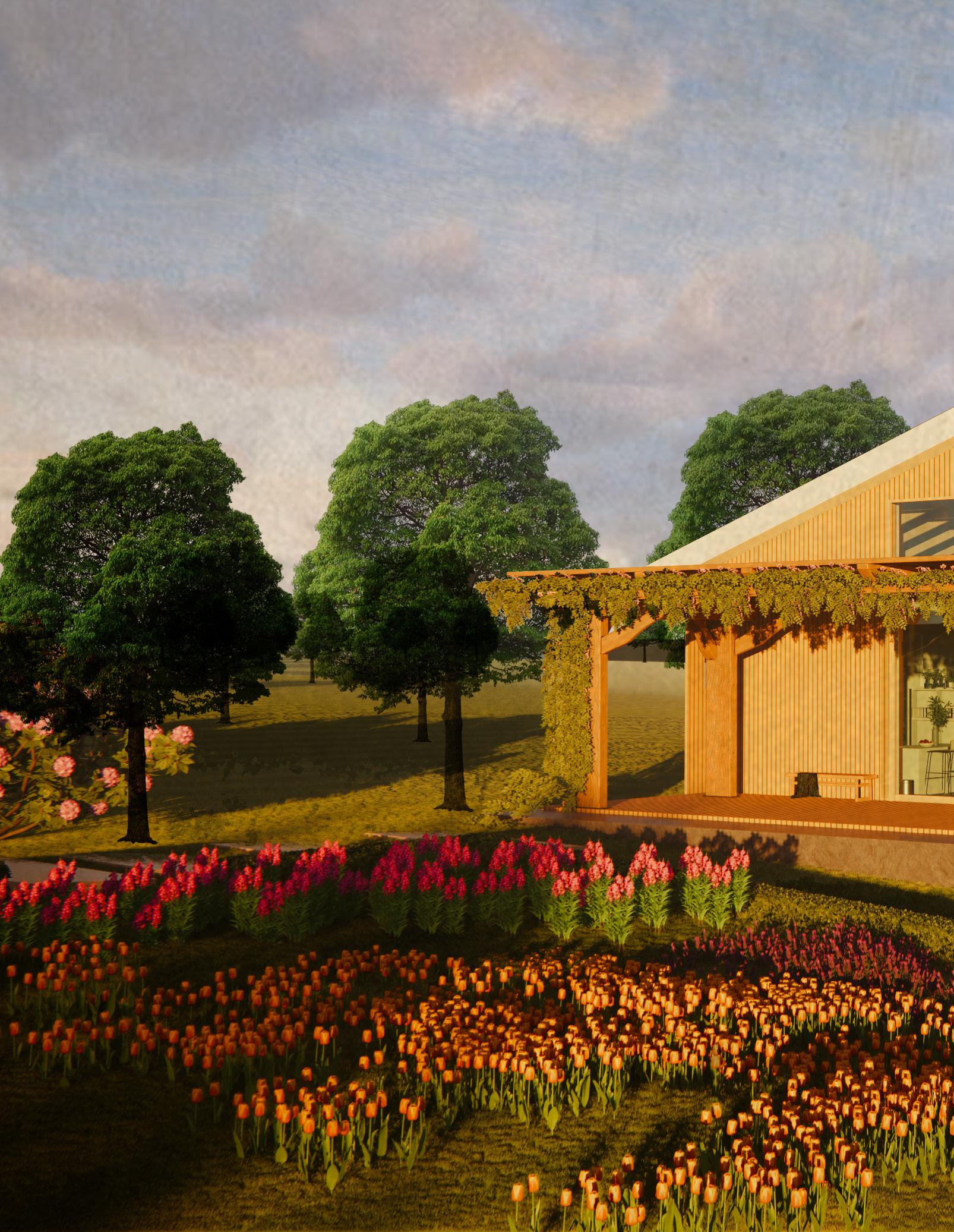

THE BARN HOUSE 05
Located near the Grand River that lies on the border of Cambridge and Kitchener, the Barn House serves as a research home housing agricultural scientists. The project focuses on the idea of integration - a blend of modernity and tradition. The house is mainly composed of locally sourced timber to create the exterior frame paired with straw bale insulation, a not only attractive finish but a sustainable and environmentally friendly material reducing energy consumption. The house also reuses materials from the previous existing site such as metal shingles and existing concrete foundation. The design also follows green building practises through sole reliance on solar panels for all energy, passive heating/cooling and ventilation through different systems.
CLASS: 126 ENVIRONMENTAL BUILDING DESIGN
LOCATION: CAMBRIDGE, ON
SOFTWARE: ENSCAPE, RHINO, ENSCAPE, ADOBE PS, AI
COLLABORATOR: SAMAN MUKKARAM
41 existing material on site from previous barn new existing reuse of concrete slab, local sourced timber frame built straw bale insulation with clay finish with wooden exterior shingles installed on roof from exisitng metal on site new existing
42

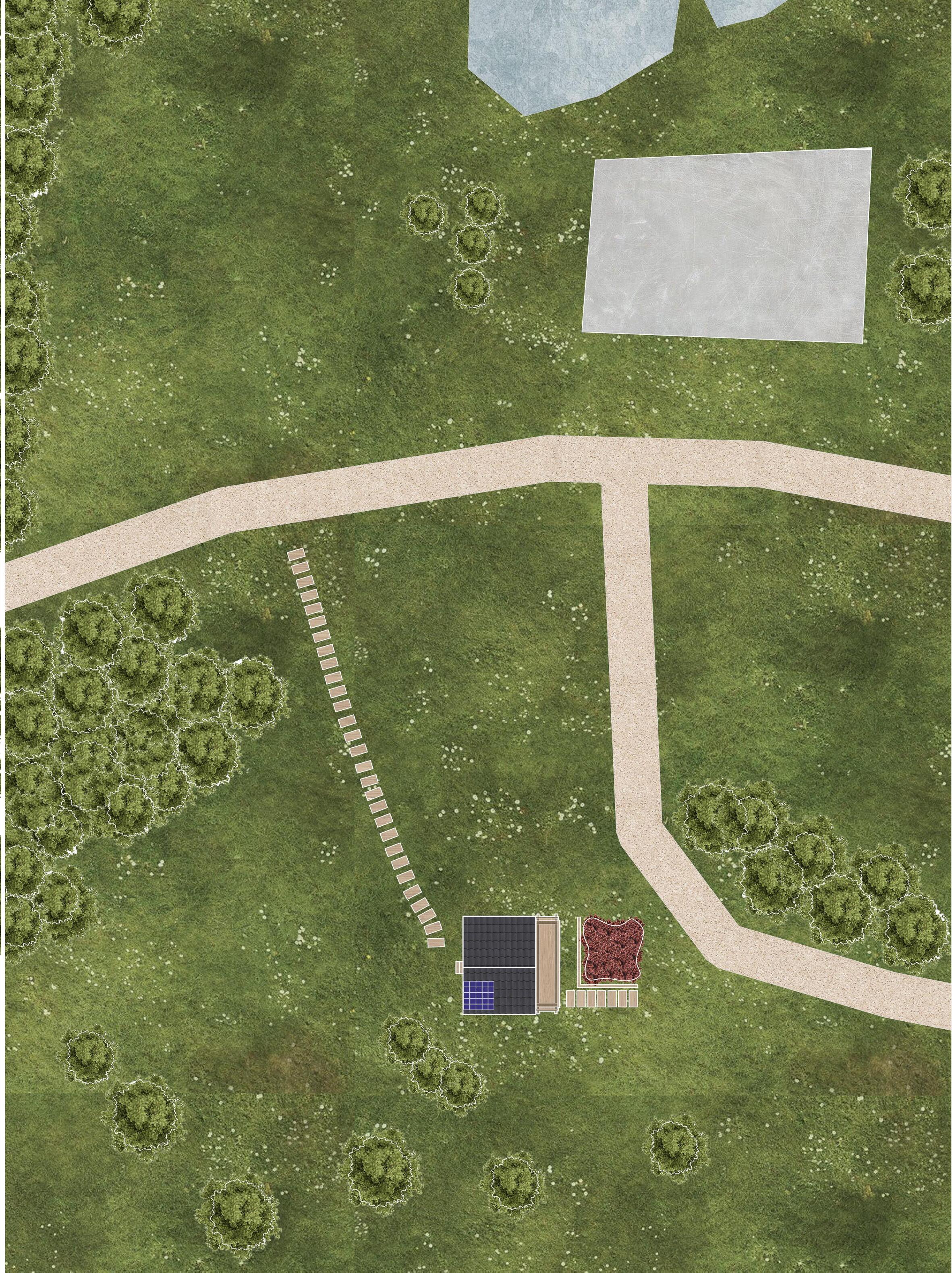

SITE PLAN 43
ROOF PLAN FLOOR PLAN 44
timber frame porch metal shingles solar panels
WEST ELEVATION summer solstice winter solstice winter solstice summer solstice 45
SOUTH ELEVATION

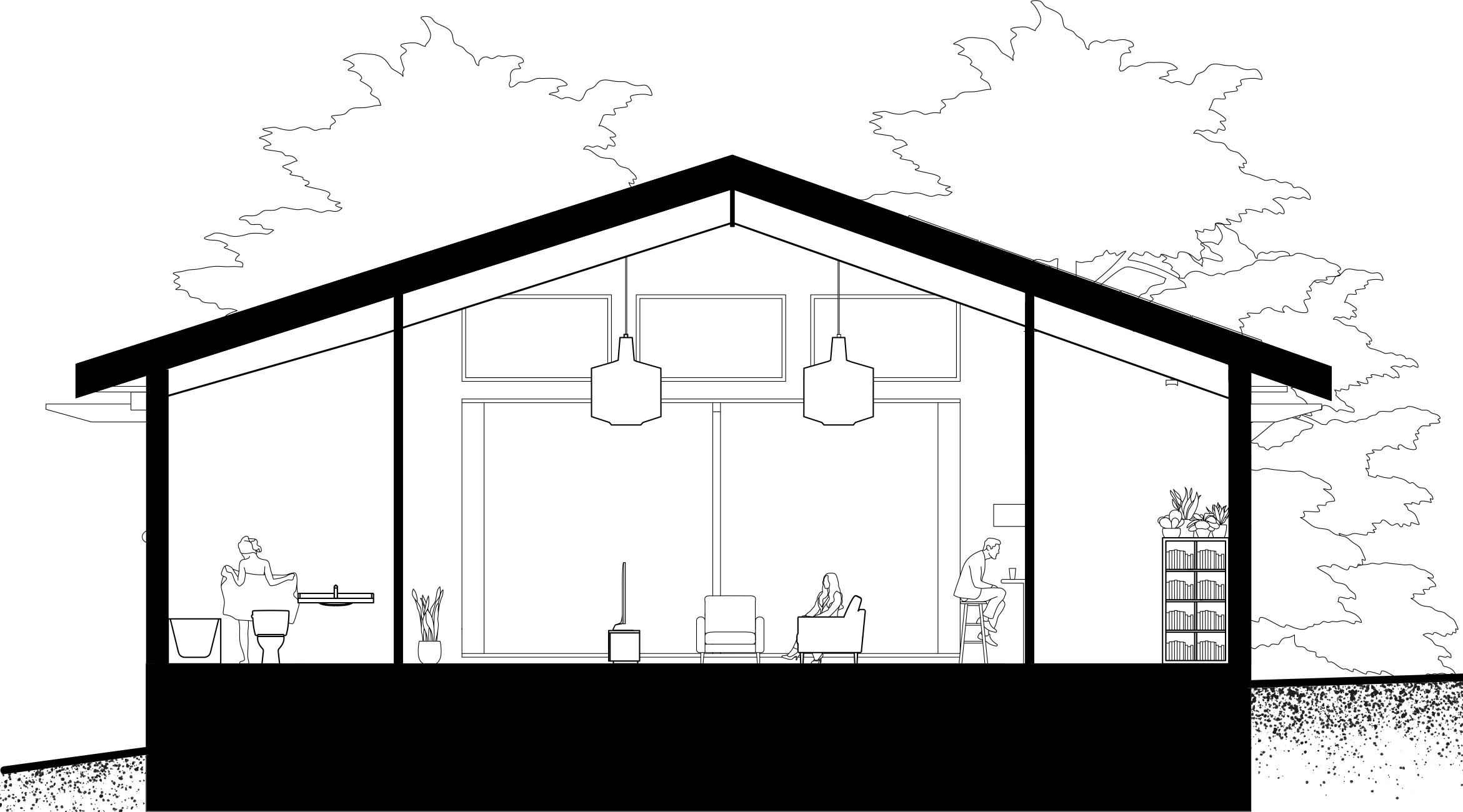

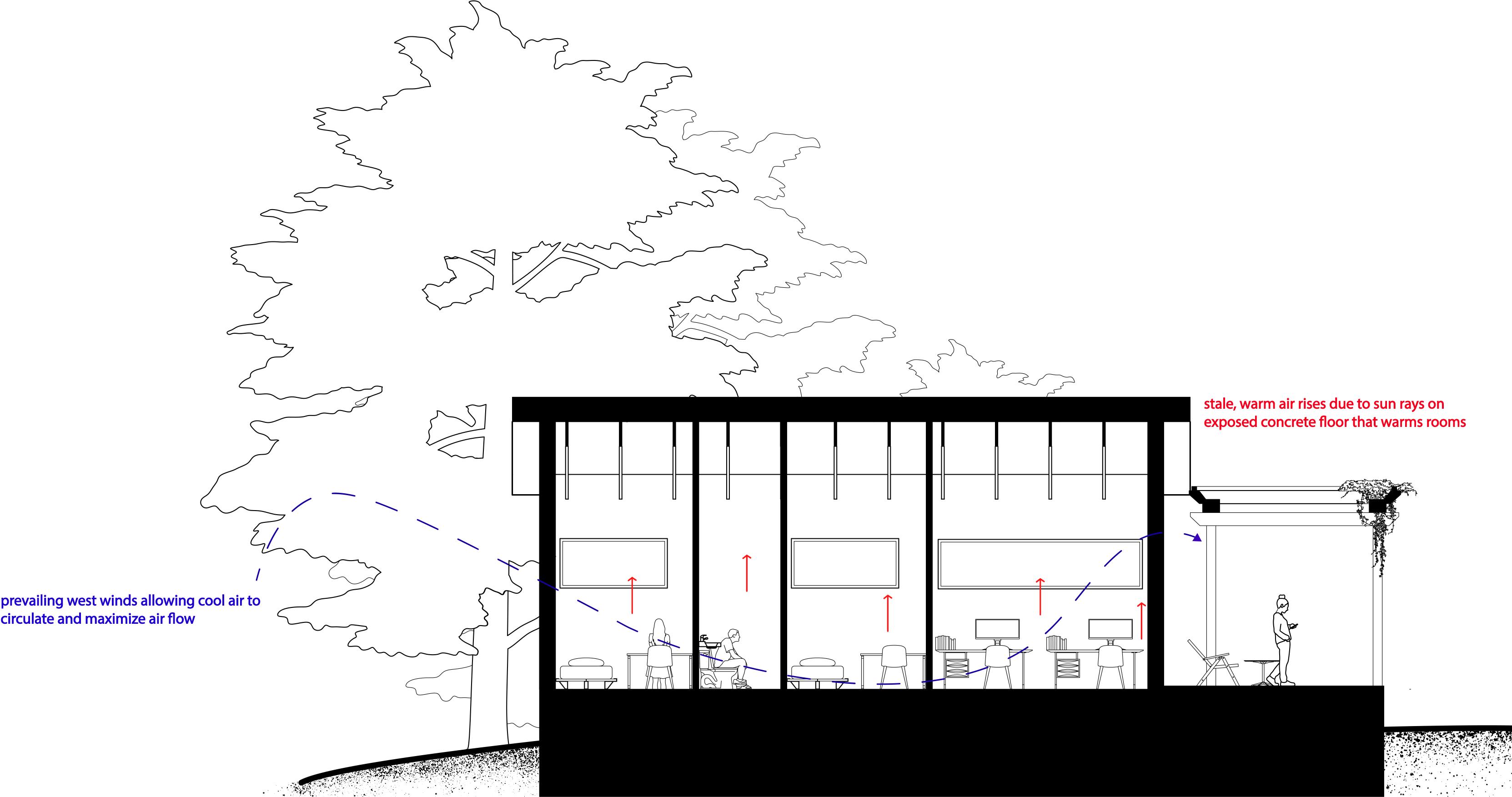

LONGITUDINAL SECTION 46
LATITUDINAL SECTION
WALL VOIDS WITH STRAW FILL
4X4 TIMBER POST AND BEAM FRAMING WITH STRAWBAKE INFULL
WOOD CLADDING
BOX TRUSS AND 2”x4” FRAMING
TYPICAL TOE UP WITH CLEAN GRAVEL INFILL AT THE BASE RUN OF THE STRAWBALE INFILL WALL
EXPOSED CONCRETE SLAB
RIGID INSULATION
GRADE METAL SHINGLES
WINDOW
DETAILED WALL SECTION 47
plywood
space nails 12” on center; 6” on center at ends of panels
shingles on roo ng felt
roo ng felt underlayment
hot mopped layer of asphalt coating with adequate weatherability beneath underlayment incase of no shingle placement
ROOF MATERIAL ASSEMBLY
roof trusses
sheathing installed with long
across supports vertical joints staggered ridge beam rafter xing each rafter to beam with skew nails (4/75 x 3.15 mm) 15 mm deep housing 25 x 1 mm strap with 6/30 x 2.5 mm nails into each rafter when it supports ceiling lining 1. Sun goes in to the panels. DC Electircity comes out. 2. An inverter takes the unwanted DC electricity and converts it into 240V AC power that is compatible with out appliances 3. AC electricity goes through a disconnect switch 4. Solar electricity connects into the home’s wiring through existing fusebox 5. Utility provides a new “Import?export” meter to make sure that your new system can export power when not in use. KEY: internal house wiring electricity company wiring
dimensions
BEAM DETAIL ENERGY SYSTEMS 48
WOODEN
OTHER WORK 05
As part of a course that emphasized invoking memory through abstract means rather than literal representation, I focused on various fabrication techniques and their joinery methods. By experimenting with materials, textures, and forms, this approach allowed me to explore and innovate in creating projects that evoke emotional and nostalgic responses while bettering my skills in different construction and assembly methods.

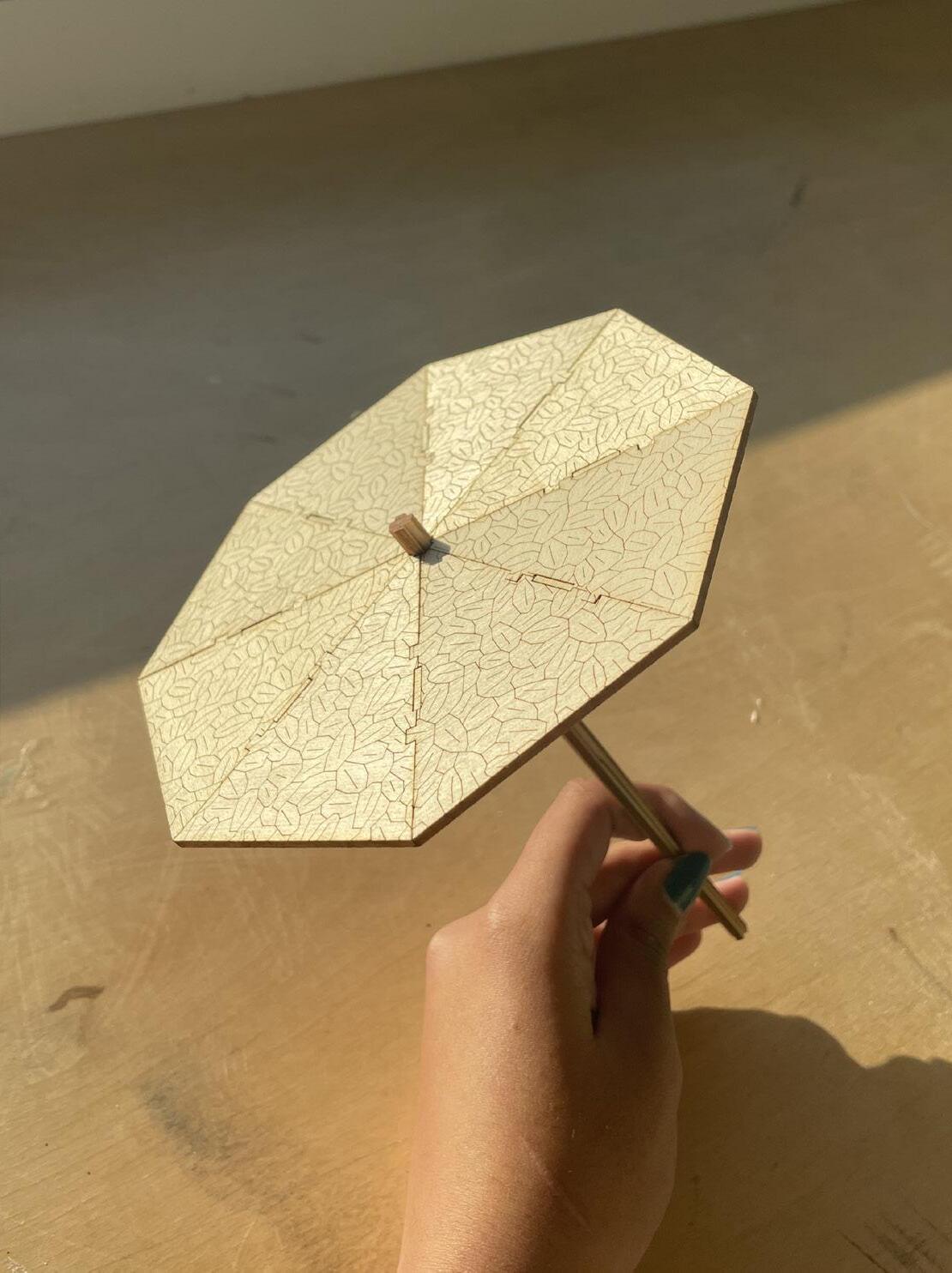

In the above collaborative project centered around a Chinese umbrella, our group members merged their individual topics of study to create a unified and cohesive object. My focus was on incorporating traditional elements, leading to the intricate etching of saree motifs on the top of the umbrella. The methods of joinery included finger joints, tab and slot, dovetail joints, and interlocking mechanisms.

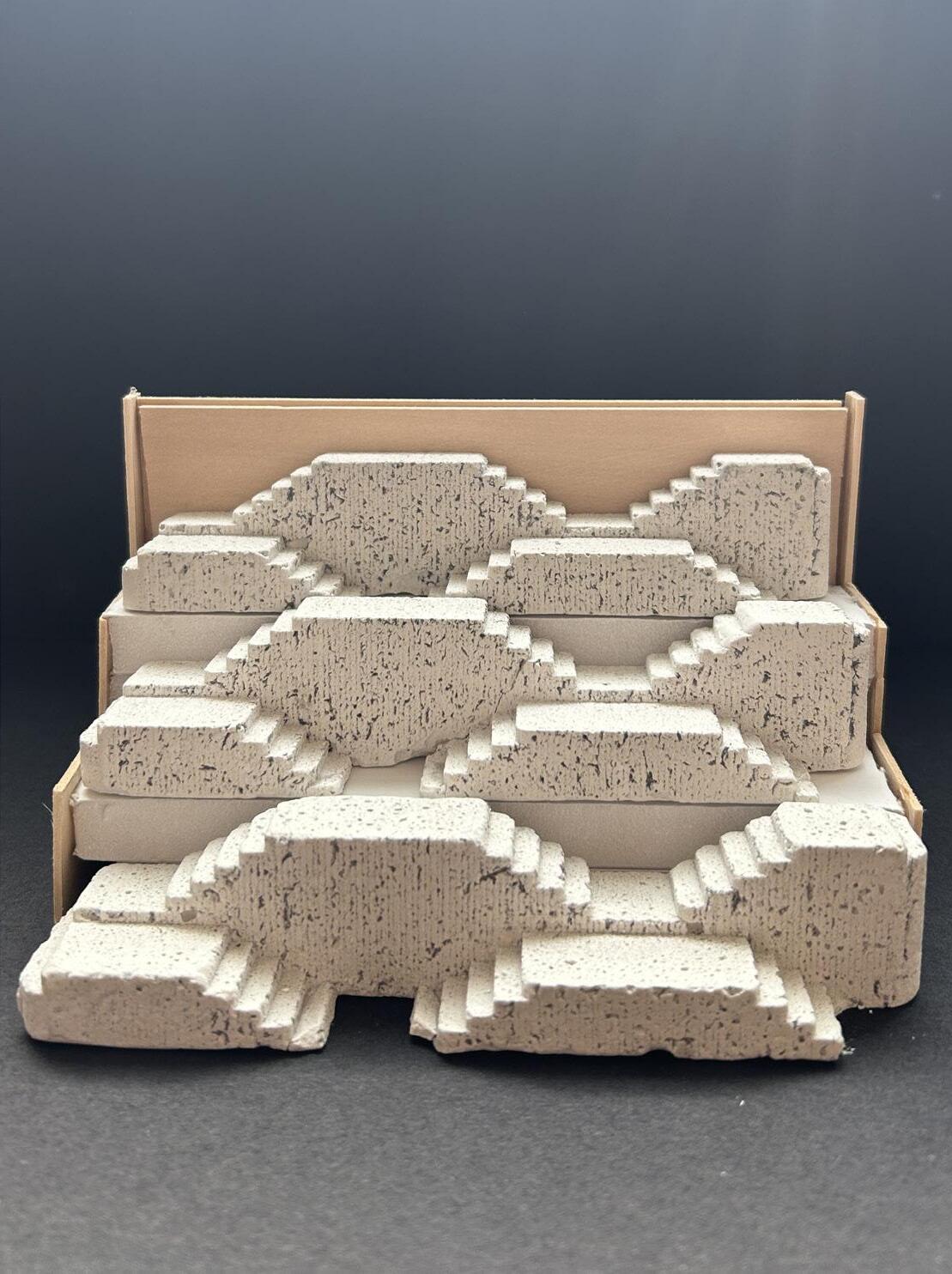

The below project delves into the morphology of India’s majestic stepwells, with a particular focus on the renowned Chand Baori stepwell. We explored the formation and architectural intricacies of these steps, gaining insights into the innovative and thoughtful design strategies behind them. This understanding was further enhanced by creating a small fragment model, cast in plaster and formed within a CNC-milled foam mold.
CLASS: 2A DIGITAL FABRICATION
SOFTWARE: RHINO CAM, AXYZ 4010 ATC CNC ROUTER, RHINO
51
52
PROFESSIONAL WORK 06
As a map designer at Mappedin Inc., I created 3D models to enhance indoor navigation systems, improving user experience and efficiency. I digitized indoor venues by translating blueprints and architectural plans into visually appealing maps using Adobe Illustrator, AutoCAD, and in-house CMS software.
COMPANY: MAPPEDIN INC
SOFTWARE: AUTOCAD, ADOBE AI, MAPPEDIN CMS, MAPPEDIN MAKER
53
We were assigned a Mapper Challenge to test our creativity using the MappedIn software, with the goal of creating a space that evoked nostalgia based on a given prompt.

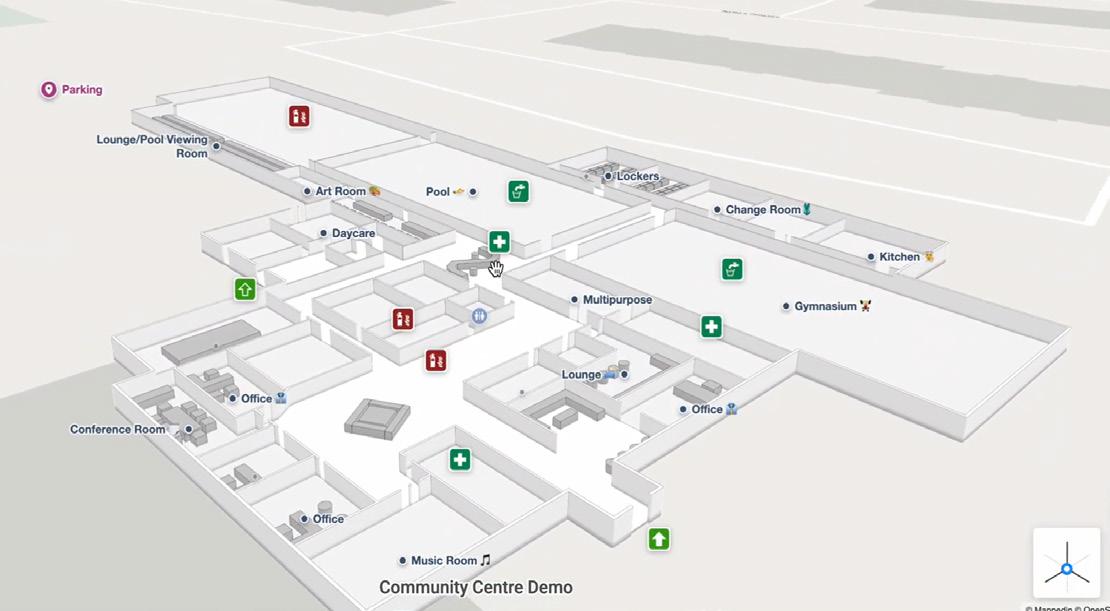

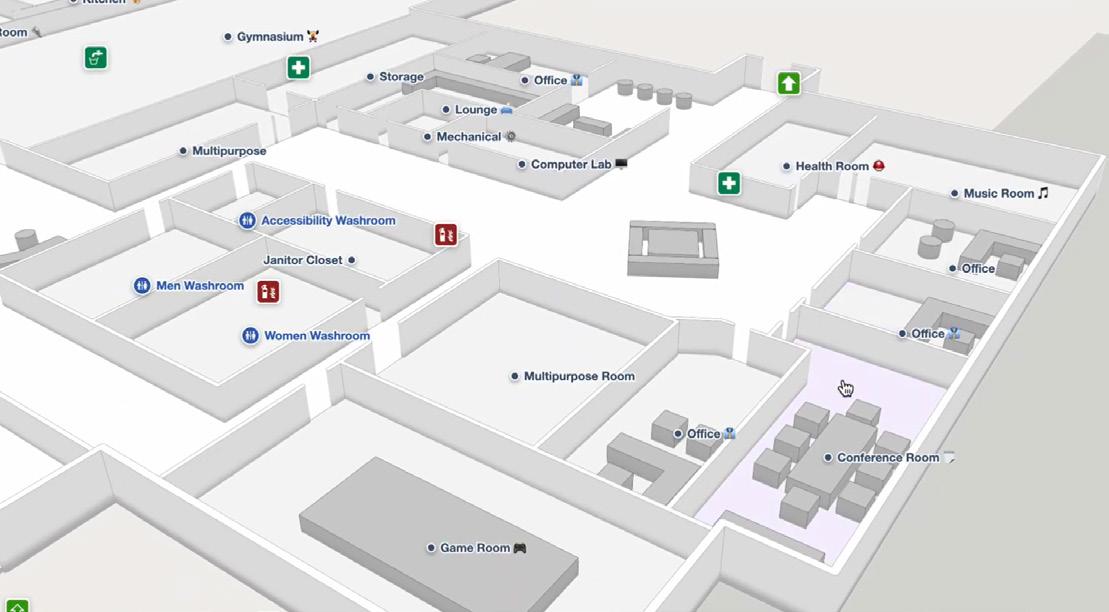

Additionally, one of the projects I created was a community centre demo floor plan, digitzing it for the Mappedin website for client demonstration.
54
hppsadru@uwaterloo.ca (647) 962 9938 thanks!
