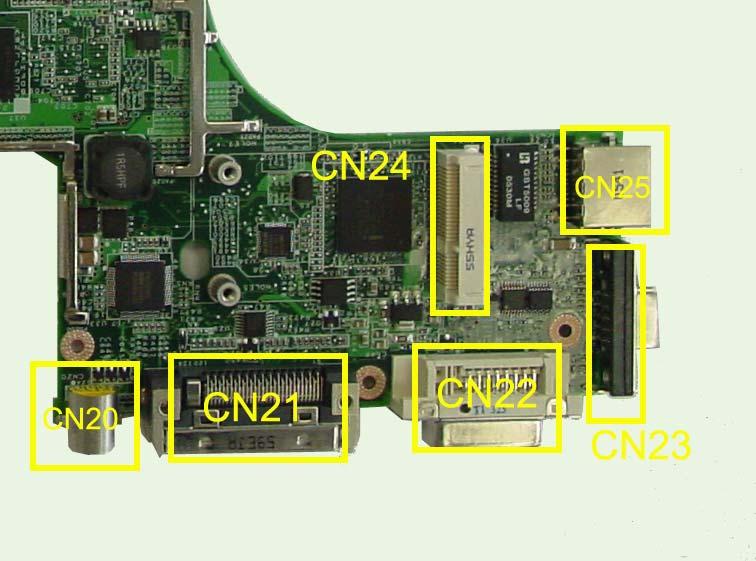

Top View of Main Board

Item Description Item

Description CN20 SVIDEO CN32 RTC battery connector (two pin) CN21 Docking CN33 HDD connector (22 pin SATA) CN22 DVI-D CN37 Connector SMD FFC 30 pin CN23 CRT connector CN38 Bluetooth module connector (five pin) CN24 mini card connector U37 V-RAM CN25 RJ45 W/ LED U40 V-RAM CN26 Battery connector (seven pin) U41 VGA chip CN28 Fan connector U43 CPU CN29 Media connector (M/B side) U44 North bridge CN30 DDR2 (9.2MM) U48 South bridge CN31 DDR2 (5.2MM) U57 BIOS

Part One of Bottom View

Part Three of Bottom View

Item Description Item

Description CN02 Mic connector (two pin) CN15 Speaker connector (four pin) CN03 Main board to button board FFC connector (16 pin) CN16 1394 (four pin) CN04 LCD connector (40 pin) CN17 SPDIF (line out) CN05 daughter board cable to main board (10 pin) CN18 Audio jack/line in CN06 Keyboard FFC connector (25 pin) CN19 Audio jack/mic CN07 Touchpad FFC connector (four pin) U06 V-RAM CN08 USB U10 V-RAM CN09 USB U28 IR module CN10 Smart card FFC connector SW02 Slider switch
