Disassembly Procedure Flowchart

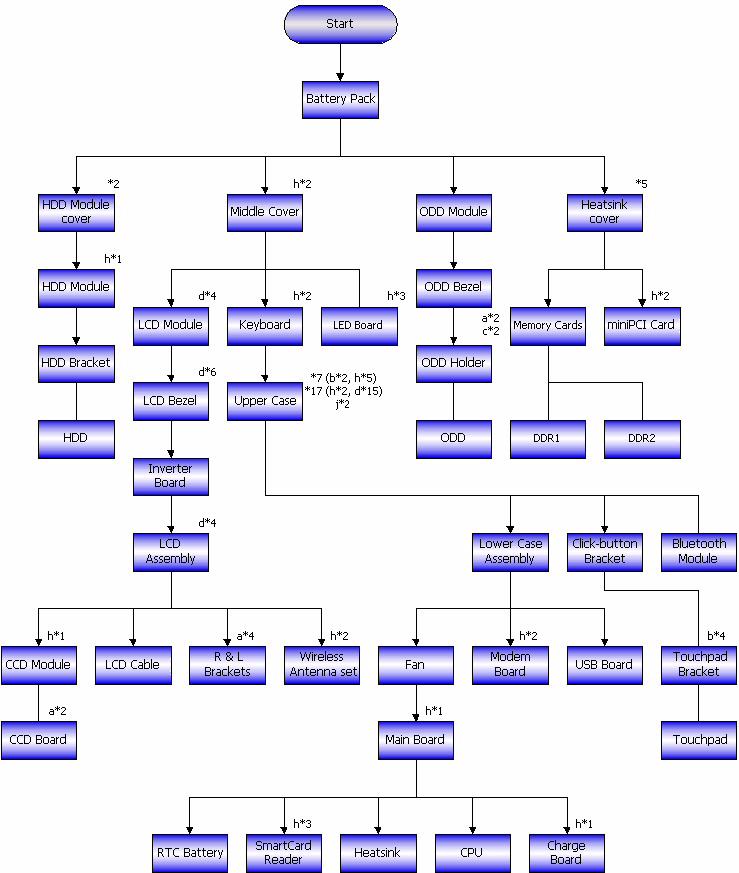

The flowchart gives you a graphic representation on the entire disassembly and reassembly and instructs you how to remove the components.

Screw List

Item Description a SCREW M2.0*2.5-I (NI) (NYLOK) b SCREW M2.5*6-I (BNI) (NYLOK) c SCREW M2.0*3.0-I-NI-NYLOK d SCREW M2.0*6.0-I-NI-NYLOK e SCREW M2.5*2-I (NI, NYLOK) f SCREW 2.5*3-I (NI, NYLOK) g SCREW 2.5*6-I (BNI) TAP h SCREW M2.5*4-I (BNI) i SCREW M2.5*4.0-I (NYLOK) EU j NUT IO EA1
