Replacing the Modem Module

Replacing the USB Board

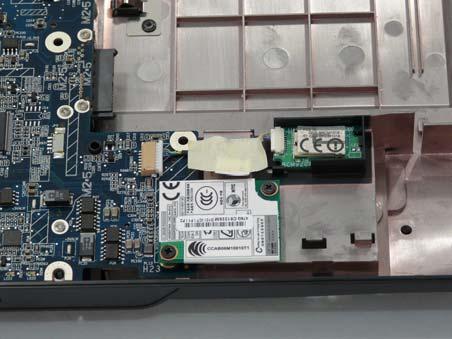

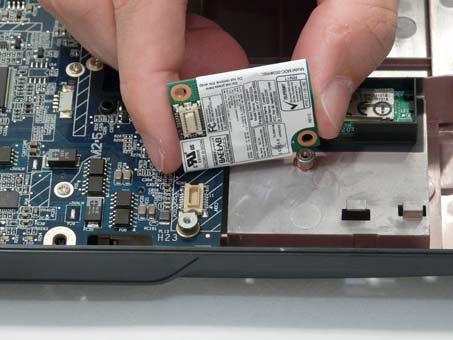

1. Replace the module from the lower base. 2. Tighten the two (2) securing screws on the modem module.

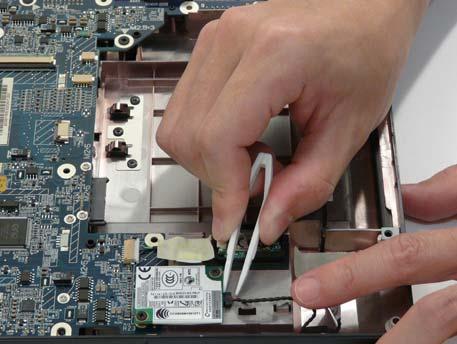

3. Connect the modem cable as shown in the following images.

1. Angle the right side of the USB board into the lower base. Align the screw sockets and replace the two securing screws.

2. Replace the cable on the USB board.
