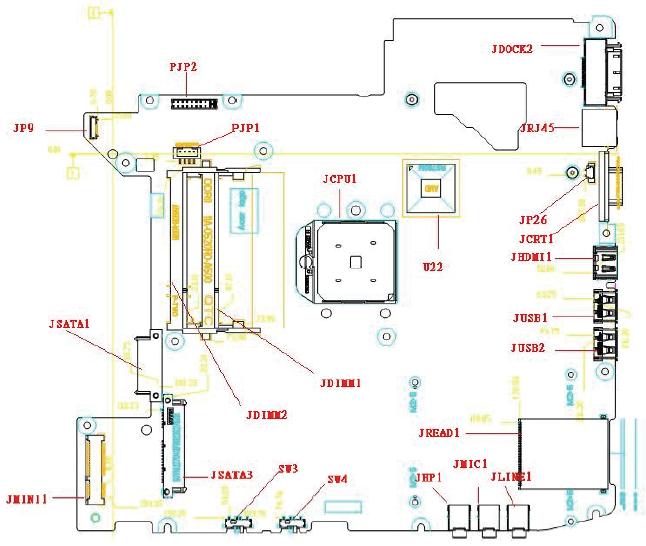

Bottom View

Location Description Location Description

PJP1 AC-IN Connector JMINI1 Wireless Card Connector JDOCK2 Dock Connector JSATA1 ODD Connector JRJ45 RJ45 Connector JDIMM2 MemoryDIMM2 Connector JCRT1 CRT Connector JDIMM1 MemoryDIMM1 Connector JHDMI1 HDMI Connector PJP2 Battery Connector JP9 USB Connector JCPu1 CPU Socket JLINE1 Line-In Jack U22 North Bridge JMIC1 MIC-In Jack SW3 Wireless SWITCH JHP1 Head-Phone Connector SW4 BT SWITCH JREAD1 Card Reader Socket JUSB1 USB Connector JSATA3 HDD Connector JUSB2 USB Connector JMINI1 Wireless Card Connector JP26 FAN1 Connector JSATA1 ODD Connector
