Replacing the CPU Fan

Next Article
TravelMate 4530 FRU List

TravelMate 4530 FRU List

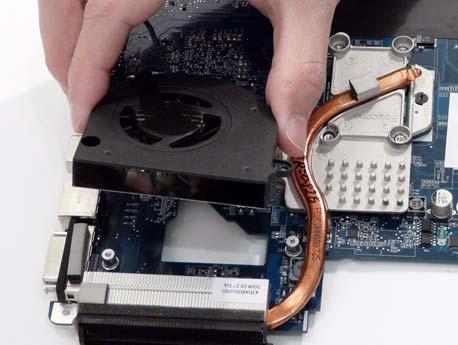

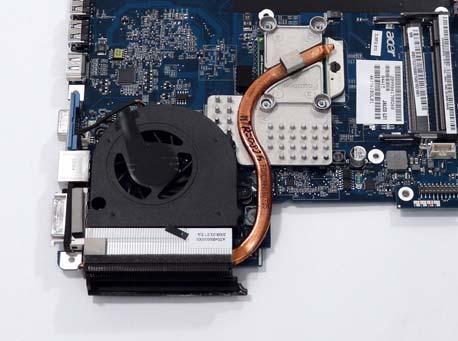

1. Align and place the Fan Module in the mounting as shown. 2. Tighten the securing screw on the module.

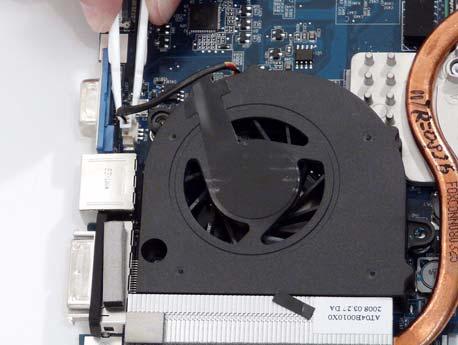

3. Connect the fan module cable to the mainboard.
