Removing the LCD Bezel

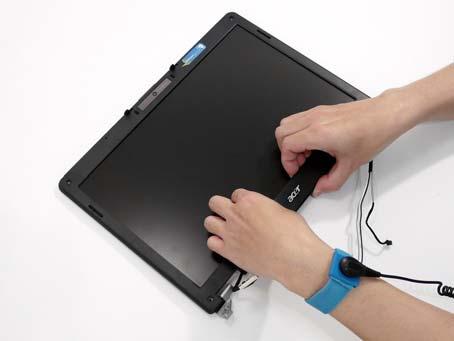

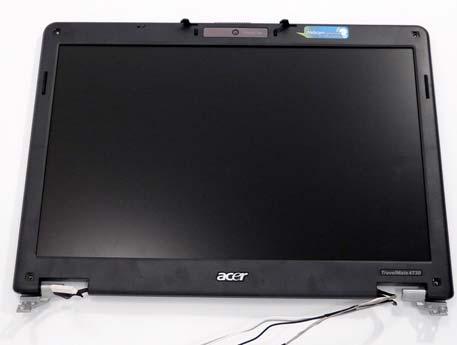

1. See “Removing the LCD Module” on page 66. 2. Remove the two upper and two lower bezel screw caps. Remove the four securing screws from the LCD module.

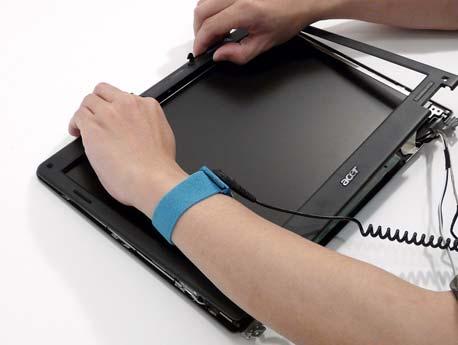

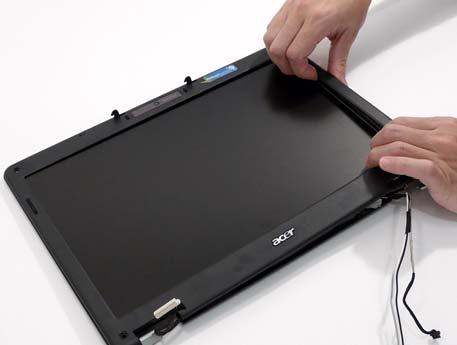

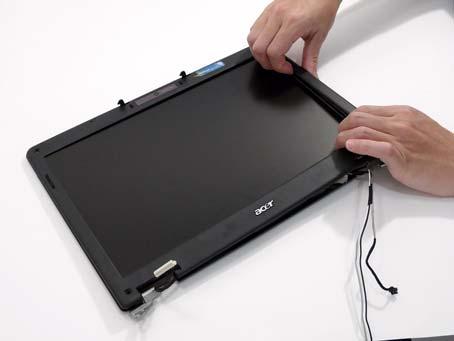

3. Starting from the bottom, pry the bezel inwards and upwards to remove it from the LCD Module.

Step

Size

LCD Bezel M2.5*5 (NL) 4

Quantity Screw Type
