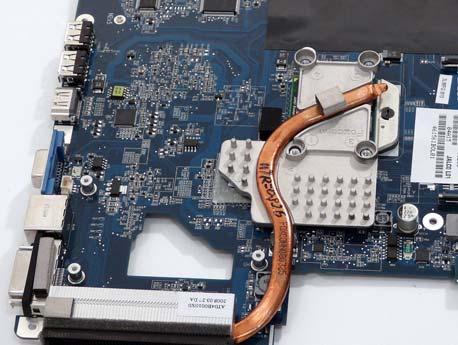

Removing the Thermal Module

1. See “Removing the Mainboard” on page 80. 2. See “Removing the CPU Fan” on page 84. 3. Remove the four (4) securing screws from the CPU plate.

NOTE: When replacing, ensure the screws are replaced in the order as marked on the plate. 4. Remove the module from the mainboard.

Step

CPU Thermal Module

Size

M2.5*3 4

Quantity Screw Type
