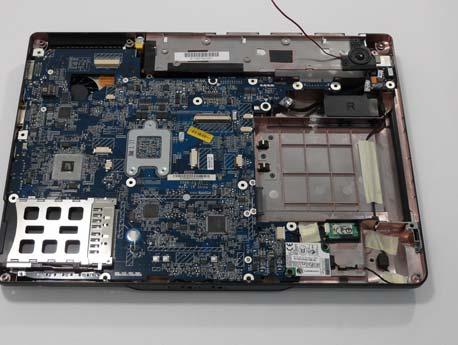

Removing the Mainboard

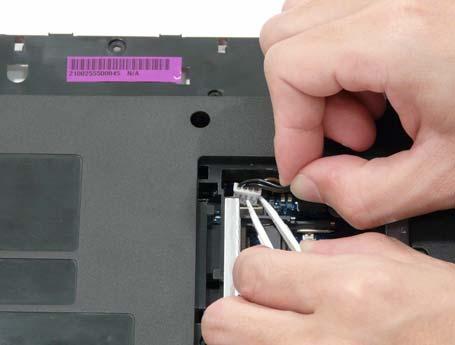

1. See “Removing the LCD Module” on page 66. 2. See “Removing the Upper Cover” on page 68. 3. See “Removing the Modem Module” on page 79. 4. Turn the lower base over on a clean surface, and disconnect the DC-IN cable as shown.

IMPORTANT:Ensure the cable can easily pass through the lower cover during mainboard dissasembly.

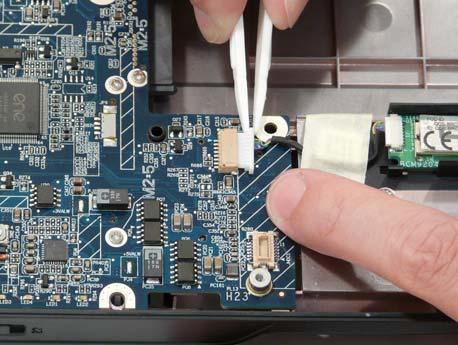

5. Turn the base rightside up, and disconnect the bluetooth cable from the bottom right of the mainboard as shown.

Step

Size

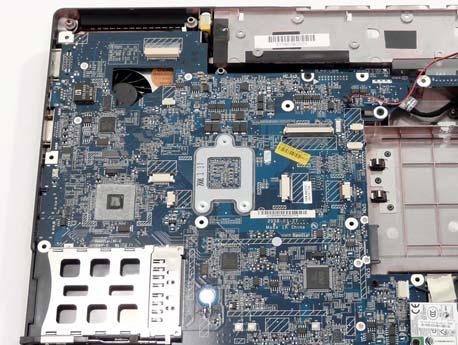

Mainboard M2.5*9 (NL) Green Callout

Mainboard M2.5*3 (NL) Red Callout 1

1

Quantity Screw Type

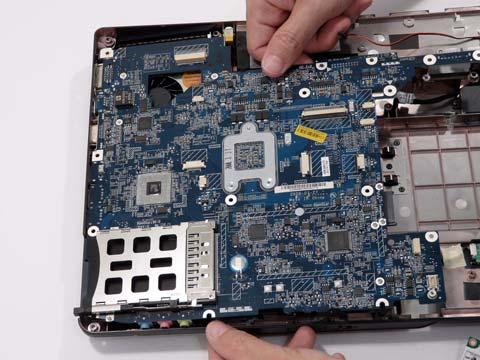

7. Lift the mainboard to expose the DC-IN jack and USB cable.

8. Remove the DC-IN jack and USB cable as shown.
