Removing the Launch Board

Step

Size

Power Board M2*3 2

Quantity Screw Type

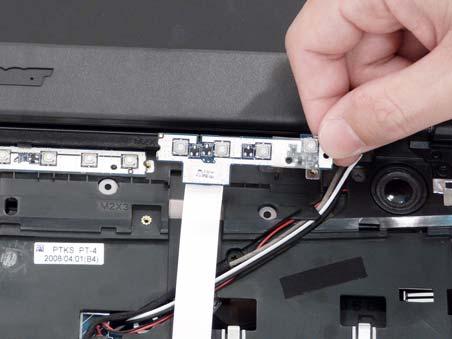

1. See “Removing the Battery Pack” on page 46. 2. See “Removing the Keyboard” on page 61. 3. Disconnect the Launch Board cable from the mainboard.

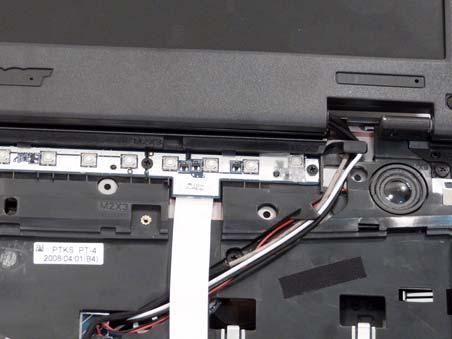

4. Remove the two securing screws from the Launch Board.

NOTE: The right hand securing screw is shared by the Power Board.
