Removing the WLAN Module

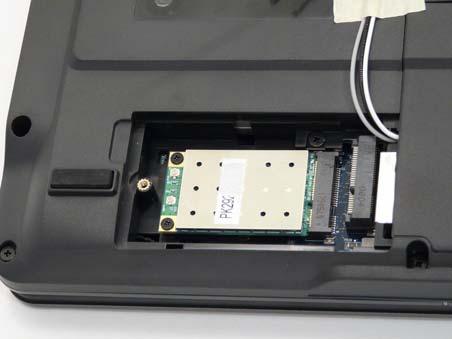

1. See “Removing the Battery Pack” on page 46. 2. Remove the WLAN cover. See “Removing the Lower Covers” on page 49. 3. Remove the adhesive tape and disconnect the antenna cables from the WLAN board.

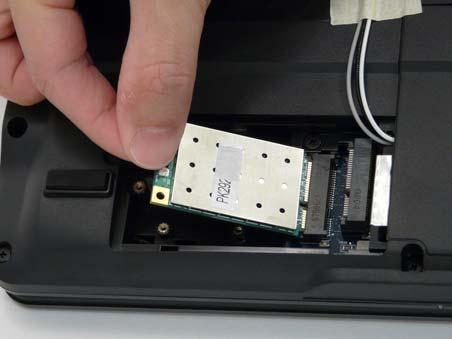

4. Move the antenna cables away and remove the two screws on the WLAN board to release the WLAN board.

Step

Size

WLAN Module M2*3 (NL) 2

Quantity Screw Type

NOTE: When re-attaching the antenna cables, ensure the black cable is attached to connector -1, while the white cable is attached to connector-2.
