Diassembling the LCD

Next Article
Peripheral Devices Test

Peripheral Devices Test

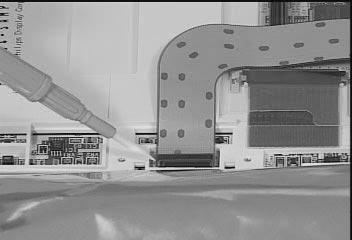

1. Disconnect the LCD-FPC cable from the LCD.

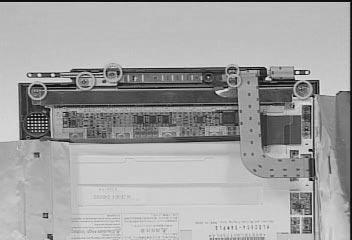

2. Remove the six screws on the LCD hinge plate. 3. Lift the LCD hinge plate from the display bezel.

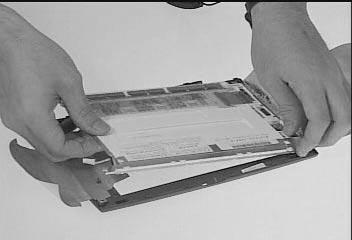

4. Remove the hinges and LCD-FPC cable from the display bezel. 5. Remove the LCD from the display bezel
