Disassembling the upper case

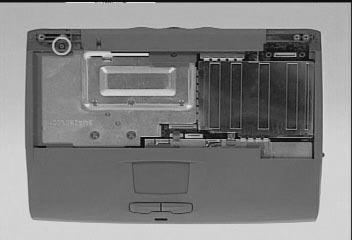

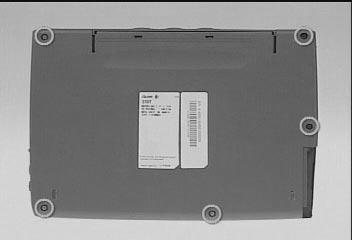

1. Disconnect the touchpad cable from the main unit. 2. Remove the five screws on the base of the upper case.

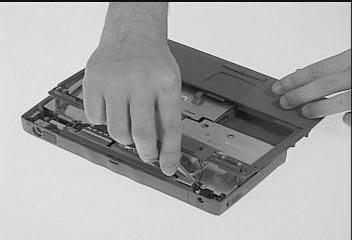

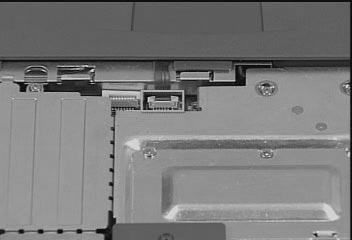

3. Remove the screws to separate the upper case. 4. Remove the cover switch cable from the main unit.
