16- TruckCom

User Manual for trucks using the “PowerDrive” platform. This Manual is valid for version 3.5 of TruckCom p/n 182147-008.

16.1 General

TruckCom is a communication program which communicates with trucks equipped with CAN (Controller Area Network) communication. It enables the following tasks to be performed:

•downloading truck control software.

•viewing and adjusting operator / truck parameters and hour meters. Additionally, the truck’s parameter set (including hour meter values) can be saved to file and reloaded later.

•viewing diagnostic data for various digital inputs / outputs and analogue data including voltages, currents and certain temperatures.

The program is a Microsoft® Windows program running under Microsoft® Windows® 95/98, Microsoft® Windows® XP/2000 and Microsoft® Windows® NT.

16.2 Connection

A CAN interface of the CPC-PP type is needed to connect it to the truck, with attendant cable. Connect the interface via the printer port on a PC. Connect the cable between the interface and the truck's CAN terminal.

The CAN interface is supplied with power from the truck electronics and is protected from any high voltages in the truck if a fault should occur.

16.3 Layout

16.3.1 Main program screen

The Main window opens when the program is started. This shows the menu bar, tool buttons, workspace, log window and status window.

16.3.2 Nodes

Devices which are connected to and communicate via the CAN interface are called nodes. The nodes detected on the bus are shown in the node window. The current node status and input component/information is shown with different icons.

16.3.3 Icons

Icon Description

Node OK is shown when contact is made with a node and no errors have been reported.

Node not connected is shown when there is no contact with a node in the network.

Node not OK is shown when an error has been reported by a node. Click on node to obtain more information.

Program version is shown when information is available on which software is installed. Click to obtain more information.

Information is shown when a node has information on, for example, error codes.

Truck report

GB“16.7Truck report function” on page 7

Parameters is shown when a node has information on a parameter.

Diagnostics

Exit

16.3.4 Tool buttons and menu bar

The tool button bar allows direct access to the program’s most common functions. The menu bar allows access to all the program functions. Explanations of each menu bar item are given in the relevant section.

Search for units Disconnect from PC Download Truck report

Parameters Diagnostics Information Exit Fig. 4 Tool button bar

16.3.5 Information window

The right section of the main window contains a status window where different messages are shown.To see previous messages, use the scroll arrows in the right margin.

16.3.6 Status bar

There is a status bar at the bottom of the main window, which shows variable status when the program is run.

The following are shown from the left: Help text "pop-up" via the mouse cursor, connected/not connected to network, truck type connected, initiation result of CAN interface and the present time.

16.4 Connection function

To connect the PC the network, select the Scan units function. This can be done with the menu <Nodes | Scan units> or with the tool button [Scan nodes]

This should also be done when the truck is supplied with voltage and in normal drive mode.The program will now run a check and installation of the CAN interface. A diagnosis will also be carried out to check which units are connected in the system. The result of this diagnosis is shown in the Node window.

16.5 Disconnection function

Select the Disconnect function to disconnect from the network. This can be done with the menu <Nodes | Set PC off-Line> or with the tool button [Set PC off-Line].

The CAN interface is then reset and the CAN cable can be disconnected if so required. This enables connection to another truck without having to close the program.

16.6 Downloading program function

To download a new program to one of the nodes, select the Download software function. This can be done with the menu <Tools | Download software... > or with the tool button [Download]

16.6.1 Normal downloading (truck with key)

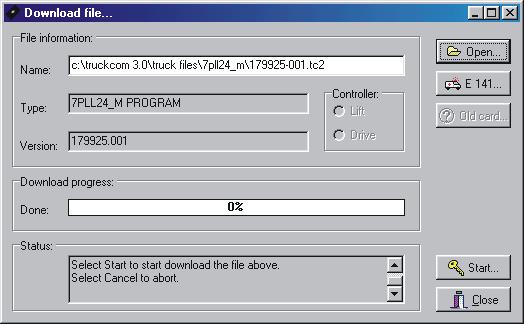

Select Open.. to open the file to be downloaded into a node. The file name, file type and version number are shown in the window for file information. If it is file for a controller, indicate which type of controller is to receive the file. Start downloading by selecting Start... and by restarting the truck by turning the key off and on twice. Restart must be made within 20 seconds from when the Start button has been activated.

Close the download window when the download is ready, and then disconnect the PC from the network. A new connection can now be made to verify the new program.

16.6.2 Normal downloading (truck with keypad)

Select Open to open the file to be downloaded into a node. The file name, file type and version number are shown in the file information dialogue box. If it is file for a controller, indicate which type of controller is to receive the file. Start downloading by depressing and then releasing the red key on the keypad.

The truck must be restarted within 20 seconds from when the Start key has been activated.

When downloading has been completed, close the download dialogue box and then disconnect the PC from the network. It is now possible to reconnect to verify the new application.

16.6.3 Emergency downloading (truck with keypad)

•Disconnect the battery connector.

•Select OK in the dialogue box.

•Keep the red key on the keypad depressed while reconnecting the battery connector.

•Release the red key to commence downloading.

16.6.4 Emergency downloading (truck with keypad)

E141 will be shown in the truck’s display when starting, if for any reason there is no program in the electronics card (interrupted downloading). Communication with the truck via the PC will then be minimised. Use “E141” to download the program in the card.

On some trucks, a counter, which continuously counts up, is displayed. NOTE!

Once programmed, the logic cards in some trucks can only be upgraded with the same basic firmware. In other words, it is not possible to replace the basic firmware (other machine type).

16.6.5 Downloading in old versions of logic card

To download to older versions of electronic cards which do not support restart with key, the button Old card... should be used instead of Start. Downloading is carried out in the same way, except that restart is done by using the battery lug instead of the key.

16.7 Truck report function

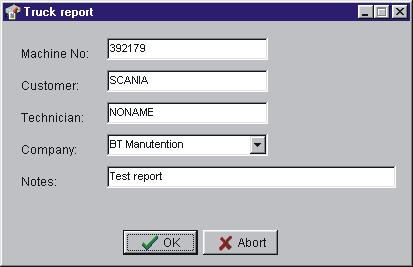

It is possible to generate a report to a file or disk with the truck’s configuration and status. Select menu <Tools | Generate truck report...> or with the tool button Truck report. Save the report in Report.file.

Example of information generated in the truck report:

[GENERAL]

REPORT DATE-TIME=2004-01-19 11:11:58

CPC-PP SERIAL No=8002041

MACHINE NUMBER=555555

CUSTOMER=CUSTOMER 1

TECHNICIAN=NONAME

[CAN NODES]

MAIN CARD=0

CURTIS DRIVE CONTROLLER=16

[MAIN CARD CONFIGURATION]

SOFTWARE=181179-001

HARDWARE=167833-004

SERIAL NO=53676

[DRIVE CONTROLLER CONFIGURATION]

SOFTWARE=5

DRIVE CURRENT LIMIT (A)=300

FIELD MAXIMUM (A)=34

SERIAL NO=52857

MFG Date:=26/05/03

METERS]

A IGNITION TIME=81

B TOTAL MOVEMENT=7

C DRIVE MOTOR TIME=7

D PUMP MOTOR TIME=0

S SERVICE TIME=7

The contents of certain rows can vary according to truck type.

16.8 Parameters function

To change the truck parameters, select the Parameter function. This can be done with the menu <Tools | Change parameters > or with the tool button Parameters.

NOTE!

The truck must in Normal mode (i.e. not Parameter mode) when connecting TruckCom. Otherwise TruckCom will report “Unable to determine truck brand”

The parameter numbers follow the description in the respective truck Service Manuals, section 5000.

The parameter window shows the information and the current settings for all parameters. The parameters are divided into 4 tabs.

•[Driver] - Driver; driver parameters and PIN code storing

•[Truck] - Truck; service parameters

•[Time] - Time; time-related service parameters

•[Option parameters] - Option parameters. (no. 15 to 19)

WARNING!

Do not attempt to make any adjustments to the option parameters unless you have sufficient knowledge of the truck’s options/ modified functions. Specially modified trucks may require that you have access to special service information.

Improper adjustment of the option service parameters may result in a malfunction.

16.9 Diagnostics function

To access diagnostics, select the Diagnostic function. This can be done with the menu <Tools | Diagnostic...> or with the tool button Diagnostic.

NOTE!

If the value “---” is shown in a field, or a “read status LED” is red, the communication has been interrupted for some reason and error data cannot be shown.

NOTE!

The tab information displayed in the diagnostics mode depends on the type of truck connected.

16.9.1 Representation of signal colours

The screen dumps shown in the following section have been modified to improve legibility in black & white print.

WHITE(bialy)

GREEN(zielony)

RED(czerwony)

16.9.2 “Tiller arm” tab

Clicking on the tiller arm tab will display a dialogue showing the following:

• Speed lever -The status of the speed control and travel direction selector. The status of each individual hall element is displayed.

• Buttons -The status of the control buttons is displayed. “Sxx” refers to the switch designations as given in the circuit diagram.

• Option - Status of option buttons

• Battery - The measured battery voltage

•R14 - Shows the measured signal voltage from the lift/lower control

• R15 - Not used at present

16.9.3 “Drive Controller” tab (transistor regulator driving)

Clicking on the Drive Controller tab will display a dialogue showing the following:

•Status of digital inputs and outputs of the transistor regulator. pin refers to the motor controller pin designations as given in the circuit diagram.

• Field PWM - The effective power output supplied to the field circuit as a percentage.

• Armature PWM - The effective power output supplied to the armature circuit as a percentage

• Field current - The current flowing in the field circuit in Amperes.

• Armature current - The current flowing in the Armature circuit in Amperes

• Raw throttle data - The received speed control signal as a percentage.

• Temperature - The temperature of the output stage of the transistor controller in degrees Celsius

• Inp pin 10 - The input voltage from the mode/pressure sensor. “digital O” indicates the digital status of the input.

• Inp pin 11 -The input voltage from the man-on platform sensor. “digital O” indicates the digital status of the input.

16.9.4 “Pump controller” tab (transistor regulator pump)

If the truck is equipped with a lift/lower transistor regulator, the Pump controller tab displays the following:

•Status of digital inputs and outputs of the transistor regulator. pin refers to the motor controller pin designations as given in the circuit diagram.

•Field PWM, Armature PWM, Field current, Armature current, Temperature - See explanation in 16.9.3

• Raw throttle data - The received lift/lower signal as a percentage.

• Out pin9 - The output signal to the proportional lowering valve as a percentage.

• Inp pin 10 - The input voltage from the pressure sensor. “digital O” indicates the digital status of the input.

• Inp pin 11 - The input voltage from the pressure sensor. “digital O” indicates the digital status of the input.

16.9.5 “EPS” (steering servo tab)

Clicking on the “EPS” tab will display a dialogue showing the following:

“Status”

•“Operational” - Indicates the status of the servo’s control system

•“EPS enabled” - Indicates the status of the servo’s power stage output.

•“Reference switch reached” - indicates status of drive wheel in centre reference switch.

•“Reference position found” - indicates whether a successful steering in centre has been performed.

•“EPS in power save mode” - Shows whether the steering servo is in the standby mode (following a certain amount of inactivity).

“Actual values” (Measured values)

•“Temperature EPS” - The temperature of the steering servo output stage in degrees Celsius.

•“DC bus voltage” - Supply voltage to steering servo

•“Wheel position” - Shows the estimated steering angle of the drive wheel.

•“Voltage analog input 1, pin5”- The measured DC input signal (0) from the steering potentiometer.

•“Voltage analog input 2, pin13”- The measured DC input signal (1) from the steering potentiometer.

•“Current” - The measured current supplied to the steer servo motor in Ampere

•“Actual velocity” -The measured rotational speed of the steer servo motor shaft in r.p.m.

16.9.6 SEU tab (Spider Extension Unit)

When the truck is equiped with a Spider Extension Unit (former Extra I/ O module) the SEU tab shows following:

•“INP X” - Shows the logical status for the digital inputs.

•“OUT X” - Shows the logical status for the digital outputs.

•“Analog input X” - Shows the voltage level on the analog inputs. See chapter 5000 for more information about the SEU and how the inputs and outputs are connected.

16.10 Other menu functions

16.10.1 Save to file

The truck parameters can be saved in the PC for downloading at a later date.Select <File | Save to file | Parameters>. All parameters in the nodes which are connected to the bus will be scanned in and saved in a file.If only the hour meters are needed, select <File | Save to file | Hour meters>.

16.10.2 Download from file

A set of parameters can be downloaded from the PC to the truck. Select <File | Load from file | Parameters >. The parameters in the file will be copied to the nodes connected to the bus. If only the hour meter settings are needed, select <File | Load from file | Hour meters >.

16.10.3 Reset CAN adapter

If problems should occur when resetting the CAN adapter connected to the PC, this can normally be done manually by making sure that the adapter is supplied with voltage and then selecting <Nodes | Reset CPC-PP>.

16.10.4

Delete error code log

To delete the truck’s error code log, start the truck in parameter mode and then select <Tools | Erase error log>.

16.10.5

Reset hour meter

To reset the truck’s hour meter, start the truck in drive mode and then select <Tools | Reset hour meters >.

16.10.6

Read error code log

To show the truck’s error code log, select <Tools | Read error log >.

16.10.7

Adjust date and time

To quickly adjust the truck’s data and time, select < Tools | Adjust date & time >. The time given in the PC will now be downloaded into the truck.

NOTE! This does not apply to trucks without a real-time clock.

16.10.8 Adjusting the hour meter on older cards

To adjust the hour meter on trucks with older cards, select <Tools | Adjust Hour meters>. The time given in the PC will now be downloaded into the truck.

16.10.9 Help About the TruckCom application

To see program information, select <Help | About TruckCom...> or use the tool button [Information].

16.10.10

Exit

To exit the program, select <File | Exit > or use the tool button [Exit].

16.11 Specifications

Table 6: CAN interface specification

16.12 Installation

NOTE!

The program must be installed from the hard disk.

NOTE!

The software application in the computer can be damaged, which is why the PC installation should be performed by someone with the required knowledge. TOYOTA does not accept any responsibility for any errors that occur during the installation.

NOTE!

All references to PC operating system actions, menus and commands are based on the English language version of Windows

16.12.1 Installation on a PC with Windows 95/ 98

If a previous version of the TruckCom application has been installed on the PC, it will be necessary to edit the System.ini file.

Start the Msconfig.exe application by selecting the Start button, selecting Run and then typing msconfig.

•Click on System.ini and open the folder (386Enh).

•Unmark the option at Device=C:\Windows\Cpcppvd.vxd.

•Save the change and close the application.

Now continue with installationThe software application is supplied on a CD or via a network. Start installation by running X:\SETUP.EXE, where X:\ is the drive on which the installation application can be found.Then follow the on-screen instructions.

16.12.2 Installation on a PC with Windows XP/ 2000

To make the application work, it is necessary to enter a value in the Windows Registry and then make a few alterations in the Windows Control panel.

Due to the built-in Windows security, this must be done manually.

The instructions below provide step-by-step guidance to enable these changes and make the interface operate under Windows XP and Windows 2000.The changes can be made either before or after TruckCom is installed.

•Open the Registry Editor. To do this, select the Start button, then Run, type regedit and hit Enter.

•Mark the Enum folder which can be found under HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet inside the Registry Editor.

•Select the Edit option, then Find and type PortName to search for the correct folder.

NOTE! The location of the folder differs between different computers (some may be \Enum\Root\.., while others could be \Enum\ACPI\ etc.). Thus be sure to search for the correct folder.

When the folder is found, check that LPTx (x=1, 2, 3, 4) is displayed in the PortName data field and that the folder name is Device Parameters.

•Right-click with the mouse in the right box to enter a new value of the DWORD type and with the name EnableConnectInterruptIoctl.

•Change the value in data field 1 by right-clicking on the name and selecting Modify

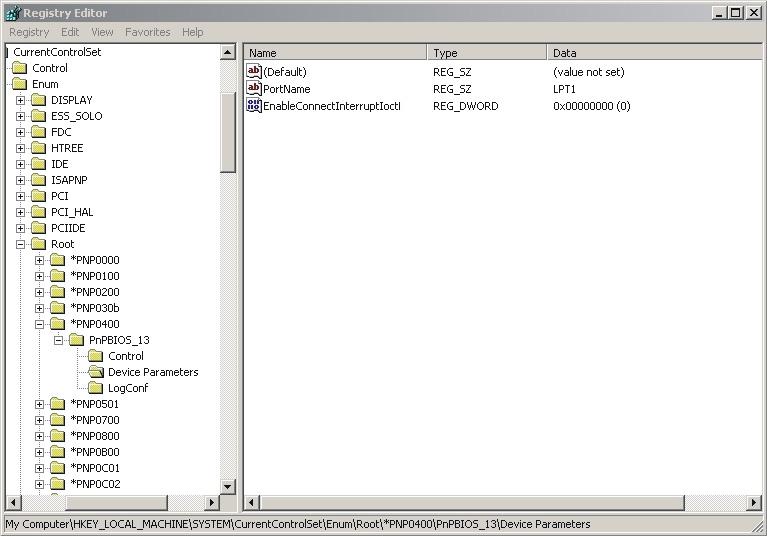

The Device Parameters folder should look like the one in the picture. The Registry change is now complete. Close the Registry Editor.

Changes in Windows Control Panel

•Select the Start button.

•Choose Settings, then Control Panel and double-click on System.

•Select Hardware.

•Click on Device Manager and open Ports (Com & LPT).

•Double-click on the LPT port to be changed, and select the Port Settings tab.

•Check the "Use any Interrupt assigned to the port" option and click on OK.

The software application is supplied on a CD or via a network. Start installation by running X:\SETUP.EXE, where X:\ is the drive on which the installation application can be found. Then follow the on-screen instructions.

16.12.3 Installation on a PC with Windows NT

The software application is supplied on a CD or via a network. Start installation by running X:\SETUP.EXE, where X:\ is the drive on which the installation application can be found. Then follow the on-screen instructions.

16.12.4 In case of communication problems with CAN

Make sure the computer settings for the printer port in the BIOS Setup are as follows:

Port address:0378

IRQ:7

Mode:Output only

For detailed information on how to change the Setup settings, refer to the User's Guide supplied with the computer.

16.12.5

To uninstall

To uninstall TruckCom under Windows.:

•Select the Start button, Settings, Control Panel, Add/Remove Programs.

•Then select the TruckCom Program and click Change/Remove.
