Tigercat H860C/H870C/LH870C Harvester Safety

SERVICING SAFETY PRECAUTIONS continued

DISCONNECT THE 6 PIN PLUG FROM THE BACK OF THE DISPLAY MODULE

870-D01 DISCONNECT THE TWO MULTI-PIN PLUGS FROM THE ENGINE WIRING

EARLIER MACHINES (860*1501 TO 860*1699, 870*1501 TO 870*1699)

Disconnect the engine ECM (Electronic Control Module) by unplugging the multi-pin connectors from the left side of the engine.

822C-05

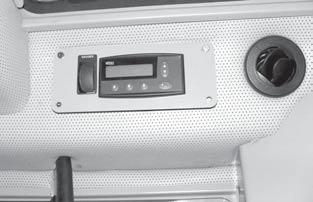

IQAN DISPLAY DISCONNECT

Disconnect the IQAN display 6 pin connector and the control module 42 pin connector.

DISCONNECT THE 42 PIN PLUG FROM THE XS MODULE

DISCONNECT 4 PIN ENGINE POWER CONNECTOR DISCONNECT THE TWO MULTI-PIN PLUGS FROM THE ENGINE ECM

822C-34

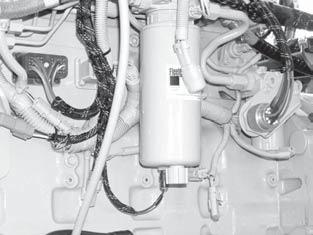

ENGINE ECM DISCONNECT -LEFT SIDE OF ENGINE

LATER MACHINES (860*1700 AND UP, 870*1700 AND UP)

Disconnect the engine ECM (Engine Control Module) by unplugging the four pin engine power connector and the two multipin connectors from the left side of the engine.

822C-04

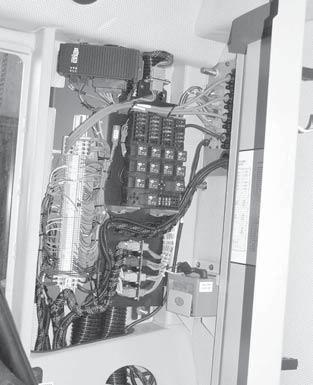

IQAN XS MODULE DISCONNECT

IMPORTANT
