Removal and Installation of Take-up Roller

Warning ・ When loosening the grease cylinder check valve, loosen it a little at a time. ・ The pressure inside the cylinder is very high, so there is a danger of grease being expelled and the plug flying off. The check valve adjustment procedure should not be done in front of the check valve. ・ Do not get under the machine when the main unit is jacked up. ・ Make sure to place the main unit on wood planks or the like to prevent falling. ・ Align the shoe assembly feed location and stop the engine except when working.

Items to prepare •Wrench (24 mm) •Hammer •Lifting equipment •Loctite #262 •Striking jig •Crane •Crowbar •Wood planks, etc. •Rag 1.Removal of Take-up Roller [1] Remove the shoe assembly. See the "Removal and Installation of Shoe Assembly" procemdure. [2] Use a crowbar (3) to pull off the take-up roller (1) and recoil spring assembly from the side frame (2).

1 Take-up roller 2 Side frame 3 Crowbar

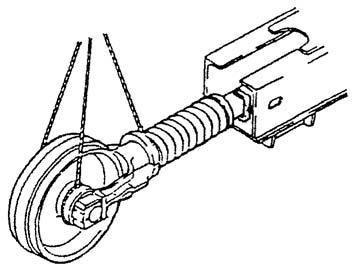

[3] Install the lifting equipment (5) on the take-up roller (1) and recoil spring assembly (4) and hang them from the side frame (2) with the crane.

[4] Place the take-up roller (1) and recoil spring assembly (4) onto wood planks (7) as in the diagram. Use a wrench (24 mm) to remove the take-up roller bolt (6) and separate the roller and the recoil spring assembly.

1 Take-up roller 2 Side frame 4 Recoil spring assembly 5 Lifting equipment 6 Bolt 7 Wood plank

2.Installation of Take-up Roller [1] Use a wrench (24 mm) to fasten the take-up roller (1) and recoil spring assembly (2) with the bolt (3). At this time, be sure to coat the bolt with Loctite #262.

[2] Install the lifting equipment (6) on the take-up roller and recoil spring assembly (2) as in the diagram, lift them up with the crane, and insert them into the side frame (5).

Push in with the crowbar until the recoil spring assembly contacts the grease cylinder.

[3] Install the shoe assembly.

For details on installation, see the "Removal and Installation of Shoe Assembly" procedure.

1 Take-up roller 2 Recoil spring assembly 3 Bolt 4 Wood plank 5 Side frame 6 Lifting equipment
