CHECKING THE CHARGING CIRCUIT

1 – Static control values (engine off) 450 SEF-R.

Battery voltage > 12.5V.

A – Stator windings resistance values :

Y1-Y2 Y2-Y3 Y1-Y3 0.44Ω±10%

B – Resistance of the engine speed sensor : 117Ω±10%

Check that there is no continuity between the windings and the mass of the motorbike.

2 – Dynamic control values :

Engine speed sensor :

1.7V MIN/300 RPM. 120V MAX/10000 RPM.

Tension regulator :

Alternative (AC 200V caliber). Idle : 22V ±2V. At 6000 RPM : 77V±3V.

Direct :

On regulator output (DC 20V caliber). At 4000 RPM : 14.6V + Red/White, - Green.

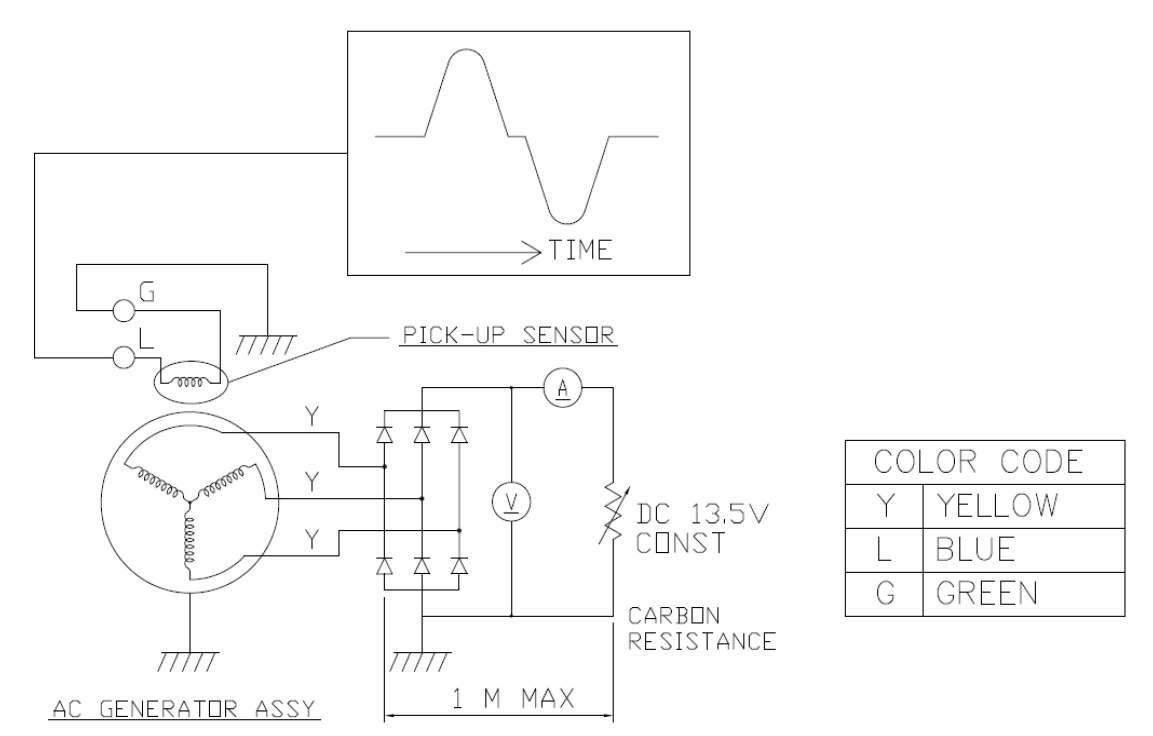

Alternator :

Tolerance values = -5% /+10%.

RPM 2000 2500 3000 4000 5000 6000 7000 8000 9000 10000 Voltage (AC) 35V 43V 50.5V 63V 75.5V 88V 99.5V 112V 125.5V 137V Current (IB) (DC) 7.2A 11.3A 13.6A 15.6A 16.5A 16.9A 17.2A 17.4A 17.5A 17.6A VB

DC 13,5V
