Safety Rules

• Never put your feet, hands, or any other body part under the frame assembly.

•Use the hand pallet lift truck only to transport loads.

•Do not use the hand pallet lift truck if it has been repaired, modified, or adjusted, unless it has been checked and approved by your supervisor or anothe r authorized person.

•Do not allow your hand pallet truck to drop from one level to another. Even a drop of 1 in. (25 mm) more than doubles the effected load momentarily and results in a “shock” that can bend or break components.

• Always operate the hand pallet lift truck with care and good judgement. Be responsible.

• Never allow anyone to stand in front of or immediately near a loaded hand pallet lift truck.

•Do not use in cold storage, salty, or other corrosive environments.

•Horseplay is dangerous to personnel and equipment, and is not permitted.

•Do not run while operating th is hand pallet lift truck.

• Always make sure that the load is stable before moving to eliminate the opportunity for load shift.

• Always yield the right-of-way to pedestrians.

•Be aware of other lift trucks in the area; operate the hand pallet lift truck cautiously.

•Do not operate the hand pallet lift truck with oily hands or oily shoes, due to the risk of slipping.

•Floors should be strong enough to handle the heaviest allowed load being transported.

•Use extreme care around objects that stick out from racks, shelves, or walls. These objects can cause bodily injury or damage to the hand pallet lift truck.

• Never carry passengers.

• Never overload your hand pallet truck. Stay within the rated capacity.

•Distribute the load even ly on the forks. Do not concentrate loads at one point or load one fork more than the other.

• Never allow anyone to stand on or near the hand pallet lift truck’s forks.

High Capacity Hand Pallet Truck weight of the loaded ha nd pallet truck. Cross railroad tracks only at approved floor grade crossings. Do not park hand pallet trucks within 8 ft. (2.4 m) of railroad tracks. Ask local railroad authorities or your supervisor which warning devices to use.

•When parking a hand pallet lift truck on another vehicle, make sure that the parking brake, if equipped, has been applied and/or a parking rack, if available, is used.

•Stop when approaching crossing aisles, when exiting an aisle, or when visibility is obstructed.

•Before operating or moving a hand pallet lift truck into an elevator, make sure that the elevator is approved for total weight of the hand pallet lift truck, the load , the operator, and any other passenger in the elevator. When entering the elevator, the load must enter first—not the operator. No other person should be in the elevator when the load or hand pallet lift truck enters or leaves.

•When not is use, lower the forks completely to avoid injury.

•Use extreme care when rounding corners. Too fast a speed could cause a hand pallet lift truck to tip. If loaded, the load could shift and fall.

•When the load impairs visibility, the hand pallet lift truck should be pulled and not pushed.

Safety Rules

•Come to a stop gently and carefully to prevent the load from slipping off of the load carriers.

• Always keep a safe distance from the edges of loading bays and loading ramps. Be attentive to marked risk areas.

•Before operating a hand pallet lift truck over a loading ramp, make sure that the loading ramp is correctly secured and has the necessary load bearing capacity. Operat e the hand pallet lift truck slowly and carefully across the ramp.

•Securely set the brakes and block the wheels of highway trucks, trailers, and railroad cars before you load or unload them. Check the highway truck/trailer/railroad car doorway clearance. Make sure floors of highway trucks, trailers, and railroad cars will support the

Lifting the Hand Pallet Lift Truck

Hand Pallet Lift Truck Rating

The weight of the load must be within the hand pallet lift truck’s permitted lifting capacity. For load weight and lifting capacity rate, see the specification plate on the truck and Figure1 . NOTE If any plate and/or decal becomes unreadable, it must be replaced. Contact your supervisor or local authorized Raymond Sales and Service Center for a replacement.

Report all accidents—person al, damage to buildings or equipment—to your supe rvisor immediately. All unsafe conditions on th e hand pallet lift truck should also be reported.

Lifting the Hand Pallet Lift Truck

To lift a hand pallet lift truck either by hand or with lifting equipment, follow these warning instructions. WARNING ! Use extreme caution when lifting a hand pallet lift truck by hand. Injury may occur when lifting the hydraulic end of the hand pallet lift truck. Cuts may occur when lifting the forks and end-plate. When lifting a hand pallet lift truck, using lifting equipment, it is recommended to use a hand pallet lift truck equipped with a lifting eye.

High Capacity Hand Pallet Truck

Model LCS80 -

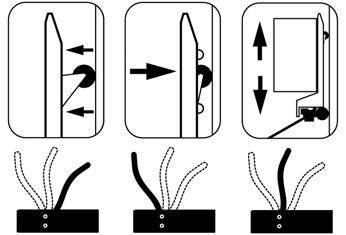

Figure 2. Lift/Lower Instructions NOTE

The neutral position disengages the pump from the lifting mechanism. This frees the handle, which makes pulling loads much easier. Also, the pump is not being subjected to shock pressures while the hand pallet lift truck is in motion.

Operating Instructions

WARNING

! Keep your body clear of the pallet truck and nearby objects and your hands on the control handle while walking with a hand pallet truck. Your head, arms, hands, legs, or feet can be seriously injured if they strike objects while the hand pallet truck is moving. For maximum operating efficiency, follow these

Operating Instructions

( See Figure2. ) instructions:

1.To lift the load, push down on the lift/lower lever. Pump the handle to lift the load from the floor.

2.To lower the load, pull up on the lift/lower lever.

3.For free handle movement, place the lift/lower lever in the neutral position.
