Model 5200 High-Level Orderpicker

Lift Truck Specifications Specification Plate

This lift truck is rated for performance by load center and load weight. Review the specification plate for detailed load capacity and load center information. See Figure3-1 Due to continuous product improvement, specifications are subject to change without notice or obligation.

Section 3.Systems Overview

Lift Truck Specifications

Nominal battery voltage

Approximate weight of lift truck minus battery, load, and operator

Serial number

Approximate weight of lift truck with battery installed, minus load and operator

*Max battery weight for this lift truck

*Min battery weight for this lift truck

Max Battery Rated Capacity

Max load capacity of this lift truck

*Battery weight must be between the min and max weight.

Publication Number: 1043922B, Revised: 2 Sept 2015

Section 3.Systems Overview

Model 5200 High-Level Orderpicker

General Information

Carriage

DEFINITION: Part of the lift truck that moves by hydraulic force; includes the operator platform.

General Information 3-4

Chassis

DEFINITION: Basic frame of the lift truck; includes baselegs, bumper, and mast.

Publication Number: 1043922B, Revised: 2 Sept 2015

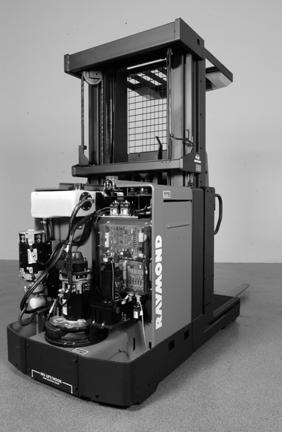

DEFINITION: Holds the majority of the electrical and hydraulic components of the lift truck, including the power section and lift motor and pump. For the location of specific components, See “Component locator Photos” on page7-5.

Publication Number: 1043922B, Revised: 2 Sept 2015

Section 3.Systems Overview

General Information

Configuration

The vehicle configuration code is included in the serial number of the lift truck. The configuration code allows you to easily determine performance and height.

Model 5200 High-Level Orderpicker

Code Cross Reference Model # Traction/Lift Configuration

OACH 88.5 - 147 in., El. Hgt. 123 - 241in.

OACH 88.5 - 107 in., El. Hgt. 189 - 240 in.

Battery Specifications

*Maximum amps 1085 with UL label Type “E” or UL label Type “EE”

UL note 583 specifies that a battery should have no more than 0.5 in. (13 mm) movement in any horizontal direction.

Fluid Capacities

Drive Unit Hydraulic Reservoir 0.5 gal. (1.9 liters) Fill to the middle line on the tank, Approx 7 to 8 gal. (26.5 to 30.28 liters).

Refer to “Lubrication Specification Chart” on pageA-2.

Publication Number: 1043922B, Revised: 2 Sept 2015

Installation

Installation procedures must be performed by a Raymond Certified Sales and Service Technician to ensure warranty coverage. During installation, a visual and functional inspection must be performed. Refer to the OPR Lift Truck Installation Guide, P/N 1169845.
