Model 4700 Maintenance Manual

Section 7.Component Procedures

Electrical Components Wiring and Harness Connectors

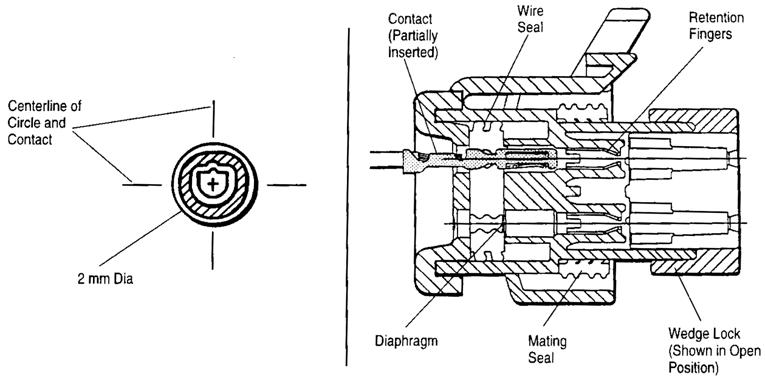

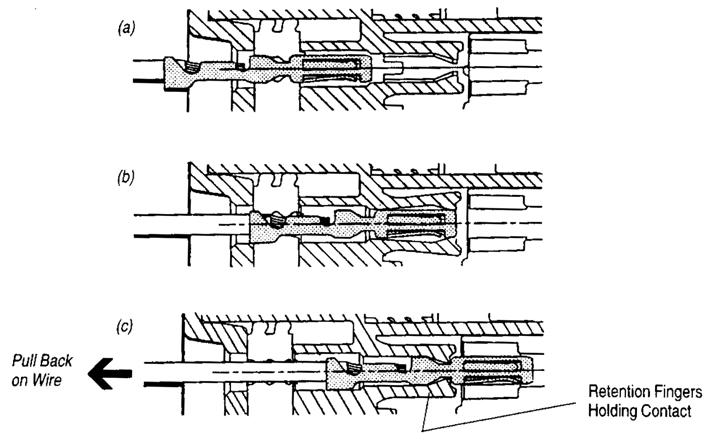

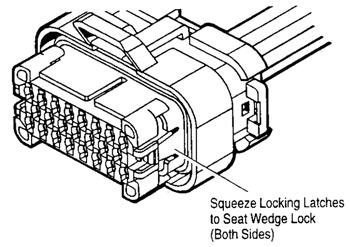

3.After all contacts have been inserted, the wedge lock must be closed to its locked position. Release the locking latches by squeezing them inward. See Figure7-56.

Be very careful when putting the wedge lock in the locked position. Forcing the wedge lock can cause damage to the connector. Make sure the wedge lock is aligned correctly. If resistance is felt, slightly adjust the wedge lock until it slides in freely.

4.Slide the wedge lock into the housing until it is flush with the housing. See Figure7-57.

Publication 1160093, Issued: 20 May 2013 7-47
