RAYMOND SERVICE INFORMATION

The Raymond Corporation Corporate Headquarters

P O Box 130

Greene, New York 13778 -0130

SUBJECT: Parking Brake Adjustment

GENERAL INFORMATION: There is no procedure for adjusting the parking brake in the maintenance manual.

SERVICE INFORMATION: Use the following procedures when checking and adjusting the parking brake. Check

WARNING

Use extreme care whenever the truck is jacked up for any reason. Never block the truck between the telescopic and the floor. Use a suitable hoist to stabilize the mast. Keep hands and feet clear from beneath vehicle while jacking. Use jack stands or solid blocks to support truck. Do not rely on the jack alone. See “Jacking Safety” on page 2 -8.

With the traction tires jacked up off the floor, engage the parking brake lever three clicks. Verify brake resistance on both drive tires. Adjust if necessary.

Adjustment

1.Check condition of parking brake cables.

2.Refer to the following figures . Adjust the cable so that, with the traction tire of the floor: the first and second click present on the third and fourth click, however, rotation is still possible not be turned by hand on the fifth click

SERVICE INFORMATION:

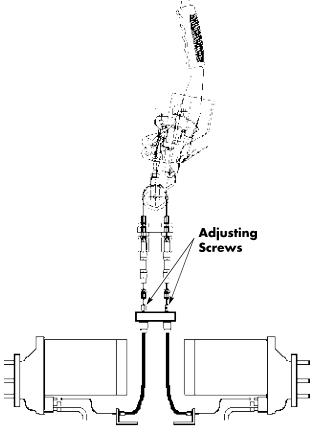

Dual Traction Motor Trucks

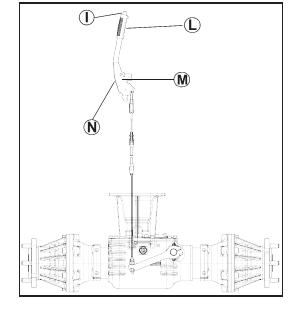

Single Traction Motor Trucks

PARTS AVAILABILITY: N/A

FILING INSTRUCTIONS: File this notice in Maintenance Manual1160093A next to page 7 -34 and make a note on page 4-4 and 7 -2.
