Section 3.Systems Overview Model 4700 Maintenance Manual

General

General

This lift truck can be configured to operate with a 36V or 48V battery. Operator input/command signals are communicated to various electronic components via a CAN-Bus network. Pressure for lift, tilt, sideshift, and steering is provided by a hydraulic pump driven by an AC motor. The pump motor is controlled by an AC power amplifier (PPA).

Dual Traction Motor Trucks - Two independent AC motor/drive unit assemblies provide traction via a dual AC power amplifier (TPA). A multiple disc, oil bath type brake system is located internal to the drive units.

Single Traction Motor Trucks - An AC motor coupled to a differential type drive unit provides traction via an AC power amplifier (TPA). Trucks below S/N 10677 use automotive type drum brakes located on the drive wheels. Trucks 10677 and up use a multiple disc, oil bath type brake system located internal to the drive unit.

Model Designations

Refer to Table3-1 for model specific system configuration information.

Table 3-1.Model Designations

Model System Configuration

C30Dual traction motor; 3000 lb. capacity

C40Dual traction motor; 4000 lb. capacity

C50HM Dual traction motor; 5000 lb. capacity High Maneuverability (smaller turning radius)

C50 Single traction motor; 5000 lb. capacity Standard lift (450A AC2 PPA )

C50HP Single traction motor; 5000 lb. capacity

C50 L or SL

Serial Number Designations

The truck serial number consists of a three-digit model abbreviation, two-digit year of manufacture, two letter configuration code, and five-digit serial number.

Example: 470-12-xx12345

The two letter configuration codes (xx) are designated as follows:

•SM = Single (traction) Motor

•DM = Dual (traction) Motor

•HM = High Maneuverability (dual traction motor)

•L or SL = Single traction motor, Long chas sis

NOTE : The mast designation is not an indicator of the truck’s chassis or drive system.

High Performance lift (600A AC3 PPA )

Single traction motor; 5000 lb. capacity Long chassis (allows less down rating at height )

C60Single traction motor; 6000 lb. capacity

Publication 1160093, Issued: 20 May 2013

Lift Truck Specifications

This lift truck is rated for performance by load center and load weight. Review the specification plate, located on the lift truck’s dash panel to the right of the steering column, for detailed load capacity and load center information.

Due to continuous product enhancement, specifications are subject to change without notice or obligation.

Approximate weight of lift truck with battery installed, minus load and operator

Approximate weight of lift truck minus battery, load, and operator

Maximum load capacity for this lift truck

Publication 1160093, Issued: 20 May 2013

Section 3.Systems Overview

Model 4700 Maintenance Manual

Controls

Controls 3-4

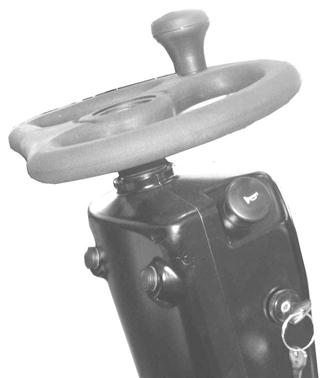

Steering Wheel

Directional Lever

Horn Switch

Key Switch

Performance Reduction Switch

EPO Switch

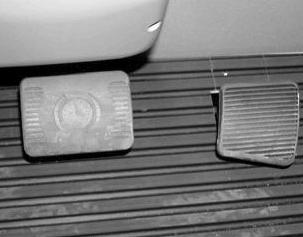

Accelerator Pedal

Performance Mode Select Switch

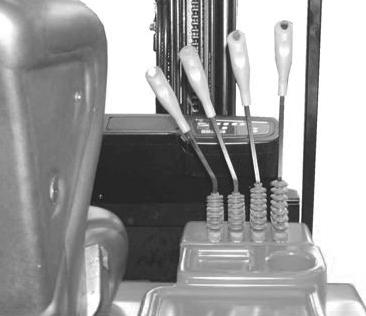

Hydraulic Function Levers

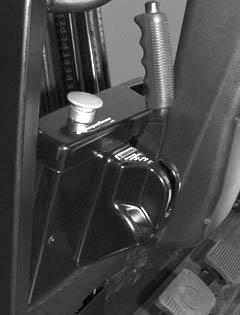

Parking Brake Lever

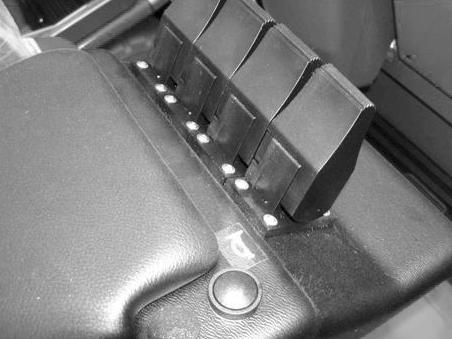

Hydraulic Function Fingertip Controls with additional horn switch (optional)

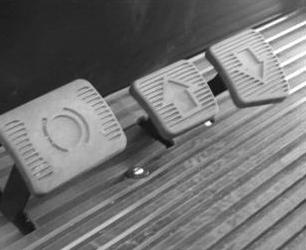

Forward/Reverse Accelerator pedals (optional)

Publication 1160093, Issued: 20 May 2013

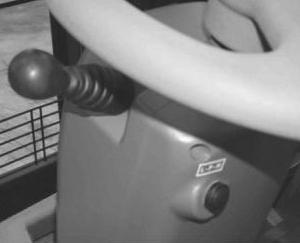

Performance Modes (L•P•H)

Three selectable performance parameters, L, P, and H, are configured for travel and lift speed, acceleration, and hydraulic flow for attachments.

L = low performance

P = medium performance

H = high performance

These parameters are set at the factory such that H will be maximum speed, L will be slower, and P will be an intermediate speed.

These parameters can be set to meet specific application requirements via FlashWare.

NOTE : This feature is not available on EE rated trucks.

Performance Reduction

The performance reduction (turtle) mode reduces the performance parameters in the L, P, and H settings. Turtle mode performance is also configurable via FlashWare.
