Engine Service Specifications

Oil Level check interval................................................................Every 10 hours of operation or each day, whichever occurs first. Oil Change interval....................................................Every 250 hours of operation if used CG-4 engine oil or every 500 hours of operation if used CH-4 engine oil. Oil filter change interval.............................................Every 250 hours of operation if used CG-4 engine oil or every 500 hours of operation if used CH-4 engine oil or once a year whichever occurs first. Oil type................................................................................................................See Fluids and Lubricants Oil Capacity - with filter change........................................................................18.5 liters (4.7 U.S. Gallons)

Engine Oil Level

Tocheck the engine oil level put the machine on a level surface and stop the engine. Remove engine oil dipstick and wipe clean with a cloth. Replace dipstick in tube and push the engine oil dipstick completely DOWN and then remove. If the oil level is below the ADD mark, add oil to raise the oil level to the FULL mark.

Engine Oil Change and Filter Replacement

Make sure engine is at operating temperature. Shutoff the engine. Remove the drain plug (A) located on the lower right side of the engine crankcase and allow all the oil to drain. Make sure the seal is in good condition and install the drain plug.

1 2

1. ENGINE OIL FILLER 2. ENGINE OIL LEVEL DIPSTICK Remove the oil filter. Carefully clean the gasket seat on the filter. NOTE: The filter’s sealing gasket normally stays attached to the filter gasket seat.

LUBRICATION/FILTERS/FLUIDS

IMPORTANT: Before installing, fill the oil filter with new and clean oil. Before installing the filter, apply also a light film of oil in the area of the filter gasket seal.

IMPORTANT: Tightening the filter with a wrench can damage it, therefore tighten it by hand. Then check if there are leaks around the base when the engine is running. Tighten it more if necessary. The proper torque is completed with 3/4" of a turn after contact by grasping the base with both hands.

1

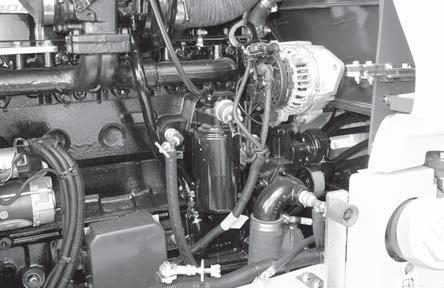

1. ENGINE OIL FILTER

Add specified oil, through the filler neck. Start the engine and keep it running for 15 minutes to fill the filters and lubricate the engine. Check the oil level and top off as necessary. Check if there is any leakage from the filters.

Lubrication Analysis

The normal engine oil change interval is every 500hours of operation or once a year whichever occurs first. Operating conditions, quality of the engine oil and sulphur content of the fuel can change this interval. See your dealer.

IMPORTANT: Never drain oil or remove oil filter while engine is running.

WARNING: Replace all covers or guards after servicing or cleaning the machine. NEVER operate the machine with covers or guards removed.!
