SEAT BELT

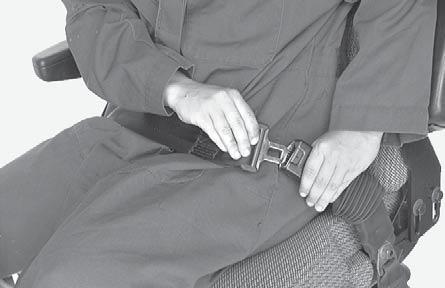

1.Pull belt from holder. Fasten the belt end into the right-hand buckle. NOTE: Make sure the belt end and buckle are securely fastened. Do not pull out the right-hand buckle.

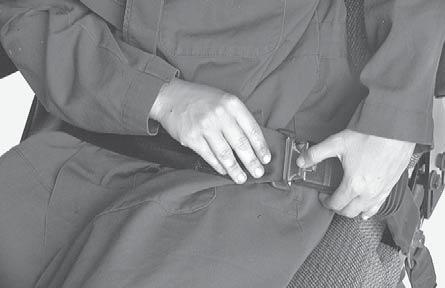

2.To release the seat belt, push the red button on the buckle.

WARNING: Securely fasten your seat belt. Your machine is equipped with a ROPS cab, ROPS canopy or ROPS frame for your protection. The seat belt can help insure your safety if it is used and maintained. Never wear a seat belt loosely or with slack in the belt system. Never wear the belt in a twisted condition or pinched between the seat structural members.

Parking Brake

1

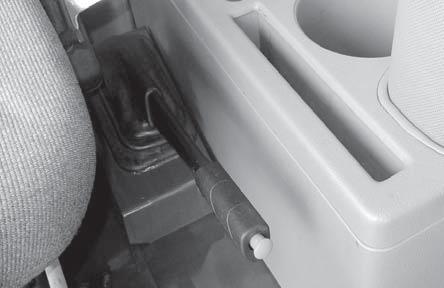

The parking brake is hand operated. When the lever is pulled up, the ratchet teeth allow a partial or full brake application (the lever system permits other actuation positions). Torelease the brake, pull the lever slowly upward, press the lock button (A) and push the lever down.

INSTRUMENTS/CONTROLS

GROUP 5 Cab

The cab provides operator comfort in any ambient condition.

1. DOOR

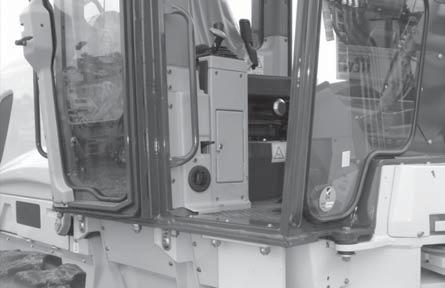

Turning the handle (1), the door opens. To keep the door opened while operating the machine or servicing cab, open the door until it reaches the automatic lock.

Pull lever (2) to release the automatic lock. This lever is located inside the cab, to the operator’s left.

1

2

2. DIFFUSERS/DEFROSTER/AIR CONDITIONER

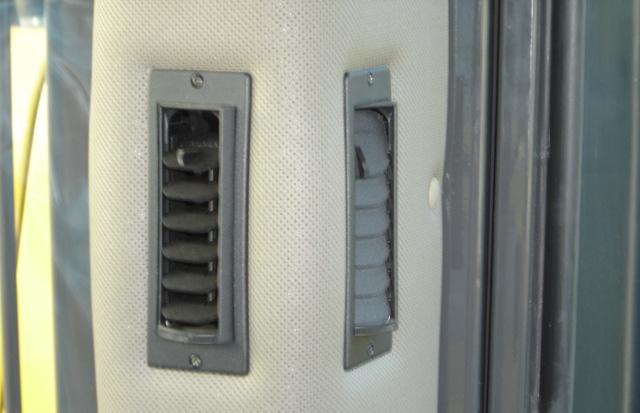

The air deflectors and the fan that are located inside the cab have the function to circulate the air in the cab and to serve also as defrosters for the front and rear windshields.

3. WINDSHIELD WIPER

1. FRONT WINDSHIELD WIPER 2. REAR WINDSHIELD WIPER Tochange the front and rear windshield wiper blades, lift the wiper blade support arm, unlock the wiper blade from the lock pin and remove it. To assemble repeat the process in reverse order.

4. DOME LIGHT

INSTRUMENTS/CONTROLS

1 2

4 3

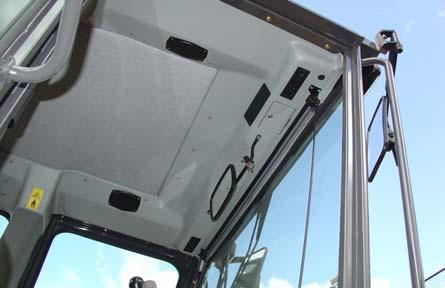

The dome light is found in the cab roof. The fixed light (1) is lit using the switch (2). The movable light (3) is lit using the switch (4).

WARNING: Always check work area to avoid accidents. The following are examples of dangerous work areas: slopes, overhangs, timber, demolitions, fire, high walls, drop offs, backfills, rough terrain, ditches, ridges, excavation, crowded parking lots, heavy traffic and closed areas. Use extreme care when in areas such as these.

Be on the look out for edges, slides or falling objects.

Beware of brush and undergrowth or other obstacles that conceal dangerous conditions.

For night operation keep all the machine mounted lights on. Replace burned out lights immediately.

Always shut-off engine when leaving operator’s seat.

Before moving machine or attachments, be sure people in the area are clear of the unit. Walk completely around the machine before mounting and sound horn.

Do not start suddenly at full throttle against a tow chain or cable. Take up slack carefully.

Be sure exhaust system is free from leaks under the hood. (When operating inside a closed cab, always keep a vent to outside air open at all times)

Avoid applying brakes continuously on long grades. Select the proper gear entering the grade.

Keep engine exhaust manifolds clear of combustible trash. Shut engine off before cleaning it.

Keep people clear of the attachments and tools while they are in a raised position to prevent injury.
