844/642 Telehandler INNER BOOM

Step 6

Step 8

Use a crow-foot wrench with a long extension to reach in and loosen the locking nut on the chain clevis. Once the locking nut is loosened, push the clevis forward and remove both nuts from the clevis. Loosen and remove the two nuts securing the single chain to the inner boom. Do not remove the single chain.

IMPORTANT: If the slide pads are reused, they must be marked as to location and direction (front/rear/top/ bottom) as they are removed. Wire tie the shims with each pad. Slide pads and shims must be reinstalled in their exact original position. Refer to Section 707 of this manual for the correct procedure to install new replacement slide pads.

Step 7

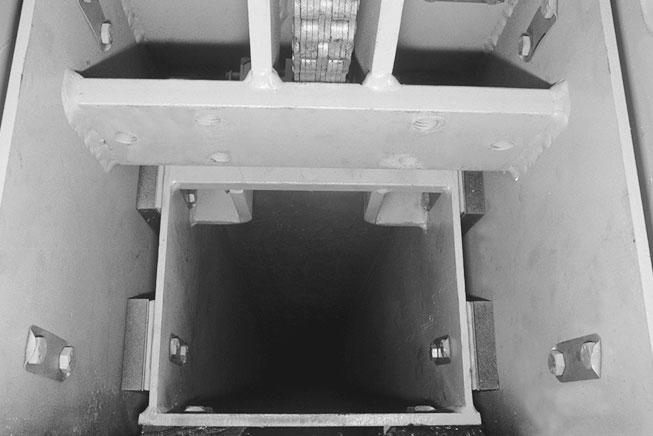

Loosen and remove the bolts (1) and lockplates (2) and remove the two top slide pads and shims (3) and the four side slide pads and shims (4) from the rear of the inner boom.

Mark the hydraulic hoses for correct assembly. Loosen and remove the two hoses from the tube lines connected to the tilt cylinder and the support block supporting the auxiliary hydraulic hoses.

Step 9

Install caps and plugs on all hydraulic fittings to prevent contaminating the hydraulic system.

Step 10

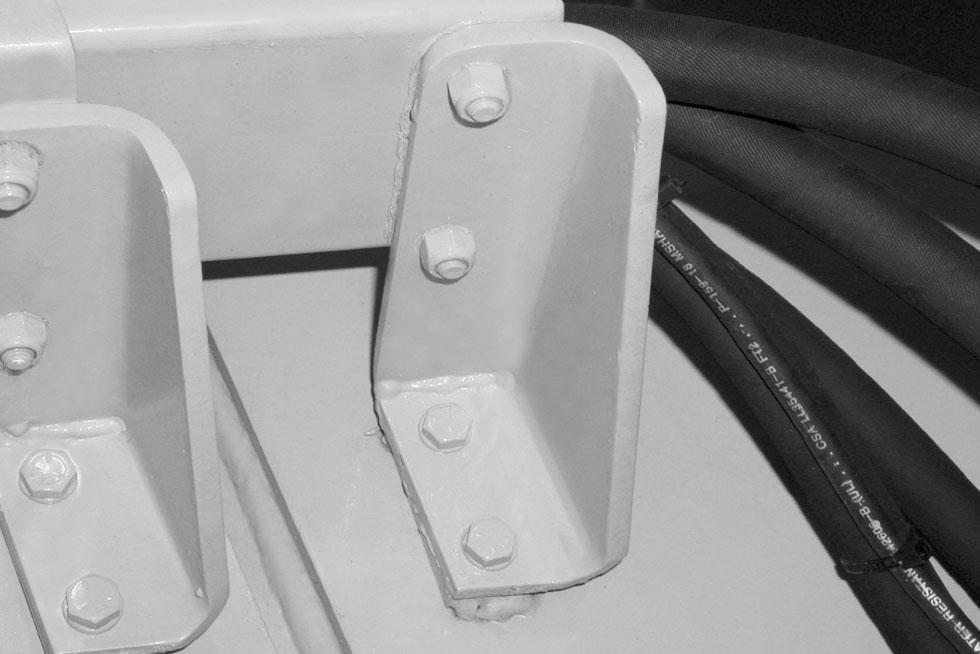

Loosen and remove the nuts and bolts securing the hose tray to the inner boom bracket, and slide the hose tray back.
