844/642 Telehandler STABILIZER CYLINDER

Stabilizer Cylinder Disassembly

STEP 1

STEP 3

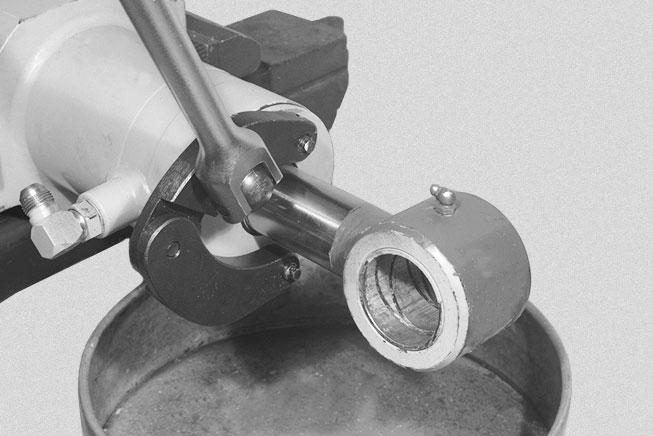

Put the cylinder in a vise with a drain pan under the cross tube gland. Using a spanner wrench, loosen and remove the cross tube gland from the cylinder rod.

STEP 2

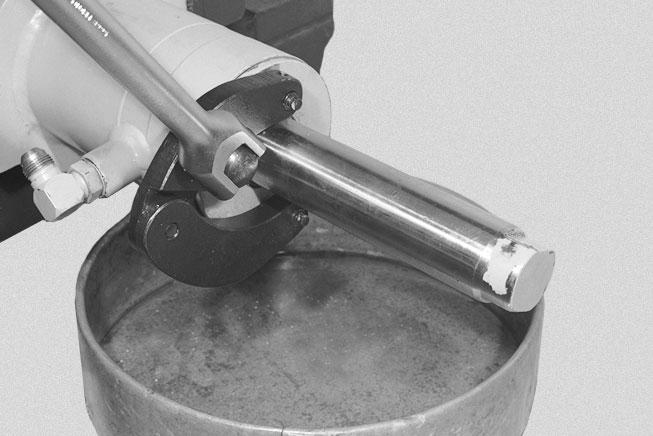

Reposition the cylinder in the vise with a drain pan under the base end gland. Using a spanner wrench, loosen and remove the base end gland from the cylinder barrel.

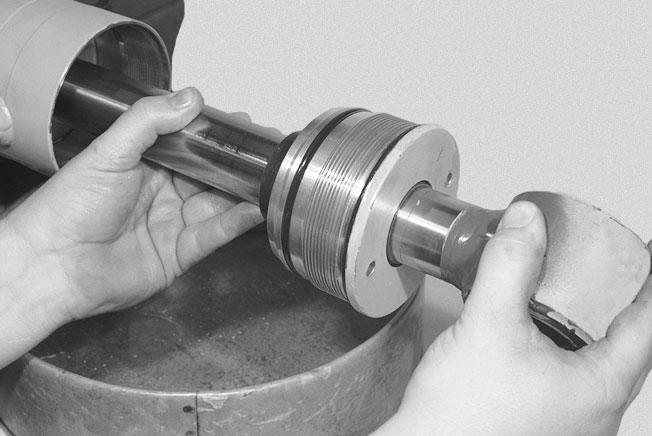

Remove the base end gland and rod assembly from the cylinder.

IMPORTANT: Protect chrome finish on the cylinder rod at all times. Damage to surface of the rod can cause premature seal failure.

STEP 4

Remove the cylinder barrel from the vise.

STEP 5

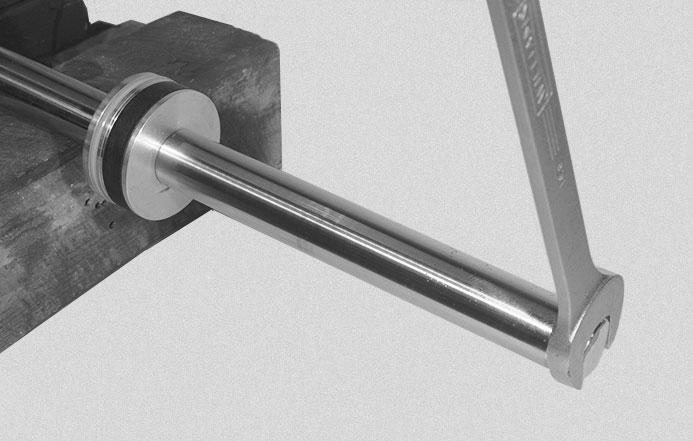

Put the rod assembly in the vise. Support the rod on a wood block.

STEP 6

Loosen and remove the cross tube rod from the base end rod.
