844/642 Telehandler HYDRAULICS

Step 69

Step 71

Start the engine and run at 1000 RPM. Hold the frame leveling joystick in the TILT RIGHT position. The pressure gauge should read 2500 psi (172 bar).

If the pressure is 2500 psi (172 bar), repair or replace the stabilizer cylinder.

If the pressure is less than 2500 psi (172 bar), go to Pump Pressure Test section of this manual.

Step 70

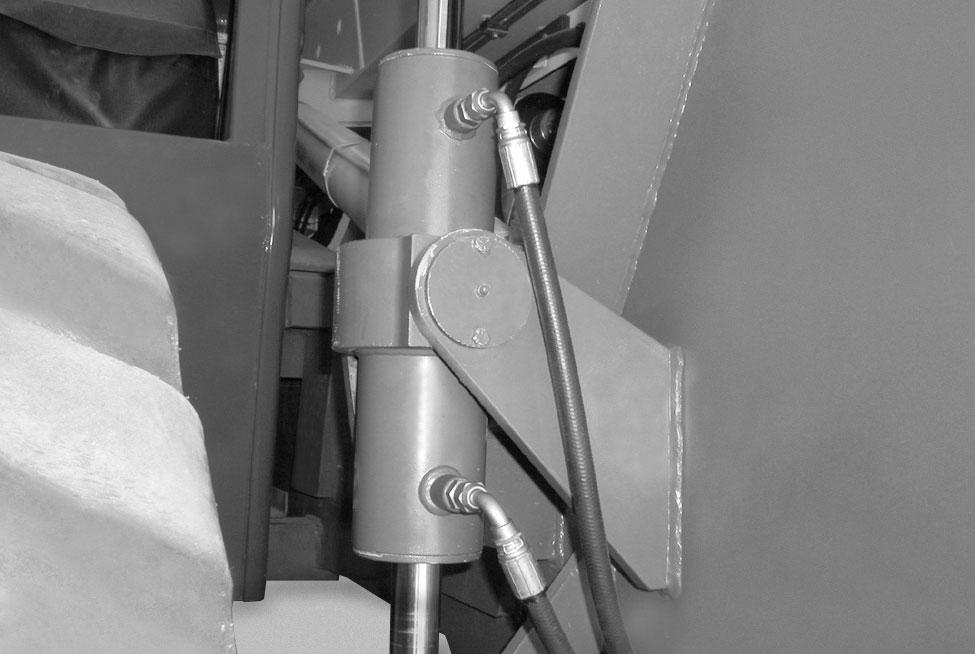

Remove the plugs from the stabilizer cylinder hose ends and the caps from the cylinder port elbow fittings. Install the hoses on the cylinder.

Remove the blocks from under both tilt stops. Start the engine and level the frame.

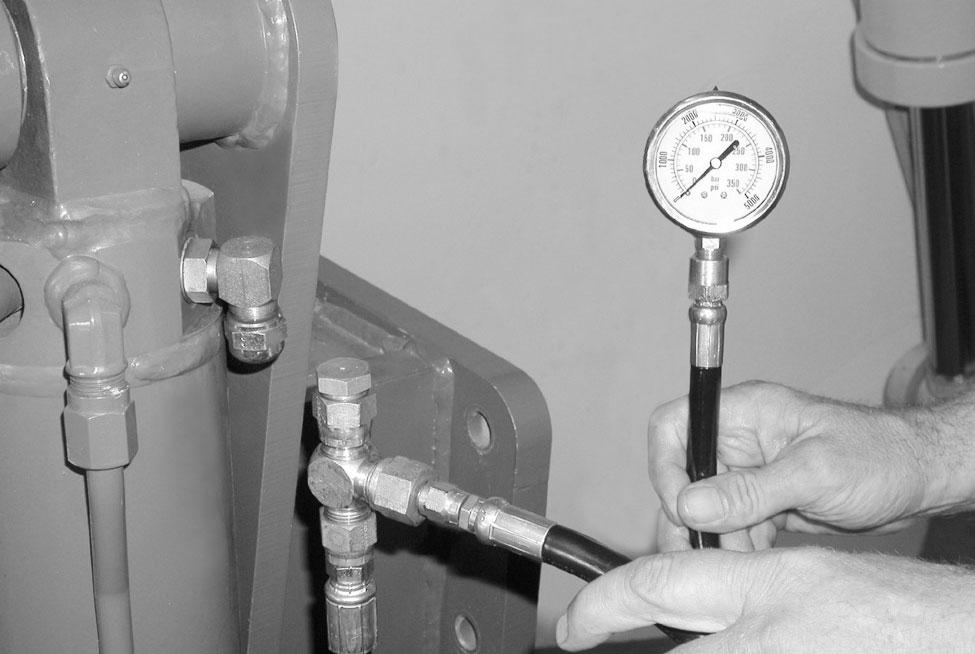

Shut off the engine. Remove the pressure gauge (1) from the frame leveling cylinder hose (2) and install the hose (2) on the cylinder port (3).
