844/642 Telehandler TRANSMISSION

STEP 48

STEP 50

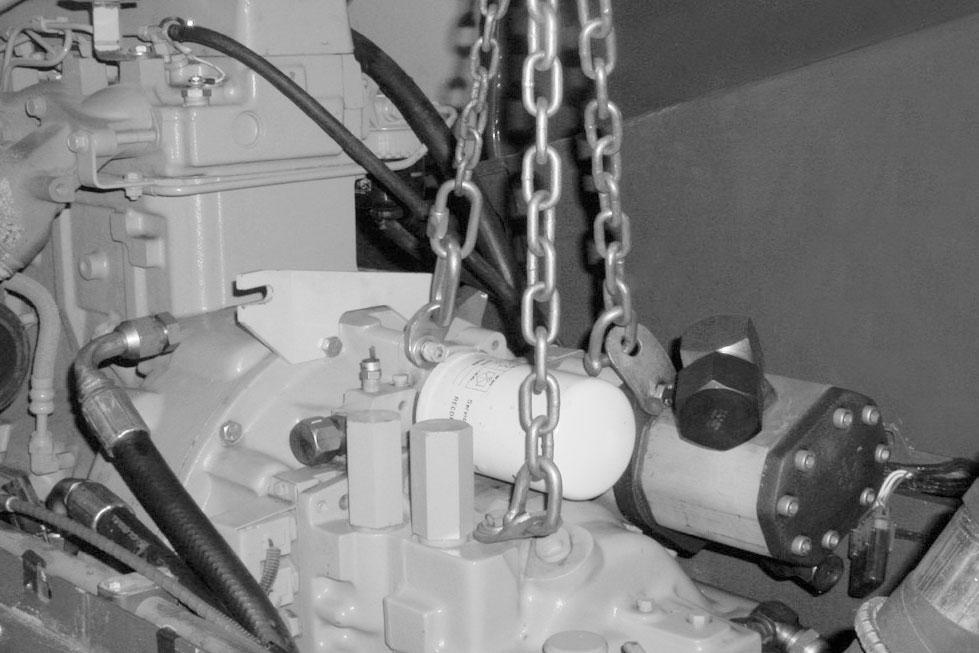

Remove the lifting chain and hoist. Lower and remove the floor jack and blocking from under the bell housing.

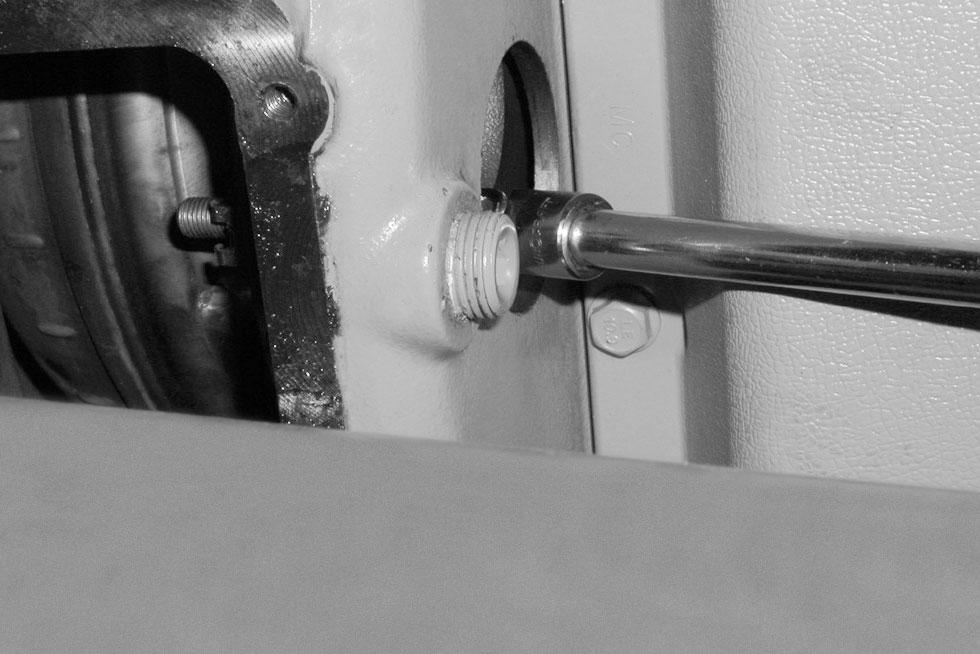

Install the flywheel to flexplate bolt.

NOTE: Do not fully tighten any of the flywheel to flexplate bolts until all eight bolts are installed.

STEP 51

Repeat Steps 50 and 51 until all eight bolts are installed. Tighten the bolts to a torque of 35 to 40 lb.ft (48 to 54 Nm).

STEP 52

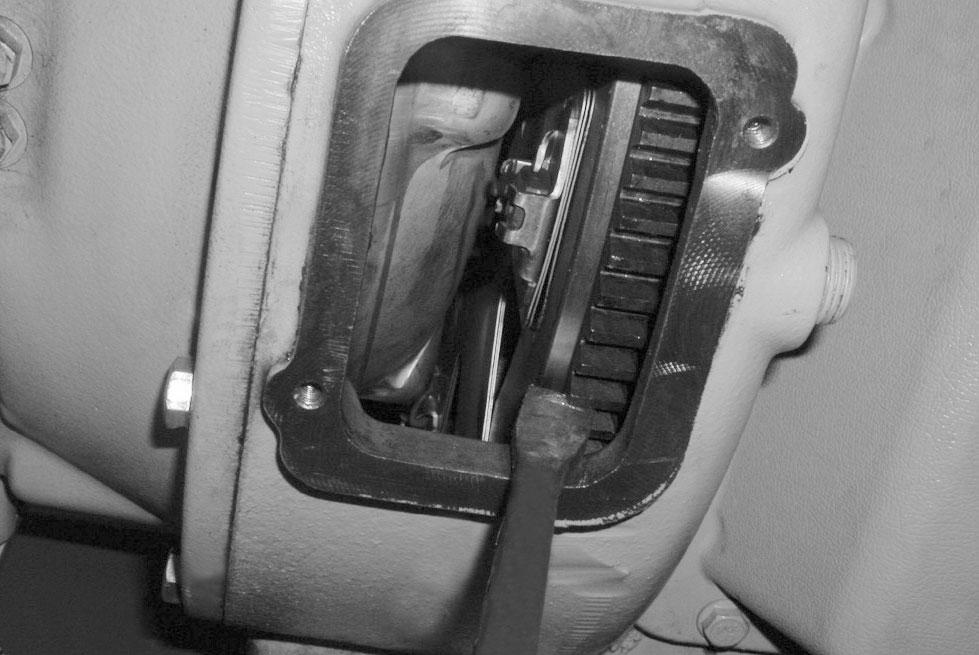

NOTE: The flywheel must be rotated to install the flywheel to flexplate bolts. Rotate the flywheel by inserting a pry bar through the inspection hole in the bottom of the bell housing and into the ring gear.

STEP 49

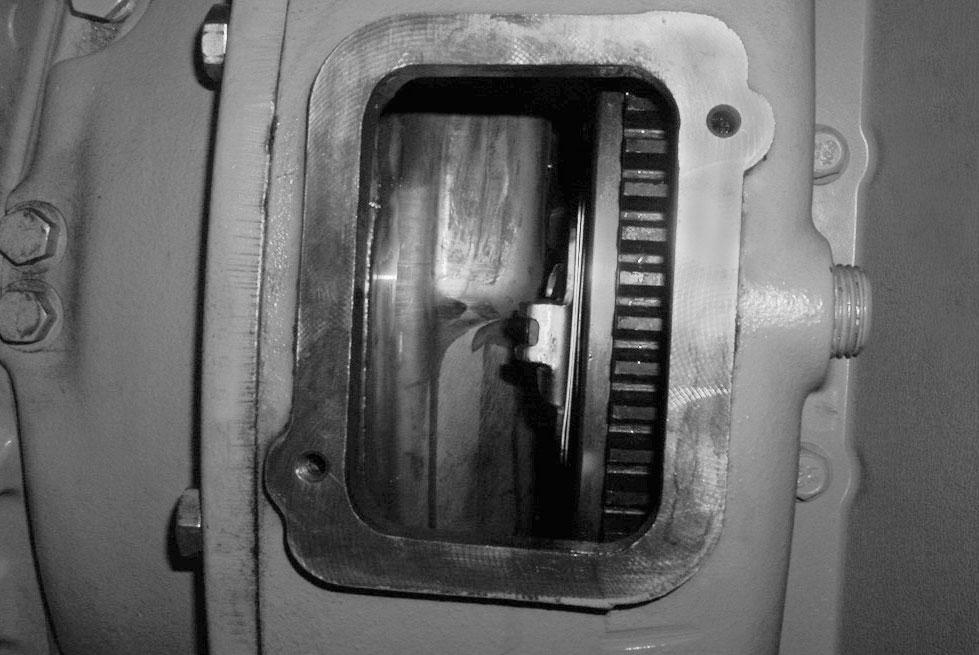

Rotate the flywheel until the bolt hole in the flywheel is approximately at 6 o’clock and aligned with the nut plate on the flexplate.

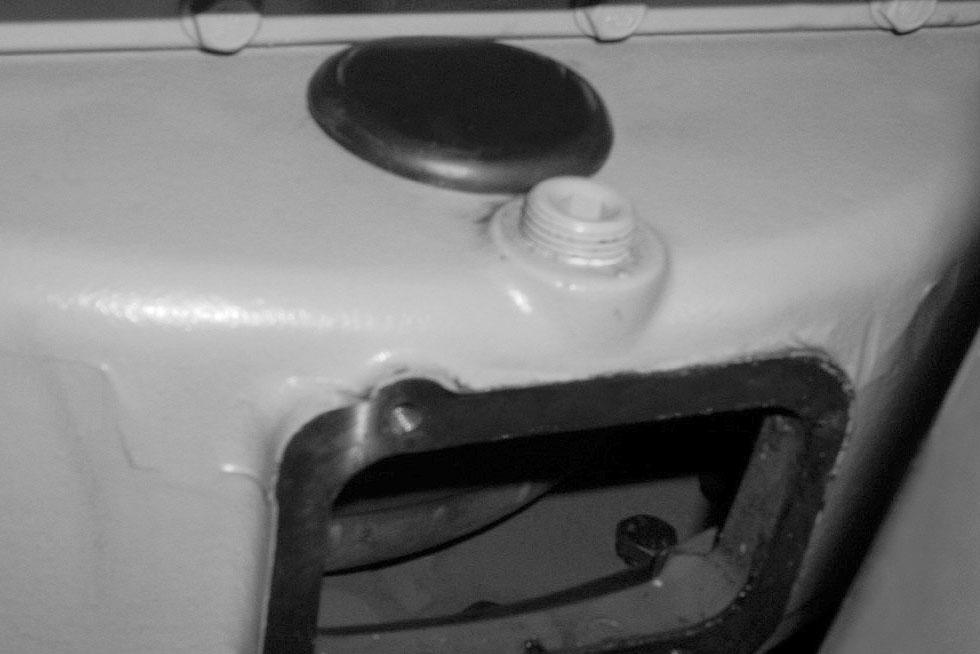

Install the rubber access plug in the front of the bell housing.
