844/642 Telehandler TRANSMISSION

STEP 23

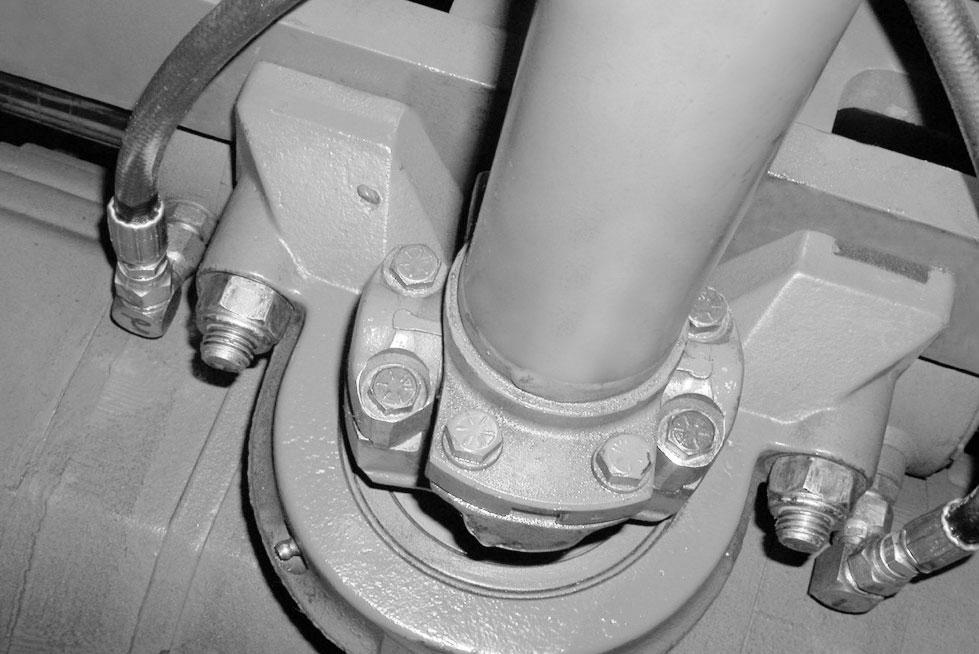

Remove the four bolts securing the front driveshaft to the front axle. Remove the front driveshaft.

STEP 24

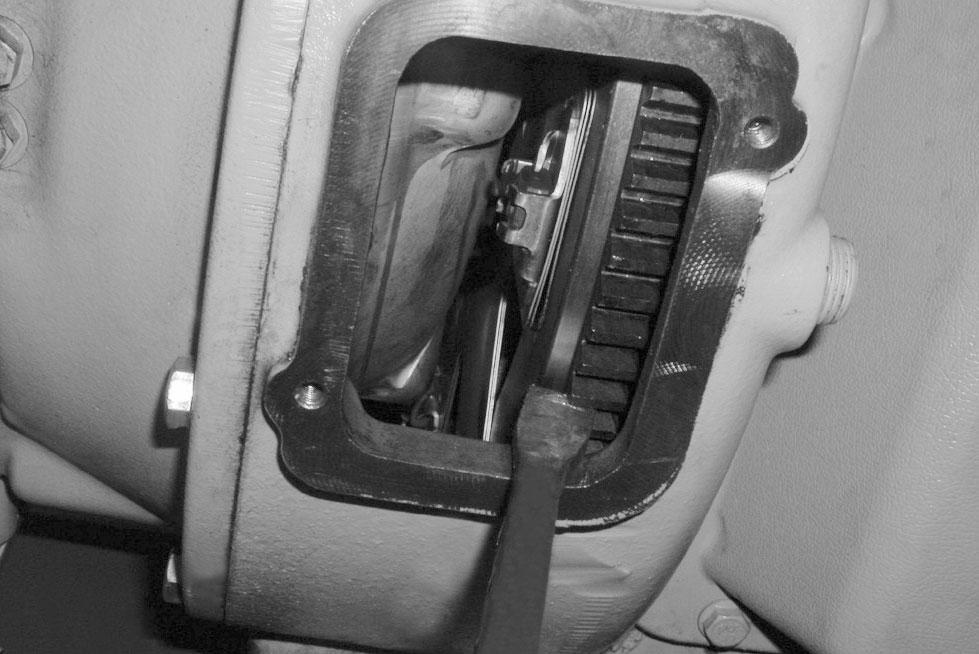

NOTE: The flywheel must be rotated to remove the flywheel to flexplate bolts. Rotate the flywheel by inserting a pry bar through the inspection hole in the bottom of the bell housing and into the ring gear.

STEP 26

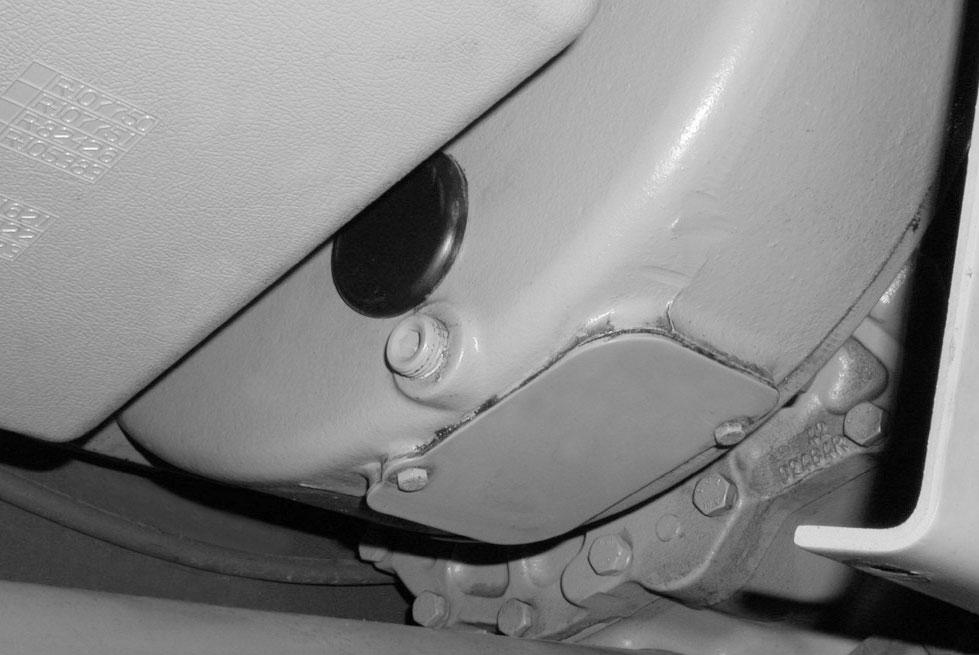

Remove the two bolts (1) and the inspection cover (2) from the bottom of the bell housing.

STEP 25

Remove the rubber access plug from the front of the bell housing.

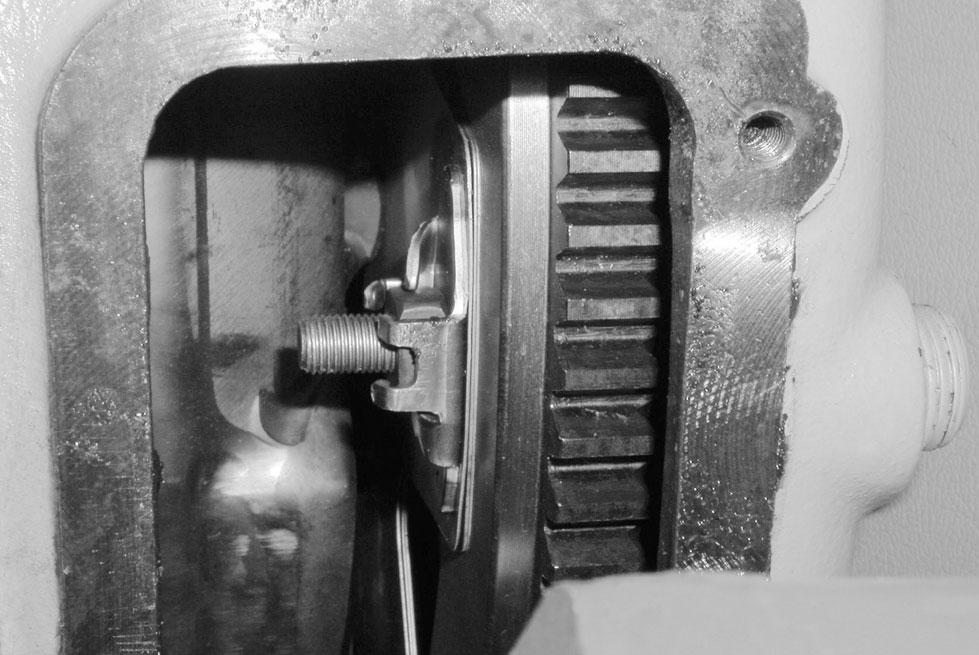

Rotate the flywheel until one of the flexplate bolts are in the 6 o’clock position.

STEP 27

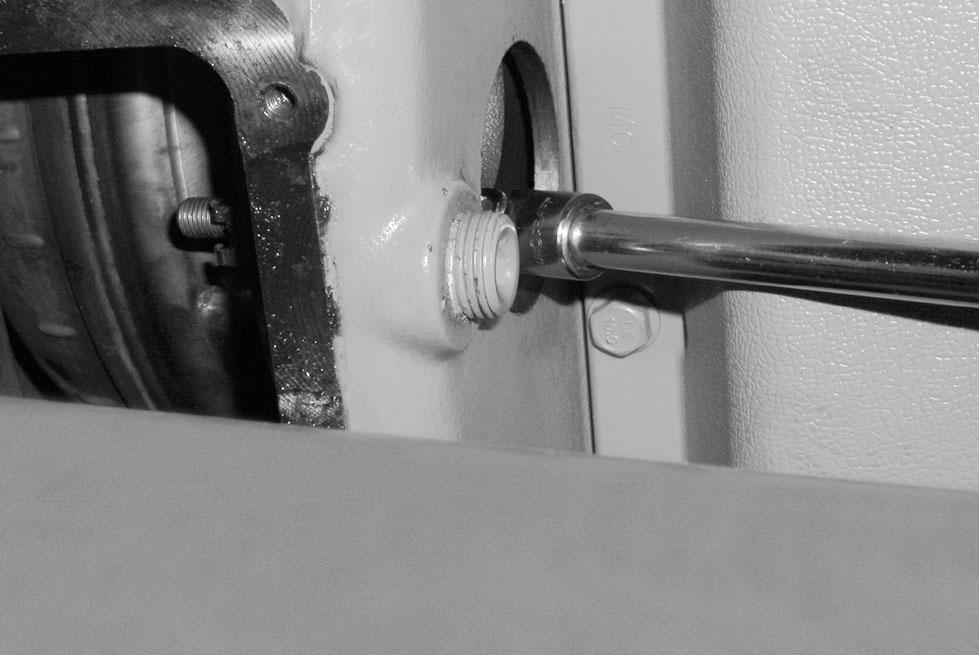

Remove the flywheel to flexplate bolt. Repeat Steps 27 and 28 until all eight bolts are removed.
