15.15.1 Install the plexiglass safety cover to the overhead guard

15.15.1 Install the plexiglass safety cover to the overhead guard

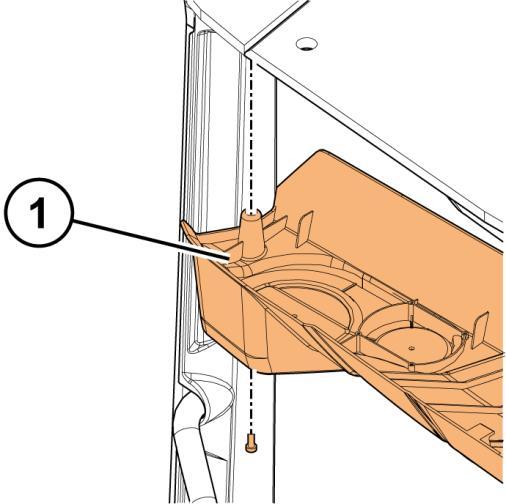

1. Remove the plastic cover under the overhead guard.

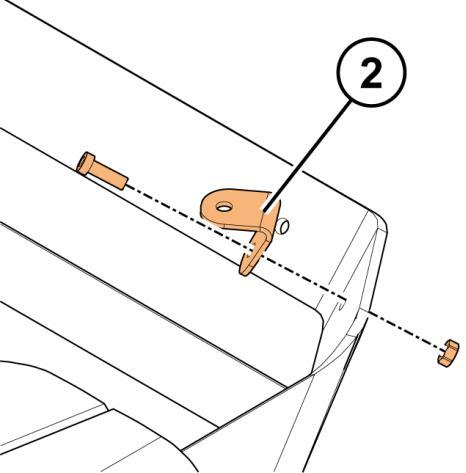

2. Install the two mounting brackets to the overhead guard with screws.

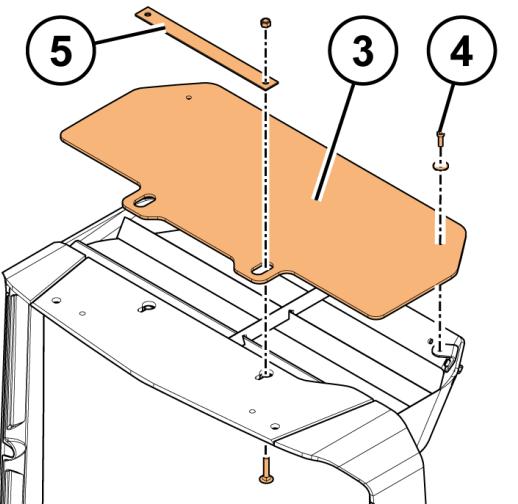

3. Install the plexiglass safety cover on top of the overhead guard. 4. Install and tighten the screws that attach the plexiglass safety cover to the mounting brackets. 5. Install the mounting plate on top of the plexiglass safety cover with screws.

6. Install the plastic cover back under the overhead guard.
