15.23.2 Backrest extension for MSG65/MSG75

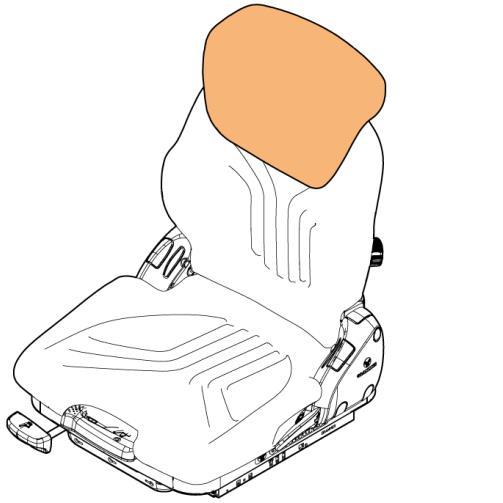

Figure 180. Backrest extension overview
The integrated backrest prevents injuries caused by the poor posture of the truck operator. The height of the backrest can be adapted to the body height. It is adjustable in 13 steps from 475 mm to 645 mm.
15.23.2.1 Backrest extension adjustment
To adjust the backrest extension, lift or lower the backrest extension and leave it in a locking position. To remove the backrest extension, lift it all the way up.
15.23.3 Seat belt for MSG20 seat

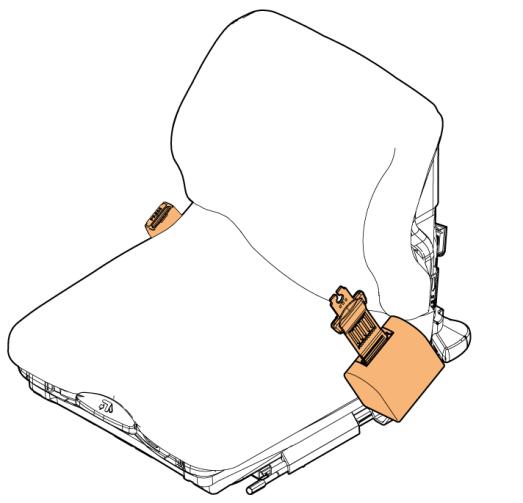

Figure 181. Seat belt overview
The dual sensitive seat belt provides maximum freedom of manoeuvre, yet ensuring that the operator is safely restrained in the seat.
