15.17.1 Install the fire extinguisher

15.17 Fire extinguisher

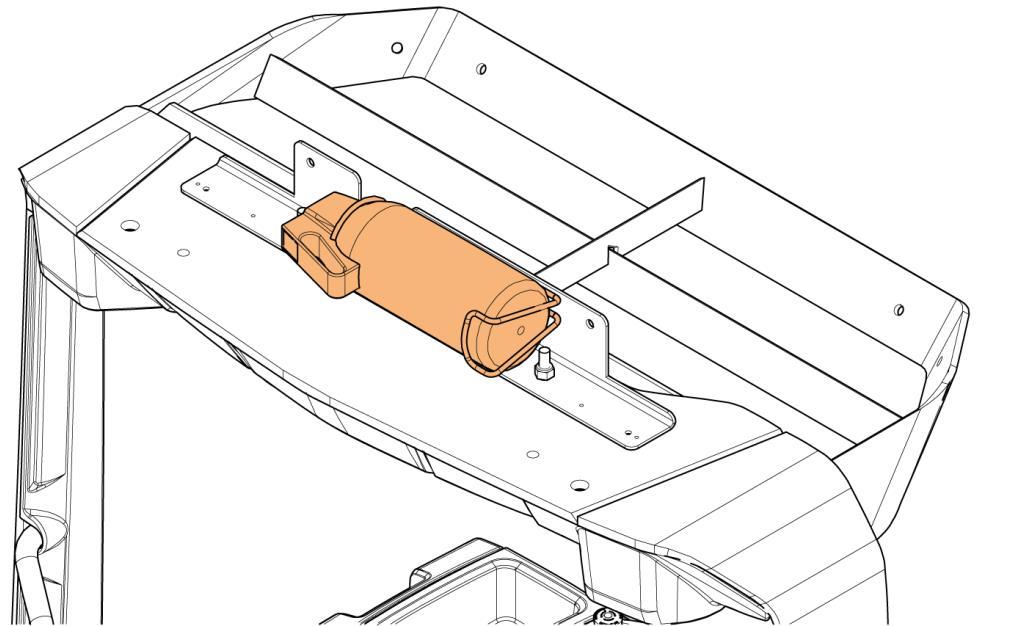

Figure 171. Fire extinguisher overview

In case of a fire in the truck, the fire extinguisher can be used as a preliminary means of putting out the fire.

NOTE: With this option, the height of the overhead guard increases by 100 mm.

15.17.1 Install the fire extinguisher

1. Remove the plastic cover under the overhead guard.

Copyright © 2018 by MCFE. All rights reserved. Revision: A

Document ID: 633560-EN 725 (764)

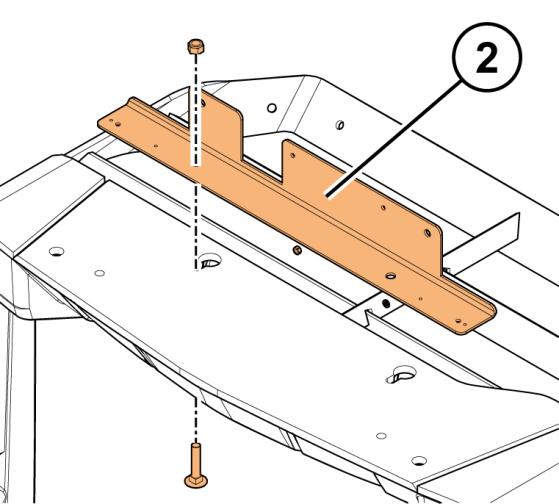

2. Install the accessory rack to the overhead guard with screws.

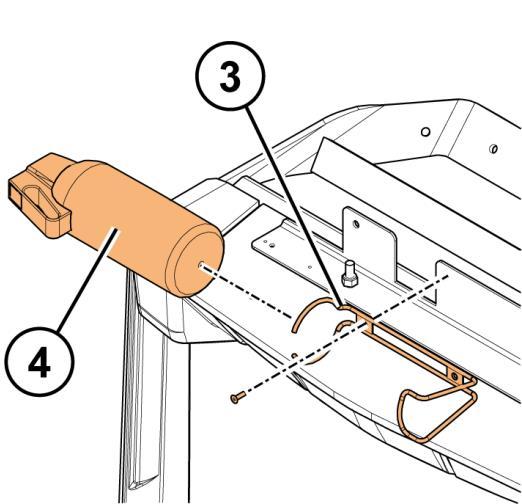

3. Install the fire extinguisher holder to the rack. 4. Attach the fire extinguisher to the fire extinguisher holder.

5. Install the plastic cover back under the overhead guard.

0.

Copyright © 2018 by MCFE. All rights reserved. Revision: A

Document ID: 633560-EN 726 (764)

15.18 DC-DC converter

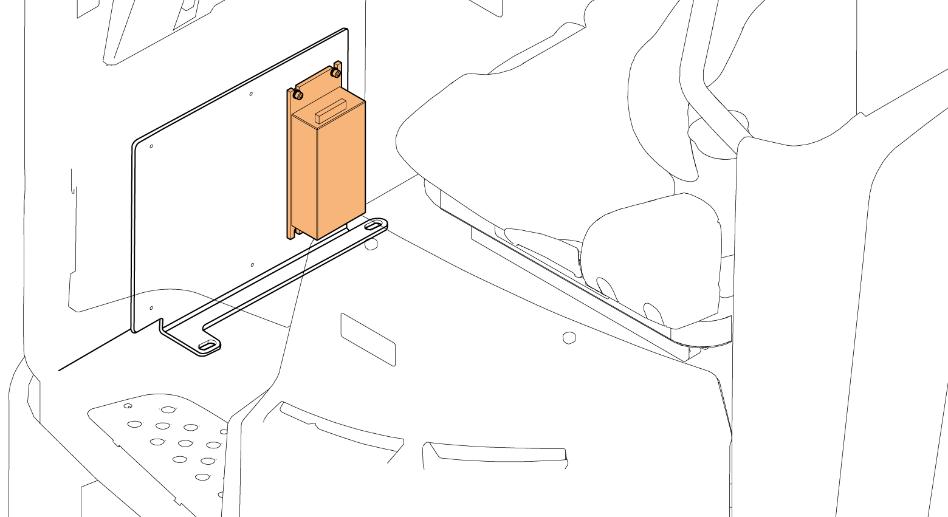

Figure 172. DC-DC converter overview

The DC-DC converter (12 V, 12.5 A) option allows multiple peripherals, such as a computer, a barcode scanner or a sticker printer, to be connected to the electrical system of the truck. You need to have the DC-DC converter option installed for these options:

• Audio system, see Section 15.7. • Reading lamp, see Section 15.6. • Fork camera
