Cleaning and Inspection

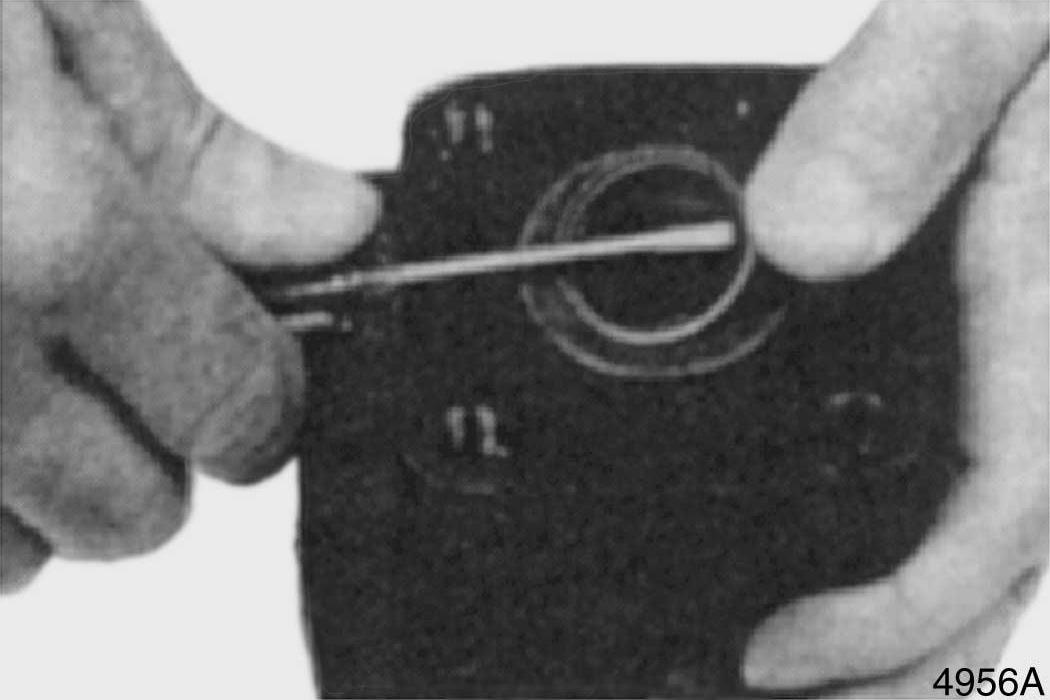

18. Remove dust seal from housing. See

Figure 26. Remove O-ring and backup ring from inside housing.

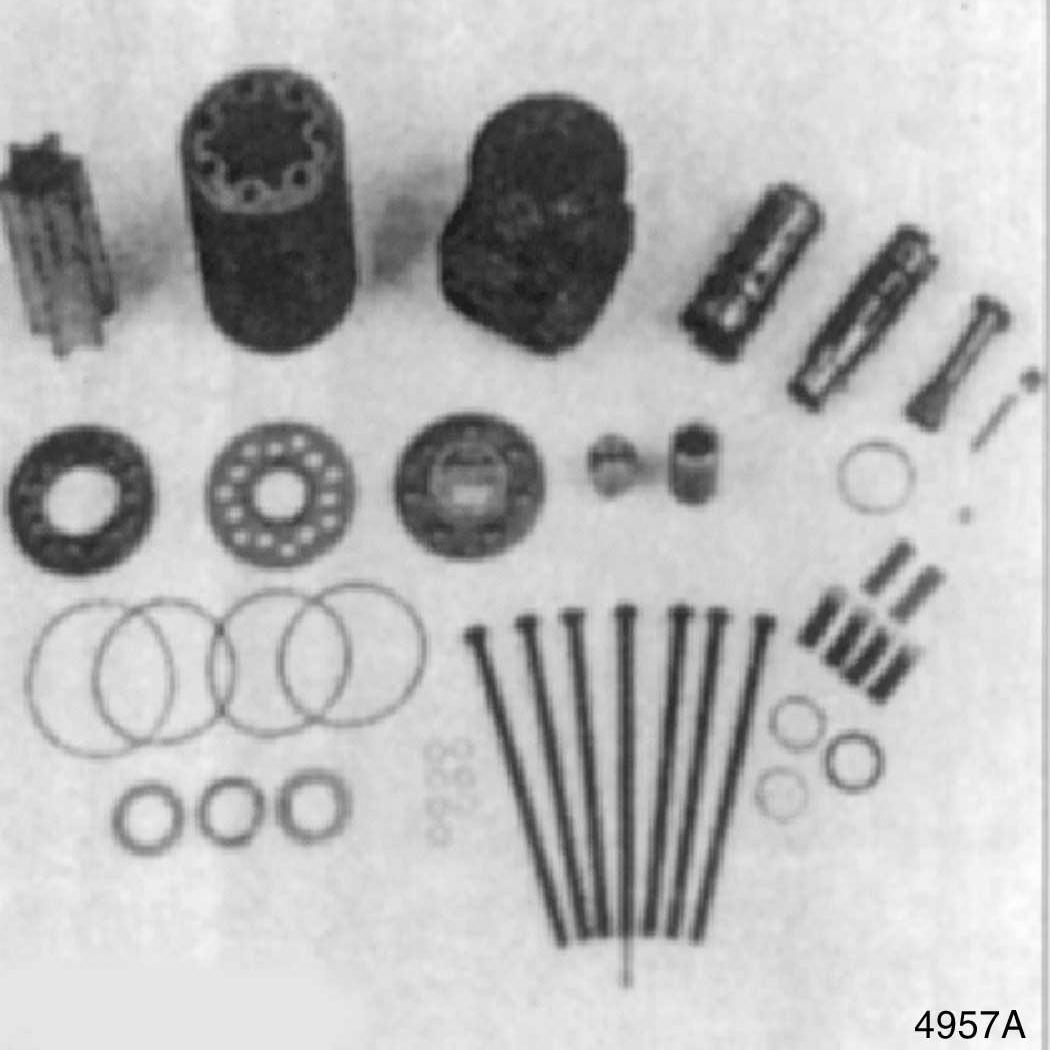

19. Figure 27, shows all parts removed from steering unit. Clean all parts before assembly. Use only new O-rings and seals.

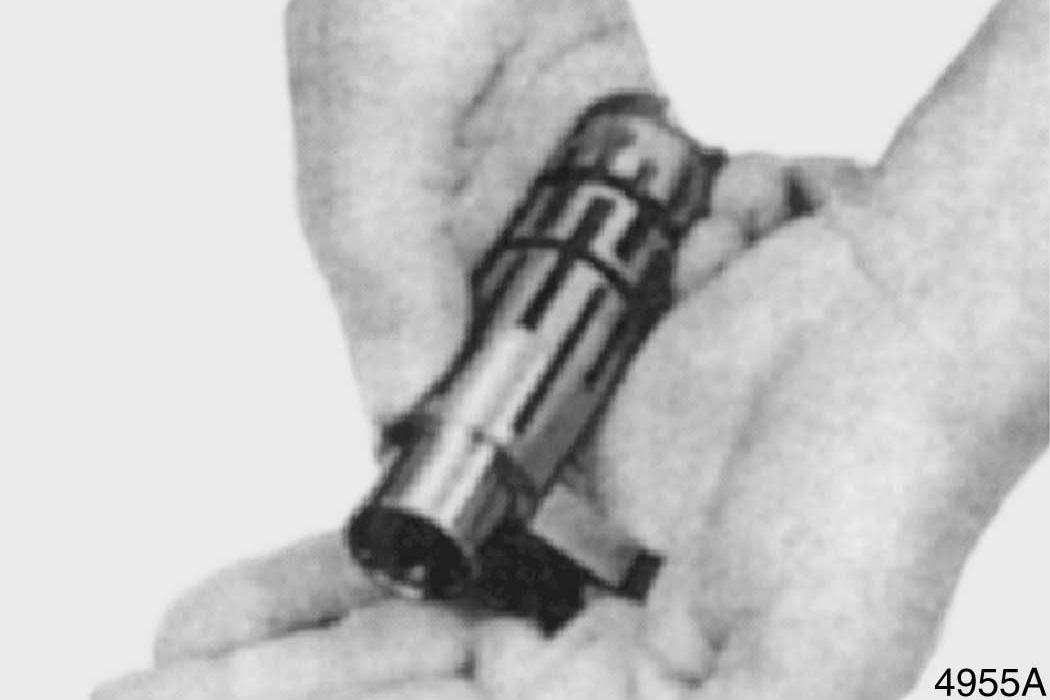

Figure 25

Figure 26

Figure 27

For general cleaning and inspection procedures, refer to "General Maintenance Procedures" section.
