Switching between automatic and manual door operation

M54.00-1807-71

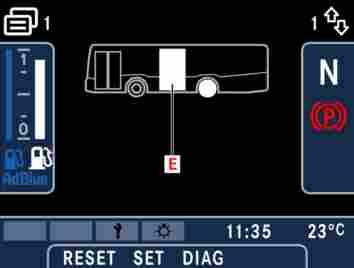

The following appears on the display screen: “Door open” (E) (door 2 in the example).

Note:

If pushbutton (4) is pressed, the red indicator lamps in the pushbutton light up briefly.

Note:

The door closes automatically after a hold-open time of approximately 3 seconds.

Note:

The door can be opened as often as desired as long as switch (1) remains pressed.

Opening/locking

Switching between automatic and manual door operation

The “Stop request” indication display on the display screen goes out.

Switching between automatic and manual door operation

Note:

Precondition: Bus stationary, parking brake applied.

Danger.

Risk of accident. At door 1, switch (5) is used to deactivate the automatic drive-off lock and not to change the door operating mode between automatic and manual.

Opening/locking

Switching between automatic and manual door operation

M72_00-0066-01

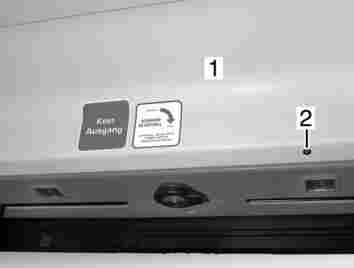

Release (2) and open service cover (1) above the relevant door.

M72_00-0069-01

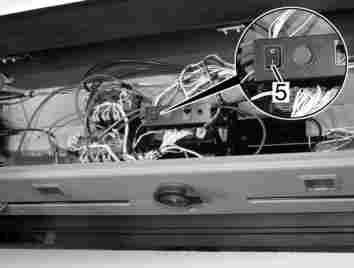

Press switch (5) to position 0.

Automatic operation of relevant door (door 2 or 3) is disabled.

The door cannot be opened by passengers.

M54.00-1800-71

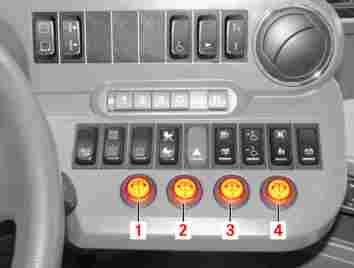

It is possible to operate the door manually using the corresponding pushbutton (2/3) on the instrument panel.
