Opening/locking

Forced door closure in an emergency

Note:

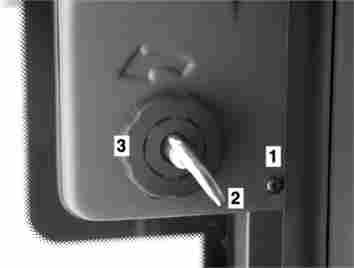

To prevent unauthorised access to the vehicle interior, the doors must be relocked whenever the vehicle is parked. Close the doors: Turn the emergency valve in the opposite direction to the arrow from the emergency position to the drive position.

Note:

The warning functions are deactivated if the corresponding door pushbutton on the instrument panel is pressed and sufficient supply pressure is available.

Forced door closure in an emergency

Note:

Precondition: Bus stationary, parking brake applied, on-board power supply on, electrical system on.

Note:

It may be possible to force a malfunctioning door to close, depending on the cause of malfunction.

Caution:

In the event of a malfunction, have the door system checked immediately at an EvoBus Service Partner.

M72_00-0066-01

Release (2) and open service cover (1) above the relevant door.

M72_00-0068-01

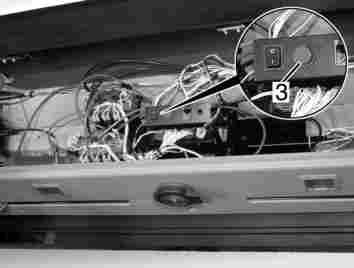

Press and hold workshop pushbutton (3) until the door is closed.

Danger.

Anti-entrapment protection is inoperative if the workshop pushbutton is pressed in an emergency operation.

The door is now forced to close. Opening/locking

Forced door closure in an emergency

M72_00-0066-01

Close and lock (2) service cover (1).

M72_00_0026-01

Lock both door leaves from the inside with square key (2).

Caution:

In the event of a malfunction, have the door system checked immediately at an EvoBus Service Partner.
