Opening/closing automatic doors from the outside

Opening/closing automatic doors from the outside

Note:

Precondition: Electrical system on, all doors unlocked.

Danger.

Open doors increase the risk of accident for passengers. Do not drive the bus unless the doors are properly closed. Use the door enabling switch for the purpose of opening doors only at bus stops and with the bus stationary. Opening/locking

Opening/closing automatic doors from the outside

M54.00-1803-71

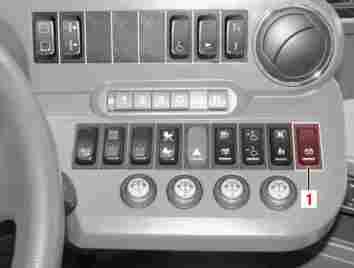

Driver: Press the lower section of switch (1).

M54.00-1805-71

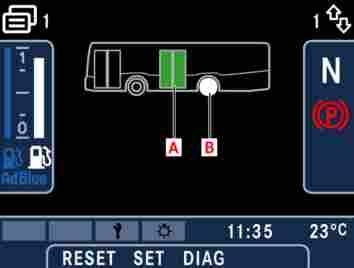

The following appears on the display screen: “Door enabled” (A) (door 2 in the example) and “Drive-off lock active” (B).

Opening/locking

Opening/closing automatic doors from the outside

M72_00-0035-01

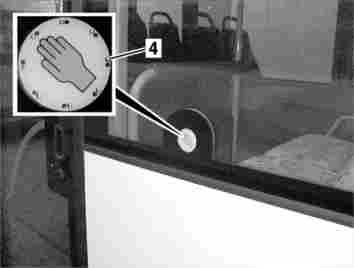

The green indicator lamps in exterior pushbutton (4) light up and exterior “Open door” pushbuttons (4) are activated (see example).

Passenger: Press pushbutton (4).

The door opens.

The indicator lamp in the corresponding door pushbutton in the driver's area lights up.

M54.00-1806-71

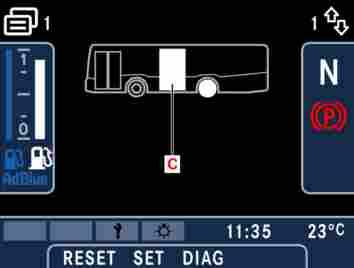

The following appears on the display screen: “Door open” (C) (door 2 in the example).

Note:

The red indicator lamps in the exterior pushbutton light up briefly if exterior “Open door” pushbutton (4) is pressed.

Note:

The door closes automatically after a hold-open time of approximately 3 seconds.

Note:

The door can be opened as often as desired while the “Door enable” pushbutton remains pressed by the driver (1).

The “Stop request” indication display on the display screen goes out.
