Raising the bus above normal level

Raising the bus above normal level

Note:

Precondition: Electrical system on, bus stationary, doors closed, operating pressure > 6.5 bar, red indicator lamp off, lowering/raising with key switch on, level control operational.

Danger.

Risk of accident. Do not exceed the maximum permissible vehicle height when driving with the bus raised above normal level. In Germany, the maximum permissible vehicle height is limited to 4 metres. Observe local statutory regulations in all other countries (especially in the event of cross-border travel).

M54.00-1755-71

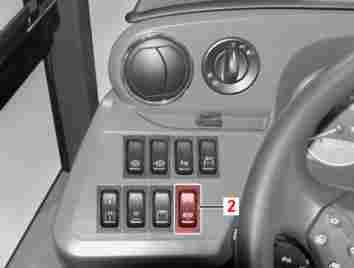

Press the upper section of pushbutton (2) in bus stop mode.

The bus is raised for as long as the pushbutton is pressed.

Note:

Release the pushbutton as soon as the bus has reached the desired height. Driver's area controls

Raising the bus above normal level

M54.00-1753-71

The following appears on the display screen: “Raised level active” (A).

Note:

This function is displayed if the “Bus stop mode” display is active.

Press the upper section of pushbutton (2) in driving mode.

The bus is raised for as long as the pushbutton is pressed.

Driver's area controls

Raising the bus above normal level

M54.00-1756-71

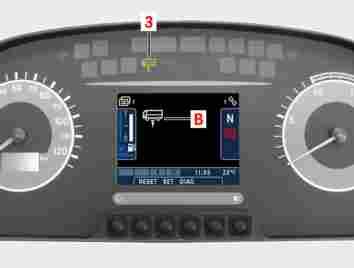

The buzzer sounds briefly. Yellow indicator lamp (3) lights up briefly.

The following appears on the display screen: “Bus raised” (B).

Note:

This function is displayed if the “Driving mode” display is active.

Note:

Release the pushbutton as soon as the bus has reached the desired height.

M54.00-1755-71

Briefly press the lower section of pushbutton (2).

The bus is lowered to the normal level.

The function indicator on the display screen goes out.

Note:

Lowering is cancelled if pushbutton (2) is pressed up during the lowering process.
