Event notifications

ation. The view reverts to the “Doors and flaps” submenu as soon as one of the doors is opened.

Note:

If the driver had selected a different menu before this menu change (e.g. “Driver assistance systems and navigation splitscreen”), the view changes from the “Doors and flaps” submenu to the menu that the driver had selected.

Event notifications Red alert

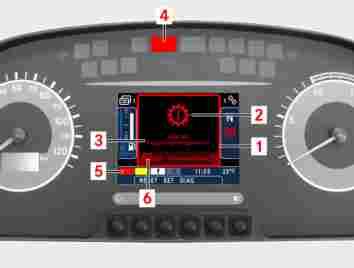

M54.00-1731-71 In the event of a red alert, a pop-up window (1) appears. The pop-up window displays a symbol (2) for the vehicle system concerned and two lines of explanatory text (3) below it. A signal also sounds. In addition, red alert (4) in the instrument cluster and red status indicator (5) on the display screen light up. The driver is able to acknowledge red alerts using the main menu buttons on the steering wheel but not until the vehicle has been brought to a halt and the parking brake has been applied. Pop-up window (1) closes when the alert is acknowledged. For as long as the alert remains active, it continues to be displayed in the “Ereignisse” (Events) menu.

Driver's area controls

Event notifications

Danger.

In the event of a red warning level malfunction, the bus must be stopped immediately (traffic conditions permitting) and an EvoBus Service Partner must be notified.

Driver's area controls

Event notifications

Yellow alert

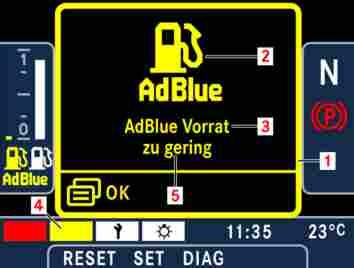

M54.00-1715-71 In the event of a yellow alert, a pop-up window (1) appears. The pop-up window displays a symbol (2) for the vehicle system concerned and two lines of explanatory text (3) below it. In addition, yellow status indicator (4) lights up on the display screen. Each yellow alert has to be acknowledged by the driver manually using main menu buttons (5) on the steering wheel. Pop-up window (1) closes when the alert is acknowledged. For as long as the alert remains active, it continues to be displayed in the “Events” menu.

Caution:

In the event of a yellow warning level malfunction, it is permissible to drive on carefully but the bus should be checked by an EvoBus Service Partner at the earliest opportunity.

Service notification

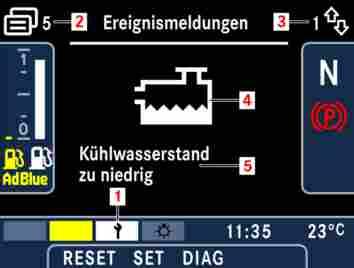

M54.00-1751-71 Service notifications generally inform the driver that service products need to be replenished or wear parts need to be replaced. In the event of a service notification, status indicator (1) on the display screen lights up. To view all service notifications, the driver has to go to main menu 5 (2). An overview of any events that are present is displayed first. Each event notification has its own submenu, which the driver can open using arrow buttons (3) on the steering wheel. A service notification displays symbol (4) for the vehicle system concerned and two lines of explanatory text (5) below it. The event notification is not cleared until the fault has been rectified.
