Instrument cluster
At a glance
Instrument cluster
No. Description Page
23 Master safety switch (emergency-off switch) 24 Failsafe mode emergency switch 25 Steering column adjustment switch 26 Master safety switch 26 Accident data recorder (ADR) switch 27 Drive-off lock emergency release switch 28 Parking brake operating lever 113
Instrument cluster
Danger.
Risk of accident. Stop immediately (traffic conditions permitting) if red warning lamp (6) lights up. The driving and braking characteristics of the bus may change. Notify an EvoBus Service Partner.
Caution:
If yellow warning lamp (7) lights up, it is permissible to drive on carefully but the bus should be checked by an EvoBus Service Partner at the earliest opportunity.
Note:
If a malfunction occurs in the anti-jackknifing system, indicated by the red warning lamp in conjunction with the “Antijackknifing system malfunction” malfunction display, the vehicle will be braked automatically down to a speed of 30 mph (50 km/h).
At a glance
Instrument cluster
At a glance

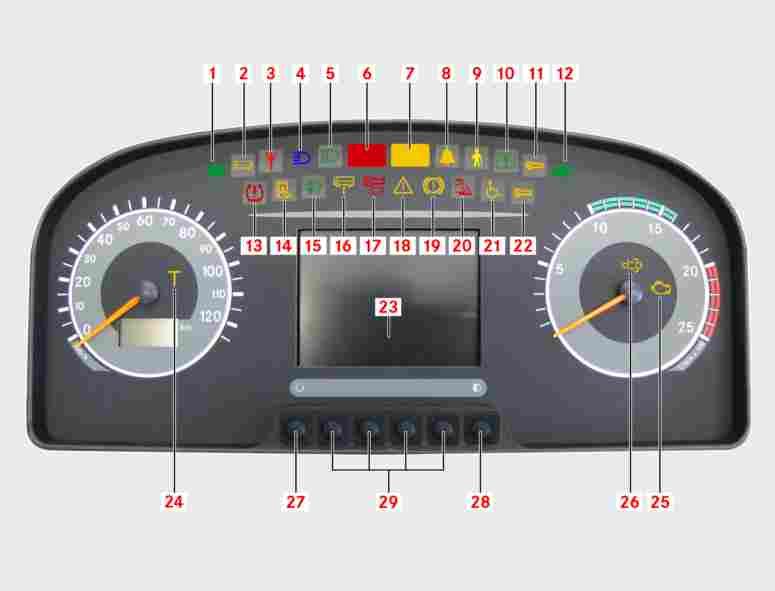

Instrument cluster
No. Description Page
Indicator lamp for the left-hand turn signals Flaps indicator lamp Communications radio indicator lamp Headlamp flasher/ main-beam indicator lamp Dipped-beam indicator lamp Red warning level malfunction lamp No function
8
Stop request 9 Stop request operated 10 Door position indicator lamp
No. Description Page
11 Stop request 12 Indicator lamp for the right-hand turn signals 13 Tyre pressure indicator lamp 14 Ticket-cancelling machine indicator lamp 15 Diesel particulate filter cleaning indicator 16 Level control indicator 17 Bus stop brake indicator 18 ESP indicator lamp 19 Brake system malfunction indicator lamp
At a glance
Instrument cluster
No. Description Page
20 Ramp indicator lamp 21 Ramp request indicator 22 Stop request 23 Screen (display) 24 Tachograph warning lamp 25 Engine malfunction indication lamp (MIL) 26 Exhaust gas cleaning system (SCR system) malfunction display 27 To reset the trip meter 28 Dimmer button 29 Button functions vary with screen display
